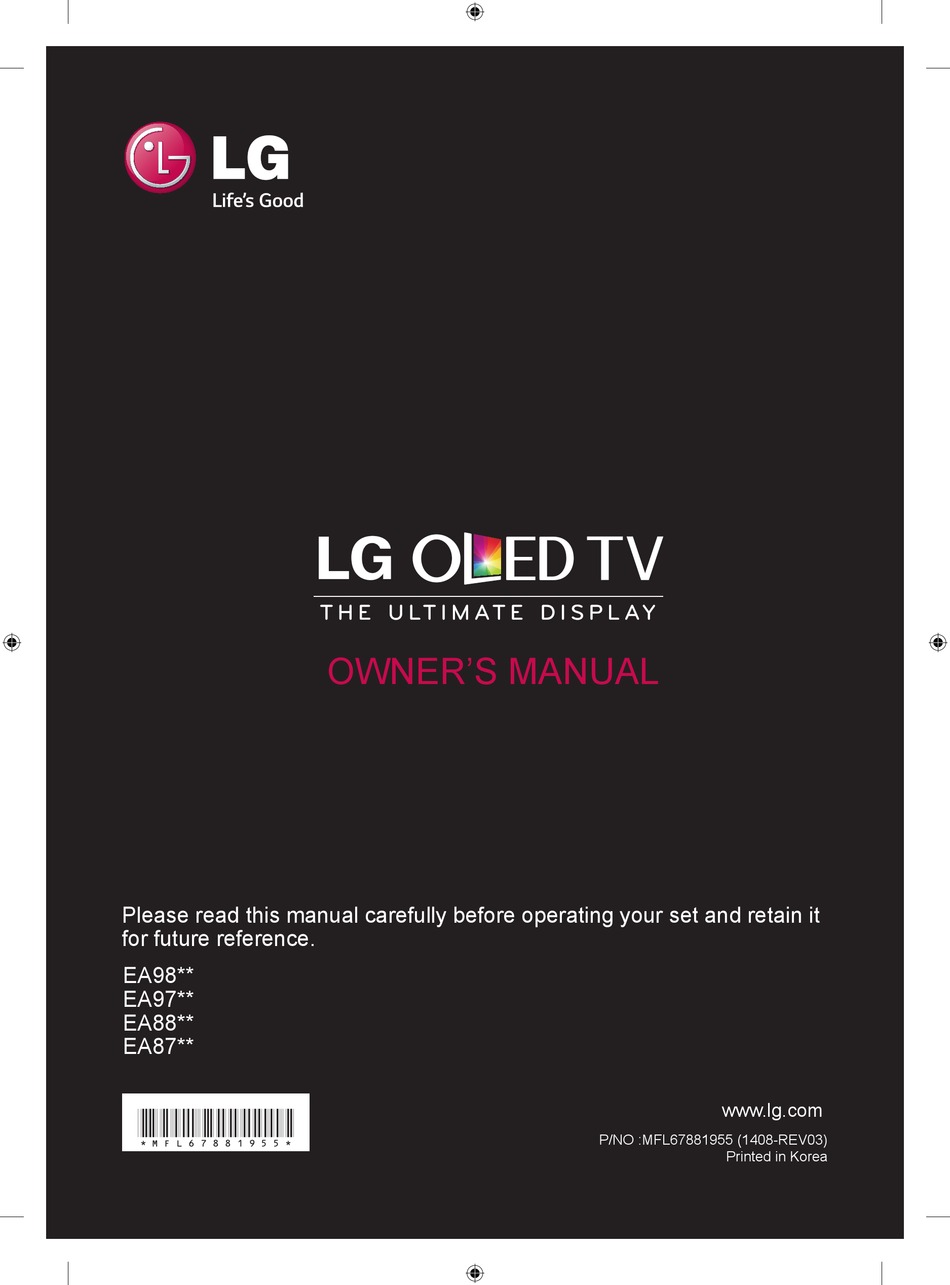

- Page 1 OWNER’S MANUAL Please read this manual carefully before operating your set and retain it for future reference. EA98** EA97** EA88** EA87** www.lg.com *MFL67881955* P/NO :MFL67881955 (1408-REV03) Printed in Korea...
-
Page 2: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS SAFETy INSTRUCTIONS MAINTENANCE - Viewing 3D Imaging (Only 3D models) Cleaning Your TV - Screen, frame, cabinet and stand INSTALLATION PROCEDURE - Power cord TROUBLESHOOTING ASSEMBLING AND PREPARING Unpacking SPECIFICATIONS Separate purchase Parts and buttons Using the Smart Touch Button LICENSES Lifting and moving the TV... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS SAFETy INSTRUCTIONS Please read these safety precautions carefully before using the product. WARNING y Do not place the TV and/or y Insert power cable plug remote control in the following completely into wall socket environments: otherwise if not secured - A location exposed to completely into socket, fire direct sunlight... - Page 4 SAFETY INSTRUCTIONS y Keep the packing anti- y Do not spray water on the moisture material or vinyl product or scrub with an packing out of the reach of inflammable substance children. (thinner or benzene). Fire or Anti-moisture material is electric shock accident can harmful if swallowed.
- Page 5 SAFETY INSTRUCTIONS y Unplug the TV from AC y When installing the antenna, mains wall socket if you do consult with a qualified serv- not intend to use the TV for a ice technician. If not installed long period of time. Accu- by a qualified technician, this mulated dust can cause fire may create a fire hazard or...
- Page 6 SAFETY INSTRUCTIONS y Please follow the installation y Avoid touching the screen or instructions below to prevent holding your finger(s) against the product from overheating. it for long periods of time. - The distance between Doing so may produce some the product and the wall temporary or permanent dis- should be more than...
- Page 7 SAFETY INSTRUCTIONS y Contact the service centre once a year to clean the internal parts of the product. y Refer all servicing to qualified service personnel. Servicing y Displaying a still image (e.g., broadcasting chan- is required when the ap- nel logo, on-screen menu, scene from a video paratus has been damaged game or computer screen) for a prolonged time...
-
Page 8: Viewing 3D Imaging (Only 3D Models)
SAFETY INSTRUCTIONS Viewing 3D Imaging (Only 3D models) WARNING Viewing Environment y Viewing Time - When watching 3D contents, take 5 - 15 minute breaks every hour. Viewing 3D contents for a long period of time may cause headache, dizziness, fatigue or eye strain. Those that have a photosensitive seizure or chronic illness y Some users may experience a seizure or other abnormal symptoms when they are exposed to a flashing light or particular pattern from 3D contents. - Page 9 Cautions when using the 3D glasses y Make sure to use LG 3D glasses. Otherwise, you may not be able to view 3D videos properly. y Do not use 3D glasses instead of your normal glasses, sunglasses or protective goggles.
-
Page 10: Installation Procedure
INSTALLATION PROCEDURE / ASSEMBLING AND PREPARING NOTE y Image shown may differ from your TV. y Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual. y The available menus and options may differ from the input source or product model that you are using. y New features may be added to this TV in the future. - Page 11 ASSEMBLING AND PREPARING EA98**, EA97** BACK SMART /Q.MENU Owner’s manual Remote control, Magic remote control, Cinema 3D glasses batteries (AAA) batteries (AA) The number of 3D glasses The remote control will not (See p.32) may differ depending on the be included for all sales model or country.
- Page 12 ASSEMBLING AND PREPARING EA88**, EA87** BACK SMART /Q.MENU Owner’s manual Remote control, Magic remote control, Cinema 3D glasses batteries (AAA) batteries (AA) The number of 3D glasses The remote control will not (See p.32) may differ depending on the be included for all sales model or country.
- Page 13 ASSEMBLING AND PREPARING NOTE (Only EA88**) y The items supplied with your product may vary depending on the model. y Product specifications or contents of this manual may be changed without prior notice due to upgrade of product functions. How to use the ferrite core Use the ferrite core to reduce the electromagnetic interference in the power cable.
- Page 14 ASSEMBLING AND PREPARING NOTE y Antenna Isolator Installation Guide - Use this to install TV in a place where there is a voltage difference between TV Set and GND of antenna signal. » If there is a voltage difference between TV Set and GND of antenna signal, the antenna contact might be heated and excessive heat might cause an accident.
-
Page 15: Separate Purchase
The model name or design may be changed depending on the upgrade of product functions, manufacturer’s circum- stances or policies. BACK SMART /Q.MENU AN-MR400 AG-F*** AG-F***DP LG Audio device Cinema 3D glasses Dual play glasses Magic remote control Tag On AN-VC5** Tag On Video call camera... -
Page 16: Parts And Buttons
LG Logo Light Remote control sensor Smart Touch Button Speakers (Depending on model) Button Description Turns the power on or off. NOTE y You can set the LG Logo Light to on or off by selecting OPTION in the main menus. -
Page 17: Using The Smart Touch Button
Using the Smart Touch Button To Turn the TV On Gently press the smart touch button just below the LG logo light at the bottom of the TV. To Turn the TV Off If the touch menu is not displayed on the screen, press the smart touch button for about two seconds. -
Page 18: Lifting And Moving The Tv
ASSEMBLING AND PREPARING Lifting and moving the TV y When transporting a large TV, there should be at least 2 people. y When transporting the TV by hand, hold the TV as shown in the following illustration. Please note the following advice to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size. -
Page 19: Assembling The Av Cover
ASSEMBLING AND PREPARING Assembling the AV cover Mounting on a table (Only EA98**, EA97**) (Only EA98**, EA97**) Lift and tilt the TV into its upright position on a table. 1. Please assemble the AV cover as shown. - Leave a 10 cm (minimum) space from the wall for proper ventilation. -
Page 20: Securing The Tv To A Table
ASSEMBLING AND PREPARING Securing the TV to a table 2 To secure the TV to a table, insert and tighten a screw on the rear of the stand. (Depending on model) Fix the TV to a table to prevent from tilting forward, dam- age, and potential injury. -
Page 21: Mounting On A Wall
Do not over tighten the screws as this may cause LG recommends that wall mounting be performed by a damage to the TV and void your warranty. qualified professional installer. y Use the screws and wall mounts that meet the We recommend the use of LG’s wall mount bracket. -
Page 22: Tidying Cables
ASSEMBLING AND PREPARING / VIDEO CALL CAMERA VIDEO CALL CAMERA Tidying cables (Only EA98**, EA97**) Product Handling y Do not let the camera get wet. Liquid getting into the 1 Fix the Cable Management with screw and arrange camera could cause a short circuit. the cables. -
Page 23: Overview
VIDEO CALL CAMERA Overview Attaching the video call camera Unfold the stand and put it on the top center of the TV set. Microphones Lens Microphones Video Call Camera Activity Indicator Bend the stand of the video call camera. Attach the Stand stand of the video call camera to the back of the display with a Velcro tape. -
Page 24: Making Connections
VIDEO CALL CAMERA / MAKING CONNECTIONS MAKING CONNECTIONS Insert the video call camera’s cable into the Stand- Cable holder. Please open the USB Camera Cover for video call camera’s cable connection.The camera shall be connected to the CAM terminal as shown. (Image shown may differ from your TV.) This section on MAKING CONNECTIONS mainly uses diagrams for the EA98** models. -
Page 25: Antenna Connection
MAKING CONNECTIONS Antenna connection HDMI connection Connect the TV to a wall antenna socket with an RF cable Transmits the digital video and audio signals from an (75 Ω). external device to the TV. Connect the external device and the TV with the HDMI cable as shown. Choose any HDMI input port to connect. -
Page 26: Dvi To Hdmi Connection
MAKING CONNECTIONS DVI to HDMI connection Component connection Transmits the digital video signal from an external device Transmits analogue video and audio signals from an to the TV. Connect the external device and the TV with external device to the TV. Connect the external device the DVI-HDMI cable as shown. -
Page 27: Composite Connection
MAKING CONNECTIONS Composite connection Audio connection Transmits analogue video and audio signals from an You may use an external audio system instead of the external device to the TV. Connect the external device built-in speaker. and the TV with a composite gender cable as shown. Digital optical audio connection Transmits a digital audio signal from the TV to an external device. -
Page 28: Canvas Speaker Connection
MAKING CONNECTIONS Canvas speaker connection Headphone connection (Only EA88**) Connect the Canvas speaker and the TV set with the Transmits the headphone signal from the TV to an optical cable as shown. external device. Connect the external device and the TV with the headphone as shown. -
Page 29: Usb Connection
MAKING CONNECTIONS USB connection MHL connection Mobile High-definition Link (MHL) is an interface for Connect a USB storage device such as a USB flash transmitting digital audiovisual signals from mobile memory, external hard drive or a USB phones to television sets. memory card reader to the TV and access the Smart Share menu to use various multimedia files. -
Page 30: Remote Control
REMOTE CONTROL REMOTE CONTROL The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly. To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the ends to the label inside the compartment, and close the battery cover. - Page 31 REMOTE CONTROL (Depending on model) RATIO INPUT (POWER) Turns the TV on or off. SUBTITLE Recalls your preferred subtitle in digital mode. GUIDE .,;@ Q. MENU Accesses the quick menus. GUIDE Shows programme guide. RATIO Resizes an image. INPUT Changes the input source. TV/RAD Selects Radio, TV and DTV programme.
-
Page 32: Magic Remote Control Functions
MAGIC REMOTE CONTROL FUNCTIONS MAGIC REMOTE CONTROL FUNCTIONS When the message "Magic remote control battery is low. Change the battery." is displayed, replace the battery. To replace batteries, open the battery cover, replace batteries (1.5 V AA) matching ends to the label inside the compartment, and close the battery cover. Be sure to point the magic remote control toward the remote control sensor on the TV. -
Page 33: Registering Magic Remote Control
MAGIC REMOTE CONTROL FUNCTIONS Registering Magic Remote Con- trol It is necessary to ‘pair’ (register) the magic remote con- trol to your TV before it will work. How to register the Magic Remote Control BACK HOME 1 To register automatically, turn the TV on and press the Wheel(OK) More button. -
Page 34: Using The User Guide
You can use ꕌ/ꕍto move between pages. Allows to browse the description of the function you want from the index. Provides the detailed information on the functions of LG Smart TV when the Internet is connected. (It may not be available depending on the country/ language.) -
Page 35: Maintenance
MAINTENANCE MAINTENANCE Cleaning your TV Clean your TV regularly to keep the best performance and to extend the product lifespan. CAUTION y Make sure to turn the power off and disconnect the power cord and all other cables first. y When the TV is left unattended and unused for a long time, disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges. -
Page 36: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING Problem Solution Cannot control the TV with y Check the remote control sensor on the product and try again. the remote control. y Check if there is any obstacle between the product and the remote control. y Check if the batteries are still working and properly installed ( No image display and no y Check if the product is turned on. -
Page 37: Specifications
SPECIFICATIONS SPECIFICATIONS Wireless LAN module(TWFM-B006D) specification Standard IEEE802.11a/b/g/n 2400 to 2483.5 MHz Frequency Range 5150 to 5250 MHz 5725 to 5850 MHz (for Non EU) 802.11a: 11 dBm 802.11b: 14 dBm Output Power 802.11g: 10.5 dBm (Max.) 802.11n - 2.4GHz: 11 dBm 802.11n - 5GHz: 12.5 dBm Bluetooth module (BM-LDS401) specification Standard... - Page 38 SPECIFICATIONS Product specifications may be changed without prior notice due to upgrade of product functions. For the power supply and power consumption, refer to the label attached to the product. 55EA98 ** MODEL 55EA9800-TA 55EA980Y-TA Dimensions (W x H x D) (mm) 1227 x 798.5 x 192 Weight (kg) 17.2...
- Page 39 The specifications shown above may be altered without prior notice to improve quality. y This product follows Encoding Camera Specification (SECS) 2.1. NOTE y Video calls through an LG TV cannot be made using the following devices: » ASUS Video Phone Touch SV1TS » ASUS Videophone Touch SV1TW »...
- Page 40 SPECIFICATIONS HDMI/DVI-DTV supported mode Component port connecting information Component ports on the TV Horizontal Vertical Frequency Frequency Resolution (kHz) (Hz) 31.469 59.94 640 x 480 Video output ports on DVD 31.5 player 31.469 59.94 720 x 480 31.5 720 x 576 31.25 Signal Component...
- Page 41 SPECIFICATIONS 3D supported mode y Video, which is input as below media contents is switched into the 3D screen automatically. 3D supported mode automatically Horizontal Vertical Input Signal Playable 3D video format Frequency (kHz) Frequency (Hz) Top & Bottom, 31.469 / 31.5 Side by Side(Half), Side by Side(Full) 640 X 480 62.938 / 63...
- Page 42 SPECIFICATIONS 3D supported mode manually Signal Horizontal Input Vertical Resolution Frequency Playable 3D video format Frequency (Hz) (kHz) HD / SD ATV(CVBS) 2D to 3D, Side by Side(Half), Component HD / SD Top & Bottom 1024 x 768 48.36 1360 x 768 47.71 2D to 3D, Side by Side(Half), Top &...
-
Page 43: Licenses
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping and handling) upon email request to opensource@lge.com. This offer is valid for three (3) years from the date on which you purchased the product. - Page 44 Record the model number and serial number of the TV. (Only DTV) Refer to the label on the back cover and quote this information to your dealer when requiring any service. MODEL SERIAL...
-
Page 45: External Control Device Setup
OWNER’S MANUAL EXTERNAL CONTROL DEVICE SETUP Please read this manual carefully before operating the set and retain it for future reference. www.lg.com... - Page 46 KEY CODES KEY CODES • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) CH +, PR + R/C Button List R/C Button CH -, PR - R/C Button Exit R/C Button Volume + R/C Button PIP(AD) R/C Button...
- Page 47 (TV) (PC) • LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter RS-232C IN which is not made nor provided by LG. (CONTROL & SERVICE) (PC) (TV) • It can be purchased from computer stores that carry accessories for IT support professionals.
- Page 48 EXTERNAL CONTROL DEVICE SETUP (TV) (PC) (TV) (PC) Phone jack Type RS-232C IN • You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and (CONTROL & SERVICE) (PC) (TV) the TV, which is specified in the manual. RS-232C IN (CONTROL &...
- Page 49 EXTERNAL CONTROL DEVICE SETUP Communication Parameters • Baud rate : 9600 bps (UART) • Stop bit : 1 bit • Data length : 8 bits • Communication code : ASCII code • Parity : None • Use a crossed (reverse) cable. Command reference list (Depending on model) DATA...
- Page 50 EXTERNAL CONTROL DEVICE SETUP Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] : First command to control the TV. (j, k, m or x) [Command 2] : Second command to control the TV. [Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99.
- Page 51 EXTERNAL CONTROL DEVICE SETUP * Commands may work differently depending on model and signal. 01. Power (Command: k a) Ack [d][ ][Set ID][ ][OK/NG][Data][x] ► To control Power *On or Off of the set. * In case of video mute on only, TV will display On Transmission[k][a][ ][Set ID][ ][Data][Cr] Screen Display(OSD).
- Page 52 EXTERNAL CONTROL DEVICE SETUP Data Min : 00 to Max : 64 * (Depending on model) Ack [i][ ][Set ID][ ][OK/NG][Data][x] 14. Bass (Command: k s) 09. Tint (Command: k j) ► To adjust Bass. ► To adjust the screen tint. You can also adjust in the AUDIO menu.
- Page 53 EXTERNAL CONTROL DEVICE SETUP Set ID = All = 00 5th Band 20(decimal) Data 00 & 01 = Channel Data is 10 = 00 0a Acknowledgement [v][ ][Set ID][ ][OK/NG][Data][x] Data 02 = Analog Antenna TV = 00 Result = ma 00 00 0a 00 * It depends on model, and can adjust when sound mode is EQ adjustable value.
- Page 54 EXTERNAL CONTROL DEVICE SETUP Number Data 05 = Digital Antenna TV = 02 - 22 : Antenna TV (DTV) – Don’t Use Physical Total = ma 00 00 00 11 00 01 02 Channel Number - 26 : Cable TV (CADTV) - Don’t Use Physical 2.
- Page 55 11 11 EXTERNAL CONTROL DEVICE SETUP 24. Input select (Command: x b) (Main Picture Input) ► To select input source for main picture. Transmission [x][b][ ][Set ID][ ][Data][Cr] Data X : don’t care 00 : DTV 01 : CADTV 02 : Satellite DTV 10 : ATV Ack [t][ ][Set ID][ ][OK][Data00][Data01][Data02] ISDB-BS (Japan)
- Page 56 EXTERNAL CONTROL DEVICE SETUP 27. Auto Configure (Command: j u) (Depending on model) ► To adjust picture position and minimize image shaking automatically. It works only in RGB (PC) mode. Transmission [j][u][ ][Set ID][ ][Data][Cr] Data 01 : To set Ack [u][ ][Set ID][ ][OK/NG][Data][x]...
