  • Page 1 User Manual ADSL2/2+ Modem Router FD-221 User Manual / V2.0...
  • Page 2 All the photos and product specifications mentioned in this manual are for references only, as the upgrading of software and hardware, there will be changes. And if there are changes, PHICOMM is not responsible for informing in advance. If you want to know more information about our products, please visit our website at www.phicomm.com.

  • Page 3: Table Of Contents

    ADSL2/2+ Modem Router www.phicomm.com CONTENTS Chapter 1: Introduction ..........1 Product Overview ....................1 Main Features ....................... 1 Chapter 2: Hardware Installation ........2 Front Panel ......................2 Rear Panel ......................3 Physical Connection ..................4 Chapter 3: Quick Installation ........6 Configure Your PC ....................
  • Page 4 ADSL2/2+ Modem Router www.phicomm.com QoS ............................31 VLAN ............................33 ADSL ............................35 Access Management ..................35 ACL ............................36 Filter ............................37 SNMP ............................38 UPnP ............................38 DDNS ............................39 CWMP ............................40 Maintenance ...................... 40 Administration ........................41 Time Zone ..........................
  • Page 5 ADSL2/2+ Modem Router www.phicomm.com Chapter 5: Specification ..........49 Appendix A: Troubleshooting ........50 Appendix B: Certification .......... 52 FCC Statement ....................52 CE Mark Warning ..................... 53 Appendix C: Glossary ..........54 Table of Contents...

  • Page 6: Chapter 1: Introduction

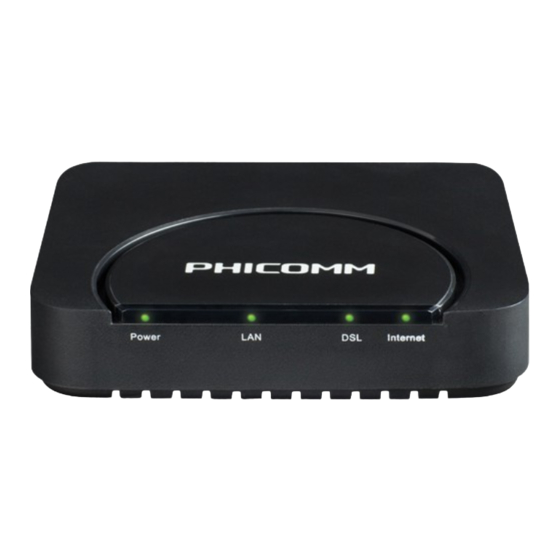

    Chapter 1: Introduction Product Overview Thank you for choosing PHICOMM FD-221 ADSL2/2+ Modem Router. This product is designed to provide a simple and cost-effective ADSL internet connection for a private Ethernet network. It is connected to network devices via standard Ethernet ports. The ADSL connection is made using ordinary telephone line with standard connectors.

  • Page 7: Chapter 2: Hardware Installation

    ADSL2/2+ Modem Router www.phicomm.com Chapter 2: Hardware Installation Front Panel The front panel of the ADSL2/2+ Modem Router includes one power indicator and three function indicators, as explained in table below: Status Description Power is on Power Power is off...

  • Page 8: Rear Panel

    ADSL2/2+ Modem Router www.phicomm.com Rear Panel The rear panel of the ADSL2/2+ Modem Router includes 1 DSL port, 1 LAN port, 1 ON/OFF button, 1 PWR connector, 1 RST button, as explained in table below: Interface/Button Function Connect to the Modem port of splitter or directly to the wall jack...

  • Page 9: Physical Connection

    • PHONE: Connect to the phone sets. • MODEM: Connect to the DSL port of FD-221. Plug one end of the twisted-pair ADSL line into the DSL port on the rear panel of FD-221. Connect the other end to the Modem port of the external splitter.
  • Page 10 ADSL2/2+ Modem Router www.phicomm.com  After the physical connection please check whether the LEDs of the Modem Router display normally as the diagram below describes. Chapter 2: Hardware Installation...

  • Page 11: Chapter 3: Quick Installation

    Chapter 3: Quick Installation Configure Your PC After you directly connect your PC to FD-221 or to a Hub/Switch which has connected to this Modem Router, we suggest you set your computer to obtain the IP address automatically. For Windows XP/2000 1) Click Start >...
  • Page 12 ADSL2/2+ Modem Router www.phicomm.com 2) Select and double click Network Connections. 3) Right click Local Area Connection and then select Properties. Chapter 3: Quick Installation...
  • Page 13 ADSL2/2+ Modem Router www.phicomm.com 4) Select Internet Protocol (TCP/IP) and click Properties. 5) Select Obtain an IP address automatically and Obtain DNS server address automatically. Then click OK. Chapter 3: Quick Installation...
  • Page 14 ADSL2/2+ Modem Router www.phicomm.com 6) Run the Ping command in the command prompt to verify the network connection. Click Start menu on your desktop, select Run tab, type cmd in the field. Chapter 3: Quick Installation...
  • Page 15 ADSL2/2+ Modem Router www.phicomm.com 7) Then type ping 192.168.1.1, press Enter. If the screen looks like the following, you have succeeded For Windows Vista/7: 1) Click Start>Control Panel. Chapter 3: Quick Installation...
  • Page 16 ADSL2/2+ Modem Router www.phicomm.com 2) Click Network and Internet. 3) Click Network and Sharing Center. Chapter 3: Quick Installation...
  • Page 17 ADSL2/2+ Modem Router www.phicomm.com 4) Go to Change Adapter Settings (win7)/Manage Network Connections (Vista). 5) Right click Local Area Connection, choose Properties. Chapter 3: Quick Installation...
  • Page 18 ADSL2/2+ Modem Router www.phicomm.com 6) Select Internet Protocol Version 4 (TCP/IPv4) and click Properties. 7) Select Obtain an IP address automatically and Obtain DNS server address automatically. Then click OK. Note: After your computer is configured successfully, go to the next section to configure the Modem Router via web.

  • Page 19: Install Your Modem Router

    ADSL2/2+ Modem Router www.phicomm.com Install Your Modem Router To configure the device, you can either run the Resource CD or the Web based Setup Wizard. For first-time installation we recommend running the Resource CD, follow the step-by-step instructions to finish the installation. After the initial configuration is done, you can login to the Web based Setup Wizard to configure do some additional settings.
  • Page 20 ADSL2/2+ Modem Router www.phicomm.com Step 4: Click NEXT. Step 5: If you want to change the login password, put in the new password in this page. Otherwise just leave it blank, and then click NEXT. Step 6: Choose your time zone, and then click NEXT.
  • Page 21 ADSL2/2+ Modem Router www.phicomm.com Step 7: Choose the connection type provided by your ISP (take PPPoE/PPPoA as an example here), and then click NEXT. Step 8: Put in Username, Password, VPI, VCI and Connection Type provided by your ISP. If you are not sure about the information, please confirm with your ISP.
  • Page 22 ADSL2/2+ Modem Router www.phicomm.com Step 10: Click CLOSE. Note:  Wait a moment, if the configuration is successful, the Internet LED light will finally turn green.  The Internet light will not light on if the Modem Router works as bridge, please set up a broadband connection on your computer in that condition.

  • Page 23: Chapter 4: Software Configuration

    ADSL2/2+ Modem Router www.phicomm.com Chapter 4: Software Configuration This User Manual recommends using the Quick Installation Guide for first-time installation. For advanced users, if you want to know more about this device and make use of its functions adequately, maybe you will get help from this chapter to configure the advanced settings through the Web based Setup Wizard.

  • Page 24: Internet

    ADSL2/2+ Modem Router www.phicomm.com Internet VC: ATM settings are used to connect to your ISP. Your ISP provides VPI (Virtual Path Identifier), VCI (Virtual Channel Identifier) settings to you. In this Device, you can totally setup 8 VCs on different encapsulations, if you apply 8 different virtual circuits from your ISP. You need to activate the VC to take effect.
  • Page 25 ADSL2/2+ Modem Router www.phicomm.com 1. Dynamic IP Address Select this option if your ISP provides you an IP address automatically. This option is typically used for Cable services. Please enter the Dynamic IP information accordingly. Encapsulation: Select the encapsulation mode for the Dynamic IP Address, you can leave it default.
  • Page 26 ADSL2/2+ Modem Router www.phicomm.com only accept but will not send RIP packet. OUT only means the ADLS router will only send but will not accept RIP packet. Multicast: Select IGMP version, or disable the function. IGMP (Internet Group Multicast Protocol) is a session-layer protocol used to establish membership in a multicast group.
  • Page 27 ADSL2/2+ Modem Router www.phicomm.com 3. PPPoA/PPPoE Select this option if you have a username and password to access internet. This option is typically used for DSL services. Select Dynamic to obtain an IP address automatically for your PPP connection. Select Static to use a static IP address for your PPP connection. Please enter the information accordingly.
  • Page 28 ADSL2/2+ Modem Router www.phicomm.com provided by your ISP. For Static IP, you need to specify the IP address, Subnet Mask and Gateway address. NAT: Select this option to Enable/Disable the NAT (Network Address Translation) function for this VC. The NAT function can be activated or deactivated per PVC basis.
  • Page 29 ADSL2/2+ Modem Router www.phicomm.com 4. Bridge Mode If you select this type of connection, the modem can be configured to act as a bridging device between your LAN and your ISP. Bridges are devices that enable two or more networks to communicate as if they are two segments of the same physical LAN.

  • Page 30: Lan

    ADSL2/2+ Modem Router www.phicomm.com Router Local IP: These are the IP settings of the LAN interface for the device. These settings may be referred to as private settings. You may change the LAN IP address if necessary. The LAN IP address is private to your internal network and cannot be seen on the Internet.

  • Page 31: Advanced Setup

    ADSL2/2+ Modem Router www.phicomm.com Starting IP Address: Enter the starting IP address for the DHCP server's IP assignment. Because the default IP address for the Router is 192.168.1.1, the default Start IP Address is 192.168.1.2, and the Start IP Address must be 192.168.1.2 or greater, but smaller than 192.168.1.254.

  • Page 32: Firewall

    ADSL2/2+ Modem Router www.phicomm.com Click any of them, and you will be able to configure the corresponding function. Firewall Firewall: Select this option can automatically detect and block Denial of Service (DoS) attacks, such as Ping of Death, SYN Flood, Port Scan and Land Attack.

  • Page 33: Nat

    ADSL2/2+ Modem Router www.phicomm.com IP Subnet Mask: Enter the subnet mask for this destination. Gateway IP Address: Enter the IP address of the gateway. The gateway is an immediate neighbor of your Modem Router that will forward the packet to the destination. On the LAN, the gateway must be a router on the same segment as your Router;...
  • Page 34 ADSL2/2+ Modem Router www.phicomm.com A DMZ (demilitarized zone) is a host between a private local network and the outside public network. It outside users to access to a server that has company data directly. Users of the allows public network outside the company can access to the DMZ host. Please assign a static IP address to the destination computer before you use this feature.
  • Page 35 ADSL2/2+ Modem Router www.phicomm.com Rule Index: The Virtual Server rule index for this VC. You can specify 10 rules maximally. All the VCs with single IP will use the same Virtual Server rules. Application: The Virtual Servers can be used for setting up public services on your LAN.

  • Page 36: Qos

    ADSL2/2+ Modem Router www.phicomm.com Rule Type: There are four types: One-to-One, Many-to-One, Many-to-Many Overload and Many-to-Many No-overload. Local Start & End IP: Enter the local IP Address you plan to map. Local Start IP is the starting local IP address and Local End IP is the ending local IP address. If the rule is for all local IPs, then the Start IP is 0.0.0.0 and the End IP is 255.255.255.255.
  • Page 37 ADSL2/2+ Modem Router www.phicomm.com Active: You can activate or deactivate this function, the rule can take effect only when it is activated. Application: Select the application that the rule aimed at. Physical Ports: Select the port whose traffic flow are controlled by the rule.

  • Page 38: Vlan

    ADSL2/2+ Modem Router www.phicomm.com VLAN Virtual LAN (VLAN) is a group of devices on one or more LANs that are configured so that they can communicate as if they were attached to the same LAN, when in fact they are located on a number of different LAN segments.
  • Page 39 ADSL2/2+ Modem Router www.phicomm.com Define VLAN Group VLAN Index: Select the VLAN index for this VC. You can specify 8 groups maximum. VLAN ID: This indicates the VLAN group. ATM VCs: Select the ATM VCs as members of VLAN, and if you leave the Tagged blank, the tag in frames will be deleted when transmitted from the VC.

  • Page 40: Adsl

    ADSL2/2+ Modem Router www.phicomm.com ADSL The ADSL feature can be selected when you meet the physical connection problem. Please check the proper settings with your Internet service provider. ADSL Mode: Select the ADSL operation mode which your ADSL connection uses.

  • Page 41: Acl

    ADSL2/2+ Modem Router www.phicomm.com You can specify the client to access the ADSL Router once setting his IP as a Secure IP Address through selected applications. ACL: If Activated, the IP addresses which are contained in the Access Control List can access the Modem.

  • Page 42: Filter

    ADSL2/2+ Modem Router www.phicomm.com Filter The filtering feature includes IP/MAC Filter, Application Filter and URL Filter. The feature makes it possible for administrators to control user's access the Internet, protect the networks. Filter Type Selection: Select the filter type for the configuration below.

  • Page 43: Snmp

    ADSL2/2+ Modem Router www.phicomm.com Protocol: TCP, UDP or ICMP in the drop-down list for the connection between the Source IP address and Destination IP address. Rule Unmatched: If the rule is mismatch you can choose to execute the next one or stop the performance.

  • Page 44: Ddns

    ADSL2/2+ Modem Router www.phicomm.com automatically configure network addressing, announce their presence in the network to other UPnP devices and enable exchange of simple product and service descriptions. DDNS The router offers a Dynamic Domain Name System (DDNS) feature. The feature lets you use a static host name with a dynamic IP address.

  • Page 45: Cwmp

    ADSL2/2+ Modem Router www.phicomm.com CWMP The function supports TR-069 protocol which collects information, diagnoses the devices and configures the devices automatically via ACS (Auto-Configuration Server). CWMP: Select Activated to activate the CWMP function. URL: Enter the website of ACS which is provided by your ISP.

  • Page 46: Administration

    ADSL2/2+ Modem Router www.phicomm.com Administration Note:  There is only one account that can access web management interface. The default account is admin, and the password is admin. Admin has read/write access privilege.  When you change the password, you should enter the new password twice, and then click SAVE to make the new password take effect.
  • Page 47 ADSL2/2+ Modem Router www.phicomm.com NTP Server address manually, and then the Router will get the time from the specific Server firstly. PC’s Clock Select PC’s Clock as the synchronize time, you don’t need to set any items. Manually Select Manually as the synchronize time, you need to set the date and time corresponding to the current time.

  • Page 48: Firmware

    Step 3: Click UPGRADE. Note:  New firmware versions are posted at www.phicomm.com and can be downloaded for free. If the router is not experiencing difficulties, there is no need to download a more recent firmware version, unless the version has a new feature that you want to use.

  • Page 49: Sysrestart

    ADSL2/2+ Modem Router www.phicomm.com To back up the Modem Router’s current settings: Step 1: Click the ROMFILE SAVE button, you can see: Step 2: Click Save to save the file as the appointed file. SysRestart You can choose restart the device with current settings or restore to factory default settings.

  • Page 50: Diagnostics

    ADSL2/2+ Modem Router www.phicomm.com Diagnostics You can view the test results for the connectivity of the physical layer and protocol layer for both LAN and WAN sides on the screen. Status Choose Status, you can see these submenus: Device Info, System Log and Statistics.

  • Page 51: Device Info

    ADSL2/2+ Modem Router www.phicomm.com Device Info You are able to view the device information, including LAN, WAN and ADSL. The information will vary depending on the settings of the Router configured on the Interface Setup screen. Chapter 4: Software Configuration...

  • Page 52: System Log

    ADSL2/2+ Modem Router www.phicomm.com System Log You can check the System Log of the Modem Router in this page. Statistics Interface: You can select Ethernet and ADSL to view the corresponding network traffic over different ports. Chapter 4: Software Configuration...

  • Page 53: Help

    ADSL2/2+ Modem Router www.phicomm.com Help In this page, you can view the help information for configuration of any function. Note: Click the tab, and you will be able to get the corresponding information. Chapter 4: Software Configuration...

  • Page 54: Chapter 5: Specification

    ADSL2/2+ Modem Router www.phicomm.com Chapter 5: Specification Basic IEEE Standards IEEE802.3, IEEE802.3u Interfaces 1 x RJ11 DSL Port, 1 x RJ45 LAN Port LED Indicators Power, LAN, DSL, Internet Downstream: Up to 24Mbps Data Rate Upstream: Up to 1Mbps Security...

  • Page 55: Appendix A: Troubleshooting

    ADSL2/2+ Modem Router www.phicomm.com Appendix A: Troubleshooting 1. How do I restore my Modem Router’s configuration to factory default settings? With the router powered on, press the Reset button on the rear panel, keep holding it for about 5 seconds then release it.
  • Page 56 ADSL2/2+ Modem Router www.phicomm.com the VPI/VCI, Connection Type, username and password are correct. If there are any mistakes, please correct the settings and try again. 6. How to configure PPPoE connection on Mac? Step 1: Click the Apple menu then select System Preferences.

  • Page 57: Appendix B: Certification

    ADSL2/2+ Modem Router www.phicomm.com Appendix B: Certification FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 58: Ce Mark Warning

    ADSL2/2+ Modem Router www.phicomm.com CE Mark Warning Marking with the above symbol indicates compliance with the essential requirements and other relevant provisions of Directive 2004/108/EC. This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

  • Page 59: Appendix C: Glossary

    ADSL2/2+ Modem Router www.phicomm.com Appendix C: Glossary ATM (Asynchronous Transfer Mode): ATM is a cell based transfer mode that requires variable length user information to be segmented and reassembled to/from short, fixed length cells. It uses two different methods for carrying connectionless network interconnect traffic, routed and bridged Protocol Data Units (PDUs), over an ATM network.
  • Page 60 ADSL2/2+ Modem Router www.phicomm.com VCI (Virtual Channel Identifier): The identifier of the VC contained in the ATM cell header. VPI (Virtual Path Identifier): The identifier of the VP contained in the ATM cell header. VLAN (Virtual Local Air Network): Logical subgroups that constitute a Local Area Network (LAN).
  • Page 61 Shanghai Feixun Communication Co., Ltd. E-mail: support@phicomm.com Website: www.phicomm.com Copyright © 2011 Shanghai Feixun Communication Co., Ltd. All rights reserved.
