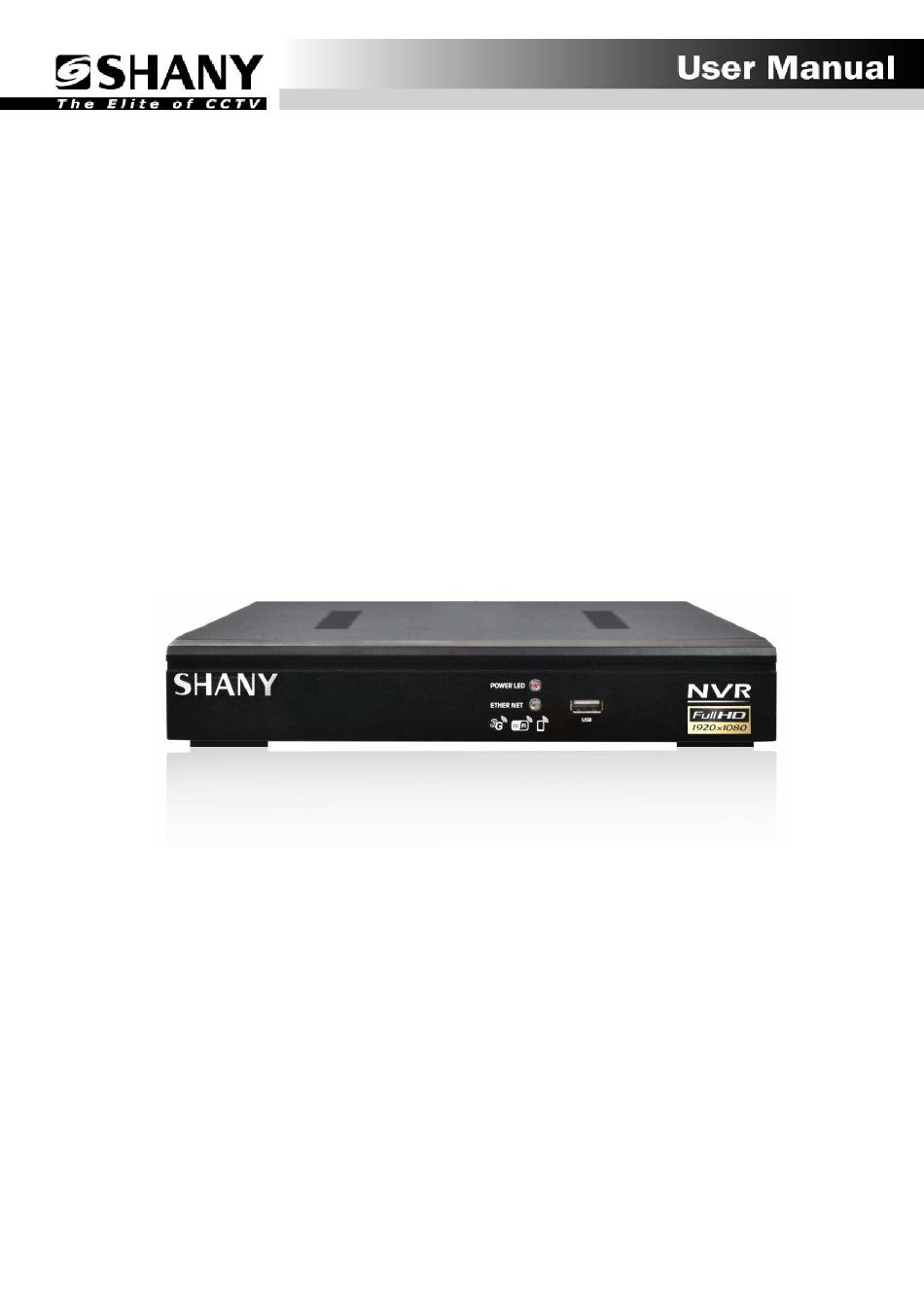

  • Page 1 Network Video Recorder SNVR-8008ST-2 Thanks for purchasing our product. Before operating the unit, please read the instructions carefully and keep this manual for future reference.
  • Page 2 Statement:  This manual supports NVR model: 1U 4/8ch and 2U16/32ch.  There is only recording function for E-SATA port, no backup function.  As product update, the NVR functions might be different from the manual showing, please follow the product that you got. Safety Precautions 1.

  • Page 3: Table Of Contents

    Table of Contents Hard Disk Installation ..........................1 Rear Panel Interface ..........................1 Host Side Operation ..........................3 Start the System ........................3 System Login ..........................3 System Toolbar ............................6 Display Setting ......................... 6 PTZ Setting ..........................8 Setting ............................9 Playback ..........................

  • Page 4: Hard Disk Installation

    1. Hard Disk Installation Prepare a screwdriver. Take 1U chassis as an example, this series NVR could be installed two hard disks in the chassis, the largest capacity supports to 4TB. Hard Disk Installation Steps： 1. Remove four screws on the side of 2.
  • Page 5 For 4CH/8CH NVR model, the USB ports in front and bottom of the two ports in back(as the structural diagram show above) share the same channel. If you plug two USB devices into these two ports at the same time, they would not function normally.

  • Page 6: Host Side Operation

    3. Host Side Operation 3.1 Start the System Plug power cable into the adapter and switch the power on, the power LED will light in red and the NVR will start. After booting, the video output default to multi-window output mode. The host side main screen.
  • Page 7 You can select the language of the User Guide. Select the video format and resolution. Setting up the network.
  • Page 8 Power Off: Click this button to shutdown the device. You can also press the switch off at the rear panel to shutdown the device. But we suggest to shutdown the device from the “Power Off” button to avoid damaging the device from power failure by accident. Note: Before changing the HDD operation, please shutdown the device and disconnect the power supply .

  • Page 9: System Toolbar

    4. System Toolbar 4.1 Display Setting Click “Display Setting”icon to bring the menu below. Language: Select the language you need. Then restart the device AutoLogout: System automatically logout and lock time. TV Adjust: Adjust the display position. Display: Set monitor Brightness, Contrast, Saturation, Hue and Transparency. Resolution: The default resolution is 1024x768, please select the best resolution according the monitor condition.
  • Page 10 Setting Brightness, Contrast, Saturation, Hue and Transparency. Note: You can also right-click in the main screen to access the system toolbar. Please note the menu order is different from the toolbar in the main screen.

  • Page 11: Ptz Setting

    4.2 PTZ Setting Click “PTZ” icon to open the menu below. You can Zoom in/out, change Iris and Focus. Setting the cruise time and speed. Tips: Digital Zooming During image preview and playback, roll mouse roller to do digital zooming, it zoom the image as Zoom Out mouse pointer as the center.

  • Page 12: Setting

    The channel is recording. Light flashing means frame lost or recording lost. Magnifying glass: Digital zooming, the red number in the middle is magnification figures, click this icon, it can change to PTZ control 4.3 Setting Click “Setting” icon to enter the setting menu. There are six main setting options: Device, Channel, Network, Alarm, Account, and System.
  • Page 13 System Version You can check the system version here. When do software update, you need to check version first to avoid updating failure and damage the device. PTZ Setting PTZ(Pan/Tilt/Zoon) settings.
  • Page 14 Click “Copy to” to apply the settings to other channel. DST Setting Setting Daylight Saving Time. 2. Channel Setting There are six sub options for “Channel” Setting: Display Setting, Video Parameters, Schedule Record, Motion, Video Lost, and Video Mask.
  • Page 15 Display Setting Setting the show name, time, and date format. Video Parameters 1) Encoding Type: There are three types: Main Stream (Normal), Sub Stream, Main Stream (Event) for selection. Main Stream: The channel using main stream could be double clicked to show as single or full-screen image and for recording playback.
  • Page 16 2) Stream Type: There are video, video & audio, two types for selection. When connecting with audio, please select video & audio mode, or there will be no audio when playback. 3) Resolution: NVR will set IP camera main stream and sub stream resolution automatically, when the image is not good, adjust from here according to necessery.
  • Page 17 Setting weekday and period. The way setting for Motion & Alarm schedule are the same with Record. And they would all display in the “Schedule Record” menu. You can set Pre and Post Record time. Motion If you want to set video lost, please check “Enable Motion Detection” first.
  • Page 18 Settting the motion detection area, left click and drag the area size, right click and drag an area bigger than left click and drag area to cancel it. Setting Linkage, in other words, the action to take when detecting the suspicious motion.
  • Page 19 Video Lost If you want to set video lost, please check “Enable Video Lost” first. Setting Linkage, the action to take when video lost.
  • Page 20 Video Mask If you want to set video mask, please check “Enable Video Mask” first, then click “Setting” of Area settings. Left click to drag the mask size and cancel it by right clicking.
  • Page 21 Back to the main screen, you can see the mask you set in channel 1(main stream). 3. Network Setting There are five sub options for “Network” Setting: Network Setting, DDNS Setting, NTP Setting, Email Setting, and Management Platform. In the “Network Setting”, you can set NVR’s IP address, subnet mask, gateway and so on. Then use PC terminal to run “ping”...
  • Page 22 based on the device port. HTTP port: The default port is 80, suggest modifying it. This port is for login NVR by IE, input NVR IP address or domain name, you need to add colon and HTTP port number. Example: As the screenshot above, when you want to access NVR by IE in LAN, first, please add 2 forwarding rules in the router, the IP address is 192.168.1.188, the forwarding ports are 5050-5053, 80.
  • Page 23 In “Output Alarm” menu, you can set “Alarm Schedule” and “Delay” period. Setting exception for alarm event. For example, if “HDD Full”, then “Alarm On Monitor”.
  • Page 24 5. Account Setting There are two sub options for “Account” Setting: Account Setting and User Online. You can add , delete, modify user, and set user privilege. You can set the action a user can take in “User Privilege”.
  • Page 25 You can check the online user status. 6. System Setting There are six sub options for “System” Setting: Device Log, Stream Info, HDD Setting, Update, Auto Reboot, and Recovery Configuration. Device Log You can check the Device Log.
  • Page 26 You can export the log to the external storage. Stream Info. You can view the stream information.
  • Page 27 HDD Setting You can format the onboard HDD. Update You can update the device through the upgrade file on the external storage. Upgrade include firmware upgrade, boot screen image upgrade, and patch upgrade. Except USB memory upgrade, it also support to upgrad through network.
  • Page 28 Note: When the NVR is upgrading, DO NOT perform any other operations or power off it, otherwise the NVR will fail to enter the system , and have to be send back to factory for repairing. After upgrading, please reboot the device. Auto Reboot You can disable auto reboot or set auto reboot every day, every week, or once(on specific date).

  • Page 29: Playback

    4.4 Playback Click “Playback” icon, to open the window below. Channel Select: Select the channels that need do playback, system will find the required recording file. The date that has recorded is highlighted by red color in calendar. Date Select: Select the playback date. Playback: The split screens will show on A-AREA, first choose channel on B-AREA, then choose dates shown on C-AREA...

  • Page 30: Record

    4.6 Record Click “Record” icon, to enter the menu below. You can close, manually set, or enable “Schedule Record”. 4.7 Alarm Click “Alarm” icon, to enter the menu below. You can activate the alarm or deactivate it by clicking the “Defence Off” button. 4.8 Capture Click “Capture”...

  • Page 31: File Manager

    overwrite it . Capture image can be viewed or backup in file manage folder. Be sure to connect an external storage, or you will see this message. Capture back up: Plug flash disk into USB port, then click Refresh to check whether flash disk connect correctly, then select the capture files that need back up, and click Back Up to start.

  • Page 32: Ip Channel Setting

    You can view image which captured on specific date. 4.10 IP Channel Setting Manual Search Right click on th main screen and select “IP Channel Setting”> “Manual”, click Search button, NVR will search out all IP cameras in the LAN, it will take 18-30 seconds. A –Area is cameras IP address searching area——click Search to get the camera IP addresses in LAN.
  • Page 33 D-Area is camera user name and password filling area——this area is camera network parameter information. Auto Search Right click to select “IP channel Setting” > “Auto”. If the IP camera has private protocol with NVR, NVR will assign IP address to the camera automatically, after finish the searching, it will connect the image automatically.

  • Page 34: Preview

    5. Preview 5.1 Drag and Drop the Image The preview image location can be drag and drop to different place as necessary, but the channel physical address will keep the same 5.2 Drag to Change Channel Sequence Right click to select “IP Channel Setting” > ”Drag to change channel sequence”, then drag the image, IP camera will reconnect in the new channel, during this process, the image will lost for some while till the image connect sucessfully.

  • Page 35: Ie Viewing

    6. IE Viewing 6.1 User Log In 1) Enter the domain+colon+Http port . or enter the static IP +colon +http port . 2) You can download and install IE ActiveX from NVR through the Internet. Input the IP address of the NVR in the IE browser, port number 5050, user name and password, then the below interface will pop-up: 7.

  • Page 36: Blackberry

    1) Download app MEye_Android.apk. 2) Click the app and install. 3) Open the app, as the picture on the right: 7.4 Blackberry Supports Blackberry phones system above V4.6, with screen resolution 480*360 and 480*320, including model No. 8900, 9000, 9700, 9630 etc. ☆...
  • Page 37 will be found, click to installation and the program icon will arise as below: 2) Click vMEye program icon, and the initial interface after running appears as right:...
  • Page 38 Troubleshooting 1. Device Fails to Start or Restart Continuously 2. Failure to Use Remote Controller Possible Reasons: Possible Reasons: 1) NVR’s upgrading wrong program leads to 1) Please check whether the batteries in the damage of system software. Remote Controller are installed correctly, 2) NVR encounters power or board faults, especially the postive and negative.
  • Page 39 11. There is a videotape prompt of a certain diagram and also have images when double clicked, but no image in multi-channel preview, why? Right click that channel and there will be a pattern pull-down list in the Remote Configuration, try to replace the main stream with a sub stream and save it.
