SHANY SCVR-8308ST-1 User Manual

Hdcvi series
Hide thumbs
Table of Contents

Advertisement

Quick Links

[鍵入文字]

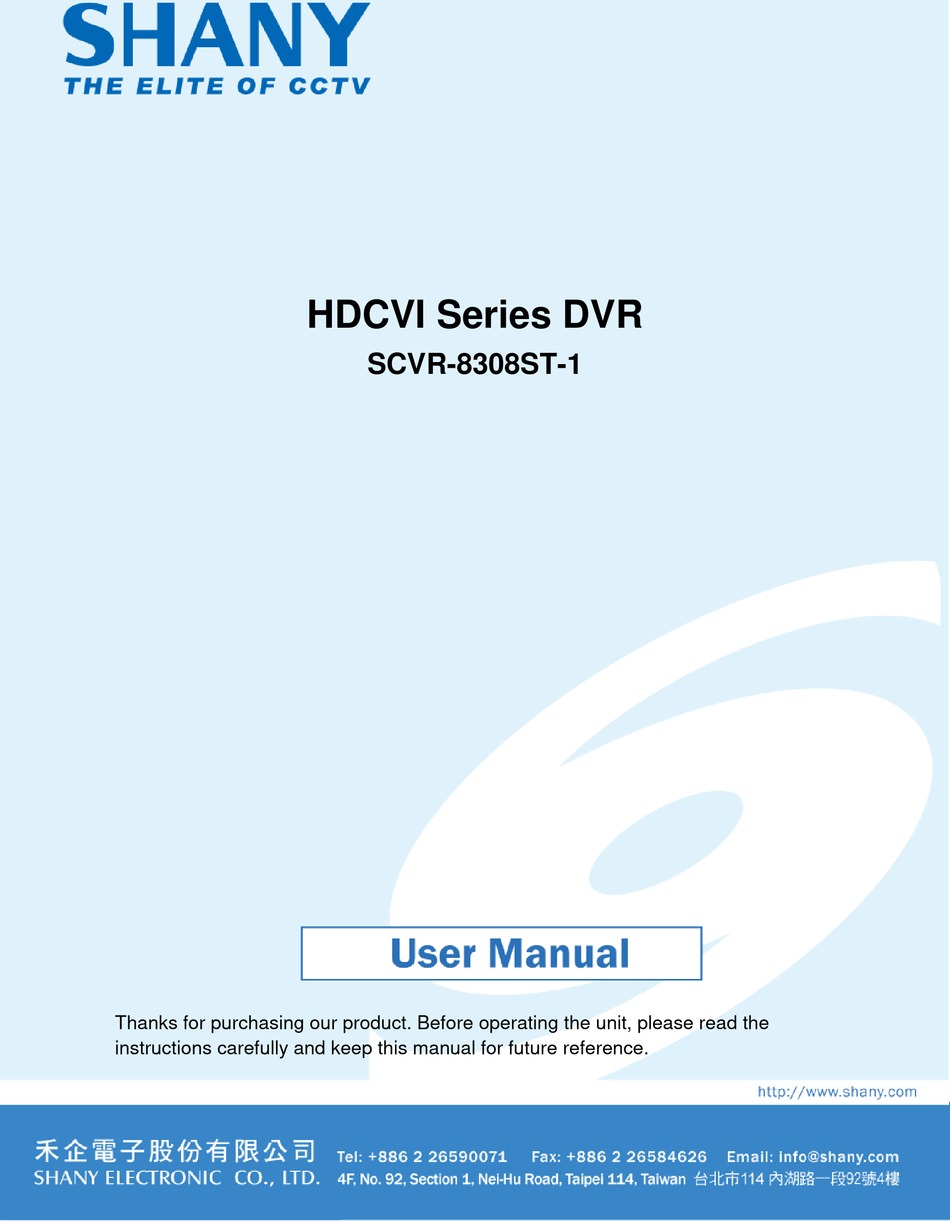

HDCVI Series DVR
SCVR-8308ST-1
Thanks for purchasing our product. Before operating the unit, please read the
instructions carefully and keep this manual for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCVR-8308ST-1 and is the answer not in the manual?

Questions and answers

Related Manuals for SHANY SCVR-8308ST-1

Summary of Contents for SHANY SCVR-8308ST-1

  • Page 1 [鍵入文字] HDCVI Series DVR SCVR-8308ST-1 Thanks for purchasing our product. Before operating the unit, please read the instructions carefully and keep this manual for future reference.

  • Page 2: Table Of Contents

    Table of Contents FEATURES AND SPECIFICATIONS ..............1 Overview ........................... 1 Features ............................ 1 Specifications ........................... 2 1.3.1 General 720P Series ......................2 1.3.2 Economic 720P Series ......................5 1.3.3 Advanced 720P Series ......................8 OVERVIEW AND CONTROLS ................. 12 Front Panel ..........................
  • Page 3 3.6.1 Audio Input ........................... 26 3.6.2 Audio Output ........................26 RS485 ............................26 Other Interfaces ........................26 OVERVIEW OF NAVIGATION AND CONTROLS ..........27 Login, Logout & Main Menu ....................27 4.1.1 Login ............................ 27 4.1.2 Main Menu ........................... 28 4.1.3 Logout ..........................
  • Page 4 4.9.2 Activate Preset ........................53 4.9.3 Patrol setup (Tour Setup) ....................53 4.9.4 Activate Patrol (Tour) ......................53 4.9.5 Pattern Setup ........................53 4.9.6 Activate Pattern Function ..................... 54 4.9.7 Auto Scan Setup ........................54 4.9.8 Activate Auto Scan ......................54 4.10 Flip ............................
  • Page 5 ABOUT AUXILIARY MENU................100 Go to Pan/Tilt/Zoom Menu....................100 6.1.1 3D Intelligent Positioning Key .................... 101 Preset /Patrol / Pattern /Border Function ................ 101 6.2.1 Preset Setup ........................102 6.2.2 Activate Preset ........................102 6.2.3 Patrol Setup ........................102 6.2.4 Activate Patrol ........................
  • Page 6 7.12 Un-install Web Control ......................158 PROFESSIONAL SURVEILLANCE SYSTEM ..........159 FAQ ........................ 160 APPENDIX A HDD CAPACITY CALCULATION ..........165 APPENDIX B COMPATIBLE BACKUP DEVICE LIST ........166 APPENDIX C COMPATIBLE CD/DVD DEVICE LIST ........171 APPENDIX D COMPATIBLE DISPLAYER LIST ..........172 APPENDIX E COMPATIBLE SWITCHER LIST ..........
  • Page 7 Welcome Thank you for purchasing our HDCVI DVR! This user’s manual is designed to be a reference tool for the installation and operation of your system. Here you can find information about this series DVR features and functions, as well as a detailed menu tree.

  • Page 8: Important Safeguards And Warnings

    Important Safeguards and Warnings 1．Electrical safety All installation and operation here should conform to your local electrical safety codes. We assume no liability or responsibility for all the fires or electrical shock caused by improper handling or installation. 2．Transportation security Heavy stress, violent vibration or water splash are not allowed during transportation, storage and installation.

  • Page 9: Features And Specifications

    1 FEATURES AND SPECIFICATIONS 1.1 Overview This series product is an excellent digital monitor product designed for security field. It adopts embedded Linux OS to maintain reliable operation. It is easy to use and can realize surveillance function after some simple setups.

  • Page 10: Specifications

     Network operation Support network remote real-time monitor, remote record search and remote PTZ control.  Alarm activation function Several relay alarm outputs to realize alarm activation and on-site light control. The alarm input port and output has the protection circuit to guarantee device safety. ...
  • Page 11 4-CH composite video input: 8-CH composite video input: Video Input 75Ω) 75Ω) (NTSC/PAL) BNC (1.0V (NTSC/PAL) BNC (1.0V P- P, P- P, 1-ch VGA output. 1-ch HDMI output. Video Output Support VGA/HDMI video output at the same time. Video monitor Video Support PAL/NTSC.
  • Page 12 Storage Support channel record quota setup Mode Recording 1 to 120 minutes single record duration (Default setup is 60 minutes) Length Playback When hard disk is full, system can overwrite previous video file. Repeat Way Record Various search engines such as time, type and channel. Search Playback Various fast play, slow play speeds, manual frame by frame playback...

  • Page 13: Economic 720P Series

    PTZ control port RS485 Support various PTZ control protocols. RS232 System Hard Disk Display HDD current status Information Information Data Stream Data stream statistics for each channel (in wave mode) Statistics Backup to 1024 log files. Log statistics Support various search engines such as time and type. Display version information: channel amount, system version and Version release date.
  • Page 14 Shortcut Copy/paste operation, USB mouse right-key shortcut menu, double Function click USB mouse to switch screen. Compression Video H.264 Standard Compression Audio G711A, G711U, PCM Compression 4-CH composite video input: 8-CH composite video input: Video Input 75Ω) 75Ω) (NTSC/PAL) BNC (1.0V (NTSC/PAL) BNC (1.0V P- P, P- P,...
  • Page 15 Manual recording, motion detection recording, schedule recording and Recording alarm recording Mode Priority: Manual recording> alarm recording>motion detection Record and recording>schedule recording. playback Storage Support channel record quota setup Mode Recording 1 to 120 minutes single record duration (Default setup is 60 minutes) Length Playback When hard disk is full, system can overwrite previous video file.

  • Page 16: Advanced 720P Series

    USB Interface 2 USB 2.0 port. Interface Network One RJ45 10M/100M self-adaptable Ethernet port connection RS485 RS232 System Hard Disk Display HDD current status Information Information Data Stream Data stream statistics for each channel (in wave mode) Statistics Backup to 1024 log files. Log statistics Support various search engines such as time and type.
  • Page 17 Compression Video H.264 Standard Compression Audio G711A, G711U, PCM Compression 4-CH composite video input: 8-CH composite video input: Video Input 75Ω) 75Ω) (NTSC/PAL) BNC (1.0V (NTSC/PAL) BNC (1.0V P- P, P- P, 1-ch VGA output. 1-ch HDMI output. Video Output Support VGA/HDMI video output at the same time.
  • Page 18 Manual recording, motion detection recording, schedule recording and alarm recording Recording Priority: Manual recording> alarm recording>motion detection Mode Record and recording>schedule recording. playback Storage Support channel record quota setup Mode Recording 1 to 120 minutes single record duration (Default setup is 60 minutes) Length Playback When hard disk is full, system can overwrite previous video file.
  • Page 19 Alarm Relay 30V DC 2A 125VAC 1A activation alarm USB Interface 2 USB 2.0 ports. Interface Network One RJ45 10M/100M self-adaptable Ethernet port connection PTZ control port RS485 Support various PTZ control protocols. RS232 System Hard Disk Display HDD current status Information Information Data Stream...

  • Page 20: Overview And Controls

    2 Overview and Controls This section provides information about front panel and rear panel. When you install this series DVR for the first time, please refer to this part first. 2.1 Front Panel 2.1.1 General 720P/Advanced 720P Series The front panel is shown as below. See Figure 2-1. Figure 2-1 Please refer to the following sheet for front panel button information.

  • Page 21: Economic 720P Series

    Icon Name Function Power button, press this button for three seconds Power button to boot up or shut down DVR. Activate current control, modify setup, and then move up and down. 、 Increase/decrease numeral. Down Assistant function such as PTZ menu. Shift current activated control, Left 、...
  • Page 22 Figure 2-4 Please refer to the following sheet for detailed information. Icon Name Note VIDEO IN Video input port Connect to analog camera, video input signal. AUDIO OUT Audio output port Connect to video output device such as sound box. AUDIO IN Audio input port Connect to audio input device such...

  • Page 23: Economic 720P Series

    2.2.2 Economic 720P Series The 4-channel series rear panel is shown as below. See Figure 2-5. Figure 2-5 The 8-channel series rear panel is shown as below. See Figure 2-6. Figure 2-6 Please refer to the following sheet for detailed information. Icon Name Note...

  • Page 24: Advanced 720P Series

    2.2.3 Advanced 720P Series The 4-channel series rear panel is shown as below. See Figure 2-7. Figure 2-7 The 8-channel series rear panel is shown as below. See Figure 2-8. Figure 2-8 Please refer to the following sheet for detailed information. Icon Name Note...
  • Page 25 mouse, burning DVD-ROM and etc. Network port 100M Ethernet port RS485_A port. It is the cable A. You RS485 RS-485 can connect to the control devices communication port such as speed dome PTZ. RS485_B.It is the cable B. You can connect to the control devices such as speed dome PTZ.

  • Page 26: Connection Sample

    2.3 Connection Sample 2.3.1 General 720P Series Please refer to Figure 2-9 for connection sample. The following figure is based on the 8-channel series product. Figure 2-9...

  • Page 27: Econimic 720P Series

    2.3.2 Econimic 720P Series Please refer to Figure 2-10 for connection sample. The following figure is based on the 8-channel series product. Figure 2-10...

  • Page 28: Remote Control

    2.4 Remote Control The remote control interface is shown as in Figure 2-11. Please note remote control is not our standard accessory and it is not included in the accessory bag. Figure 2-11 Please refer to the following sheet for detailed information. Serial Number Name Function...
  • Page 29 playback. In reverse playback click this button to pause playback. Cancel Go back to previous menu or cancel current operation (close upper interface or control) Record Start or stop record manually In record interface, working with the direction buttons to select the record channel.

  • Page 30: Mouse Control

    2.5 Mouse Control Left click System pops up password input dialogue box if you have not logged in. mouse In real-time monitor mode, you can go to the main menu. When you have selected one menu item, left click mouse to view menu content.
  • Page 31 middle Switch the items in the check box. button Page up or page down Move mouse Select current control or move control Drag mouse Select motion detection zone Select privacy mask zone.

  • Page 32: Installation And Connections

    3 Installation and Connections Note: All the installation and operations here should conform to your local electric safety rules. 3.1 Check Unpacked DVR When you receive the DVR from the forwarding agent, please check whether there is any visible damage. The protective materials used for the package of the DVR can protect most accidental clashes during transportation.

  • Page 33: Connecting Power Supply

    7. Put the cover in accordance 8. Secure the screws in the with the clip and then place the rear panel and the side panel. upper cover back. Important:  You can connect the HDD data cable and the power cable first and then fix the HDD in the device. ...

  • Page 34: Connecting Video Output

    3.5.2 Connecting Video Output , 75Ω) output, a VGA output and HDMI output. System Video output includes a BNC (PAL/NTSC1.0V supports BNC, VGA and HDMI output at the same time. When you are using pc-type monitor to replace the monitor, please pay attention to the following points: ...

  • Page 35: Overview Of Navigation And Controls

    4 Overview of Navigation and Controls Note: All the operations listed below are based on the 4-channel series product. Before operation, please make sure:  You have properly installed HDD and all the cable connections.  The provided input power and the device power are matched. ...

  • Page 36: Main Menu

    Figure 4-2 4.1.2 Main Menu After you logged in, the system main menu is shown as below. See Figure 4-3. There are total six icons: search, information, setting, backup, advanced and shutdown. You can move the cursor to highlight the icon, and then double click mouse to enter the sub-menu. Figure 4-3 4.1.3 Logout...

  • Page 37: Auto Resume After Power Failure

    The other ways is to press power button on the front panel for at least 3 seconds, system will stop all operations. Then you can click the power button in the rear panel to turn off the DVR. 4.1.4 Auto Resume after Power Failure The system can automatically backup video and resume previous working status after power failure.
  • Page 38 You can follow the contents listed below for the operation instruction. Preview control interface Move you mouse to the top centre of the video of current channel, you can see system pops up the preview control interface. See Figure 4-6. If your mouse stays in this area for more than 6 seconds and has no operation, the control bar automatically hides.

  • Page 39: Manual Record

    4.3 Manual Record Note: You need to have proper rights to implement the following operations. Please make sure the HDD has been properly installed. There are two ways for you to go to manual record menu.  Right click mouse or in the main menu, Advanced->Manual Record. ...
  • Page 40 Figure 4-8 Please refer to the following sheet for more information. Name Function Here is to display the searched picture or file. Display Support 1/4-window playback. window Here you can select to search the picture or the recorded file. You can select to play from the read-write HDD, from peripheral device or from redundancy HDD.
  • Page 41 The card number search interface is shown as below. Here you can view card Card number/field setup bar. You cam implement advanced search. number search Double click it, you can view the picture/record file list of current day. The file list is to display the first channel of the record file. The system can display max 128 files in one time.
  • Page 42 The volume of the playback Click the snapshot button in the full-screen mode, the system can snapshot 1 picture. System supports custom snap picture saved path. Please connect the peripheral device first, click snap button on the full-screen mode, you can select or create path.

  • Page 43: Smart Search

    Other Functions  When system is playing, you can select a zone in the window to begin smart search. Click the motion detect button to begin play.  Once the motion detect play has begun, click button again will terminate current motion detect file play.

  • Page 44: Accurate Playback By Time

    Click the , you can go to the smart search playback. Click it again, system stops smart search playback. Important  System does not support motion detect zone setup during the full-screen mode.  During the multiple-channel playback, system stops playback of rest channels if you implement one-channel smart search.

  • Page 45: Mark Playback

    4.4.3 Mark Playback Please make sure your purchased device support this function. You can use this function only if you can see the mark playback icon on the Search interface (Figure 4-8). When you are playback record, you can mark the record when there is important information. After playback, you can use time or the mark key words to search corresponding record and then play.

  • Page 46: Schedule

    Figure 4-12  Modify Double click one mark information item, you can see system pops up a dialogue box for you to change mark information. You can only change mark name here.  Delete Here you can check the mark information item you want to delete and then click Delete button, you can remove one mark item.
  • Page 47 Figure 4-13 Figure 4-14 4.5.1.1 Quick Setup Copy function allows you to copy one channel setup to another. After setting in channel 1, click Copy button, you can go to interface Figure 4-15. You can see current channel name is grey such as channel 1.

  • Page 48: Snapshot

    4.5.1.2 Redundancy Redundancy function allows you to memorize record file in several disks. When there is file damage occurred in one disk, there is a spare one in the other disk. You can use this function to maintai n data reliability and safety. In the main menu, from Setting to Schedule, you can highlight redundancy button to enable this function.
  • Page 49 Figure 4-17 In Schedule interface, please enable snapshot function. See Figure 4-18. Figure 4-18 4.5.2.2 Activation Snapshot Please follow the steps listed below to enable the activation snapshot function. After you enabled this function, system can snapshot when the corresponding alarm occurred. In Encode interface, click snapshot button to input snapshot mode, size, quality and frequency.
  • Page 50 Figure 4-19 In Detect interface please enable snapshot function for specified channels. See Figure 4-20. Figure 4-20 4.5.2.3 Priority Please note the activation snapshot has the higher priority than schedule snapshot. If you have enabled these two types at the same time, system can activate the activation snapshot when alarm occurs, and otherwise system just operates the schedule snapshot.

  • Page 51: Image Ftp

    4.5.3 Image FTP In Network interface, you can set FTP server information. Please enable FTP function and then click save button. See Figure 4-21. Please boot up corresponding FTP server. Please enable schedule snapshot (Chapter 4.5.2.1) or activation snapshot (Chapter 4.5.2.2) first, now system can upload the image file to the FTP server.
  • Page 52  Period: Click set button, you can see an interface is shown as in Figure 4-25.Here you can set motion detect period. System only enables motion detect operation in the specified periods. It is not for video loss or the camera masking. Please select Sunday to Saturday from the dropdown list. You can see there are six periods for you to set.
  • Page 53 Figure 4-22 Figure 4-23 Figure 4-24 Figure 4-25...
  • Page 54 Figure 4-26 Figure 4-27 Figure 4-28...

  • Page 55: Video Loss

    4.6.3 Video Loss In Figure 4-22, select video loss from the type list. You can see the interface is shown as in Figure 4-29.This function allows you to be informed when video loss phenomenon occurred. You can enable alarm output channel and then enable show message function. Tips: ...

  • Page 56: Backup

    Figure 4-30 4.7 Backup DVR support USB device backup and network download. Here we introduce USB backup. You can refer to Chapter 7 Web Client Operation for network download backup operation. 4.7.1 Detect Device Click backup button, you can see an interface is shown as in Figure 4-31. Here is for you to view devices information.

  • Page 57: Backup

    4.7.2 Backup Select backup device and then set channel, file start time and end time. Click add button, system begins search. All matched files are listed below. System auto matically calculates the capacity needed and remained. See Figure 4-32. system only backup files with a √ before channel name. You can use Fn or cancel button to delete √ after file serial number.

  • Page 58: Ptz Control And Color Setup

    Note: When you click stop button during the burning process, the stop function becomes activated immediately. For example, if there are ten files, when you click stop system just backup five files, system only save the previous 5 files in the device (But you can view ten file names). 4.8 PTZ Control and Color Setup Note: All the operations here are based on PELCOD protocol.

  • Page 59: Intelligent Positioning Key

    After completing all the setting please click save button. Right click mouse (click “Fn” Button in the front panel or click “Fn” key in the remote control). The interface is shown as in Figure 4-35. Figure 4-35 Click Pan/Tilt/Zoom, the interface is shown as below. See Figure 4-36. Here you can set the following items: ...

  • Page 60: Preset/ Patrol/Pattern/Scan

    Here is a sheet for you reference. Name Function function Shortcut Function function Shortcut  Zoom Near ►  │ │ Focus Near   Iris close Open 4.9 Preset/ Patrol/Pattern/Scan In Figure 4-36, please click the “set” button. The interface is shown as below. See Figure 4-39. Here you can set the following items: ...

  • Page 61: Preset Setup

    Note:  Preset, tour and pattern all need the value to be the control parameter. You can define it as you require. You need to refer to your speed dome user’s manual for Aux definition. In some cases, it can be ...

  • Page 62: Activate Pattern Function

    Figure 4-43 4.9.6 Activate Pattern Function In Figure 4-39, input mode value in the No. blank, and click pattern button. 4.9.7 Auto Scan Setup In Figure 4-38, click border button. The interface is shown as in Figure 4-43. Please go to Figure 4-35, use direction arrows to select camera left limit Then please go to Figure 4-43 and click left limit button Repeat the above procedures to set right limit.

  • Page 63: Understanding Of Menu Operations And Controls

    5 Understanding of Menu Operations and Controls 5.1 Menu Tree This series DVR menu tree is shown as below. Backup Information HDD Info Version Online Users Network Info Setting General Encode Schedule Network Menu Detect Display Default Search Advanced HDD Management Abnormality Manual Record Account...

  • Page 64: Main Menu

    5.2 Main Menu After you logged in, the system main menu is shown as below. See Figure 5-1. There are total six icons: search, Information, setting, backup, advanced and shutdown. Move the cursor to highlight the icon, then double click mouse to enter the sub-menu. Figure 5-1 5.3 Setting In main menu, highlight setting icon and double click mouse.
  • Page 65 setting corresponding week setup. In Figure 5-4, enable date button, you can see an interface is shown as in Figure 5-5. Here you can set start time and end time by setting corresponding date setup.  Time format: There are two types: 24-hour mode or 12-hour mode. ...
  • Page 66 Figure 5-3 Figure 5-4 Figure 5-5 Figure 5-6...

  • Page 67: Encode

    Figure 5-7 5.3.2 Encode Encode setting includes the following items. See Figure 5-8. Please note some series do not support extra stream.  Channel: Select the channel you want.  Type: Please select from the dropdown list. There are three options: regular/motion detect/alarm. You can set the various encode parameters for different record types.
  • Page 68  Snapshot frequency: It is for you to set timing (schedule) snapshot in terval. The value ranges from 1-7 picture(s) per second.  Copy After you complete the setup, you can click Copy button to copy current setup to other channel(s).

  • Page 69: Schedule

    Figure 5-10 Figure 5-11 5.3.3 Schedule Please refer to chapter 4.5 schedule. 5.3.4 Network Here is for you to input network information. The network interface is shown as in Figure 5-12.  IP Version: There are two options: IPv4 and IPv6. Right now, system supports these two IP address format and you can access via them.
  • Page 70  TCP port: Default value is 37777. You can change if necessary.  UDP port: Default value is 37778. You can change if necessary.  HTTP port: Default value is 80.  HTTPS port: Default value is 443.  RTSP port: Default value is 554. Important: System needs to reboot after you changed and saved any setup of the above four ports.
  • Page 71 Figure 5-12 5.3.4.1 Network Setting Network setting interface is shown as in Figure 5-13. Please check the box to enable corresponding function and then double click current item to go to setup interface. Figure 5-13 5.3.4.2 IP Filter IP filter interface is shown as in Figure 5-14. You can add IP in the following list. The list supports max 64 IP addresses.
  • Page 72  Type: You can select trusted site and blacklist from the dropdown list. You can view the IP address on the following column.  Start address/end address: Select one type from the dropdown list, you can input IP address in the start address and end address.
  • Page 73 Figure 5-15 Figure 5-16 5.3.4.3 NTP Setup You need to install SNTP server (Such as Absolute Time Server) in your PC first. In Windows XP OS, you can use command “net start w32time” to boot up NTP service. NTP setup interface is shown as in Figure 5-17. ...
  • Page 74 Alaska GMT-9 Pacific Time(P.T) GMT-8 American Mountain Time(M.T) GMT-7 American Central Time(C.T) GMT-6 American Eastern Time(E.T) GMT-5 Atlantic Time GMT-4 Brazil GMT-3 Middle Atlantic Time GMT-2 Figure 5-17 5.3.4.4 Multiple Cast Setup Multiple-cast setup interface is shown as in Figure 5-18. Figure 5-18 Here you can set a multiple cast group.
  • Page 75 -239.0.0.0-239.255.255.255 -Private address space  Like the single broadcast address of RFC1918  Can not be used in Internet transmission  Used for multiple cast broadcast in limited space. Except the above mentioned addresses of special meaning, you can use other addresses. For example: Multiple cast IP: 235.8.8.36 Multiple cast PORT: 3666.
  • Page 76 Figure 5-20 Please note NNDS type includes: CN99 DDNS, NO-IP DDNS, Quick DDNS and Dyndns DDNS. All the DDNS can be valid at the same time, you can select as you requirement. Quick DDNS function shall work with special DDNS server and special Professional Surveillance Software (PSS).
  • Page 77 Important  Do not register frequently. The interval between two registrations shall be more than 60 seconds. Too many registration requests may result in server attack.  System may take back the domain name that is idle for one year. You can get a notification email before the cancel operation if your email address setup is OK.
  • Page 78 Figure 5-21 Figure 5-22 5.3.4.8 3G 3G setup interface is shown as below. See Figure 5-23. It is to display current wireless network signal intensity such as EVDO, CDMA1x, WCDMA, WCDMA, EDGE and etc.  3G module: It is to display current wireless network adapter name. ...
  • Page 79 connection is valid all the time. If the alive time is 0, then the 3G network connection is valid all the time.  Dial: Here you can enable or disable 3G network connection/disconnection manually.  3G wireless network: Here is to display wireless network status, SIM card status, dial status. If the 3G connection is OK, then you can see the device IP address the wireless network automatically allocates.
  • Page 80 5.3.4.9 WIFI You can view the WIFI connection status in the Network Setting interface. See Figure 5-25. You can view current connection status and IP address if there is a connection. Figure 5-25 The WIFI interface is shown as below. See Figure 5-26. ...
  • Page 81 Figure 5-27 After successfully connection, you can see the following interface. You can see it is connected now. See Figure 5-28. Figure 5-28  WIFI working status: Here you can view current connection status. Please note:  After successful connection, you can see WIFI connection icon at the top right corner of the preview interface.
  • Page 82 Figure 5-29 5.3.4.10 Email The email interface is shown as below. See Figure 5-30.  SMTP server: Please input your email SMTP server IP here.  Port: Please input corresponding port value here.  User name: Please input the user name to login the sender email box. ...
  • Page 83 Figure 5-30 Figure 5-31 5.3.4.11 FTP You need to download or buy FTP service tool (such as Ser-U FTP SERVER) to establish FTP service. Please install Ser-U FTP SERVER first. From “start” -> “program” -> Serv-U FTP Server -> Serv-U Administator.
  • Page 84 You can use a PC or FTP login tool to test setup is right or not. For example, you can login user ZHY to FTP://10.10.7.7 and then test it can modify or delete folder H140H 140H 140HTU or not. See Figure 5-33. Figure 5-33 System also supports upload multiple DVRs to one FTP server.
  • Page 85 Figure 5-35 5.3.4.12 SNMP SNMP is an abbreviation of Simple Network Management Protocol. It provides the basic network management frame of the network management system. The SNMP widely used in many environments. It is used in many network device, software and system. You can set in the following interface.
  • Page 86 5.3.4.13 Network Priority This interface is for you to set network priority. The default setup is PPPoE>WIFI>3G>LAN. See Figure 5-37. You can change if necessary. Default gateway: It is to display current default gateway. It is to display PPPoE if PPPoE dial succeeded. Priority: The value ranges from 0 to 3.

  • Page 87: Detect

    2) The proxy server software developed from the SDK. Please open the software and input the global setup. Please make sure the auto connection port here is the same as the port you set in the previous step. 3) Now you can add device. Please do not input default port number such as the TCP port in the mapping port number.

  • Page 88: Display

    5.3.7 Display Display setup interface is shown as below. See Figure 5-43.  Transparency: Here is for you to adjust transparency. The value ranges from 128 to 255.  Channel name: Here is for you to modify channel name. System max support 25-digit (The value may vary due to different series).
  • Page 89 On the navigation bar, you can see the Favorites shortcut menu. You can select from the dropdown list. Click View 1, you can see the channel(s) you saved on the Favorites folder. See Figure 5-41. Figure 5-41  Zero-Channel Encoding: Click Setup button, you can go to the following interface. Figure 5-42. Here you can enable and set zero-channel encoding function so that you can view several video sources at one channel.
  • Page 90 Figure 5-43 In Figure 5-43, click modify button after channel. You can see an interface is shown as in Figure 5-44. Please note all your modification here applies to local end only. You need to refresh web or client-end to get the latest channel name.

  • Page 91: Default

    5.3.8 Default Click default icon, system pops up a dialogue box. You can highlight to restore default factory setup. See Figure 5-26.  Select all  General  Encode  Schedule  Network  Display  Detect  Pan/tilt/zoom  Channel name Please highlight icon to select the corresponding function.

  • Page 92: Advanced

    5.5 Advanced Double click advanced icon in the main window, the interface is shown as below. See Figure 5-47.There are total seven function keys: HDD management, abnormality, manual record, account, auto maintenance, text overlay and config backup. Figure 5-47 5.5.1 HDD Management Here is for you to view and implement hard disk management.
  • Page 93 Please highlight icon to select the corresponding function. Figure 5-49 For the HDD group setup operation, please note: Each channel’s records can be stored into the specified HDD Group.   Each HDD Group is corresponding to several hard disks, while one hard disk is only included in one HDD Group.
  • Page 94 Figure 5-50 Channels Setting Click the button named with “Channels Settings” at the top right corner of the Figure 5-48, system will pop up an interface shown as in Figure 5-51. Channel: Here you can view the actual channel amount of the device. Group No.:It is the SN in the HDD group management.
  • Page 95 Channel Quota Please note only the product of the quota setup icon supports this function. Here you can set channel storage capacity. See Figure 5-52. Figure 5-52 Click Quota Setup button, you can go to Figure 5-53. Here you can set the each channel storage capacity in each HDD.

  • Page 96: Abnormality

    5.5.2 Abnormality Abnormality interface is shown as in Figure 5-55 and Figure 5-56.  Event type: There are several options for you such as disk error, no disk, disk no space, net disconnection, IP conflict, MAC conflict and etc.  Show message: system can pop up the message in the local screen to alert you when alarm occurs.

  • Page 97: Manual Record

    5.5.3 Manual Record Please refer to chapter 4.3 manual record. 5.5.4 Account Here is for you to implement account management. See Figure 5-57. Here you can:  Add new user  Modify user  Add group  Modify group  Modify password.
  • Page 98 5.5.4.1 Modify Password Click password button, the interface is shown as in Figure 5-58. Here you can modify account password. Please select the account from the dropdown list, input the old password and then input the new password twice. Click the Save button to confirm current modification. For the users of user account right, it can modify password of other users.

  • Page 99: Auto Maintenance

    5.5.4.3 Add/Modify User Click add user button, the interface is shown as in Figure 5-60. Please input the user name, password, user MAC address and select the group it belongs to from the dropdown list. Then you can check the corresponding rights for current user. For convenient user management, usually we recommend the general user right is lower than the admin account.

  • Page 100: Text Overlay

    5.5.6 Text Overlay The card overlay function is for financial areas. It includes Sniffer, information analysis and title overlay function. The network type interface is shown as below. See Figure 5-62. Here we take the ATM/POS protocol to continue. There are two types: with or without the protocol according to client’s requirements. For ATM/POS with the protocol, you just need to set the source IP, destination IP (sometimes you need to input corresponding port number).

  • Page 101: Config Backup

    Click Data button you can see an interface is shown as in Figure 5-64. Here you can set offset value, length, title according to your communication protocol and data package. . Figure 5-64 5.5.7 Config Backup The configuration file backup interface is shown as below. See Figure 5-65. This function allows you to import/export system configuration.

  • Page 102: Information

    Figure 5-65 5.6 Information Here is for you to view system information. There are total six items: HDD (hard disk information), BPS (data stream statistics), log, version, online user and network information. See Figure 5-66. Figure 5-66 5.6.1 HDD Information Here is to list hard disk type, total space, free space, video start time and status.

  • Page 103: Bps

    After system booted up, if there is any confliction, system goes to HDD information interface directly. Please note, system does not ask you to deal with it forcedly. When HDD confliction occurs, you can check system time and HDD time are identical or not. If they are not identical, please go to General (Chapter 5.3.1) to adjust system time or go to HDD Management (Chapter 5.5.1) to format HDD and then reboot the DVR.

  • Page 104: Log

    5.6.3 Log Here is for you to view system log file. System lists the following information. See Figure 5-69. Log types include system operation, system configuration, data management, alarm event, record operation, log clear, file operation and etc.  Start time/end time: Pleased select start time and end time, then click search button. You can view the log files in a list.

  • Page 105: Version

    5.6.4 Version Here is for you to view hardware features, software version, built date, release SN information and etc. You can also update system here. See Figure 5-71.  Start: Please insert the USB device that have the update file to the device and then click the Start button to begin the update.

  • Page 106: Network Information

    5.6.6 Network Information In this interface, you can see network test and network load information. 5.6.6.1 Network Test Network test interface is shown as in Figure 5-73.  Destination IP: Please input valid IPV4 address and domain name.  Test: Click it to test the connection with the destination IP address. The test results can display average delay and packet loss rate and you can also view the network status as OK, bad, no connection and etc.

  • Page 107: Shutdown

    Figure 5-74 5.7 Shutdown Double click shutdown button, system pops up a dialogue box for you to select. See Figure 5-75  Logout menu user: log out menu. You need to input password when you login the next time.  Shutdown: system shuts down and turns off power.

  • Page 108: About Auxiliary Menu

    6 About Auxiliary Menu Go to Pan/Tilt/Zoom Menu In the one-window surveillance mode, right click mouse (click “fn” Button in the front panel or click AUX key in the remote control). The interface is shown as below: See Figure 6-1 X397H 397H 397H Figure 6-1 Click Pan/Tilt/Zoom, the interface is shown as in...

  • Page 109: Intelligent Positioning Key

    6.1.1 3D Intelligent Positioning Key In the middle of the eight direction arrows, there is a 3D intelligent positioning key. See Figure 6-4 Please make sure your protocol supports this function and you need to use mouse to control. Click this button, system goes back to the single screen mode. Drag the mouse in the screen to adjust section size.

  • Page 110: Preset Setup

    6.2.1 Preset Setup Note: The following setups are usually operated in the Figure 6-2 , Figure 6-5 and Figure 6-6 In Figure 6-2 , use eight direction arrows to adjust camera to the proper position. In Figure 6-5 , click preset button and input preset number. The interface is shown as in Figure 6-7 Add this preset to one patrol number Figure 6-7 6.2.2 Activate Preset...

  • Page 111: Activate Pattern Function

    6.2.6 Activate Pattern Function In Figure 6-6 input mode value in the No. blank, and click pattern button. 6.2.7 Border Setup In Figure 6-5 , click border button. The interface is shown as in Figure 6-10 Please go to Figure 6-2 , use direction arrows to select camera left limit, and then please go to Figure 6-10 and click left limit button...

  • Page 112: Web Operation

    7 WEB OPERATION There might be slightly difference in the interface due to different series. The following interface is on our 4-channel series product. 7.1 Network Connection Before web operation, please check the following items:  Network connection is right ...
  • Page 113 Figure 7-2 After installation, the interface is shown as below. See Figure 7-3. Please input your user name and password. Default factory name is admin and password is admin. Then you can select the login mode: LAN and WAN. Note: For security reasons, please modify your password after you first login. Figure 7-3...

  • Page 114: Lan Mode

    7.3 LAN Mode For the LAN mode, after you logged in, you can see the main window. See Figure 7-9. This main window can be divided into the following sections.  Section 1: there are five function buttons: Live (chapter 7.4), setup (chapter 7.8), search (chapter 7.9), alarm (chapter 7.10), and logout (chapter 7.11).
  • Page 115 Figure 7-8  Section 6: From the left to the right ,you can see video quality/fluency/ full screen/1-window/4- window/6-window/8-window/9-window/13-window/16-window/20-window/25-window/36-window.. You can set video fluency and real-time feature priority.  Section 7: PTZ operation panel. Please refer to chapter 7.5 for detailed information. ...

  • Page 116: Real-Time Monitor

    7.4 Real-time Monitor In section 2, left click the channel name you want to view, you can see the corresponding video in current window. On the top left corner, you can view device IP(10.10.6.129), channel number(1), network monitor bit stream(2466Kbps) and stream type (M=main stream. S=Sub stream). See Figure 7-10. Figure 7-10 On the top right corer, there are six unction buttons.
  • Page 117 Parameter Function  Select Scan from the dropdown list. Scan  Click Set button, you can set scan left and right limit.  Use direction buttons to move the camera to you desired location and then click left limit button. Then move the camera again and then click right limit button to set a right limit.

  • Page 118: Image

    7.6 Image Select one monitor channel video and then click Image button in section 8, the interface is shown as Figure 7-13. Here you can adjust its brightness, contrast, hue and saturation. (Current channel border becomes green). Or you can click Reset button to restore system default setup. Figure 7-13 7.7 WAN Login In WAN mode, after you logged in, the interface is shown as below.
  • Page 119 Figure 7-15 Important The window display mode and the channel number are by default. For example, for the 16- channel, the max window split mode is 16. 3) Multiple-channel monitor, system adopts extra stream to monitor by default. Double click one channel, system switches to single channel and system uses main stream to monitor.

  • Page 120: Setup

    7.8 Setup 7.8.1 Channel 7.8.1.1 Conditions Here you can view device property information. The setups become valid immediately after you set. See Figure 7-16. Figure 7-16 Please refer to the following sheet for detailed information. Parameter Function Channel Please select a channel from the dropdown list. Period It divides one day (24 hours) to two periods.
  • Page 121 exposure .The recommended value ranges from 40 to 60. Saturation It is to adjust monitor window saturation. The value ranges from 0 to 100. The default value is 50. The larger the number is, the strong the color is. This value has no effect on the general brightness of the whole video.
  • Page 122 Please refer to the following sheet for detailed information. Parameter Function Channel Please select a channel from the dropdown list. Video enable Check the box here to enable extra stream video. This item is enabled by default. Code stream It includes main stream, motion stream and alarm stream. You type can select different encode frame rates form different recorded events.
  • Page 123 7.8.1.2.2 Snapshot The snapshot interface is shown as in Figure 7-18. Figure 7-18 Please refer to the following sheet for detailed information. Parameter Function There are two modes: Timing (schedule) and Trigger Snapshot type (activation).  Timing snapshot is valid during the specified period you set.
  • Page 124 Please refer to the following sheet for detailed information. Parameter Function Cover-area Check Preview or Monitor first. (Privacy mask) Click Set button, you can privacy mask the specified video in the preview or monitor video. System max supports 4 privacy mask zones. Time Title You can enable this function so that system overlays time information in video window.

  • Page 125: Network

    7.8.2 Network 7.8.2.1 TCP/IP The TCP/IP interface is shown as in Figure 7-22. Figure 7-22 Please refer to the following sheet for detailed information. Parameter Function Mode There are two modes: static mode and the DHCP mode.  The IP/submask/gateway are null when you select the DHCP mode to auto search the IP.
  • Page 126 For the IP address of IPv6 version, default gateway, preferred DNS and alternate DNS, the input value shall be 128-digit. It shall not be left in blank. System can process the downloaded data first if you enable LAN load this function. The download speed is 1.5X or 2.0X of the normal speed.
  • Page 127 7.8.2.3 WIFI Please note this function is for the device of WIFI module. The WIFI interface is shown as in Figure 7-24. Figure 7-24 Please check the box to enable WIFI function and then click the Search SSID button. Now you can view all the wireless network information in the following list.
  • Page 128 Please refer to the following sheet for detailed information. Parameter Function WLAN type Here you can select 3G network type to distinguish the 3G module from different ISP. The types include WCDMA CDMA1x and etc. APN/Dial No. Here is the important parameter of PPP. Authorization It includes PAP,CHAP,NO_AUTH.
  • Page 129 Please note, you need to use previous IP address in the LAN to login the device. Please go to the IP address item to via the device current device information. You can access the client-end via this new address. Figure 7-27 7.8.2.6 DDNS The DDNS interface is shown as in Figure 7-28.
  • Page 130 Please refer to the following sheet for detailed information. Parameter Function Server Type You can select DDNS protocol from the dropdown list and then enable DDNS function. Server IP DDNS server IP address Server Port DDNS server port. Domain Name Your self-defined domain name.
  • Page 131 7.8.2.7 IP filter The IP filter interface is shown as in Figure 7-29. After you enabled trusted sites function, only the IP listed below can access current DVR. If you enable blocked sites function, the following listed IP addresses can not access current DVR. Figure 7-29 7.8.2.8 Email The email interface is shown as in Figure 7-30.
  • Page 132 Please refer to the following sheet for detailed information. Parameter Function Please check the box here to enable email function. Enable Input server address and then enable this function. SMTP Server Port Default value is 25. You can modify it if necessary. Anonymity For the server supports the anonymity function.
  • Page 133  Enable UPnP from the Web. If your UPnP is enabled in the Windows OS, the DVR can auto detect it via the “My Network Places” Figure 7-31 7.8.2.10 SNMP The SNMP interface is shown as in Figure 7-32. The SNMP allows the communication between the network management work station software and the proxy of the managed device.
  • Page 134 Parameter Function It is a string. It is a command between the manage process Read Community and the proxy process. It defined the authentication, access control and the management relationship between one proxy and one group of the managers. Please make sure the device and the proxy are the same.
  • Page 135 7.8.2.12 Auto Regitser The auto register interface is shown as in Figure 7-34. After the device connects to the network, it can send out auto register query to the specified server. Figure 7-34 7.8.2.13 Alarm Centre The alarm centre interface is shown as below. See Figure 7-35. This interface is reserved for you to develop.
  • Page 136 7.8.2.14 HTTPS In this interface, you can set to make sure the PC can successfully login via the HTTPS. It is to guarantee communication data security. The reliable and stable technology can secure the user information security and device safety. See Figure 7-36. Note ...
  • Page 137 You can see the corresponding prompt. See Figure 7-38. Now the server certificate is successfully created. Figure 7-38 7.8.2.14.2 Donwload root certificate In Figure 7-36, click button, system pops up a dialogue box. See Figure 7-39. Figure 7-39...
  • Page 138 Click Open button, you can go to the following interface. See Figure 7-40. Figure 7-40 certificate wizard Click Install Certificate button, you can go to . See Figure 7-41. Figure 7-41...
  • Page 139 Click Next button to continue. Now you can select a location for the certificate. See Figure 7-42. Figure 7-42 Click Next button, you can see the certificate import process is complete. See Figure 7-43. Figure 7-43 Click Finish button, you can see system pops up a security warning dialogue box. See Figure 7-44. Figure 7-44...

  • Page 140: Event

    Click Yes button, system pops up the following dialogue box, you can see the certificate download is complete. See Figure 7-45. Figure 7-45 7.8.2.14.3 View and set HTTPS port From Setup->Network->Connection, you can see the following interface. See Figure 7-46. You can see HTTPS default value is 443.
  • Page 141 Figure 7-47 Figure 7-48 Figure 7-49...
  • Page 142 Figure 7-50 Please refer to the following sheet for detailed information. Parameter Function Enable You need to check the box to enable motion detection function. Please select a channel from the dropdown list. Period Motion detection function becomes activated in the specified periods.
  • Page 143 Parameter Function Here you can set PTZ movement when alarm occurs. Such as go Activation to preset X. See Figure 7-50. 7.8.3.1.2 Video Loss The video loss interface is shown as in Figure 7-51. After analysis video, system can generate a video loss alarm when the detected moving signal reached the sensitivity you set here.
  • Page 144 7.8.3.2 Abnormality It includes six statuses: No disk, disk error, disk no space, net disconnection, IP conflict and MAC conflict. See Figure 7-53 through Figure 7-58. Figure 7-53 Figure 7-54 Figure 7-55 Figure 7-56...

  • Page 145: Storage

    Figure 7-57 Figure 7-58 Please refer to the following sheet for detailed information. Parameter Function Event The abnormal events include: No disk, disk error, disk no space, net Type disconnection, IP conflict and MAC conflict. You can set one or more items here. Less than: You can set the minimum percentage value here (For disk not space only).
  • Page 146  Yellow color stands for the motion detect record/snapshot..  Red color stands for the alarm record/snapshot. Figure 7-59 Figure 7-60 Figure 7-61...
  • Page 147 Figure 7-62 Please refer to the following sheet for detailed information. Parameter Function Channel Please select a channel from the dropdown list. Pre-record Please input pre-record time here. The value ranges from 0 to 30. Redundancy Check the box here to enable redundancy function. Please note this function is null if there is only one HDD.
  • Page 148 7.8.4.2 Storage 7.8.4.2.1 Local Storage The local interface is shown as in Figure 7-63. Here you can see storage device information. You can also operate the read-only, write-only, hot swap and format operation. Figure 7-63 7.8.4.2.2 HDD Setting Here is for you to set HDD group. See Figure 7-64. Figure 7-64 7.8.4.2.3 HDD Channel...
  • Page 149 7.8.4.2.4 The FTP interface is shown as in Figure 7-66. The FTP function is on if you check the Enable box here. When network is offline or malfunction, system can save record or picture to HDD. Figure 7-66 7.8.4.3 Record control The record control interface is shown as in Figure 7-67.

  • Page 150: System

    It has the highest priority. Manual Enable corresponding channel to record no matter what period applied in the record setup. Stop current channel record no matter what period applied in the Stop record setup. Check the corresponding All button, you can enable or disable all Start all/ channels record.
  • Page 151 7.8.5.1.2 Date and time The date and time interface is shown as in Figure 7-69 Figure 7-69 Please refer to the following sheet for detailed information. Parameter Function Here you can select date format from the dropdown list. Date format There are two options: 24-H and 12-H.
  • Page 152 7.8.5.1.3 Holiday Setup Holiday setup interface is shown as in Figure 7-70. Here you can check the box here to enable this function and then set. Figure 7-70 7.8.5.2 Account Note:  For the character in the following user name or the user group name, system max supports 6-digits. The space in the front or at the end of the string is null.
  • Page 153 Add user: It is to add a name to group and set the user rights. See Figure 7-72. There are four default users: admin/888888/666666 and hidden user “default”. Except user 6666, other users have administrator right. The user 666666 can only have the monitor rights,. Hidden user “default”...
  • Page 154 Modify password It is to modify the user password. In Figure 7-73, please check the box to enable modify password function. You can see an interface show as in Figure 7-74. Please input the old password and then input the new password twice to confirm the new setup. Please click the OK button to save. Please note, the password ranges from 1-digit to 6-digit.
  • Page 155 Add group: It is to add group and set its corresponding rights. See Figure 7-76. Please input the group name and then check the box to select the corresponding rights. It includes: shutdown/reboot device, live view, record control, PTZ control and etc. Figure 7-76 Modify group Click the modify group button, you can see an interface is shown as in Figure 7-77.
  • Page 156 Figure 7-78 Please refer to the following sheet for detailed information. Parameter Function There are four options: Resolution 1920×1080,1280×1024(default),1280×720,1024×768. Please note the system needs to reboot to activate current setup. Transparency Here is for you to adjust transparency. The value ranges from 128 to 255.
  • Page 157 Please refer to the following sheet for detailed information. Parameter Function Check the box here to enable tour function. Enable tour Here is for you to adjust transparency. The value ranges from 5 to Interval 120s. The default setup is 5s. Here you can set window mode and channel group.
  • Page 158 Please refer to the following sheet for detailed information. Parameter Function It is to import the local setup files to the system. Import It is to export the corresponding WEB setup to your local PC. Export 7.8.5.6 Auto maintenance The auto maintenance interface is shown as in Figure 7-82. Here you can select auto reboot and auto delete old files interval from the dropdown list.

  • Page 159: Advanced

    7.8.5.8 PTZ The PTZ interface is shown as in Figure 7-84. Before setup, please check the following connections are right:  PTZ and decoder connection is right. Decoder address setup is right.  Decoder A (B) line connects with DVR A (B) line. Click Save button after you complete setup, you can go back to the monitor interface to control speed dome.

  • Page 160: Information

    Here we take the ATM/POS protocol to continue. There are two types: with or without the protocol according to client’s requirements. With the protocol For ATM/POS with the protocol, you just need to set the source IP, destination IP (sometimes you need to input corresponding port number).
  • Page 161 Figure 7-87 7.8.7.2 Log Here you can view system log. See Figure 7-88. Figure 7-88 Please refer to the following sheet for log parameter information. Parameter Function Log types include: system operation, configuration operation, data Type operation, event operation, record operation, user management, log clear.

  • Page 162: Search

    Parameter Function Clear You can click this button to delete all displayed log files. Please note system does not support clear by type. You can click this button to backup log files to current PC. Backup 7.8.7.3 Online User The online user interface is shown as in Figure 7-89. Figure 7-89 7.9 Search Click search button, you can see an interface is shown as in Figure 7-90.
  • Page 163 Then please click search button, you can see the corresponding files in the list. See Figure 7-91. Figure 7-91 Select a file you want to play and then click Play button, system can begin playback. You can select to playback in full-screen. Please note for one channel, system can not playback and download at the same time.
  • Page 164 Load more It is for you to search record or picture. You can select record channel, record type and record time to download. See Figure 7-93. Figure 7-93 Remote backup In Figure 7-93, there is a remote back pane at the left bottom of the pane. It allows you to backup the record or picture to your local USB storage media via the Web remotely.

  • Page 165: Alarm

    Now you can see system begins backup and the Stop backup button becomes valid. You can click it to terminate current operation. At the bottom of the interface, there is a process bar for your reference. 7.10 Alarm Click alarm function, you can see an interface is shown as Figure 7-95. Here you can set device alarm type and alarm sound setup.

  • Page 166: Log Out

    7.11 Log out Click log out button, system goes back to log in interface. See Figure 7-96. You need to input user name and password to login again. Figure 7-96 7.12 Un-install Web Control You can use web un-install tool “uninstall web.bat” to un-install web control. Please note, before you un-installation, please close all web pages, otherwise the un-installation might result in error.

  • Page 167: Professional Surveillance System

    8 Professional Surveillance System Besides Web, you can use our Professional Surveillance Software (PSS) to login the device. For detailed information, please refer to PSS user’s manual.

  • Page 168: Faq

    9 FAQ 1. DVR can not boot up properly. There are following possibilities:  Input power is not correct.  Power connection is not correct.  Power switch button is damaged.  Program upgrade is wrong.  HDD malfunction or something wrong with HDD ribbon. ...
  • Page 169 6. Can not search local records. There are following possibilities:  HDD ribbon is damaged.  HDD is broken.  Upgraded program is not compatible.  The recorded file has been overwritten.  Record function has been disabled. 7. Video is distorted when searching local records. There are following possibilities: ...
  • Page 170  When there are several decoders, please add 120 Ohm between the PTZ decoder A/B cables furthest end to delete the reverberation or impedance matching. Otherwise the PTZ control is not stable.  The distance is too far. 12. Motion detection function does not work. There are following possibilities: ...
  • Page 171  Data amount exceeds backup device capacity. It may result in burner error.  Backup device is not compatible.  Backup device is damaged. 17. Keyboard can not control DVR. There are following possibilities:  DVR serial port setup is not correct ...
  • Page 172 24. When I login via HTTPS, a dialogue says the certificate for this website is for other address. Please follow chapter 7.8.2.14.1 to create server certificate. 25. When I login via HTTPS, a dialogue says the certificate is not trusted. Please follow chapter 7.8.2.14.2 to download root certificate.

  • Page 173: Appendix A Hdd Capacity Calculation

    Appendix A HDD Capacity Calculation Calculate total capacity needed by each DVR according to video recording (video recording type and video file storage time). Step 1: According to Formula (1) to calculate storage capacity that is the capacity of each channel needed for each hour, unit Mbyte.

  • Page 174: Appendix B Compatible Backup Device List

    Appendix B Compatible Backup Device List Compatible USB drive list NOTE: Please upgrade the DVR firmware to latest version to ensure the accuracy of the table below. If you use the USB drive, please confirm the format FAT or FAT32. Manufacturer Model Capacity...
  • Page 175 Compatible SD Card List Please refer to the following sheet for compatible SD card brand. Brand Standard Capacity Card type Transcend SDHC6 16GB Kingston SDHC4 Kingston Kingston Sandisk SDHC2 Micro-SD Sandisk Micro-SD Compatible Portable HDD List Please refer to the following sheet for compatible portable HDD brand. Brand Model Capacity...
  • Page 176 Compatible SATA HDD List NOTE: Please upgrade the DVR firmware to latest version to ensure the accuracy of the table below. And SATA HDD should be used for the DVR with SATA port. Here we recommend HDD of 500G to 4T capacity.
  • Page 177 ES.2 Seagate Seagate Constellation ST33000651NS SATA ES.2 Seagate Seagate Constellation ST32000646NS SATA ES.2 Seagate Seagate Constellation ST33000652NS SATA ES.2 Seagate Seagate Constellation ST32000647NS SATA ES.2 Westem Cariar SE WD3200JD 320G SATA Digital Westem Cariar SE WD3000JD 300G SATA Digital Westem Cariar SE WD2500JS 250G...
  • Page 178 Digital Westem WDAV-GP—EVDS WD10EVDS-63N5B1 SATA Digital Westem WDAV-GP—EVDS WD15EVDS-63V9B0 1.5T SATA Digital Westem WDAV-GP—EVDS WD20EVDS-63T3B0 SATA Digital Westem WDAV-GP—AVDS WD5000AVDS- 500G SATA Digital 63U7B0 Westem WD AV-GP WD30EURS SATA Digital Westem WD AV-GP WD25EURS 2.5T SATA Digital Westem WD AV-GP WD20EURS SATA Digital...

  • Page 179: Appendix C Compatible Cd/Dvd Device List

    Appendix C Compatible CD/DVD Device List NOTE: Please upgrade the DVR firmware to latest version to ensure the accuracy of the table below. And you can use the USB cable with the model recommended to set USB burner. Manufacturer Model Port Type Type Sony...

  • Page 180: Appendix D Compatible Displayer List

    Appendix D Compatible Displayer List Please refer to the following sheet for the compatible device brand. Brand Model Dimension (Unit: inch) BENQ LCD ET-0007-TA 19-inch (wide screen) DELL LCD E178FPc 17-inch BENQ LCD Q7T4 17-inch BENQ LCD Q7T3 17-inch LENOVO LCD LXB-L17C 17-inch SANGSUNG LCD...

  • Page 181: Appendix E Compatible Switcher List

    Appendix E Compatible Switcher List Please refer to the following sheet form compatible switcher list. Brand Model Network Working Mode D-LinK DES-1016D 10/100M self-adaptive D-LinK DES-1008D 10/100M self-adaptive There are five network modes 1、AUTO 2、HALF-10M Ruijie RG-S1926S 3、FULL-10M 4、HALF-100M 5、FULL-100M H3C-S1024 10/100M self-adaptive TP-LINK...

  • Page 182: Appendix F Compatible Wireless Mouse List

    Appendix F Compatible Wireless Mouse List Please refer to the following sheet for compatible SD card brand. Brand Model Rapoo 3500 Logitech M215 Shuangfeiyan Tianyao G7-630...

  • Page 183: Appendix G Toxic Or Hazardous Materials Or Elements

    Appendix G Toxic or Hazardous Materials or Elements Toxic or Hazardous Materials or Elements Component Name Cr VI PBDE Sheet ○ ○ ○ ○ ○ ○ Metal(Case) Plastic Parts ○ ○ ○ ○ ○ ○ Panel ○ ○ ○ ○ ○...
