Summary of Contents for Zte A611+

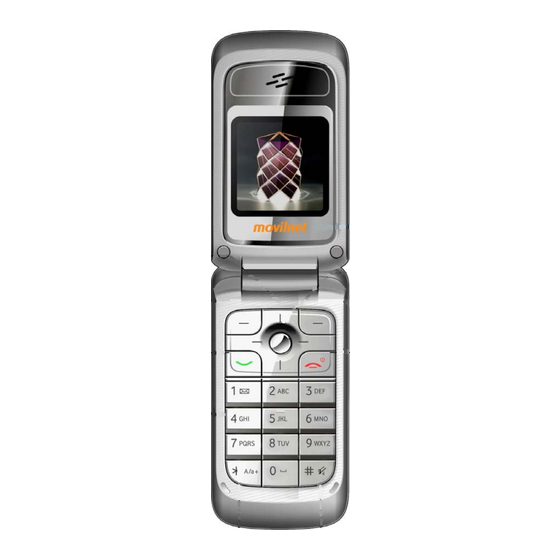

- Page 1 ZTE CORPORATION ZTE A611+ GSM Dual-band GPRS Digital Mobile Phone User Manual...
- Page 2 ZTE Corporation. ZTE operates a policy of continuous development. We reserve the right to update the technical specifications in this document at any time without prior notice.
- Page 3 While there may be differences between the SAR levels of various ZTE phone models, they are all designed to meet the relevant guidelines for exposure to radio waves.
-
Page 4: Table Of Contents
Contents GENERAL INFORMATION ........................ 5 ............................. 5 ELCOME .............................. 5 ECURITY .......................... 5 AFETY RECAUTIONS GETTING STARTED ..........................8 ........................... 8 EFINITION ..........................8 ISPLAY NDICATORS ........................9 ECHNICAL ARAMETERS ............................... 9 ATTERY Removing & Installing the Battery ..................9 Charging the Battery ........................ -
Page 5: General Information
TROUBLESHOOTING ........................16 General Information Welcome Thank you for using ZTE A611+ GSM digital mobile phone. To guarantee the mobile phone always in its best condition, please read this manual carefully and keep it for further use. The pictures, symbols and contents in this manual are just for your reference. They might not be completely identical with your mobile phone. - Page 6 Do not touch the antenna when the phone is in use. Touching the antenna area affects call quality and may cause the phone to operate at a higher power level than needed. Some people may be susceptible to epileptic seizures or blackouts when exposed to flashing lights, such as when watching television or playing video games.
- Page 7 Do not remove, install, or charge batteries in such areas. Spark in a potentially explosive atmosphere can cause an explosion or fire resulting in bodily injury or even death. To avoid possible interference with blasting operations, switch off your phone when you are near electrical blasting caps, in a blasting area, or in areas posted “Turn off electronic devices.”...
-
Page 8: Getting Started
Getting Started Key Definition Up/Down/Left/Right (Scroll) keys OK key Left soft key Right soft key Dial key End key 0-9 Number keys * key # key Note: In this manual press a key means you press a key and then release it; hold a key means you press a key and hold on for two seconds or more. -
Page 9: Technical Parameters
Mute Vibration New message; no space for messages when blinking Battery charge level Technical Parameters Handset Type ZTE A611+ Dimensions（L×W×H） 93 mm×47.8 mm×15.9 mm Weight Approx. 80 g (with battery) Battery Continuous standby time Approx. 120 hours - 150 hours (subject to network status) Continuous talk time Approx. -
Page 10: Inserting & Removing Sim Card
Inserting & Removing SIM Card Switch off your phone, disconnect the outer power source and remove the battery. Warning: It is forbidden to insert or remove the SIM card when it is on or connected to an outer power source. Insert the SIM card into the SIM card slot or pull it out from the slot. -
Page 11: Function Menu
DTMF: Set On/Off to send or stop send DTMF. Note: Some options can only appear in special cases. Options such as Swap will appear only when the ongoing call and the hang-on call coexist. Function Menu Usage and Structure of Function Menu Scrolling search function: Enter the function main menu by pressing Menu or the OK key in the standby mode. -
Page 12: Call Setup
Language: Select the language for the display texts. Display Characteristic: Set a series of display Characteristics. Speed Dial: Set the speed dial keys and enable or disable this function. Flight Mode: Set the mode for a flight. LCD Backlight: Set the parameter for the backlight. KeyBacklight: Activate or deactivate the key backlight. -
Page 13: Sms
Set a message service center number in Message Settings-Profile Setting before sending messages. Write Message: Create new SMS. Inbox: You can read the received messages. In the Message Body interface, you can press Option to make more operations. Outbox: If you select Save and Send, the successfully sent out SMS will be saved in Outbox. In the Message Body interface, you can press Option to make more operations. - Page 14 Read Report: Select whether or not to send a read report. Delivery Report: Select whether or not to send a delivery report. Server Profile You can set up to 10 profiles. For the content to fill in, please consult the network service provider. Memory Status View the memory status.
- Page 15 key [OK] or the OK key to get results. Note: This calculator has limited accuracy and rounding errors may occur especially in long division. Currency Converter Input the Rate, press OK and input a figure, and then press OK to get the result. Services This service needs the network service provider to provide.
- Page 16 Press the key labeled with the required letter Once for the first letter Twice for the second letter And so on To insert a space, press the 0 key once. To delete letters, press the Right soft key. Press the * key to open a list of special characters, use the Scroll keys to move through the list, and press the OK key to select a character.
- Page 17 Input the PIN or input the new PIN if you have changed the code. The code can be set “off” if you do not want to input. “Insert SIM” is shown when the phone is switched on. Turn off your phone and make sure that you have inserted a valid SIM card. “Enter Phone Lock”...
