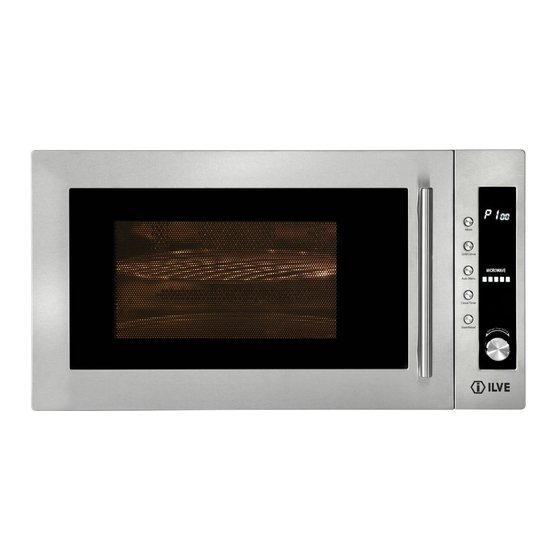

Summary of Contents for iLive IVFSM34X
- Page 1 31 Litre Electronic Microwave Owner s Instruction Manual IVFSM34X Read the Instructions carefully and Keep for Future Reference...
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When Using Electrical Appliance Basic Safety Precautions Should Be Followed, Including The Following: Warning: To Reduce The Risk Of Burns, Electric Shock, Fire, Injury To Persons Or Exposure To Ex- cessive Microwave Energy: 1.Read All Instructions Before Using The Appli- ance. - Page 4 6.To Reduce The Risk Of Fire In The Oven Cavity. A.When Heating Food In Plastic Or Paper Con- tainer, Keep An Eye On The Oven Due To The Possibility Of Ignition. B.Remove Wire Twist-ties From Paper Or Plastic Bags Before Placing Bag In Oven. C.If Smoke Is Observed, Switch Off Or Unplug The Appliance And Keep The Door Closed In Order To Stifle Any Flames.
-
Page 5: Before Cooking
Before Cooking. 12.The Contents Of Feeding Bottles And Baby Jars Should Be Stirred Or Shaken And The Tem- perature Should Be Checked Before Serving In Order To Avoid Burns. 13.Cooking Utensils May Become Hot Because Of Heat Transferred From The Heated Food. Pot- holders May Be Needed To Handle The Utensil. - Page 6 17.This Appliance Is Not Intended For Use By Per- sons (Including Children) With Reduced Physical, Sensory Or Mental Capabilities, Or Lack Of Experi- ence And Knowledge, Unless They Have Been Given Supervision Or Instruction Concerning Use Of The Appliance By A Person Responsible For Their Safety.
- Page 7 Knowledge, Unless They Have Been Given Su- pervision Or Instruction. 27.Children Being Supervised Not To Play With Appliance. 28.Warning: If The Door Or Door Seals Are Dam- aged, The Oven Must Not Be Operated Until It Has Been Repaired By A Competent Person. 29.The Instructions Shall State That Appliances Are Not Intended To Be Operated By Means Of An External Timer Or Separate Remote-control...
- Page 8 34.The Microwave Oven Is Intended For Defrost- ing, Cooking And Steaming Of Food Only. 35.Use Gloves If You Remove Any Heated Food. 36.Caution! Steam Will Escape, When Opening Lids Or Wrapping Foil. 37.If Smoke Is Emitted, Switch Off Or Unplug The Appliance And Keep The Door Closed In Order To Stifle.
-
Page 9: Specifications
SPECIFICATIONS Power consumption: 240V~50Hz,1450W Output: 900W Operating Frequency: 2,450MHz Outside Dimensions: 520mm(W) X 430mm(D) X 300mm(H) Oven Cavity Dimensions: 350mm(W) X 372mm(D) X 232mm(H) Oven Capacity: 31 litres Uncrated Weight: Approx. 17.5kg BEFORE YOU CALL FOR SERVICE 1. If the oven will not perform at all, the display does not test the outlet with another appliance. -
Page 10: Warning! This Appliance Must Be Earthed
INSTALLATION 1. Make sure all the packing materials are removed from 3. This Microwave Oven weighs 17.5 kg and must be the inside of the door. placed on a horizontal surface strong enough to support this weight. 2. Inspect the oven after unpacking for any visual 4. -
Page 11: Safety Instructions For General Use
IMPORTANT SAFETY INSTRUCTIONS - WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated; (Only for the model with grill function) - WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by an authorised person;... -
Page 12: Feature Diagram
6. Do not insert any object into the openings on the outer removed from the oven, please remember that case. the food/liquid inside will be releasing the same 7. Do not at any time remove parts from the oven such as amount of steam and/or spitting when the lid is the feet, coupling, screws, etc. -
Page 13: Computer Control Panel
COMPUTER CONTROL PANEL... - Page 14 etc. b) Press the button "Start/Reset", the microwave oven will work on 100% power for 1 minutes. b) Press "Start/Reset" c) Press "Start/Reset" Touching times Microwave power Display 100% P100 3.Auto weight defrost Select the food weight, it will automatically help you to adjust the power level and time. Example:defrost 0.5kg frozen meat.
- Page 15 5.Clock The oven has a 24-hour digital clock, To input the time, for example to 4:30pm: a) Press "Clock", the display will flash, adjust the hour with the knob "Defrost/Time Setting" b) Press "Clock" again, adjust the minute with buttons "Defrost/Time Setting". c) Press "Clock"...
-
Page 16: Care Of Your Microwave Oven
9. Memory cooking function: This function can memorize some useful cooking programes to avoid reseting time and power operation. a) If no memory has been set press "memory" "1" will be displayed, input cooking power and time, press "memory" again, the set program will be menorized. If you press "Start" instead of "menory" button, the oven will start work, and the program also will be menorized. -
Page 17: Schematic Diagram
SCHEMATIC DIAGRAM ( DOOR OPENED,COOK OFF CONDITION) NOISE FILTER TRANSFORMER MAGNETRON N E L P( OUT) R4-2 T( IN) R4-1 D_ SW CONTROLLER L: LAMP SWA: PRIMARY INTERLOCK SWITCH SWB: SECONDARY INTERLOCK SWITCH FM: FAN MOTOR TM: TURNTABLE MOTOR SWC: THE MONITOR INTERLOCK SWITCH *CIRCUIT SUBJECT TO CHANGE WITHOUT NOTICE...
