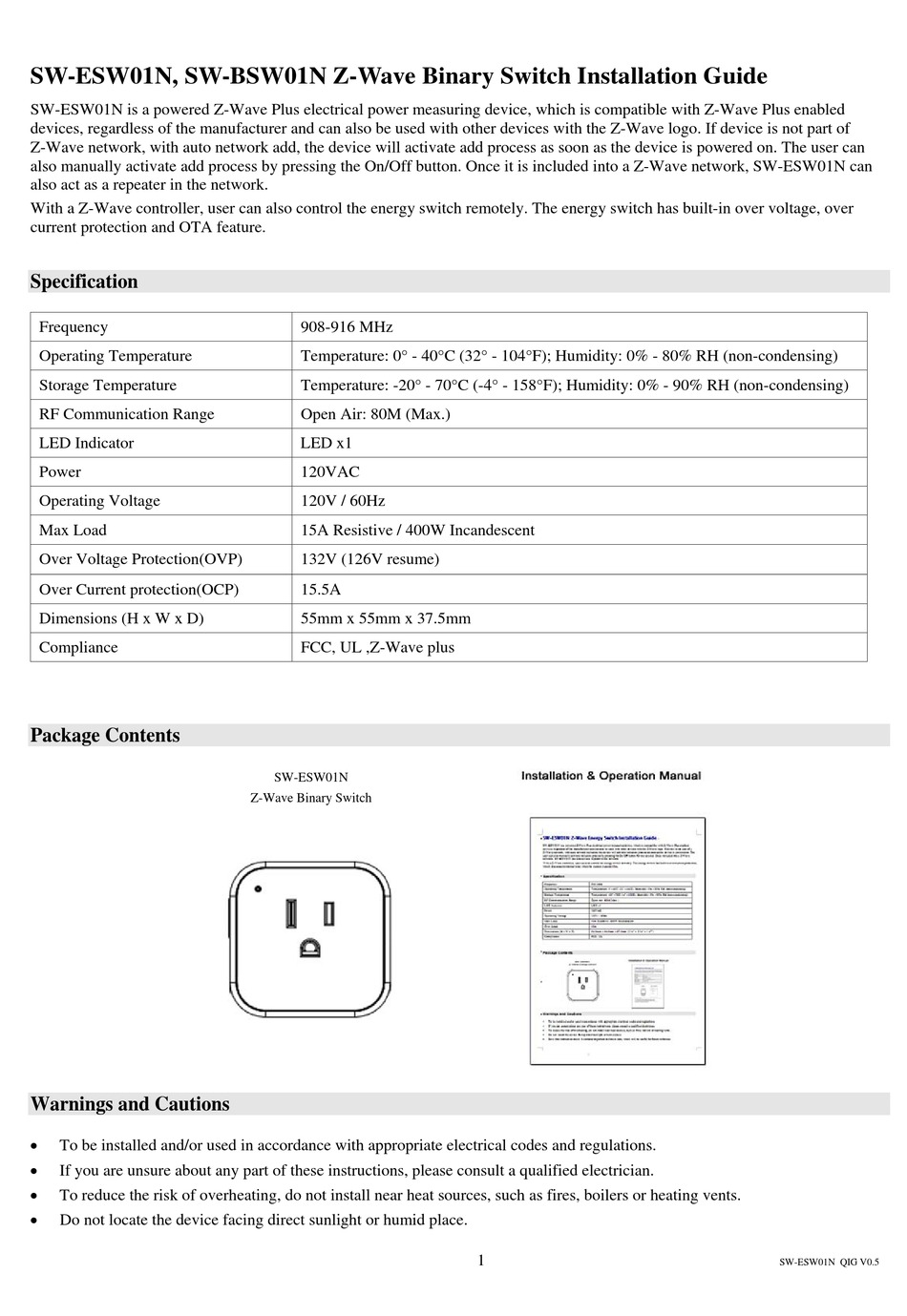

SW-ESW01N, SW-BSW01N Z-Wave Binary Switch Installation Guide
SW-ESW01N is a powered Z-Wave Plus electrical power measuring device, which is compatible with Z-Wave Plus enabled
devices, regardless of the manufacturer and can also be used with other devices with the Z-Wave logo. If device is not part of
Z-Wave network, with auto network add, the device will activate add process as soon as the device is powered on. The user can
also manually activate add process by pressing the On/Off button. Once it is included into a Z-Wave network, SW-ESW01N can
also act as a repeater in the network.
With a Z-Wave controller, user can also control the energy switch remotely. The energy switch has built-in over voltage, over
current protection and OTA feature.

Specification

Frequency
Operating Temperature
Storage Temperature
RF Communication Range
LED Indicator
Power
Operating Voltage
Max Load
Over Voltage Protection(OVP)
Over Current protection(OCP)
Dimensions (H x W x D)
Compliance

Package Contents

Warnings and Cautions


To be installed and/or used in accordance with appropriate electrical codes and regulations.

If you are unsure about any part of these instructions, please consult a qualified electrician.

To reduce the risk of overheating, do not install near heat sources, such as fires, boilers or heating vents.

Do not locate the device facing direct sunlight or humid place.
908-916 MHz
Temperature: 0° - 40°C (32° - 104°F); Humidity: 0% - 80% RH (non-condensing)
Temperature: -20° - 70°C (-4° - 158°F); Humidity: 0% - 90% RH (non-condensing)
Open Air: 80M (Max.)
LED x1
120VAC
120V / 60Hz
15A Resistive / 400W Incandescent
132V (126V resume)
15.5A
55mm x 55mm x 37.5mm
FCC, UL ,Z-Wave plus

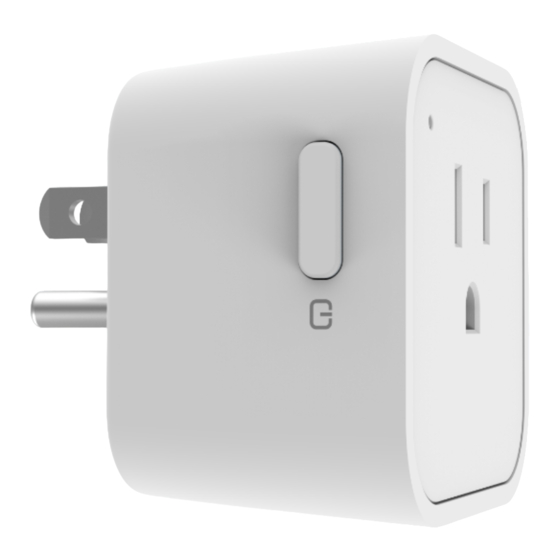

SW-ESW01N
Z-Wave Binary Switch
1
SW-ESW01N QIG V0.5
