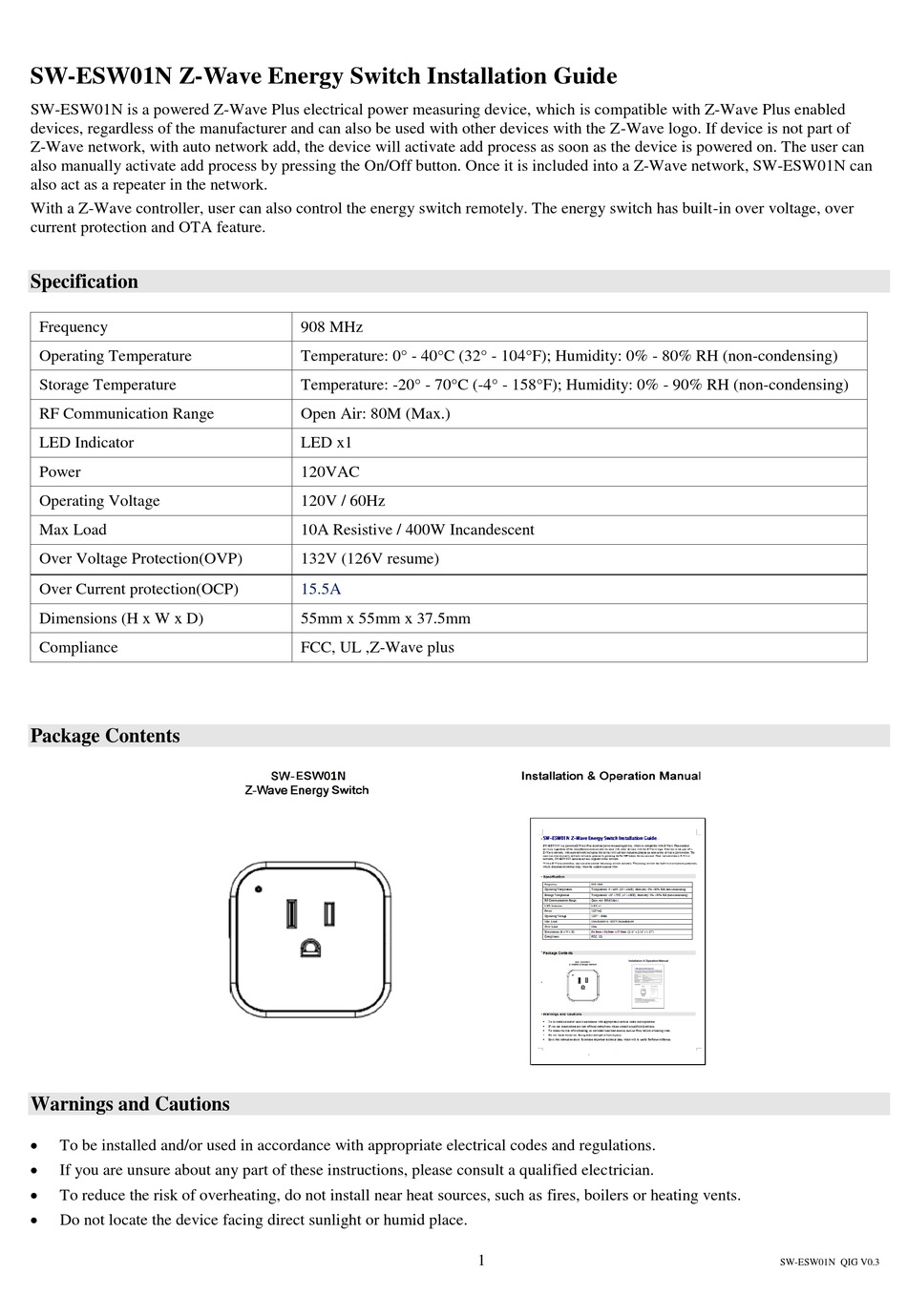

SW-ESW01N Z-Wave Energy Switch Installation Guide
SW-ESW01N is a powered Z-Wave Plus electrical power measuring device, which is compatible with Z-Wave Plus enabled
devices, regardless of the manufacturer and can also be used with other devices with the Z-Wave logo. If device is not part of
Z-Wave network, with auto network add, the device will activate add process as soon as the device is powered on. The user can
also manually activate add process by pressing the On/Off button. Once it is included into a Z-Wave network, SW-ESW01N can
also act as a repeater in the network.
With a Z-Wave controller, user can also control the energy switch remotely. The energy switch has built-in over voltage, over
current protection and OTA feature.
Specification
Frequency
Operating Temperature
Storage Temperature
RF Communication Range
LED Indicator
Power
Operating Voltage
Max Load
Over Voltage Protection(OVP)
Over Current protection(OCP)
Dimensions (H x W x D)
Compliance
Package Contents
Warnings and Cautions
To be installed and/or used in accordance with appropriate electrical codes and regulations.
If you are unsure about any part of these instructions, please consult a qualified electrician.
To reduce the risk of overheating, do not install near heat sources, such as fires, boilers or heating vents.
Do not locate the device facing direct sunlight or humid place.
908 MHz
Temperature: 0° - 40°C (32° - 104°F); Humidity: 0% - 80% RH (non-condensing)
Temperature: -20° - 70°C (-4° - 158°F); Humidity: 0% - 90% RH (non-condensing)
Open Air: 80M (Max.)
LED x1
120VAC
120V / 60Hz
10A Resistive / 400W Incandescent
132V (126V resume)
15.5A
55mm x 55mm x 37.5mm
FCC, UL ,Z-Wave plus
1
SW-ESW01N QIG V0.3
Advertisement
Related Manuals for Sercomm SW-ESW01N
Summary of Contents for Sercomm SW-ESW01N
- Page 1 Z-Wave network, with auto network add, the device will activate add process as soon as the device is powered on. The user can also manually activate add process by pressing the On/Off button. Once it is included into a Z-Wave network, SW-ESW01N can also act as a repeater in the network.
- Page 2 2. On/Off , Pairing and alarm LED (Green) Installation Put the SW-ESW01N into a wall receptacle. Make sure the receptacle is working properly. If it is controlled by a wall switch, make sure it is set to ON all the times.
- Page 3 All triggering report will be sent to the associated nodes. Devices From Multiple Vendors In One Network SW-ESW01N can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network.
- Page 4 This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. SW-ESW01N QIG V0.3...
