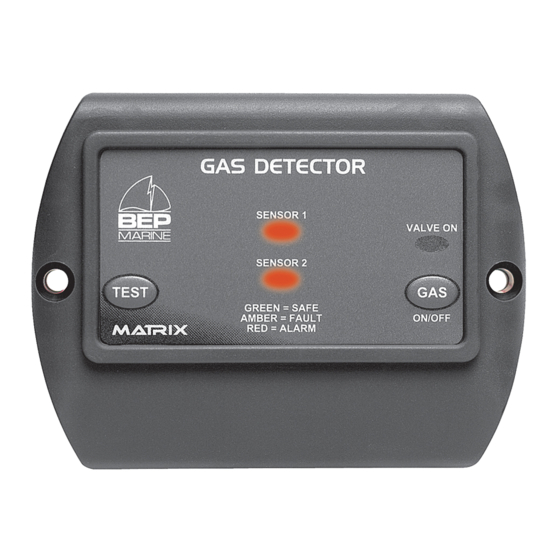

- Page 1 Copyright © BEP Marine Limited, All rights reserved 600-GD & 600-GDL 600 SERIES GAS DETECTOR INSTALLATION OPERATING INSTRUCTIONS INST-600-GD-V5 29/11/07 Arrow.com. Downloaded from...
- Page 2 Copyright © BEP Marine Limited, All rights reserved This page has been deliberately left blank. Page 1 INST-600-GD-V5 29/11/07 Arrow.com. Arrow.com. Downloaded from Downloaded from...
-
Page 3: Table Of Contents
Copyright © BEP Marine Limited, All rights reserved Table of Contents WARRANTY........................3 IMPORTANT ........................3 CAUTIONS WHEN USING GAS SENSORS ..............3 FEATURES........................4 SPECIFICATION ......................4 INTRODUCTION......................4 FAULT DETECTION ......................4 DIMENSIONS ........................5 WIRING DIAGRAM......................6 10 CONTROL HEAD INSTALLATION ................6 11 SENSOR INSTALLATION .....................7 12 OPERATION........................7... -
Page 4: Warranty
Copyright © BEP Marine Limited, All rights reserved 1 Warranty The warranty of this BEP MARINE LTD product is for Two Years from date of sale to original purchaser. BEP MARINE LTD does not assume the cost of removal or refitting of the product, or any other incidental cost that may arise, as the result of defect in materials or workmanship. -
Page 5: Features
The Contour model LPG, Petrol and CNG detector is the product of continuing research and development, which BEP Marine Ltd devotes to their product range. The 600 series detectors use the latest in solid state technology available, with a microprocessor control head connected to the latest in sensor technology. -
Page 6: Dimensions
Copyright © BEP Marine Limited, All rights reserved 8 Dimensions Page 5 INST-600-GD-V5 29/11/07 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from... -
Page 7: Wiring Diagram
Copyright © BEP Marine Limited, All rights reserved 9 Wiring Diagram Important Note: GDL ONLY If using one sensor, A link wire must be wired between B and G on the unused sensor side 10 Control Head Installation For ease of operation, the control head should be mounted in a convenient position close to your gas appliances and in a position where the control head can be seen and heard easily. -
Page 8: Sensor Installation
Copyright © BEP Marine Limited, All rights reserved 11 Sensor Installation The sensor is supplied with a 5-meter cable. For LPG and Petrol fumes, which are heavier than air, mount the sensor in a low dry position where the gas is likely to collect. The sensor must be mounted clear of bilge water. -
Page 9: Test / Alarm Mute Button
Copyright © BEP Marine Limited, All rights reserved 13 Test / Alarm Mute Button When the ‘TEST’ button is pressed in normal operation mode it will - Turn on the external alarm Turn on the blower Turn off the solenoid... -
Page 10: User Notes
Copyright © BEP Marine Limited, All rights reserved 17 User Notes Page 9 INST-600-GD-V5 29/11/07 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from... - Page 11 Copyright © BEP Marine Limited, All rights reserved This page has been deliberately left blank. Page 10 INST-600-GD-V5 29/11/07 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from...
- Page 12 Copyright © BEP Marine Limited, All rights reserved BEP MARINE BEP AUTOMOTIVE 13 Tarndale Grove 13 Tarndale Grove Albany, Auckland, N.Z. Albany, Auckland, N.Z. Ph: +64 9 415 7261 Ph: +64 9 415 7261 Fax: +64 9 415 9327 Fax: +64 9 415 9327 www.bepmarine.com...
