FOR YOUR SAFETY, READ ALL INSTRUCTIONS BEFORE INSTALLATION AND OPERATION.
INSTALLER: Provide these instructions to the end user or consumer.
CONSUMER: Keep these instructions for future reference.
120 VAC is present. This Converter/Charger is designed to convert 120 VAC to 12 VDC. It also provides low voltage
power for charging on-board 12 VDC batteries. The Converter/Charger is a "switch mode" type and is designed to be
maintenance-free with no user serviceable components. The Converter/Charger power output is "current limiting" by
design.
NEVER store electrical devices in compartments where flammable liquids (such as gasoline) exist.
DO NOT mount/install unit in compartments designed for storage of batteries of flammable liquids.
DISCONNECT DC POWER. Disconnect the battery POS (+) wire at the battery end before connecting this Converter/Charger
to any vehicle/device wiring.
LOCATION. The mounting location may be on any interior (out of direct weather) surface. Location chosen must be accessible
after installation. When mounted inside a cabinet, the cabinet must be large enough to allow dissipation of heated air. Make
sure that there is a minimum of 1" (one inch) free air space at each end of the unit so that cooling air can move through the unit
properly. AVOID foreign contaminants such as dirt, metal particles or moisture.
MOUNTING. Flanges with holes are provided for ease of mounting using standard fasteners. Confirm that the surface that the
converter is mounted to is solid and will hold the weight (6 lbs) during vehicle operation.
ELECTRICAL REQUIREMENTS. A 120 VAC receptacle needs to be located within 36 inches of the Converter/Charger to
supply power. Electrical consideration should also be given to mounting near the locations of the batteries and the 12-volt DC
distribution panel.
SAFETY ALERT
WARNING – Avoid Possible Injury or Death
WARNING – Avoid Personal Injury or Product Damage

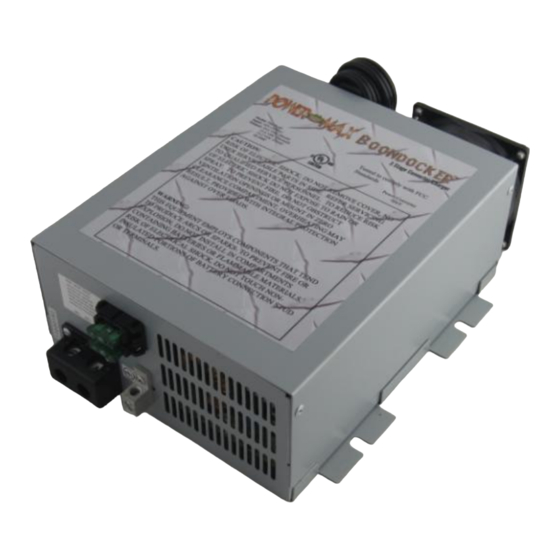

AC to DC
CONVERTER/CHARGER
PM3B and PM3BS Models
35, 45, 60, 75, 80 and 100 Amp
3 Stage Charging
Installation & Maintenance
Advertisement
Table of Contents
Related Manuals for PowerMax BOONDOCKER PM3B
Summary of Contents for PowerMax BOONDOCKER PM3B

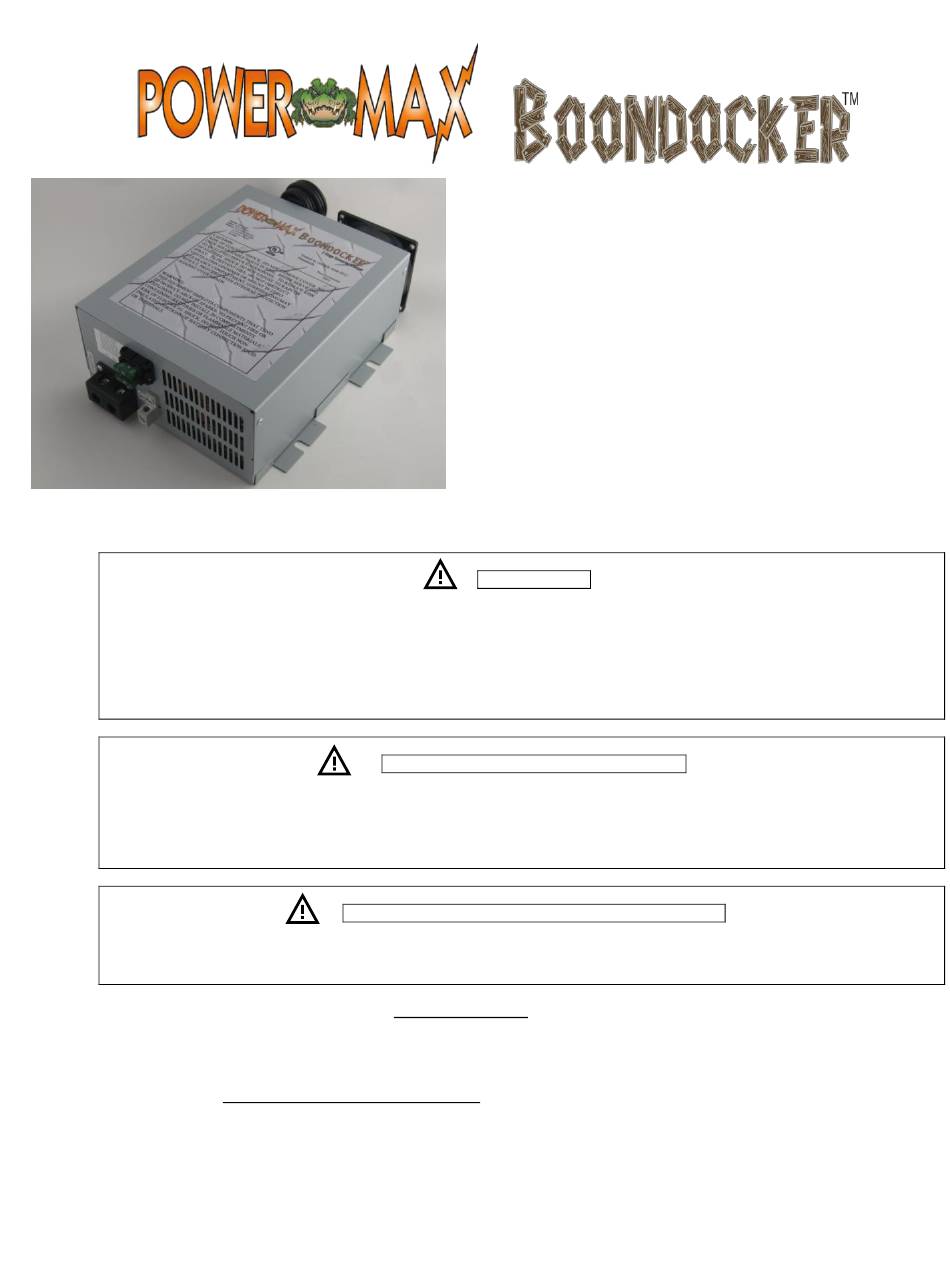

- Page 1 AC to DC CONVERTER/CHARGER PM3B and PM3BS Models 35, 45, 60, 75, 80 and 100 Amp 3 Stage Charging Installation & Maintenance SAFETY ALERT FOR YOUR SAFETY, READ ALL INSTRUCTIONS BEFORE INSTALLATION AND OPERATION. INSTALLER: Provide these instructions to the end user or consumer. CONSUMER: Keep these instructions for future reference.
- Page 2 ELECTRICAL CONNECTIONS. Be sure to tighten all connections securely. A loose connection can quickly cause terminals and wires to overheat. Review unit labels for recommended terminal torque values. WARNING – Avoid Possible Injury or Death 120 VAC Connection – First confirm that the 120 VAC power source AC circuit breaker(s) are in the off position. DO NOT turn-on AC circuit breakers until installation is complete.
- Page 3 TROUBLESHOOTING AIR FLOW FAN (on back-side) „Reversed-Battery‟ Fuses Chassis Bonding Lug 12 VDC Output Terminals Blows air out of front grill vents. NOTE: Before removing and replacing the Converter/charger, perform the following checks: Disconnect the AC power from the vehicle/device. Disconnect the wiring and Battery from the Converter Positive + output terminal.
- Page 4 THREE YEAR LIMITED WARRANTY Limited Warranty and Remedy: Fieldstone Products (“Supplier”) warrants products it sells against faulty workmanship or the use of defective materials and that such product will conform to published specifications, drawings and other descriptions for a period of three years. This warranty is the only warranty made by Supplier and is in lieu of all other warranties, express or implied, except as to title, and can be amended only by a written instrument signed by an officer of Supplier.
