Jacobsen HR6010 ROPS Cab

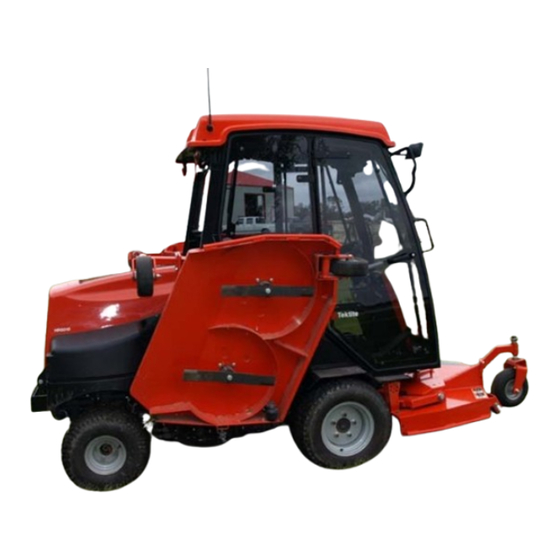

** Shown with optional equipment
Caution
** Please read installation instructions and follow all safety statements before attempting operating
this ROPS product.
** A copy of this operator manual should be kept with the machine operating manuals.
** If this manual is lost, please contact your local Jacobsen dealer for a replacement.
Jacobsen HR6010 ROPS Cab Operator Manual
Jacobsen HR6010 ROPS Cab
This ROPS cab is designed and built
to fit the Jacobsen HR6010.
Designed and Built by:
Tektite Manufacturing Inc:
24157 Hwy 3
P.O. Box 639
Winkler, MB
R6W 4A8
Canada
PH: 204-331-3463
Fax: 204-331-4159
sales@tektite.ca
One year standard product
warranty provided by Tektite.
