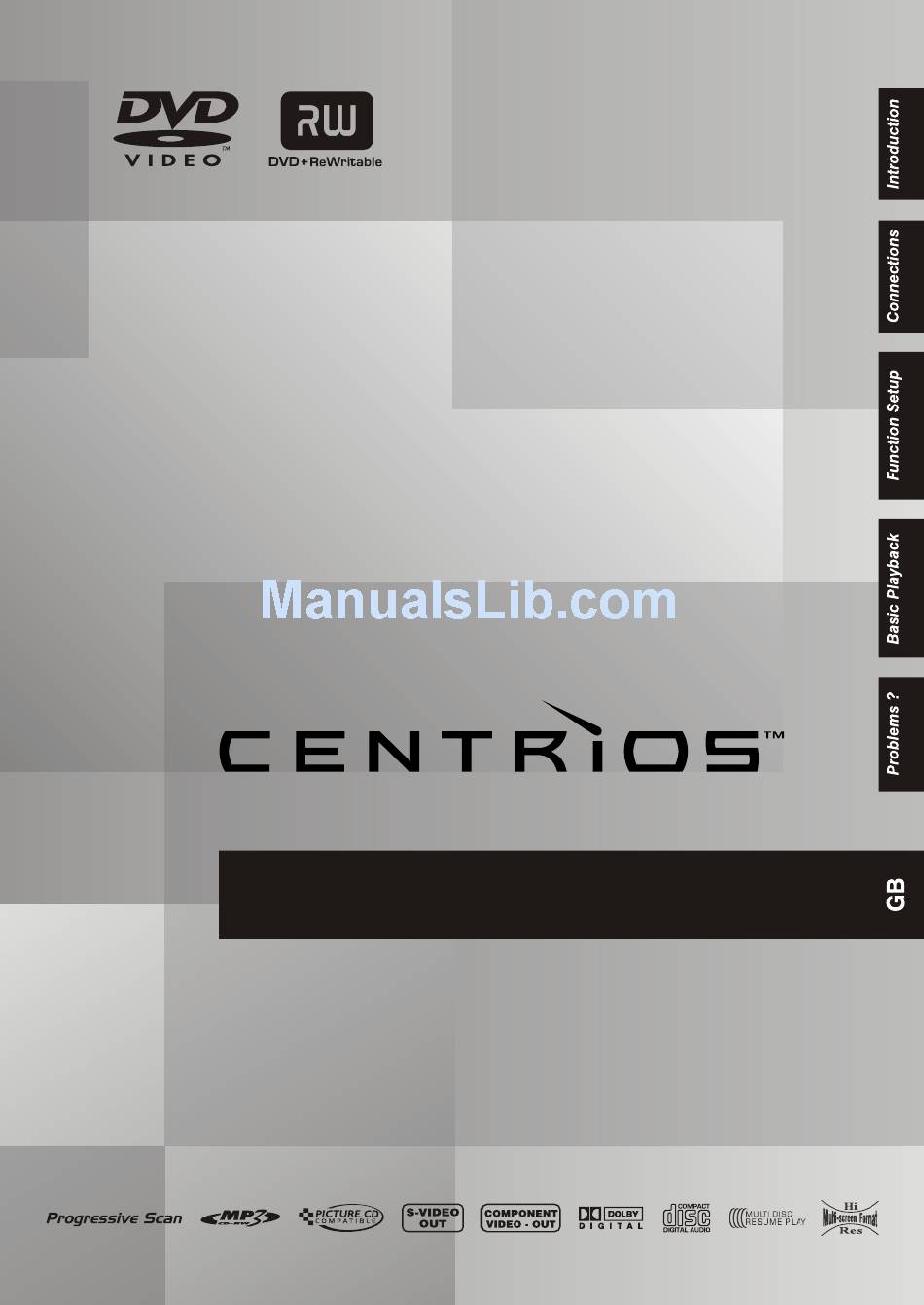

- Page 1 1611304 DVD+R VIDEO RECORDER USER MANUAL...
-
Page 2: Safety
SAFETY To ensure proper use of this product, please read this owner manual carefully and retain for future reference. Should the unit require maintenance, con- tact an authorized service location. GB 1... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS CAUTION: RETAIN THIS BOOKLET FOR FUTURE REFERENCE. This set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The safeguards incorporated in this unit will protect you if you observe the following procedures for installation, use and servicing. -
Page 4: Table Of Contents
IMPORTANT SAFETY INSTRUCTIONS This product incorporates copyright protection technology that is protected by method claims of certain U.S. Patents and other intellectual property rights owned by Macrovision Cor- poration and other rights owners. Use of this copyright pro- tection technology must be authorized by Macrovision Corpo- ration, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corpo- ration. -
Page 5: Player Zones
Player Zones For the purpose of distribution of DVD discs, the world has been separated into 6 zones. The zone your unit is intended for is indicated on the Zone Label. This should be the same as the label on discs available in your region. If you have any difficulties in playing a disc, make sure that the disc is for the same zone as your player. -
Page 6: Remote Control
REMOTE CONTROL ON/STANDBY toggles between Power On and Standby mode TV/DVD switches between TV and DVD mode DISC OP Enters DVD+R / DVD+RW operation menu include Disc info, finalize, Title delete, Erase disc, Lock disc, Compatible disc EDIT Enters the DVD+R / DVD+RW disc editing menu HIDE Makes the entry and exit points for hidden chapters... -
Page 7: Front Panel
FRONT PANEL 1. Power On / Off 2. Disc Tray opens or closes the disc loading tray skips to previous chapter/track in DVD mode skips to next chapter/track in DVD mode pauses playing starts playing in DVD/CD/VCD mode stops playing or recording 9. -
Page 8: Display
DISPLAY 1. Disc Formats (DVD, DVD+/-RW, DVD+/-R) Indicator 2. Disc Play Status Lights up during Playback 3. Pause Indicator 4. Channel/Chapter indicator 5. Dolby Digital Indicator 6. Dolby Pro Logic II Indicator 7. DTS Indicator 8. Progressive Scan On Indicator 9. -
Page 9: Rear Panel
REAR PANEL IMPORTANT! Connect the AC cord only after the antenna and all optional equipment have been connected. Never make or change any connections when the power is switched on. The rating plate is located at the rear panel of the unit. 1. - Page 10 REAR PANEL 11. Digital Coaxial Output For connecting an external equipment that has digital audio input jack, such as a CD recorder. GB 9...
-
Page 11: Setup And Installation
SETUP AND INSTALLATION The following setup and installation diagrams show the different video and audio connections to TV, Receiver and Other video equipment. Make sure the AC Voltage matches your local voltage. Connect the AC cord only after the antennas, and all optional equipment are connected. (1) Antenna and television connections USE EITHER ONE USE EITHER ONE... -
Page 12: Audio Connections
(3) Audio connections RCA AUDIO CABLE RCA AUDIO CABLE RCA AUDIO CABLE RCA AUDIO CABLE FOR GOOD SOUND FOR GOOD SOUND FOR GOOD SOUND FOR GOOD SOUND Connecting to 5.1ch receiver (Included) (Included) (Included) (Included) DIGITAL COAXIAL AUDIO IN Front left Front left speaker speaker... -
Page 13: Av Signal Connections
(4) AV Signal connections AV Rear Input RCA AUDIO CABLE RCA AUDIO CABLE RCA VIDEO CABLE RCA VIDEO CABLE S-VIDEO CABLE S-VIDEO CABLE A/V CABLE A/V CABLE (NOT INCLUDED) (NOT INCLUDED) (INCLUDED) (INCLUDED) FOR BETTER PICTURE FOR BETTER PICTURE S-VIDEO S-VIDEO Audio Out Audio Out... -
Page 14: Dvr Setups
DVR SYSTEM SETUPS SETUP Language Video Setup Audio Setup System Setup Disc Media Record Setup Schedule <SETUP> Exit <UP/DOWN> Select <ENTER> Confirm selection SETUP LANGUAGE Language Video Setup DVD Menu Audio Setup Audio System Setup Subtitles Disc Media Record Setup Schedule <SETUP>... -
Page 15: Channel Search
TV ASPECT 16:9 Wide 4:3 Letterbox 4:3 PanScan CH SEARCH Confirm To cancel, press STOP key 002 Channels found Channels searching done! To exit press LEFT key. CH MANUAL SEARCH Confirm To cancel, press STOP key 001 Channels found Channels searching done! To exit press LEFT key. -
Page 16: Cable / Antenna
CABLE / ANT. Antenna Cable OUTPUT FMT NTSC Progressive SETUP AUDIO SETUP Language Video Setup SPDIF Audio Setup System Setup Disc Media Record Setup Schedule <SETUP> Exit <UP/DOWN> Select <LEFT> Return <ENTER> Confirm selection SPDIF Digital 2.4 CABLE / ANTENNA to highlight CABLE / ANTENNA and press ENTER. -
Page 17: System Setup
SETUP SYSTEM INFO Language Date and Time Video Setup Version Audio Setup Ratings System Setup Screen Saver Disc Media Auto Shutdown Record Setup Password Schedule Factory Reset <SETUP> Exit <UP/DOWN> Select <LEFT> Return <ENTER> Confirm selection DATE & TIME Time: 02:24:11 hh:mm:ss Date:... -
Page 18: Change Password
Enter password: __ __ __ __ __ Enter new password: __ __ __ __ __ Enter password again: __ __ __ __ __ FACTORY RESET Cancel Confirm SETUP DISC MEDIA Language Disc Info Video Setup Finalize Audio Setup Erase System Setup Disc Media Record Setup Schedule... -
Page 19: Schedule
SETUP SCHEDULE Language PROG LIST Video Setup Audio Setup System Setup Disc Media Record Setup Schedule <SETUP> Exit <UP/DOWN> Select <LEFT> Return <ENTER> Confirm selection Entry Freq Start Length __/__/__ __:__ __/__/__ __:__ __/__/__ __:__ __/__/__ __:__ __/__/__ __:__ __/__/__ __:__ __/__/__ __:__... -
Page 20: Playing Disc
PLAYING DISC V-SYSTEM REMARK: Set Up menu can accessed during playback to adjust different setting by pressing the SET UP button. Basic Playback 1. Press DVD Power to switch the unit on, the default mode is DVD. - The DVD button lights up on the unit. 2. -
Page 21: Active Navigation
GB 20 Active Navigation & Info Bars All playback operation can be operated by the naviga- tion. During playback, press DISPLAY to access the info bar: • to highlight an option and press ENTER to enter it. • Press ENTER to confirm your settings. •... - Page 22 For CD Track Select to choose an available track with inputting numbers . Timer Goto the point you want to start from by inputting the time. Play Mode Set your preferable playback mode such as PROGRAM, RANDOM and various repeat mode with [RANDOM] repeatedly on the remote control to make direct selection.
-
Page 23: Programming Example
GB 22 Select to turn the PBC On/Off if available on disc. For MP3 Play Mode Set your preferable playback mode such as PROGRAM, RANDOM and various repeat mode. Repeat Repeat playback of the whole selected section. The available options are “File”, “Folder”, “Disc”, “Play File”, “Play Folder”... -
Page 24: Notes On Angle Viewing
Notes on Angle Viewing • For discs that can be shown in different angles, you may use ANGLE on remote control to access angle viewing funtion. • Press ANGLE, the angle info bar is displayed on the screen. Press ENTER to confirm. •... -
Page 25: Recording
Recording SETUP SYSTEM INFO Language Date and Time Video Setup Version Audio Setup Ratings System Setup Screen Saver Disc Media Auto Shutdown Record Setup Password Schedule Factory Reset <SETUP> Exit <UP/DOWN> Select <LEFT> Return <ENTER> Confirm selection DATE & TIME Time: 02:24:11 hh:mm:ss... - Page 26 To cancel, press STOP key 002 Channels found To cancel, press STOP key 001 Channels found Channels searching done! To exit press LEFT key. Channel Search to highlight Channel Search, and press ENTER to confirm. The unit will start search TV channel automatically.
-
Page 27: Scheduled Recording
SETUP SCHEDULE Language PROG LIST Video Setup Audio Setup System Setup Disc Media Record Setup Schedule <SETUP> Exit <UP/DOWN> Select <LEFT> Return <ENTER> Confirm selection Entry Freq Start __/__/__ __:__ __/__/__ __:__ __/__/__ __:__ __/__/__ __:__ __/__/__ __:__ __/__/__ __:__ __/__/__ __:__ __/__/__... -
Page 28: Chapter Editing
Editing on DVD+RW Title 5 Ch 3 13:20:17 PM, Jan 1, 2000 Length: 0:21:12 Quality: HQ Title 4 Ch 2 12:13:02 PM, Jan 1, 2000 Length: 1:30:14 Quality: HQ Title 6 Ch 3 12:21:27 PM, Jan 1, 2000 Length: 0:18:13 Quality: HQ EDIT Protect Title Erase Title... -
Page 29: Disc Media Editing
SETUP DISC MEDIA Language Disc Info Video Setup Finalize Audio Setup Erase System Setup Disc Media Record Setup Schedule <SETUP> Exit <UP/DOWN> Select <LEFT> Return <ENTER> Confirm selection DISC INFO Disc Type: +RW Total titles: Free titles: Total recorded time: Total free time: HQ: 54 minutes SP: 108 minutes... -
Page 30: Trouble Shooting Problems
TROUBLESHOOTING - PROBLEM ? If it appears that your unit is faulty, first consult this checklist. It may be that something simple has been overlooked. Under no circumstances should you try to repair the player yourself; as this will invalidate the warranty. Only qualified service personnel can remove the cover or service this player. -
Page 31: Disc You Can Play
DISC YOU CAN PLAY While advances have been made to ensure that your disc player is compatible with the largest number of discs possible, however it cannot be guaranteed that you will be able to play discs which might not be compliant with audio CD standards. - Page 32 LIMITED WARRANTY Who is Providing This Warranty? • Orbyx Electronics, LLC (“Orbyx), as the distributor of this Centrios™ product (your “Product”). What Does This Warranty Cover? • This warranty covers defects in materials or workmanship in your Product under normal use and conditions.
