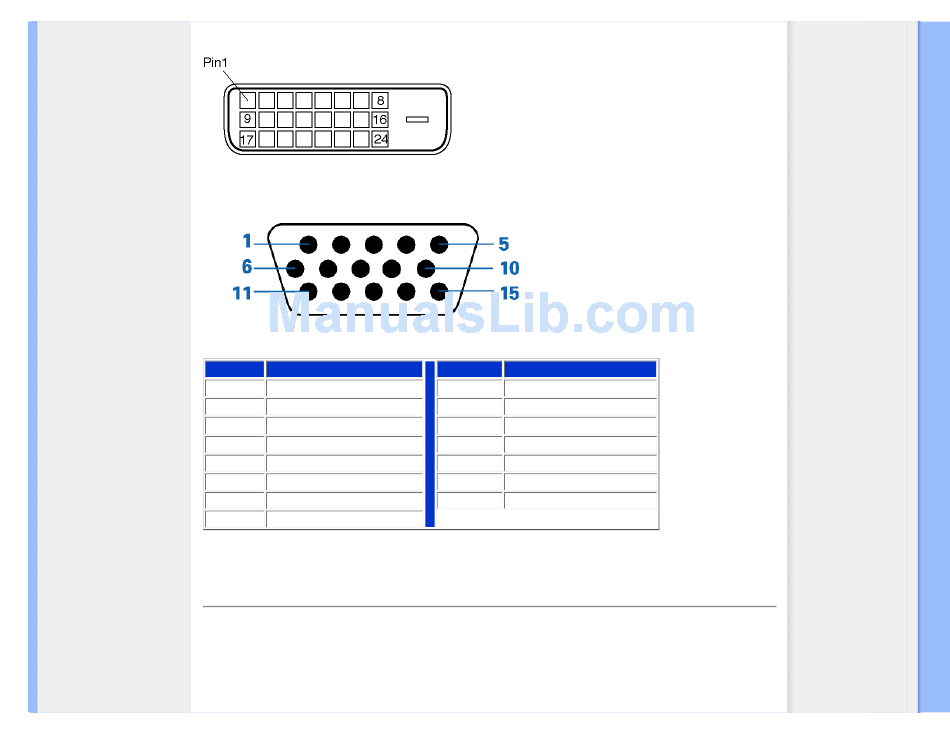

2.The 15-pin D-sub connector (male) of the signal cable:
Pin No. Assignment
Red video input
1
Green video input/SOG
2
Blue video input
3
Sense (GND)
4
Cable detect (GND)
5
Red video ground
6
Green video ground
7
Blue video ground
8
Product Views
Follow the links to see various views of the monitor and its components.
Front View Product Description
Pin No. Assignment
DDC + 5 V
9
Logic ground
10
Ground
11
Serial data line (SDA)
12
H. Sync / H+V. Sync
13
V. Sync
14
Data clock line (SCL)
15
