Rear Panel Connections - Skyvue NXG-DS Owner's Manual

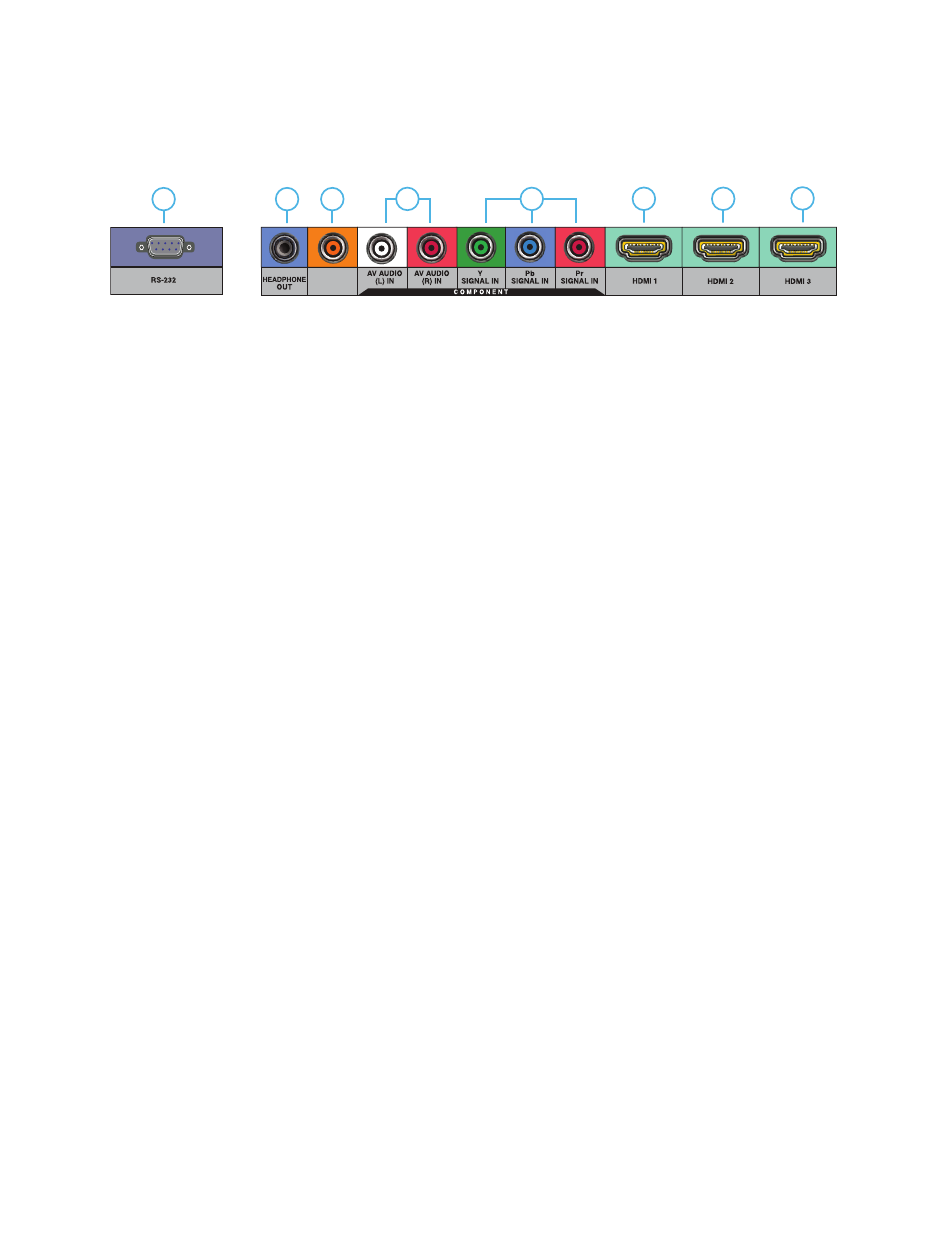

Rear Panel Connections

1
1. RS-232C - Long established standard connection ("C" is the current version) that describes the physical
interface and protocol for relatively slow data communications between computers and related devices.
2. Headphones Out - Use a 3.5 mm mini-jack for use with standard headphones.
3. Digital Audio Out - This type of jack is used for the digital audio inputs and/or outputs on A/V components such
as receivers, CD players, DVD players, and more. Coaxial digital jacks are also sometimes found on
higher-end PC soundcards for digital audio input and output.
4. Composite Audio In - Used in accompanyment with composite Video and component video jacks, AV audio in
(L/R) delivers analog sound from gaming consoles, dvd players, and VCRs.
5. Component Video Jacks - This 3-cable connection allows the chrominance (color) and luminance (brightness)
portions of a video signal to be processed separately. Component video improves color accuracy further by split-
ting the chrominance signal into two portions.
6. HDMI 1
Please note: This port does not support MHL devices.
7. HDMI 2
Please note: This port does not support MHL devices.
8. HDMI 3
Please note: This port does not support MHL devices.
12
2 3 4
COAXIAL
(AUDIO OUT)
6
5
All Rights Reserved. SkyVue
8
7
®
