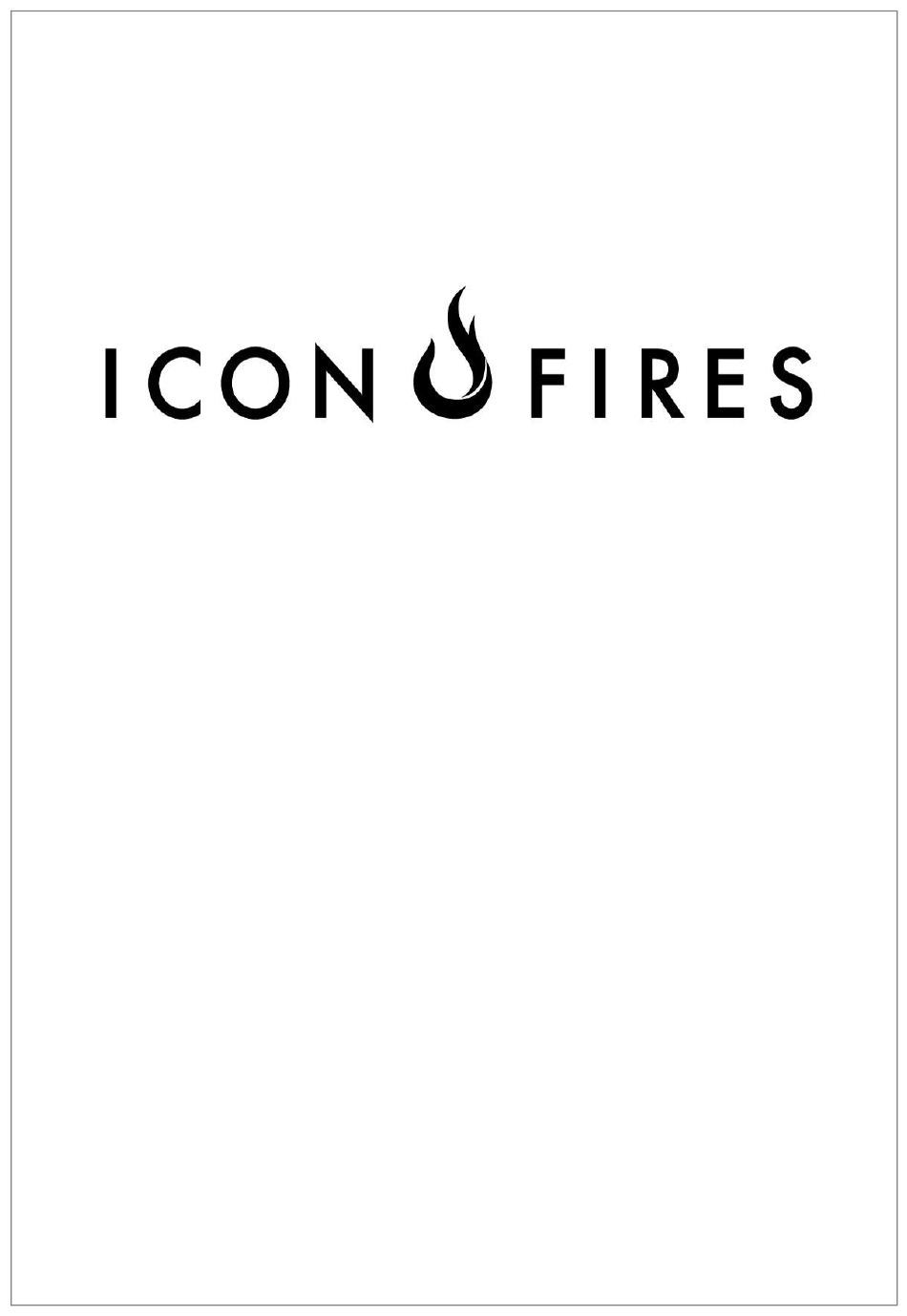

- Page 1 Slimline Burner Manual www.iconfires.com...
-
Page 2: Important Safeguards
Operating Manual Thank you for purchasing this Icon Fires product. Icon Fires places the highest priority on safety of its products. Every care has been taken in designing, manufacturing and assembling your Icon Fires Burner to ensure it operates effectively, efficiently and safely. Live-fire products must be treated with care. -
Page 3: Trouble Shooting And Operating Tips
Trouble shooting and operating tips: • The hooks on the back of the Sliding Lid Handle can be used to carry the Slimline Burner by hooking it around the slotted openings in the Vent Plate as shown in the image below. - Page 4 CONTENT OF PACKAGING: • Burner Body - qty 1 • Slider or Closing lid for Round Burner - qty 1 (2 of for 1400 Burner) • Sliding Lid Handle - qty 2 (1 of for 500 and Round Burner) • Battery operated Fuel Pump - qty 1 (None for Round Burner) •...
-
Page 5: Accompanying Accessories
Slimline Burner Range The following information is provided to assist in understanding how each model within our collection can be incorporated into your desired settings. It is intended as a guide only and it is important that you read the detailed Model Specification of the model you are interested in before ordering, specifying, installing or operating the fire. - Page 6 Ø380 Top View - SB285 Top View - SBR380 Top View - SB500 Top View - SB800 1145 Top View - SB1100 1445 Top View - SB1400 Ø380 Top View - SBR380 RD380 NOTE: There are many different variations available for installing the Burner Range. In all cases, the Slimline Burner must: Installed into non-combustible material ONLY;...
-
Page 7: Installation Clearances
Installed in a position that limits relocation requirements to eliminate the risk of • accidents caused by fuel spillage. These Burners are not designed to be relocated frequently; Installed into a level platform; • Not installed directly beside or near wallpaper, laminate, veneer or any surface •... - Page 8 1 - Filling the Slimline Burner Top Plate Top Plate Sliding Lid Handle Hole Filling Line Filling Line Burner Vent Vent Plate Filling Line Fuel Tank Handle Hole Closing Lid Small Reducer Filling Line Large Reducer Filling Line Top Plate THE BURNER MUST BE COOL BEFORE REFILL! Fill the Slimline Burner Fuel Tank to the Fill Line until the fuel becomes visible at the bottom of the Burner Vent.
- Page 9 2 - Igniting the Slimline Burner Seal the fuel canister used to fill the Burner and move to a safe distance away from the Burner. While standing at arm's length away from the Burner, use a long arm lighter as per the image above to introduce a flame to the openings in the Vent Plate.
- Page 10 3 - Adjusting the Flame Size The flame intensity is adjusted by inserting the Sliding Lid Handle’s tip into the corresponding holes in the Top Plate Sliding Lid as indicated above. Note the flame intensity takes a few minutes to change after an adjustment has been made. The Round Burner flame is adjusted by placing either the large or small reducer ring on top of the burner.
-
Page 11: Extinguishing The Flame
4 - Extinguishing the Flame Using the Sliding Lid Handle, push the Sliding Lid to the front / closed position. Should the flame not extinguish with the first try please repeat until extinguished. It should be a swift action coupled with downward pressure. For the Round Burner simply place the closing lid on top of the burner making sure it fits into its position. - Page 12 Burner cut out dimensions Round Burner – RD380 SB500...
- Page 13 SB800 SB1100...
- Page 14 SB1400...
- Page 15 No warranty is given in respect of any glass contained in any product. 3. Icon Fires has no liability to remedy any defect in a product or replace a product where the defect or fault is caused or contributed to by (i) the failure of the...
- Page 16 QC Checklist Components Handles 2 of (500 Burner only 1of).……………... Slider 1 of (1400 Burner 2 of)…………………. Manual 1of…………………………………………… Burner body 1 of…………………………………….. Checked by…………………………………………. www.iconfires.com...
