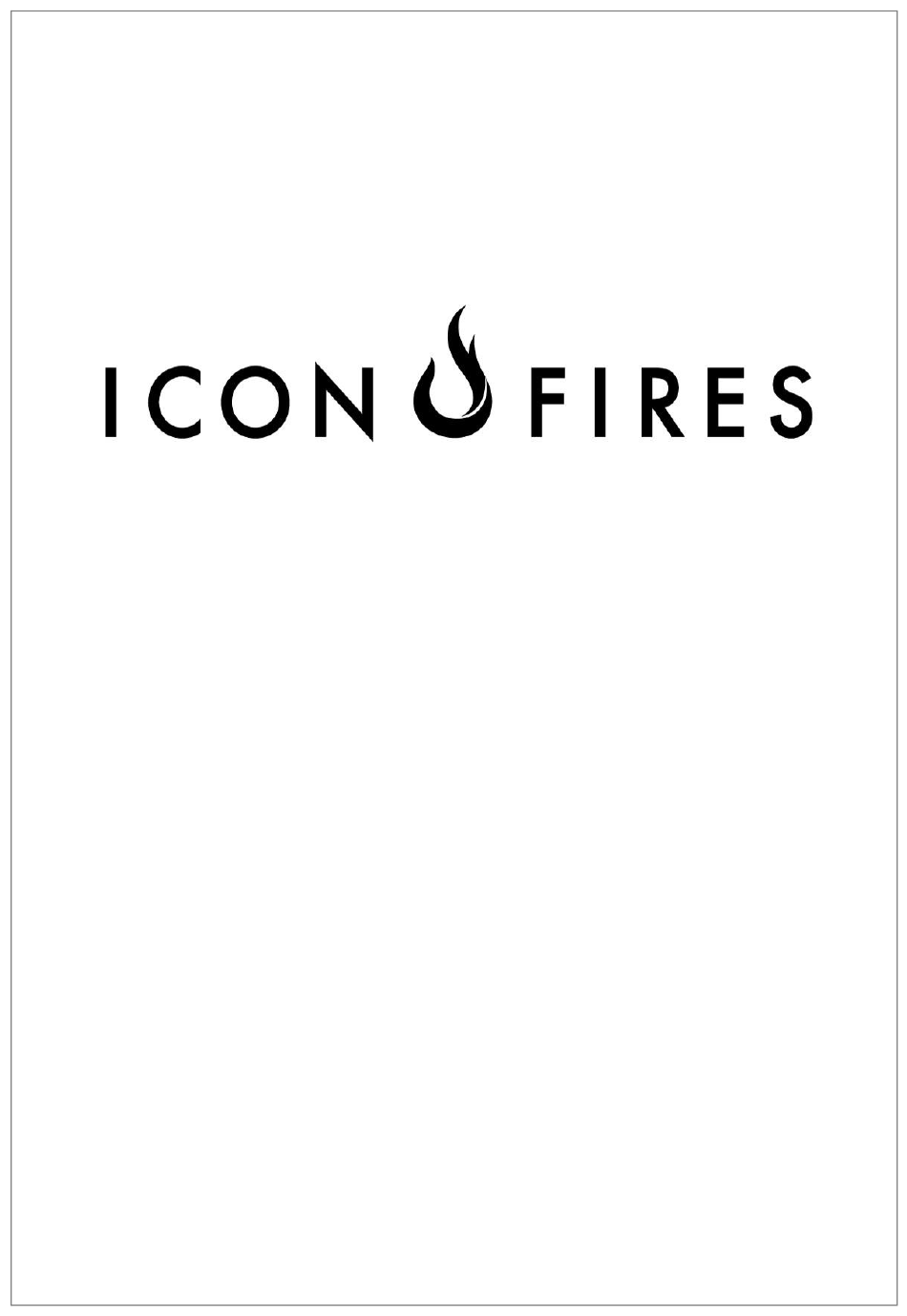

- Page 1 Slimline Burner Manual www.iconfires.com...
- Page 2 Operating Manual Thank you for purchasing this Icon Fires product. Icon Fires places the highest priority on safety of its products. Every care has been taken in designing, manufacturing and assembling your Icon Fires Burner to ensure it operates effectively, efficiently and safely. Live-fire products must be treated with care.
-
Page 3: Trouble Shooting And Operating Tips
Trouble shooting and operating tips: • The hooks on the back of the Sliding Lid Handle can be used to carry the Slimline Burner by hooking it around the slotted openings in the Vent Plate as shown in the image below. - Page 4 CONTENT OF PACKAGING: • Burner Body - qty 1 • Slider - qty 1 (2 of for 1400 Burner) • Sliding Lid Handle - qty 2 (1 of 500 Burner) • Battery operated Fuel Pump - qty 1 MAKE SURE THE FIREPLACE HAS COOLED OFF COMPLETELY BEFORE CLEANING: To clean dust, wipe with a dry cloth or sponge.
-
Page 5: Accompanying Accessories
Slimline Burner Range The following information is provided to assist in understanding how each model within our collection can be incorporated into your desired settings. It is intended as a guide only and it is important that you read the detailed Model Specification of the model you are interested in before ordering, specifying, installing or operating the fire. - Page 6 NOTE: There are many different variations available for installing the Burner Range. In all cases, the Slimline Burner must: Installed into non-combustible material ONLY; • All gas connections or pipelines near your new Burner installation must be • disconnected and made safe by an appropriately qualified professional prior to installation;...
- Page 7 Installation - Standard Mount Plate Standard Mount Plate - Sizes Cut out Cut out Cut out Mount Plate Mount Plate Model No. Length - A Width - B Depth - C Length - K Width - J SB500C 530 mm 130 mm 110 mm 545 mm...
- Page 8 Installation - Adapter Mount Plate Adapter Mount Plate - Sizes Cut out Length - Cut out Width - Cut out Mount Plate Mount Plate Model No. Depth - C Length - K Width - J SB500C 598 mm 233 mm 110 mm 610 mm 245 mm...
- Page 9 1 - Filling the Slimline Burner Fill the Slimline Burner Fuel Tank to the Fill Line until the fuel becomes visible at the bottom of the Burner Vent. Fill using the Fuel Pump supplied or a funnel that fits in the centre hole of the Vent Plate.
-
Page 10: Extinguishing The Flame
3 - Adjusting the Flame Size The flame intensity is adjusted by inserting the Sliding Lid Handle’s tip into the corresponding holes in the Top Plate Sliding Lid as indicated above. Note the flame intensity takes a few minutes to change after an adjustment has been made 4 - Extinguishing the Flame Using the Sliding Lid Handle, pull the Sliding Lid to the front / closed position. - Page 11 No warranty is given in respect of any glass contained in any product. 3. Icon Fires has no liability to remedy any defect in a product or replace a product where the defect or fault is caused or contributed to by (i) the failure of the...
- Page 12 QC Checklist Components Handles 2 of (500 Burner only 1of).……………... Slider 1 of (1400 Burner 2 of)…………………. Manual 1of…………………………………………… Pump 1 of……………………………………………... Burner body 1 of…………………………………….. Checked by………………………………………….
- Page 13 www.iconfires.com...
