- Page 1 Installation Manual FT-RC-MB15 REV 080617...
- Page 2 • Enables 1 rear camera input • Enables 1 front camera input • Enables 1 auxiliary video input • Dynamic parking lines • 12V output to power the accessories • Plug and Play Connections • 1-year warranty against manufacturer defect • Compatible vehicles: www.faaftech.com/produtos/interface-de-video/ft-rc-mb15...
- Page 3 INSTALLING Follow the steps below to install the FT-RC-AUD10 interface: 1st Remove the original radio to install the interface; 2nd Setup the interface’s DIP Switches according to the chart on “DIP SWITCH- ES” section; 3rd Connect the whips according to the “CONNECTIONS” section; 4th Install the rear camera(s) and/or front camera according to the chart on the “VIDEO CONNECTIONS”...

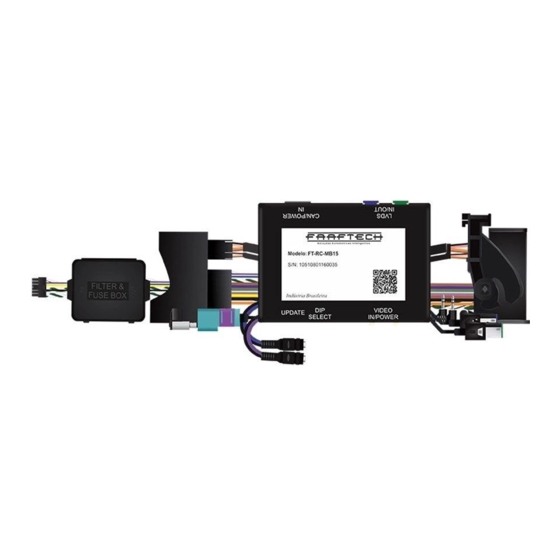

- Page 4 CONNECTIONS Connect to Connect to the whip the radio Connect to Connect to the radio’s the whip LVDS Blue plug VIDEO UPDATE SELECT IN/POWER Important Notice Check on the car’s original Quadlock connector if there is an Optic Fiber cable. If there is, you will need to remove it from the original connector and connect it to the interface’s Quadlock, which will then be connected to the radio.
- Page 5 VIDEO CONNECTIONS VIDEO UPDATE SELECT IN/POWER *Front Camera Use the ACC output and the GND output to power the cameras, and the TV or the mirroring, if those are installed. *Rear Camera Connect a video source, such as a TV or a screen mirroring Note: the audio must be connected directly to the multimedia auxiliary entry *Cameras sold separately.
- Page 6 FUNCTIONING Rear Camera Once you put your vehicle on reverse, the rear camera will automatically show on the screen. As you spin the steering wheel, the parking lines will move, showing the vehi- cle’s approximate direction as you keep going. Important Notice: The parking lines do not offer 100% precision on the track they show.
- Page 7 FUNCTIONING ACCESSING THE AV INPUTS Follow the steps bellow to access the interface’s AV entry: • Select the auxiliary audio source from the multimedia; • Press and hold the BACK button on the steering wheel to gain access to the interface’s AV mode;...
- Page 8 TECHNICAL SUPPORT Follow us on social media +55 0800 603 2330 or +55 62 3241 4600 suporte@faaftech.com.br www.faaftech.com.br Available from Monday to Friday, from 8 a.m. to 6 p.m. Brasilia time...
