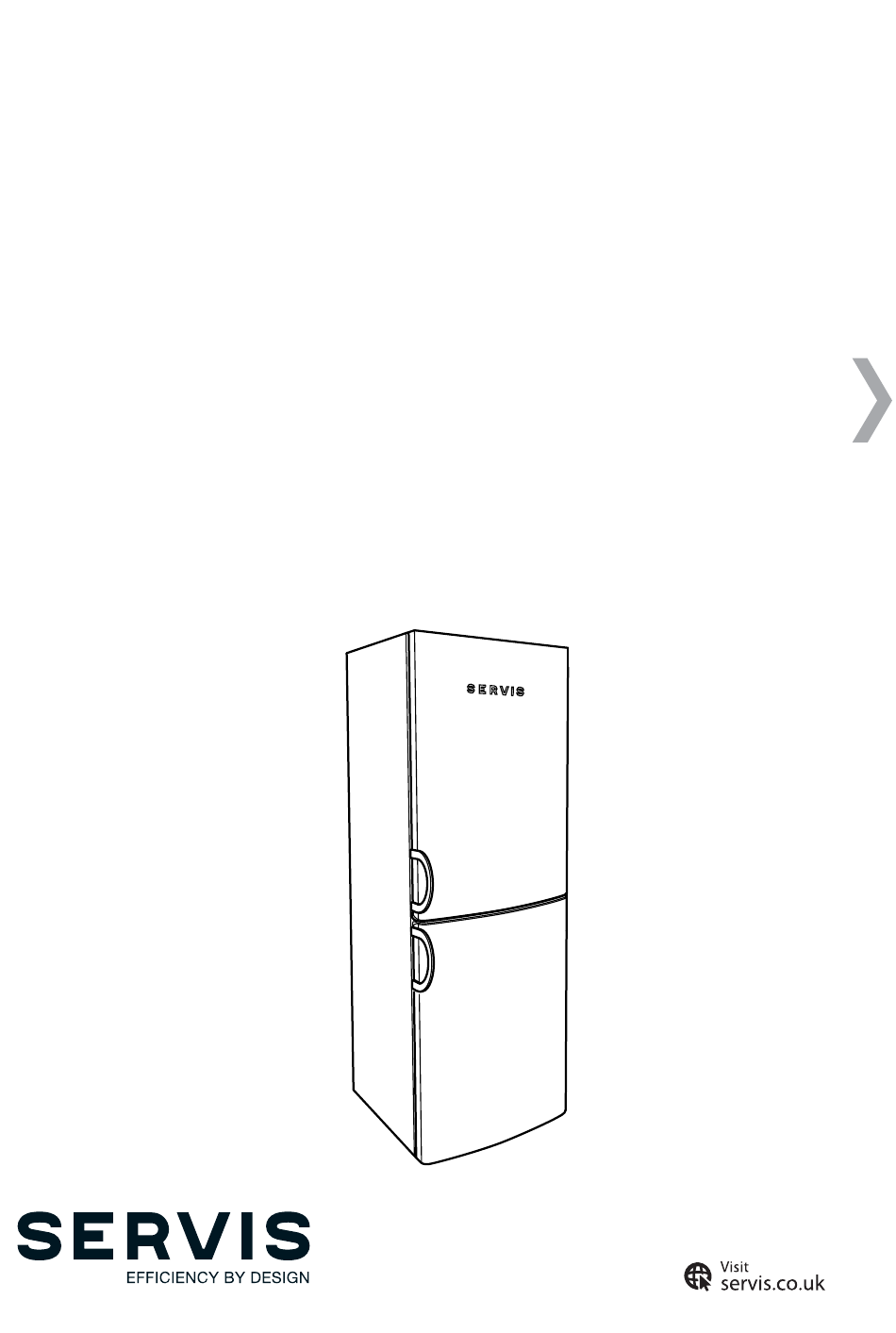

- Page 1 FRIDGE FREEZER User Manual Model Number: FF54170 Customer Support Helpline 0333 577 7232...
- Page 2 T: 0333 577 7232...
-
Page 3: Table Of Contents
Contents Welcome Safety Instructions Your Fridge Freezer Electrical Information Technical Specifi cation Installation Usage Food Storage Tips Cleaning and Care Troubleshooting Guarantee Index T: 0333 577 7232... -
Page 4: Welcome
WELCOME WELCOME WELCOME Thank you for choosing this Servis Fridge Freezer, which has been designed and manufactured to Thank you for choosing this Servis Fridge Freezer, which has been designed and manufactured to give you many years of trouble-free service. -
Page 5: Safety Instructions
SAFETY INSTRUCTIONS To ensure your safety and the safety of others, please read the following safety precautions before you use your Fridge Freezer. Your Fridge Freezer conforms to current safety requirements. Inappropriate use can, however, lead to personal injury and damage to property. To avoid the risk of accidents and damage to your Fridge Freezer, read this user guide carefully before using it for the first time. - Page 6 SAFETY INSTRUCTIONS Containers with flammable gases or liquids can leak at low temperatures. Do not store any containers with flammable materials, such as spray cans or fire extinguisher refill cartridges in the vicinity of the Fridge Freezer. Do not connect your Fridge Freezer to the mains electricity supply using an extension lead. A damaged power cord/plug can cause fire or give you an electric shock.
- Page 7 Do not refreeze food once it has thawed out. Do not make any alterations to your Fridge Freezer, unless authorised to do so by Servis. The packaging of the machine could be hazardous to children. Please refer to the disposal instructions on the rear cover.
- Page 8 SAFETY INSTRUCTIONS When cleaning, do not use sharp implements as they may damage the Fridge Freezer. Store pre-packed frozen foods in accordance with their instructions and use by date. Ecological Hints and Tips: We have provided a few important hints and tips, so that you can save on the cost of energy and help protect the environment.
- Page 9 Environmental Information: Once installation is complete, please dispose of the packaging with due regard to safety and the environment. Disposal instructions can be found on the rear cover. Your Fridge Freezer does not contain gases which damage the ozone layer, in either its refrigerant circuit or insulation materials.
-
Page 10: Your Fridge Freezer
YOUR FRIDGE FREEZER FRONT VIEW Thermostat/Light Door shelves Adjustable glass shelves Drain hole Bottle Vegetable drawer shelf Freezer flap/ drawers Freezer drawers Figure 3 T: 0333 577 7232... - Page 11 The following information will help you to identify the different parts of your Fridge Freezer and provide suggestions on the best way to use them. Refrigerator Compartment Thermostat/Light - see pages 14 and 22. Adjustable glass shelves Drain hole - water formed as a result of automatic defrosting flows through this hole into the vaporisation container at the rear of your Fridge Freezer and evaporates.
- Page 12 YOUR FRIDGE FREEZER REAR VIEW Condenser Vaporisation Container Figure 4 T: 0333 577 7232...
-
Page 13: Electrical Information
ELECTRICAL INFORMATION Condenser. Vaporisation Container. ELECTRICAL INFORMATION Your Fridge Freezer requires a 220-240V, 50Hz mains supply. Do not use any other supply. If your plug requires changing because it is not suitable for your socket, or it is damaged, you should consult a qualified electrician. Fuse: Replacement fuses should be ASTA-approved to BS1362 and have the correct 13 Amp rating. -
Page 14: Technical Specification
TECHNICAL SPECIFICATION TECHNICAL SPECIFICATION Model Number FF54170 Power Source 220-240 V AC, 50 Hz 0.633 KWh/24h Energy Consumption 231 KWh/year Freezer Rating Climate Class N (16°C - 32°C) Refrigerant Gas R600a Gas Capacity 61 gr Freezer Capacity 67 Lt Fresh Food Freezing Capacity 3 Kg./24h... -
Page 15: Installation
INSTALLATION INSTALLATION REQUIREMENTS Before unpacking and manoeuvring your Fridge Freezer, please take the time to read and become familiar with the following points: To avoid risk of injury, please take care when moving your Fridge Freezer. It is heavy and we recommend that a minimum of two people move it. - Page 16 INSTALLATION ADJUSTING THE FEET For safe operation, it is important that your Fridge Freezer is stable and balanced. The two adjustable feet at the front are used to level your Fridge Freezer. Make sure that your Fridge Freezer is level before placing any foodstuffs inside it. To increase the height of the Fridge Freezer, turn the feet clockwise (Figure 5).
- Page 17 TEMPERATURE CONTROL The thermostat (Figure 6) is used to regulate the temperature in the fridge and freezer compartments. It can be set to any value from 1-5, where 5 is the setting with the lowest temperature. For normal everyday use we recommend a value of 3-4. To select a lower number (raise the temperature), turn the thermostat dial to the left.
-
Page 18: Usage
USAGE BEFORE USING YOUR FRIDGE FREEZER When using your Fridge Freezer for the first time, or after transportation , keep it in an upright position for at least 3 hours before plugging into the mains. This allows efficient operation and prevents damage to the compressor. We recommend that you wipe all shelving and trays with a cloth soaked in warm water mixed with a teaspoon of sodium bicarbonate before use. -
Page 19: Food Storage Tips
FOOD STORAGE TIPS FOOD STORAGE GUIDANCE To help you use your Fridge Freezer efficiently, please take the time to read the following tips and guidance. Storage Areas: The circulation of air within your Fridge Freezer causes areas of different temperatures. It is recommended that you make use of these areas when storing your food. - Page 20 FOOD STORAGE TIPS Keep as much space as possible between your items of food. This allows the cold air to circulate freely around them. Take care when storing tropical fruit such as pineapples as they can quickly deteriorate in lower temperatures. Divide and separate food into smaller pieces before storage.
- Page 21 The Freezer Compartment: You should use the freezer compartment of your Fridge Freezer for storing food for long periods and making ice. Aim to freeze fresh food as quickly as possible so that it keeps its taste and appearance. It is important that you do not exceed the maximum freezing capacity of your Fridge Freezer, this will help to ensure that your food freezes as quickly as possible.
- Page 22 FOOD STORAGE TIPS Food Preparation Storage Duration Thawing Period at (Months) Room Temperature (Hours) Freshwater Fish (such Until Well Thawed as trout) Cleaned well inside and scaled. Washed Lean Fish (such as Until Well Thawed and dried. Cut off Sea Bass) head and tail where necessary Fatty fish (such as...
-
Page 23: Cleaning And Care
CLEANING AND CARE Power Disruption: In the event of a power cut, please do not open the door of the freezer compartment. Your Fridge Freezer will preserve your frozen food in an ambient environmental temperature of 25 C for approximately 13 hours. This time period will be shorter if the ambient temperature is higher. When power is re-applied after a power cut your Fridge Freezer will not operate for 4-5 minutes. - Page 24 CLEANING AND CARE Cleaning The Vaporisation Container: Your Fridge Freezer performs fully automatic defrosting. The water formed as a result of this automatic defrosting flows through the drain hole at the back of the fridge (see page 7) into the vaporisation container at the rear of your Fridge Freezer and evaporates.
- Page 25 Replacing the LED: Contact the Servis helpdesk. Replacing the Lamp Bulb: To replace the bulb: Check that your Fridge Freezer is turned off and unplugged from the mains. Apply light pressure to both sides of the light cover and carefully pull the cover away.
-
Page 26: Troubleshooting
TROUBLESHOOTING INFORMATION If your Fridge Freezer is not operating as expected, you may find a simple solution listed in the table below. If your Fridge Freezer has developed a fault not covered in this manual, please contact the Servis helpdesk. Fault... - Page 27 Freezer during use. They are perfectly normal from a frost free Fridge Freezer and are not damaging your Fridge Freezer. Contact the Servis helpdesk if you have any concerns. There is moisture on the inner The doors are opened and Try to reduce the number of parts of your Fridge Freezer.
-
Page 28: Guarantee
Please refer to the rear cover for disposal instructions. GUARANTEE The Servis guarantee covers the cost of parts/labour/call out charges to repair an appliance should any covered component fail in its normal functions necessitating a repair or replacement to resume those functions. - Page 29 Claims in respect to routine inspection or maintenance The Servis guarantee is not transferable. For your Servis guarantee to be valid, you will need to retain your original purchase receipt and be able to provide it when you make a claim.
-
Page 30: Index
INDEX Adjusting the feet .........13 Food storage guidance .........16 Freezer compartment ........18 Fuse ..............10 Before using your fridge freezer ....15 Guarantee ............25 Cleaning and care .........20 Installation requirements......12 Items included ..........01 Disposal ............25 No frost technology ........06 Ecological hints and tips .......05 Electrical information ........10 Environmental information ...... - Page 31 Power disruption ...........20 Warranty ............01 Replacing the lamp bulb .......22 Safety instructions ........02 Technical specification .........11 Temperature control ........14 Troubleshooting information ......23 T: 0333 577 7232...
- Page 32 T: 0333 577 7232 E: info@servis.co.uk The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
