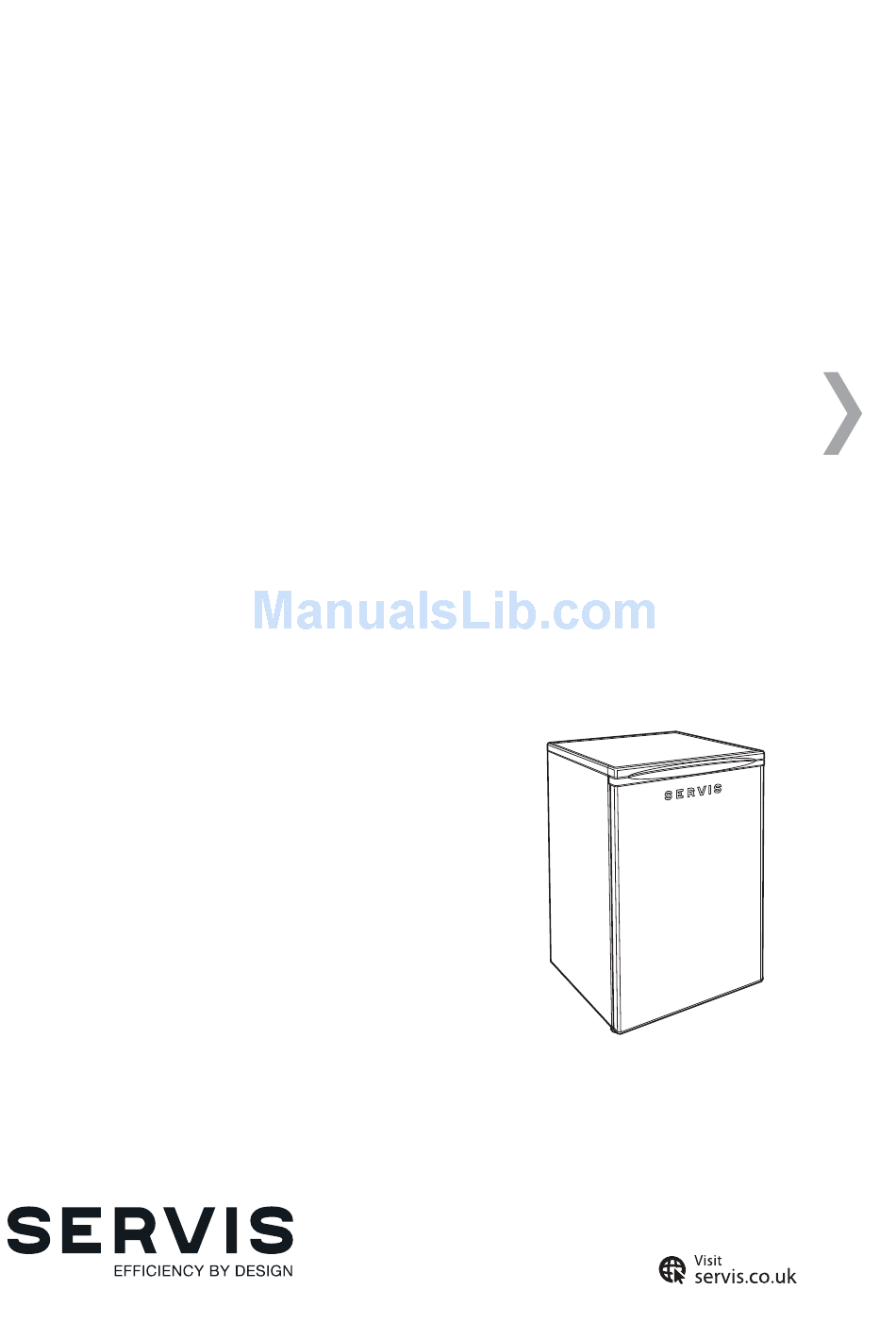

Page 1: User Manual
FREEZER FREEZER User Manual User Manual User Manual Model Number: UF55W Model Number: UF55W Model Number: UF48W Customer Support Helpline Customer Support Helpline 0333 577 7232 0333 577 7232... - Page 2 T: 0333 577 7232...
-
Page 3: Table Of Contents
Contents Welcome Safety Instructions Your Freezer Electrical Information Technical Specifi cation Installation Usage Food Storage Tips Cleaning and Care Troubleshooting Guarantee Index T: 0333 577 7232... -
Page 4: Welcome
WELCOME WELCOME Thank you for choosing this Servis Freezer, which has been designed and manufactured to give Thank you for choosing this Servis Freezer, which has been designed and manufactured to give Thank you for choosing this Servis Freezer, which has been designed and manufactured to give Thank you for choosing this Servis Freezer, which has been designed and manufactured to give you many years of trouble-free service. -
Page 5: Safety Instructions
SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS To ensure your safety and the safety of others, please read the following safety To ensure your safety and the safety of others, please read the following safety To ensure your safety and the safety of others, please read the following safety To ensure your safety and the safety of others, please read the following safety precautions before you use your Freezer. - Page 6 SAFETY INSTRUCTIONS Containers with flammable gases or liquids can leak at low temperatures. Do not store any containers with flammable materials, such as spray cans or fire extinguisher refill cartridges in the vicinity of the Freezer. Do not connect your Freezer to the mains electricity supply using an extension lead. A damaged power cord/plug can cause fire or give you an electric shock.
- Page 7 Do not use mechanical devices or other means to accelerate the defrosting process. Do not refreeze food once it has thawed out. Do not make any alterations to your Freezer, unless authorised to do so by Servis. The packaging of the machine could be hazardous to children. Please refer to the disposal instructions on the rear cover.
- Page 8 SAFETY INSTRUCTIONS When cleaning, do not use sharp implements as they may damage the Freezer. Store pre-packed frozen foods in accordance with their instructions and use by date. Ecological Hints and Tips: We have provided a few important hints and tips, so that you can save on the cost of energy and help protect the environment.
-
Page 9: Your Freezer
YOUR FREEZER Environmental Information: Once installation is complete, please dispose of the packaging with due regard to safety and the environment. Disposal instructions can be found on the rear cover. Your Freezer does not contain gases which damage the ozone layer, in either its refrigerant circuit or insulation materials. - Page 10 YOUR FREEZER REAR VIEW Thermostat - see page 12 Condenser Vaporisation Container Figure 3 T: 0333 577 7232...
-
Page 11: Electrical Information
ELECTRICAL INFORMATION ELECTRICAL INFORMATION Your Freezer requires a 220-240V, 50Hz mains supply. Do not use any other supply. If your plug requires changing because it is not suitable for your socket, or it is damaged, you should consult a qualified electrician. Fuse: Replacement fuses should be ASTA-approved to BS1362 and have the correct 13 Amp rating. -
Page 12: Technical Specifi Cation
TECHNICAL SPECIFICATION TECHNICAL SPECIFICATION Model Number UF48W Power Source 220-240 V AC, 50 Hz Energy Consumption 0.457 KWh/24h / 167 KWh/year Freezer Rating Climate Class T/N (16°C - 43°C) Refrigerant Gas R600a Gas Capacity 33 gr Freezer Capacity 61 l Fresh Food Freezing Capacity 9 Kg. -
Page 13: Installation
INSTALLATION INSTALLATION REQUIREMENTS Before unpacking and manoeuvring your Freezer, please take the time to read and become familiar with the following points: To avoid risk of injury, please take care when moving your Freezer. It is heavy and we recommend that a minimum of two people move it. Your Freezer has a wheel in each back corner. -
Page 14: Adjusting The Feet
INSTALLATION ADJUSTING THE FEET For safe operation, it is important that your Freezer is stable and balanced. The two adjustable feet at the front are used to level your Freezer. Make sure that your Freezer is level before placing any foodstuffs inside it. To increase the height of the Freezer, turn the feet clockwise (Figure 4). -
Page 15: Usage
USAGE THERMOSTAT The thermostat (Figure 5) is used to control the internal temperature of the Freezer. It can be set to any point between • and 3: • Off. 1 Minimum Freeze. For short-term food storage, set the thermostat to between 1 and 2. 2 Medium Freeze. -
Page 16: Before Using Your Freezer
USAGE BEFORE USING YOUR FREEZER When using your Freezer for the first time, or after transportation, keep it in an upright position for at least 3 hours before plugging into the mains. This allows efficient operation and prevents damage to the compressor. We recommend that you wipe all shelving and trays with a cloth soaked in warm water mixed with a teaspoon of sodium bicarbonate before use. -
Page 17: Food Storage Tips
FOOD STORAGE TIPS Freezing Food: You should use your Freezer for storing food for long periods and making ice. Aim to freeze fresh food as quickly as possible so that it keeps its taste and appearance. It is important that you do not exceed the maximum freezing capacity of your Freezer, this will help to ensure that your food freezes as quickly as possible. - Page 18 FOOD STORAGE TIPS Food Preparation Storage Duration Thawing Period at (Months) Room Temperature (Hours) Freshwater Fish (such Until Well Thawed as trout) Cleaned well inside and scaled. Washed Lean Fish (such as Until Well Thawed and dried. Cut off Sea Bass) head and tail where Fatty fish (such as necessary...
- Page 19 Food Preparation Storage Duration Thawing Period at (Months) Room Temperature (Hours) Apples, Pears Peeled and sliced 8-10 Defrost in fridge Plums, Strawberries, Washed and stems 8-12 Until Well Thawed Raspberries, Cherries removed Milk (homogenized) Until Well Thawed Cheese Sliced and wrapped Until Well Thawed in plastic foil Bread...
-
Page 20: Cleaning And Care
CLEANING AND CARE CLEANING AND CARE CLEANING AND CARE CLEANING AND CARE CLEANING AND CARE CLEANING AND CARE From time to time it will be necessary to carry out cleaning of your Freezer. From time to time it will be necessary to carry out cleaning of your Freezer. From time to time it will be necessary to carry out cleaning of your Freezer. - Page 21 This page intentionally blank This page intentionally blank This page intentionally blank T: 0333 577 7232 T: 0333 577 7232 T: 0333 577 7232...
-
Page 22: Troubleshooting
TROUBLESHOOTING INFORMATION If your Freezer is not operating as expected, you may find a simple solution listed in the table below. If your Freezer has developed a fault not covered in this manual, please contact Servis. Fault Possible Cause Solution... - Page 23 Please note that certain noises may heard from your Freezer during use. They are perfectly normal and are not damaging your Freezer. Contact Servis if you have any concerns. There is moisture on the inner The doors are opened and Try to reduce the number of parts of your Freezer.
-
Page 24: Guarantee
Please refer to the rear cover for disposal instructions. GUARANTEE The Servis guarantee covers the cost of parts/labour/call out charges to repair an appliance should any covered component fail in its normal functions necessitating a repair or replacement to resume those functions. - Page 25 Claims in respect to routine inspection or maintenance The Servis guarantee is not transferable. For your Servis guarantee to be valid, you will need to retain your original purchase receipt and be able to provide it when you make a claim.
-
Page 26: Index
INDEX Adjusting the feet .........11 Food storage guidance .........14 Fuse ..............08 Before using your freezer ......13 Guarantee ............21 Cleaning and care .........17 Installation requirements......10 Items included ..........01 Disposal ............21 Ecological hints and tips .......05 Electrical information ........08 Environmental information ......05 T: 0333 577 7232... - Page 27 Power disruption ...........16 Safety instructions ........02 Technical specification .........09 Troubleshooting information ......19 Warranty ............01 T: 0333 577 7232...
- Page 28 T: 0333 577 7232 E: info@servis.co.uk The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
