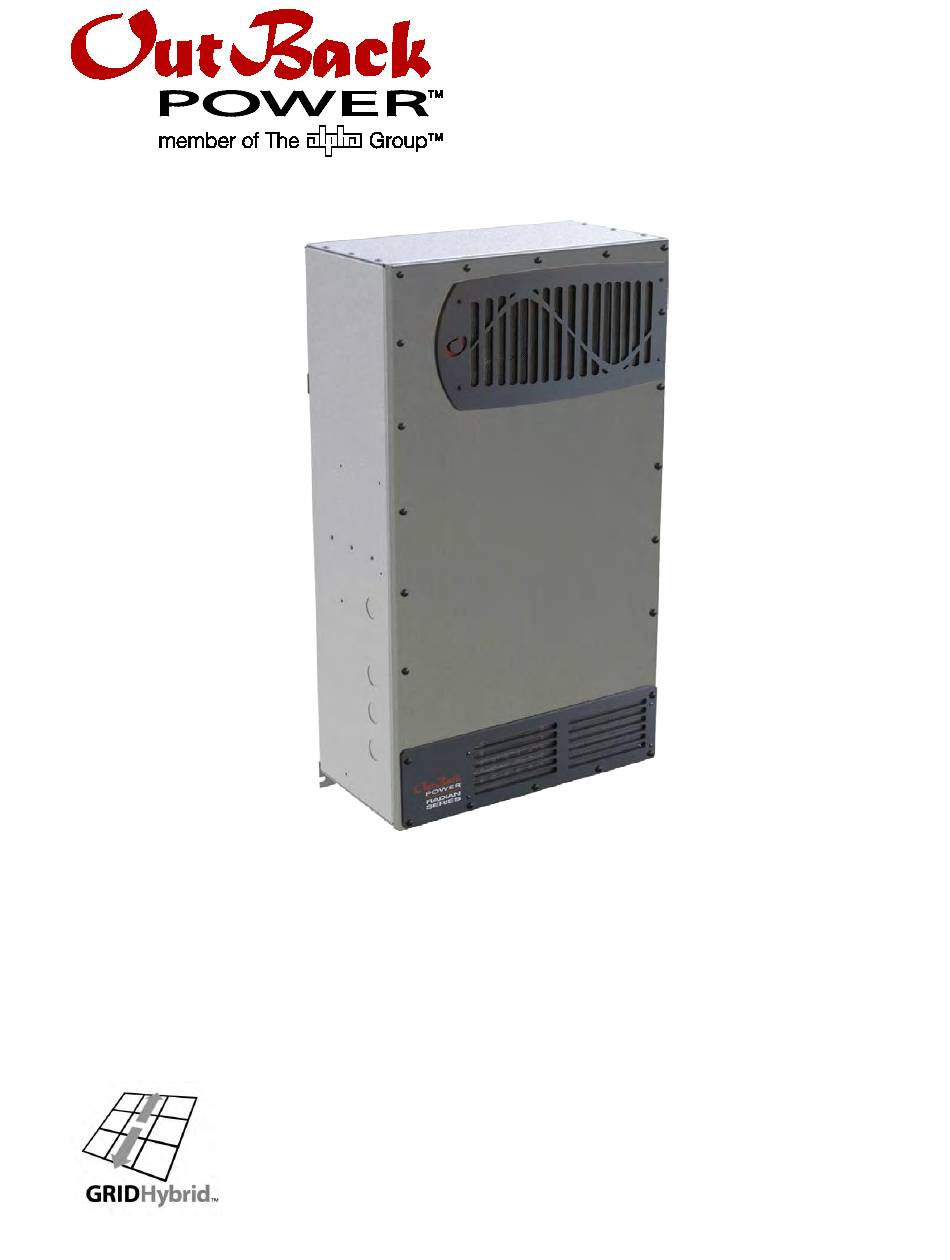

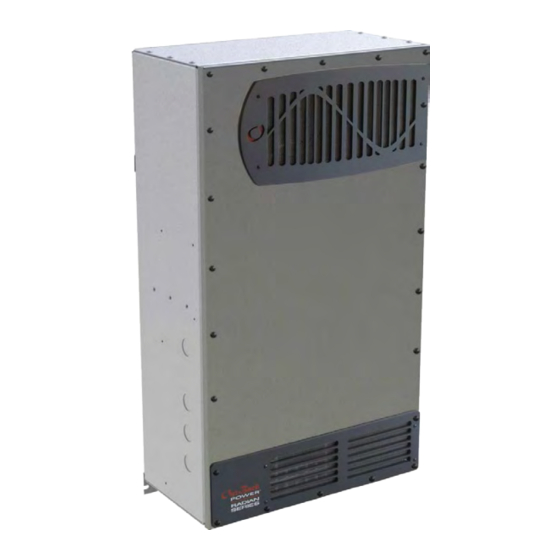

- Page 1 Radian Series Inverter/Charger GS7048E GS3548E Installation Manual...
- Page 2 OutBack Power, the OutBack Power logo, and Grid/Hybrid are trademarks owned and used by OutBack Power Technologies, Inc. The ALPHA logo and the phrase “member of the Alpha Group” are trademarks owned and used by Alpha Technologies Inc. These trademarks may be registered in the United States and other countries.
-
Page 3: Table Of Contents
Table of Contents Introduction ....................3 Audience ....................................3 Welcome to OutBack Power Technologies ......................... 3 Components and Accessories ............................4 Planning ...................... 5 Applications ................................... 5 Input Modes ......................................6 Renewable Energy ................................6 Battery Bank ................................... 7 Generator ....................................9 Maintenance Bypass Switching ........................... - Page 4 Table of Contents List of Tables Table 1 Components and Accessories ......................4 Table 2 Battery Bank Elements ........................8 Table 3 Ground Conductor Size and Torque Requirements .............. 19 Table 4 DC Conductor Size and Torque Requirements ............... 21 Table 5 AS4777.3 Acceptance Settings .....................
-
Page 5: Introduction
Introduction Audience This book provides instructions for the physical installation and wiring of this product. These instructions are for use by qualified personnel who meet all local and governmental code requirements for licensing and training for the installation of electrical power systems with AC and DC voltage up to 600 volts. -
Page 6: Components And Accessories
Introduction Components and Accessories IMPORTANT: This product is not compatible with the OutBack MATE or MATE2 System Display and Controller. Use of these products is not supported with the Radian Series. Table 1 Components and Accessories Included in Box Radian Series Installation Manual RTS (Remote Temperature Sensor) Radian Series Operator’s Manual Hardware Kit... -
Page 7: Planning
Planning Applications The Radian Series Inverter/Charger is intended for both off-grid and grid-interactive (Grid/Hybrid) applications. It is designed to use a battery bank to store energy. It can work in conjunction with photovoltaic (PV) panels to harvest solar energy, as well as wind turbines and other renewable sources. -
Page 8: Input Modes
Planning Input Modes The Radian inverter has seven modes of operation. These modes determine how the Radian interacts with an AC source. Each mode has functions and priorities that are intended for a designated application. Each of the Radian’s two AC inputs can be set to a different operating mode, so that different applications can be supported. -
Page 9: Battery Bank
Planning Battery Bank When planning a battery bank, consider the following: Cables: Recommendations for battery cable size and length are shown on page 20. The maximum length will determine the placement of the battery bank. Other local codes or regulations may apply and may take priority over OutBack recommendations. -
Page 10: Table 2 Battery Bank Elements
Planning Table 2 Battery Bank Elements G. System DC voltage: The Radian inverter requires nominal 48 Vdc to operate. Item Source of information A. Load Size Site-specific H. Battery voltage: Most individual battery B. Daily Hours Site-specific voltages are less than the system DC voltage. C. -
Page 11: Generator
Planning EXAMPLE #2 A. Backup loads: 1.75 kW (1750 W) 1) A ÷ [E x F] 1750 ÷ (0.97 x 0.92) = 1961.0 W Hours of use: 8 2) 1 ÷ G 1961.0 ÷ 48 = 40.9 Adc C. Days of autonomy: 2 3) 2 x B 40.9 x 8 = 326.8 Ahr D. -
Page 12: Maintenance Bypass Switching
Planning Maintenance Bypass Switching Inverter systems are often equipped with AC maintenance bypass switches or interlocks. If the inverter system ever needs to be shut down or removed, the AC sources and loads must be disconnected. A bypass device allows the AC source to deliver power directly to the loads, bypassing the inverter. -
Page 13: Installation
Installation Location and Environmental Requirements Radian Series Inverter/Chargers must be located in a weather-proof enclosure or enclosed area. It is not designed for exposure to water or excessive wind-blown dust and debris. It carries an Ingress Protection (IP) rating of 20 and a Relative Humidity (RH) rating of 93%. The Radian inverter must be wall-mounted in an upright position. -
Page 14: Figure 7 System Dimensions
Installation 1.1 cm (0.45") 1.1 cm (0.45") 22.2 cm Width 40.6 cm (16") (8.75”) 34.8 cm (13.7”) 71.1 cm 73.7 cm (28”) (29.0”) 114.3 cm (45.0”) 31.8 cm (12.5”) This illustration can be used as a basic template for planning layouts, marking mounting holes, etc. -
Page 15: Tools Required
Installation Tools Required The following tools may be required for this installation: Insulated screwdriver set; should include Wrench and socket sets; should include torque and ratchet wrenches; also reversible (stubby) wrenches for narrow access a #2 Phillips screwdriver 38 to 41 cm long Long-nose pliers Wire cutters/strippers ... -
Page 16: Figure 9 Mounting The Inverter
Installation …continued from the previous page… Place the Radian inverter against the wall and slide it directly over the upper lip of the mounting plate. The inverter’s mounting flange should come to rest within the lip so that it hangs securely. Radian Inverter To assist in alignment, dimples have been placed on the side of the unit to mark the lower edge of the flange. -
Page 17: Component Mounting
Installation Component Mounting The top of the GS Load Center (GSLC) connects to the bottom of the Radian inverter using four keyhole slots. The keyhole slots fit over four screws on the bottom of the inverter that secure the GSLC to the inverter when they are tightened. (The long screwdriver recommended on page 13 may be needed to reach these screws.) The GSLC should be secured to the wall using screws or wall anchors. -
Page 18: Removing Front Cover
Installation Removing Front Cover The front cover must be removed in order to access the Radian inverter’s AC terminals and other connections. These include the Remote and Batt Temp ports, as well as several sets of auxiliary terminals. Twenty-two machine screws are located around the perimeter. Remove these screws with a #2 Phillips screwdriver. -
Page 19: Terminals And Ports
Installation Terminals and Ports DC TERMINALS Connects to the battery cables and DC system. There are two DC positive and two DC negative terminals. Each DC positive terminal requires separate cables and separate overcurrent protection. See page 20 for instructions. RIBBON CABLES Connects the Radian’s power modules and control board. -
Page 20: Figure 13 Ac Terminals, Ports, And Ground Bus
Installation CONTROL WIRING TERMINAL BLOCK: Receives control wires for a variety of functions, including generator control. See facing page for terminal descriptions. REMOTE and BATTERY TEMP PORTS: Receive the RJ45 and RJ11 plugs from the MATE3 system display and Remote Temp Sensor. -
Page 21: Wiring
Installation Wiring It will be necessary to remove knockouts from the chassis to run wires. Bushings are included with the hardware kit to protect the wires. Make sure to install these bushings in the holes. Use copper wire only. Wire must be rated at 75°C or higher. Grounding WARNING: Shock Hazard This unit meets the IEC requirements of Protection Class I. -
Page 22: Dc Wiring
Installation DC Wiring WARNING: Shock Hazard Use caution when working in the vicinity of the inverter’s battery terminals. CAUTION: Equipment Damage Never reverse the polarity of the battery cables. Always ensure correct polarity. CAUTION: Fire Hazard The installer is responsible for providing overcurrent protection. Install a ... -
Page 23: Table 4 Dc Conductor Size And Torque Requirements
Installation Table 4 DC Conductor Size and Torque Requirements Inverter Nominal DC Amps Conductor Size Breaker Size (Minimum, per breaker) (Minimum, per breaker) (Derated 125%) GS7048E 70 mm² or 2/0 AWG (0.105 in²) 175 Adc/AIC 10kA GS3548E 70 mm² or 2/0 AWG (0.105 in²) 175 Adc/AIC 10kA Terminal Location Torque Requirements... -
Page 24: Ac Wiring
Installation AC Wiring WARNING: Shock Hazard Ensure there is no more than one AC neutral-ground bond at any time. Local or national codes may require the bond at the main panel only. The GSLC is equipped with its own bond, which may need to be removed. IMPORTANT The installer is responsible for providing overcurrent protection. -
Page 25: Figure 18 Ac Sources
Installation A Ground Terminal Bus Bar (TBB) is also available if multiple ground connections are needed (see Figure 14 on page 19). WARNING: Shock Hazard During an error shutdown, the inverter’s output terminals are not live. However, if the inverter recovers from a shutdown, the terminals will become live without notice. -
Page 26: Accessory Wiring
Installation Accessory Wiring The upper board has ports for both the Remote Temperature Sensor (RTS) and the system display. The system display port is System Display port labeled Remote. The RTS port is labeled Battery Temp. If a HUB Communications Manager is in use, it RTS port occupies the inverter’s Remote port. -
Page 27: Aux Wiring
Installation AUX Wiring The Radian inverter has two sets of terminals which can respond to different criteria and control many functions. These include cooling fans, vent fans, load diversion, fault alarms, and the Advanced Generator Start (AGS) function. The 12V AUX terminals are a switched 12 Vdc power supply. They can control any of the Auxiliary Output functions available in the MATE3. -
Page 28: Generator Control
Installation In this example, the 12V AUX terminals drive a relay that diverts wind power. The relay’s coil is connected to the 12V AUX terminals. When the AUX function closes the relay (based on battery Turbine voltage), the relay diverts the excess wind power to a water heating element. -
Page 29: Figure 23 Two-Wire Generator Start (Relay Aux)
Installation In other cases, or in the case of a three-wire-start generator, the inverter should use the 12V AUX terminals instead, in conjunction with a three-to-two wire converter. (See pages 27 and 28.) RELAY AUX Terminals Two-Wire-Start Generator Starting Switch Figure 23 Two-Wire Generator Start (RELAY AUX) Two-Wire-Start (12V AUX Terminals) The 12 Vdc signal provided by the 12V AUX terminals can be switched on and off to provide a start... -
Page 30: Figure 25 Three-Wire Generator Start (Example)
Installation Three-Wire-Start A “three-wire-start” generator has two or more starting circuits. It usually has a separate switch or position for cranking the generator. A three-wire generator has fewer automated functions than a two-wire. It usually requires multiple controls for starting, running, or stopping. The inverter terminals cannot control this type of generator without using a three-wire to two-wire conversion kit. -
Page 31: Ac Configurations
Installation AC Configurations Single-Inverter Figure 26 (below) shows the general wiring of the Radian inverter and the AC system connected to it. This figure is not a physical representation of the inverter and does not depict the GSLC. Figure 27 (see next page) shows the locations of AC and network connections. This figure is a physical diagram for wiring the GSLC, network components, and external AC devices with the inverter. -
Page 32: Figure 27 Single-Inverter Ac Wiring With Gs Load Center
Installation NOTES: 1. Ground wiring is not shown for reasons of simplicity. Regardless, this system must be connected to a grounded, permanent wiring system. See page 19. 2. The Radian inverter has separate neutral connections for grid input, generator input, and output. These are electrically common. If an external neutral bus exists (as shown in the GSLC), not all of the Radian neutral connections need to be made. -
Page 33: Multiple-Inverter Ac Installations (Stacking)
Installation Multiple-Inverter AC Installations (Stacking) Installing multiple inverters in a single AC system supports larger loads than a single inverter can handle. This requires stacking. Stacking refers to how the inverters are wired within the system and then programmed to coordinate activity. Stacking allows all units to work together as a single system. The GS3548E and GS7048E models can stack up to ten units in parallel. - Page 34 Installation Connect all units other than the master to ports 2 and above on the communications manager. The system display may have other port restrictions pertaining to stacking. In general, it is always important to keep track of units and ports for programming purposes. Programming involves using the system display to assign a status and stacking value to the inverter on each port.
-
Page 35: Figure 29 Example Of Parallel Stacking Arrangement (Three Inverters)
Installation Parallel Stacking (Dual-Stack and Larger) In parallel stacking, two or more inverters are stacked to create a single, common AC bus as shown in Figure 29. The slave outputs are controlled directly by the master and cannot operate independently. ... -
Page 36: Figure 30 Parallel Ac System
Installation NOTES: 1. The Radian inverter has separate neutral connections for grid input, generator input, and output. These are electrically common. If an external neutral bus exists (as shown in the AC Load Panel above), not all of the Radian neutral connections need to be made. 2. -
Page 37: Figure 31 Parallel Ac Wiring With Gs Load Centers
Installation NOTES: 1. Ground wiring is not shown for reasons of simplicity. Regardless, this system must be connected to a grounded, permanent wiring system. See page 19. 2. The Radian inverter has separate neutral connections for grid input, generator input, and output. These are electrically common. If an external neutral bus exists (as shown in the GSLC), not all of the Radian neutral connections need to be made. -
Page 38: Figure 32 Example Of Three-Phase Stacking (Three Inverters)
Installation Three-Phase Stacking In three-phase stacking, three or more inverters are stacked to create three 230 Vac outputs (or equivalent voltage) in a wye configuration as shown below. 7 kVA 7 kVA 230 Vac 230 Vac 7 kVA 21 kVA 230 Vac 230/400 Vac 7 kVA 230 Vac... - Page 39 Installation The three outputs operate independently of each other. Each can run in independent Search mode if desired. This does not normally occur when three-phase loads are connected. The output of each inverter is 120° out of phase from the others. Any two outputs produce 400 Vac ...
-
Page 40: Figure 34 Three-Phase Ac System
Installation NOTES: 1. The Radian inverter has separate neutral connections for grid input, generator input, and output. These are electrically common. If an external neutral bus exists (as shown in the AC Load Panel above), not all of the Radian neutral connections need to be made. 2. -
Page 41: Figure 35 Three-Phase Ac Wiring With Gs Load Centers
Installation NOTES: 1. Ground wiring is not shown for reasons of simplicity. Regardless, this system must be connected to a grounded, permanent wiring system. See page 19. 2. Only one source (grid) is shown here for reasons of simplicity. The Radian inverter has connections for two AC input sources and can be wired accordingly, although the inverter can only accept one source at a time. -
Page 42: Functional Test
Installation Functional Test Once the mounting, wiring, and other installation steps are completed, proceed to the Radian Series Inverter/Charger Operator’s Manual. The Operator’s Manual has steps for system commissioning. These include powering up and performing a functional test on the inverter system, as well as powering down and adding new devices to an existing system. -
Page 43: Symbols, Terms, And Definitions
Symbols, Terms, and Definitions Symbols Used WARNING: Hazard to Human Life This type of notation indicates that the hazard could be harmful to human life. CAUTION: Hazard to Equipment This type of notation indicates that the hazard may cause damage to the equipment. IMPORTANT: This type of notation indicates that the information provided is important to the installation, operation and/or maintenance of the equipment. -
Page 44: Table 6 Terms And Definitions
Terms and Definitions Table 6 Terms and Definitions Term Definition Emergency Power Off; a switching product used for emergency shutdown GFDI Ground Fault Detector Interruptor; a safety device for PV systems Ground; a permanent conductive connection to earth for safety reasons; also known as Chassis Ground, Protective Earth, PE, Grounding Electrode Conductor, and GEC Grid/Hybrid™... -
Page 45: Index
Index AC Inputs ............. 5, 18, 22, 23 Environmental Requirements ........11 AC Wiring ................ 18, 22 EPO ..................24, 42 Advanced Generator Start (AGS) ........25 Applications ................5 AS4777 ..................40 Audience ................... 3 Features ..................3 AUX ................17, 25, 41 FLEXmax ................ - Page 46 Index Three-Phase..............36 Switch ................17, 24 Symbols Used ............... 41 Maintenance Bypass ............10 System Display ........... 4, 24, 33, 36, 42 Maintenance Checks ............40 MATE and MATE2 ..............4 MATE3 ..............4, 15, 18, 42 AUX ..................25 Stacking ................
- Page 47 THIS PAGE INTENTIONALLY LEFT BLANK. 900-0144-01-01 Rev A...
- Page 48 Masters of the Off-Grid.™ First Choice for the New Grid. Corporate Headquarters European Office 17825 – 59 Avenue N.E. Hansastrasse 8 Suite B D-91126 Arlington, WA 98223 USA Schwabach, Germany +1.360.435.6030 +49.9122.79889.0 900-0144-01-01 Rev A...
