SoundMax SM-CDM1047 Instruction Manual

Cd/mp3 receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SM-CDM1047
CD/MP3 RECEIVER
CD/MP3-
Instruction manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM-CDM1047 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SoundMax SM-CDM1047

Summary of Contents for SoundMax SM-CDM1047

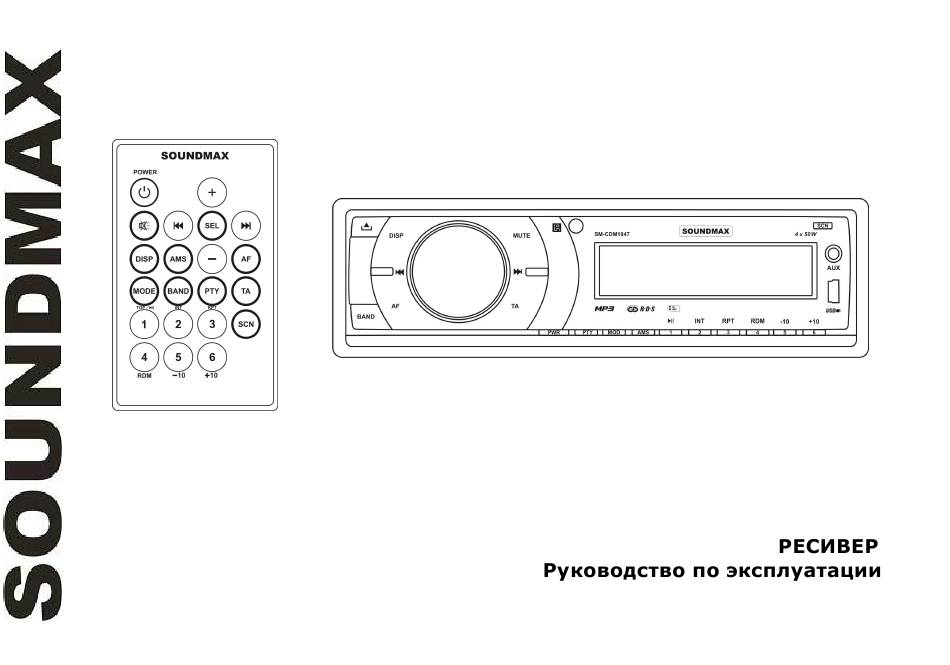

  • Page 1 SM-CDM1047 CD/MP3 RECEIVER CD/MP3- Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents TABLE OF CONTENTS .............................. 2 IMPORTANT SAFEGUARDS.............................

  • Page 3: Important Safeguards

    Important safeguards Read carefully through this manual to familiarize yourself with this high-quality sound system. The beginning of operation is the moment of the unit installation. Before use the device in winter it is recommended to heat up the passenger compartment during 20 seconds or to the operation temperature. Use the unit with the temperature that goes beyond the operation temperature greatly decreases the operation resource of the screen and other components of device and can result an outage.

  • Page 4: Accessories

    Accessories Receiver 1 pc Front panel 1 pc Carrying case 1 pc ISO connector harness 1 pc Remote controller 1 pc MiniUSB-USB connection cable 1 pc Mounting parts: Hexagon nut M5 T 1 pc Mounting box 1 pc Release keys 2 pcs Metal bar 1 pc...

  • Page 5: Installation/Connections

    Installation/Connections Choose the mounting location where the unit will not interfere with the normal driving function of the driver. Before finally installing the unit, connect the wiring and make sure that the unit works properly. Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle.
  • Page 6 2. After installing the sleeve into the dashboard, bend tabs fitting to the size of the dashboard to fix the sleeve in place. 3. Use the metal strap to fix the rear side of the unit. Determine a place for fixing and install the strap as shown in the picture.
  • Page 7 2. DIN REAR-MOUNT (Method B) For this method, use the screw holes in the lateral sides of the unit. Fix the unit with the help of the factory radio mounting brackets. 1. Select a position in which the screw holes of the brackets (3) are aligned with the screw holes in the unit body, and screw in two screws (2) in each side.
  • Page 8 Connection diagram Notes: In spite of having any kinds of speaker system, must use 4 ohms impedance of speaker to reduce the distortion during high volume level. Prohibited to make the conductors of auto antenna and ground touch with each other.
  • Page 9 Using the ISO Connector 1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated. 2. For connections without the ISO connectors, check the wiring in the vehicle carefully before connecting, incorrect connection may cause serious damage to this unit. Cut the connector, connect the colored leads of the power cord to the car battery as shown in the colour code table below for speaker and power cable connections.

  • Page 10: Panel Controls

    Panel controls Front panel 1. OPEN button 2. PREVIOUS button 3. DISP button 4. SEL button/VOL regulator 5. MUTE button 6. NEXT button 7. IR sensor 8. Display 9. SCN button 10. AUX in jack 11. BAND button 12. AF button 13.
  • Page 11 Inner panel Press OPEN button on the front panel to detach it. 1. EJECT button 2. Panel status indicator 3. Disc slot 4. RESET button (hole) 5. SD/MMC slot Pressing RESET hole will erase the clock setting and stored stations. Panel status indicator lights up when you slide the panel down, flashes when you remove the panel.
  • Page 12 Remote controller 1. POWER button 2. PREVIOUS button 3. MUTE button 4. AMS button 5. DISP button 6. MODE button 7. BAND button 8. PLAY/PAUSE/1 button 9. INT/2 button 10. -10/5 button 11. VOL+ button 12. SEL button 13. NEXT button 14.
  • Page 13 Changing the battery Pull out the battery tray. Insert the 1 x lithium battery, type CR 2025 3V battery with the stamped (+) mark facing upward. Insert the battery tray into the remote control. Warning: Store the battery where children cannot reach. If a child accidentally swallows the battery, consult a doctor immediately.

  • Page 14: Lcd Layout

    LCD layout 1. Track play indicator 2. Album name ON 3. Artist name ON 4. Song name ON 5. Loud function indicator 6. Stereo reception indicator 7. AF function indicator 8. TP function indicator 9. TA function indicator 10. EON function indicator 11.

  • Page 15: General Operations

    General operations Power button Press any button (except OPEN and EJECT) on the panel or insert disc to switch the unit on. Press PWR (POWER) button to switch the unit off. Volume control Rotate VOL regulator on the front panel or press VOL+/VOL- buttons on the RC to adjust volume level. Mute Press MUTE button to mute the sound at once.
  • Page 16 Equalizer setting Press and hold SEL button; then press it repeatedly until DSP OFF (DSP ON) is displayed. Rotate VOL regulator on the front panel or press VOL+/VOL- buttons on the RC to choose between sound effects: POP M => ROCK M => CLASSICS => FLAT => DSP OFF. BEEP function Press and hold SEL button;...

  • Page 17: Radio Operations

    Radio operations Band selection Press repeatedly BAND button to select your desired radio band in radio mode: FM1, FM2, FM3, FM4 (OIRT), MW1 (AM1), MW2 (AM2). Each band can store 6 preset stations, for a total of 36 preset memory stations. Tuning Press PREVIOUS or NEXT button;...

  • Page 18: Radio Data System

    Radio Data System Note: RDS (Radio Data System) service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available, either. AF (Alternative Frequencies) function Press AF button to turn the AF function on or off. When the radio signal strength is poor, enabling the AF function will allow the unit to automatically search another station with the same PI (Program Identification) as the current station but with stronger signal strength, so that you do not have to retune the stations when driving between different transmitter coverage...
  • Page 19 PTY (Program Type) This radio will allow you to select the type of program required, and will search for a station broadcasting that type of program. Press PTY button to show the music type. Then press 1 - 6 number buttons to choose different music programs available.
  • Page 20 mode, the unit will seek for traffic announcement program when TA button is pressed; in TA ALARM the unit does not retune to TA information. MASK DPI/MASK ALL During AF search, PI stations and non-RDS (Radio Data Station) stations with strong signal will be masked, in the latter case, the non-RDS stations may cause interference, resulting the real AF to be masked due to the misjudgment of the radio under interference.

  • Page 21: Disc/Usb/Sd/Mmc Operations

    Disc/USB/SD/MMC operations Loading and ejecting a disc Turn the power on. Detach the front panel and insert the disc with the printed side facing upward into the slot. Press EJECT button to eject the disc. MMC/SD card slot Detach the front panel. Carefully insert the SD/MMC card into the card slot on the inner panel. Attach the panel.
  • Page 22 Intro playback When INT/2 button is pressed, the first several seconds of each track of the disc is played. Press again to stop intro and listen to track. Repeat playback When RPT/3 button is pressed, playback of the selected track will be continually repeated until the track repeat mode is cancelled by pressing RPT/3 button again.

  • Page 23: Handling Compact Discs

    Handling compact discs Do not insert anything other than a CD into the CD loading slot. Do not use cracked, chipped, warped, or otherwise damaged discs as they may cause skipping or noise damage the player. Handle the disc only by the edges (as shown in the picture). To keep discs clean do not touch its surface. Store discs in their cases when not in use.

  • Page 24: Troubleshooting Guide

    Troubleshooting guide Below is a table describing simple measures that can help you eliminate most problems likely to emerge when this unit is in use. If below measures do not help, turn to a service center or to the nearest dealer. Symptom Cause Solution...

  • Page 25: Specification

    Specification General Power supply 12 V DC Current consumption 10 A Maximum power output 4 x 50 W Dimensions (L x W x H) 178 x 50 x 163 mm FM stereo radio Frequency range 65 – 74 MHz / 87.5 – 108.0 MHz Usable sensitivity 12 dBu I.F.
  • Page 26 ................................26 ..........................27 ............................28 ..........................29 ............................35 ..........................39 ..............................40 ............................... 42 (RDS) ........................43 /USB/ SD/MMC ................ 46 ......................... 49 ............................... 49 ................. 50 ........................51...
  • Page 28 4. ISO miniUSB-USB M5 T (5X25...
  • Page 29 30°, « » « » « » ( « » ( DIN,...
  • Page 30 « » (...
  • Page 31 – – – « » (...
  • Page 32 OPEN,...
  • Page 34 ISO, (+)--- (-)--- (+)--- 12 (+)/ (-)--- (+)--- ((-)--- (+)--- (-)---...
  • Page 35 OPEN PREVIOUS DISP SEL/ MUTE NEXT BAND PLAY/PAUSE/1 INT/2 RPT/3 RDM/4 -10/5 +10/6 24. USB-...
  • Page 36 OPEN, EJECT ) RESET SD/MMC RESET...
  • Page 37 POWER PREVIOUS MUTE DISP MODE BAND PLAY/PAUSE/1 INT/2 -10/5 VOL+ NEXT VOL- RPT/3 +10/6...
  • Page 38 CR 2025 3 – 6...
  • Page 39 USB/...
  • Page 40 OPEN EJECT) PWR (POWER), VOL+/VOL-, MUTE, : BAS ( ) => TRB ) => BAL ( ) => FAD ( VOL+/VOL-, MODE, : AUX => => CDP ( ) => => USB. SEL, LOUD ON (OFF). VOL+/VOL- LOUD ON OFF (...
  • Page 41 DISP DISP; SEL, DSP OFF (DSP ON). VOL+/VOL- : POP M => ROCK M => CLASSICS => FLAT => DSP OFF ( BEEP ( SELECT; BEEP OFF (BEEP ON). VOL+/VOL- BEEP OFF – BEEP ON – ) RESET ERROR ( MP3-...
  • Page 42 BAND, : FM1, FM2, FM3, FM4 (OIRT), MW1 (AM1), MW2 (AM2). PREVIOUS NEXT; PREVIOUS NEXT. PREVIOUS NEXT, MANUAL). PREVIOUS/NEXT, AMS; AMS,...
  • Page 43 (RDS) RDS ( AF ( RDS. REGIONAL REGIONAL. REG ON (OFF). ON ( OFF ( REG ON ( , PI- REG OFF ( ): PI- TA (...
  • Page 44 PTY ( RDS, PTY, 1-6, 1-6, Pop, Rock News, Affairs, Info Easy, Light Sport, Educate, Drama Classics Culture, Science, Varied Jazz, Weather, Finance, Country Children Nation, Social, Religion, Oldies Phone IN Folk Travel, Leis ure, Document VOL+/VOL-,...
  • Page 45 TA SEEK/TA ALARM TP (Traffic Program – (RETUNE), PI ( TA SEEK TA ALARM: MASK DPI/MASK ALL AF ( MASK DPI. MASK DPI MASK ALL RDS. RETUNE S/L - SHORT/LONG «RETUNE» . «S» , «L» SEEK SEEK 1: SEEK. SEEK 2: SEEK SEEK, STEREO/MONO (...
  • Page 46 /USB/ SD/MMC EJECT, SD/MMC SD/MMC MiniUSB-USB USB/SD/MMC USB: USB 2.0. USB- USB- ID3- MP3- . ID3- NEXT PREVIOUS,...
  • Page 47 MP3- -10/5/ +10/6, PLAY/PAUSE/1, INT/2, RPT/3, RDM/4, MP3- AMS, SEL, VOL+/VOL-, SEL, VOL+/VOL-, SELECT, SEL, VOL+/VOL-,...
  • Page 48 VOL+/VOL-, SEL, AMS 3 SEL, “A”. VOL+/VOL-, VOL+/VOL-, SEL,...
  • Page 50 “ ”. POWER...
  • Page 51 RESET. (ERROR 1 – 11) (ERROR 1 – 11) 12 , 65 – 74 / 87,5 – 108,0 10,7 522 – 1620...
  • Page 52 D/CD-R/CD-RW, USB/SD/MMC CDDA/MP3 – 20 CD, 120 >60 RCA (2 ) 2010 – 2019) (2011) R31982101-01792...
