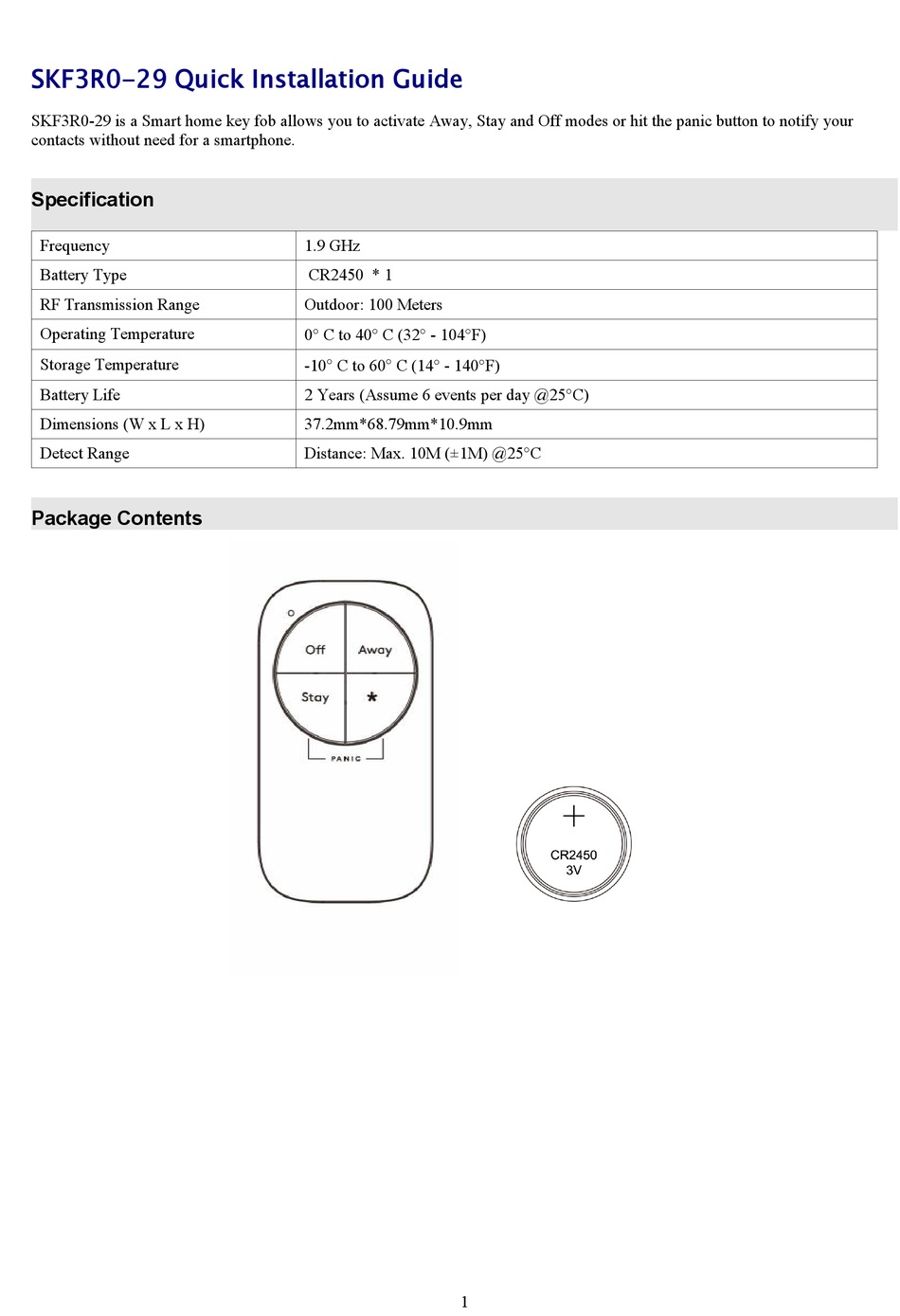

SKF3R0-29 Quick Installation Guide
SKF3R0-29 is a Smart home key fob allows you to activate Away, Stay and Off modes or hit the panic button to notify your
contacts without need for a smartphone.
Specification
Frequency
Battery Type
RF Transmission Range
Operating Temperature
Storage Temperature
Battery Life
Dimensions (W x L x H)
Detect Range
Package Contents
1.9 GHz
CR2450 * 1
Outdoor: 100 Meters
0 C to 40 C (32° - 104°F)
-10 C to 60 C (14° - 140°F)
2 Years (Assume 6 events per day @25°C)
37.2mm*68.79mm*10.9mm
Distance: Max. 10M (±1M) @25°C
1
Advertisement
Table of Contents
Related Manuals for Blue by ADT SKF3R0-29
Summary of Contents for Blue by ADT SKF3R0-29
- Page 1 SKF3R0-29 Quick Installation Guide SKF3R0-29 is a Smart home key fob allows you to activate Away, Stay and Off modes or hit the panic button to notify your contacts without need for a smartphone. Specification Frequency 1.9 GHz Battery Type...
- Page 2 Intallation Slide the back cover off. Pull out the protective strip to engage the battery and activate the Key Fob. The LED indicator will be blinking for 90sec while attempting to pair with the gateway or base station..
- Page 3 Operation 1. Indicator LED (Red and Blue color) 5. *: Reserved key 2. Off key: Disarm mode Panic: Press Stay + * 3. Stay: Arm perimeter 4. Away: Arm all When the battery is installed, the Blue LED will be blinking for 90 seconds which indicates paring process is on going. ...
- Page 4 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 5 Caution • This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep away from babies and small children at all times. As a child safety precaution, always attach the included key ring to secure the back cover and prevent access to the battery.
