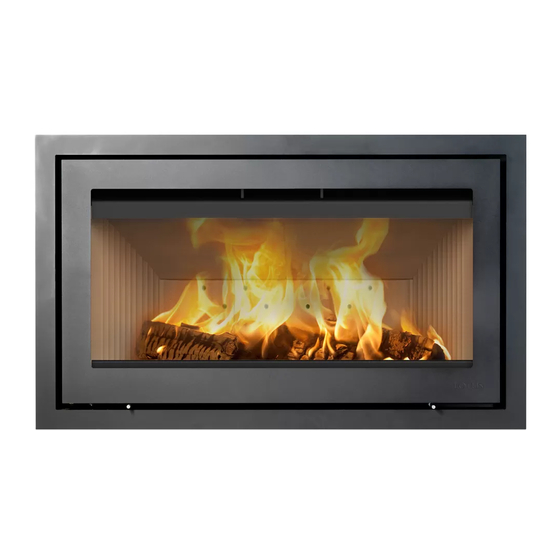

- Page 1 Assembly and User Instructions Fireplace Inserts, Lotus H470W – H570W Version 5, 01/02-2017...
-
Page 3: Technical Specifications
– now, as well as in the years to come. This is why this guide would be worth while keeping, like all other directions for use. Lotus may look back on a long tradition, making our first productions back in 1979. Our production is now run at Langeskov, and exported to many European markets. - Page 4 Drawing is an illustration and applies to normal inserts and wide models Holes used for fastening the insert to the base. Set screws for adjustment of the insert in relation to the base.
- Page 5 The potential for the building-in of fireplace inserts is vast; they may be built into the wall, on the outside of the wall, and may be suspended on the wall. Building-in shall take place in connection with non-inflammable materials only. Virtually all installations are designed individually, and in all cases the distance to inflammable matter must meet the values stated below.
- Page 6 The Base The base must, of course, be firm and have adequate load-bearing capacity. This will usually pose no problem when assembling in an open fireplace. In case of an inflammable floor, the height of the foundation for the insert must be minimum 300mm.
- Page 7 Register If your chimney has a register, this should have a forced opening of min. 20 Assembly of Smoke Turn Plate The illustration below shows how to place the smoke turn plate when viewing a section in the fireplace insert from the side. The smoke turn plate is removed by lifting at one side after which it will come clear of the other side and be taken down into the combustion chamber and out through the door.
- Page 8 Floor On the floor in front of your fireplace insert, there should be a non-inflammable plate, for instance made of steel or stone material. This plate should be big enough to reach min. 30cm in front of the fireplace insert and 15cm at each side of the fireplace opening.
- Page 9 The damper may be opened entirely and damped again once the fire has caught on well. Just how much the damper should be opened may vary with the draught of the particular chimney but the flames are now to stabilize so as to assume the appearance of a “calmly”...
-
Page 10: Sound Advice
Cleaning of Fireplace Insert All Lotus fireplace inserts have been factory surface treated using original Senotherm lacquer in colours ”coke” or ”grey”. This treatment will make the fireplace insert exude a special smell during the initial kindlings but this will vanish after a few times. - Page 11 Firewood for your Lotus fireplace insert should have a diameter of 7-9cm. The essence of good combustion is that the wood should be appropriately dry (at a humidity of 15-20%).
-
Page 12: Operating Trouble
- Any unauthorized change of the insert will render the warranty nil and void Operating Trouble If you have any problems with your Lotus fireplace insert, you may find the cause below. If not, you will always be welcome to contact your Lotus distributor. - Page 13 The layer of glows was too small/had glown out and did not produce sufficient heat to kindle the pieces of wood. A little primary air may be supplied by opening the door ajar. Depending on the particular kind of trouble, you may have to contact your Lotus distributor or a chimney sweeper.
- Page 14 Fireplace Insert H470W Fireplace Insert H570W...
-
Page 16: Warranty
WARRANTY Lotus Wood Stove - 10-Year Warranty From 1 September 2014, Lotus is offering a 10-year warranty instead of a five-year warranty. This warranty applies to stoves which are supplied by Lotus after this date. This warranty covers Lotus Wood Stove model _________ production no. -
Page 17: Ec Declaration Of Conformity
EC Declaration of Conformity Manucfacturer: Lotus heating Systems A/S Agertoften 6, 5550 Langeskov Denmark _________________________ Product: Inserts fired by solid fuel Type designation: Lotus Standard: EN 13229:2001/A2:2004/AC:2007 Fuels: Wood logs ___________________________ Manufacturer’s declaration: The inserts are approved by RRF Rhein-Ruhr feuerstätten Prüfstelle D- 45307 Essen (NB 1625). - Page 18 Product Fiche Name or trademark Lotus Notes Model identifier H470W-H570W Energy efficiency class Direct heat output 7,0 kW -meaning the space heat output according to the product standard -rounded to the nearest one decimal place Energy efficiency index 107,7 -rounded to the nearest integer:...
