TS-01 Installation and Operation Manual
Product Description
®
The PreCise

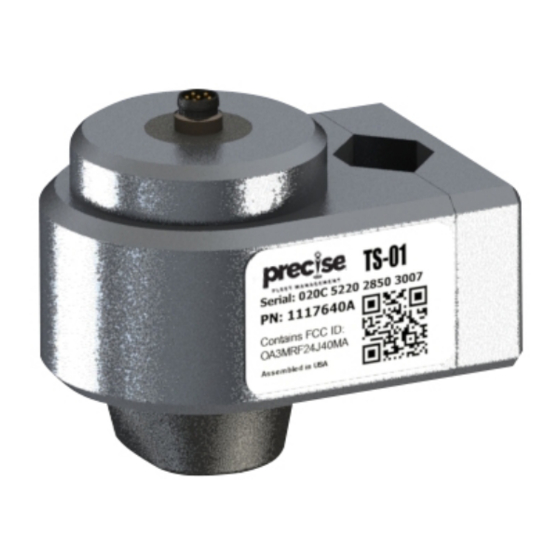

ARC System, TS-01, is a wired sensor designed to provide accurate road and
air conditions information to a remote in-cab display. Easily view and collect data critical to
decision making including relative humidity, dew point, air temperature and road
temperature.
Features
• Air Temp: ±0.5°C (±1.0°F) typical
• Relative Humidity: ±4% typical
• Dew Point/Frost Point: ±2.0°C (±4.0°F) typical
• Road Temp: ±1.0°C (±2.0°F) typical
• Emissivity: calibrated to 0.95
• Field of View: 10°
• Operating Temp: -40°C to 85°C (-40°F to 185°F)
• Communications:
IEEE 802.15.4 (2.4GHz DSSS)
SAE J-1708
• Range: 10m (33ft) typical
• Power: 6.5V-32V vehicle power
Air & Road Conditions (ARC)
Advertisement
Table of Contents
Related Manuals for PreCise TS-01
Summary of Contents for PreCise TS-01
- Page 1 ® The PreCise ARC System, TS-01, is a wired sensor designed to provide accurate road and air conditions information to a remote in-cab display. Easily view and collect data critical to decision making including relative humidity, dew point, air temperature and road temperature.
- Page 2 PreCise MRM Installation and Operation Manual TS-01 Warnings & Cautions • Read and follow all safety rules and instructions before installing or operating this equipment. • Never operate a vehicle within a closed area. Always assure proper ventilation before starting engine.
- Page 3 For every foot of height the width of the area measured widens by approximately 2.1 inches. For questions regarding installation or operation, please contact PreCise Support at 888-254-1634 during normal business hours (7AM-6PM Mountain Time, Monday-Friday) or support@precisemrm.com.
- Page 4 PreCise MRM Installation and Operation Manual TS-01 Figure 1: Vehicle Clearance versus Height Above Surface 1311 East Franklin Road, Suite 102 TS-01A www.PreCiseMRM.com Meridian, Idaho 83642 Copyright 2017 a subsidiary of FORCE America Support: 1-888-254-1634 Sales: 1-888-449-0357 p. 4 of 8...
- Page 5 To connect to a SSC6100 or similar device designed to interface with a RoadWatch compatible M8 connection, follow Figure 3. * - RoadWatch is a trademark of Commercial Vehicle Group and is in no way affiliated with PreCise MRM or FORCE America, Inc. Figure 3: Wiring to WCM-02...
- Page 6 PreCise MRM Installation and Operation Manual TS-01 TS-01 Specifications Sensors Parameter Rating Units Air Temperature ±0.5 °C (typ) ±1.0 °F (typ) Air Temperature Response Time (1) Minutes (typ) Relative Humidity ±4 % (typ) Relative Humidity Response Time (1) Minutes (typ) Road Temperature ±1.0...
- Page 7 PreCise MRM Installation and Operation Manual TS-01 Physical Parameter Rating Units Dimensions 2.5 x 2.9 x 2.1 62 x 74 x 54 Weight Environmental Parameter Rating Operating Temperature -40°C to +85°C Storage Temperature -40°C to +85°C Humidity 0% to 100% RH at +40°C Ingress Protection IPX9K –...
- Page 8 PreCise MRM Installation and Operation Manual TS-01 MANUFACTURER LIMITED WARRANTY AND LIMITATION OF LIABILITY Manufacturer warrants that on the Date of Purchase this Product will conform to Manufacturer's published specifications for the product, which are available from Manufacturer on request, and Manufacturer warrants that the product is free from defects in materials and workmanship.
