Air & Road Conditions (ARC)

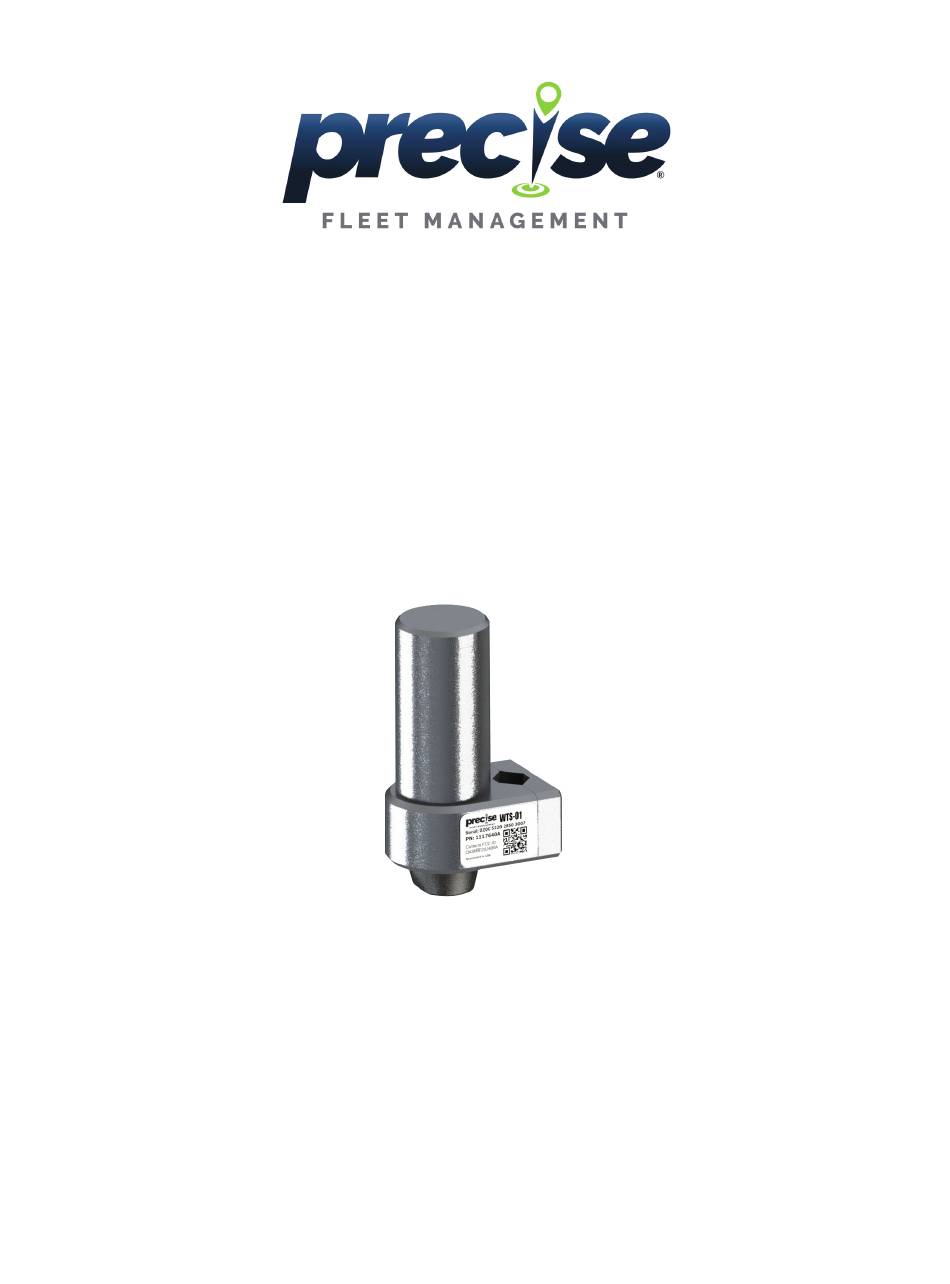

WTS-01 Installation and Operation Manual
Product Description
®

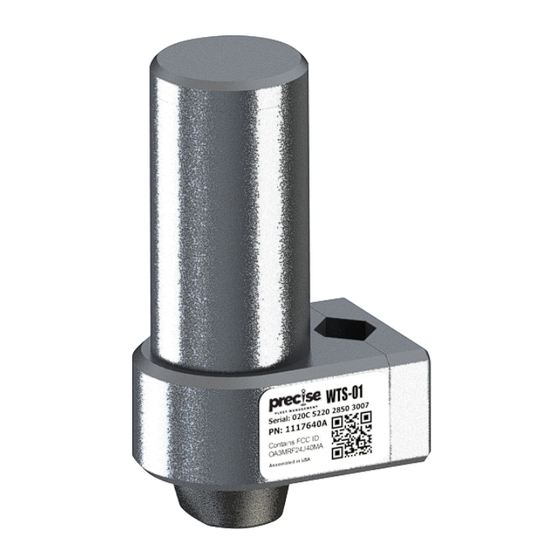

The PreCise
ARC System, WTS-01, is a wireless sensor designed to provide accurate
road and air conditions information to a remote in-cab display. Easily view and collect
data critical to decision making including relative humidity, dew point, air temperature
and road temperature.
Features
• Air Temp: ±0.5°C (±1.0°F) typical
• Relative Humidity: ±4% typical
• Dew Point/Frost Point: ±2.0°C (±4.0°F) typical
• Road Temp: ±1.0°C (±2.0°F) typical
• Emissivity: calibrated to 0.95
• Field of View: 10°
• Operating Temp: -40°C to 85°C (-40°F to 185°F)
• Communications: IEEE 802.15.4 (2.4GHz DSSS)
• Range: 10m (33ft) typical
• Power: 1.5V alkaline D Cell
Advertisement
Table of Contents
Related Manuals for PreCise WTS-01
Summary of Contents for PreCise WTS-01
- Page 1 ® The PreCise ARC System, WTS-01, is a wireless sensor designed to provide accurate road and air conditions information to a remote in-cab display. Easily view and collect data critical to decision making including relative humidity, dew point, air temperature and road temperature.
- Page 2 PreCise MRM Installation and Operation Manual WTS-01 Warnings & Cautions • Read and follow all safety rules and instructions before installing or operating this equipment. • Never operate a vehicle within a closed area. Always assure proper ventilation before starting engine.
-
Page 3: Installation Instructions
WTS-01 INSTALLATION INSTRUCTIONS Before You Start ® Prior to installing the PreCise Temperature Sensor and Display, take time to familiarize yourself with the installation instructions, theory of operation, and system components. Battery Installation Install the battery with the positive (+) terminal down. Avoid dropping the battery in, if possible. - Page 4 For every foot of height the width of the area measured widens by approximately 2.1 inches. For questions regarding installation or operation, please contact PreCise Support at 888-254-1634 during normal business hours (7AM-6PM Mountain Time, Monday-Friday) or support@precisemrm.com.
- Page 5 PreCise MRM Installation and Operation Manual WTS-01 Figure 1: Vehicle Clearance versus Height Above Surface 1311 East Franklin Road, Suite 102 WTS-01A www.PreCiseMRM.com Meridian, Idaho 83642 Copyright 2017 a subsidiary of FORCE America Support: 1-888-254-1634 Sales: 1-888-449-0357 p. 5 of 8...
- Page 6 PreCise MRM Installation and Operation Manual WTS-01 WTS-01 Specifications Sensors Parameter Rating Units Air Temperature ±0.5 °C (typ) ±1.0 °F (typ) Air Temperature Response Time (1) Minutes (typ) Relative Humidity ±4 % (typ) Relative Humidity Response Time (1) Minutes (typ) Road Temperature ±1.0...
- Page 7 PreCise MRM Installation and Operation Manual WTS-01 Physical Parameter Rating Units Dimensions 5.1 x 2.9 x 2.1 130 x 74 x 54 Weight Environmental Parameter Rating Operating Temperature -40°C to +85°C Storage Temperature -40°C to +85°C Humidity 0% to 100% RH at +40°C Ingress Protection IPX9K –...
- Page 8 PreCise MRM Installation and Operation Manual WTS-01 MANUFACTURER LIMITED WARRANTY AND LIMITATION OF LIABILITY Manufacturer warrants that on the Date of Purchase this Product will conform to Manufacturer's published specifications for the product, which are available from Manufacturer on request, and Manufacturer warrants that the product is free from defects in materials and workmanship.
