Wlan; Gnss; Power; Sim Cover - NetModule NB1601-R Quick Start Manual

7

WLAN

8

GNSS

9

Power

10

SIM cover

11

SIM holder

www.netmodule.com
SMA female connectors for MIMO WLAN antenna. A3 is
the main port, A4 is the auxiliary port. If only one WLAN
antenna is used, it must be attached to port A3.
SMA female connector for GNSS antenna.
The router can be powered with an external source with
the nominal input voltages 12VDC and 24VDC.
Removing the SIM cover: Loosen the screw, remove it and
then remove the cover.
Please close the cover again after inserting the SIM cards.
Slots for 2 Micro SIM (3FF).

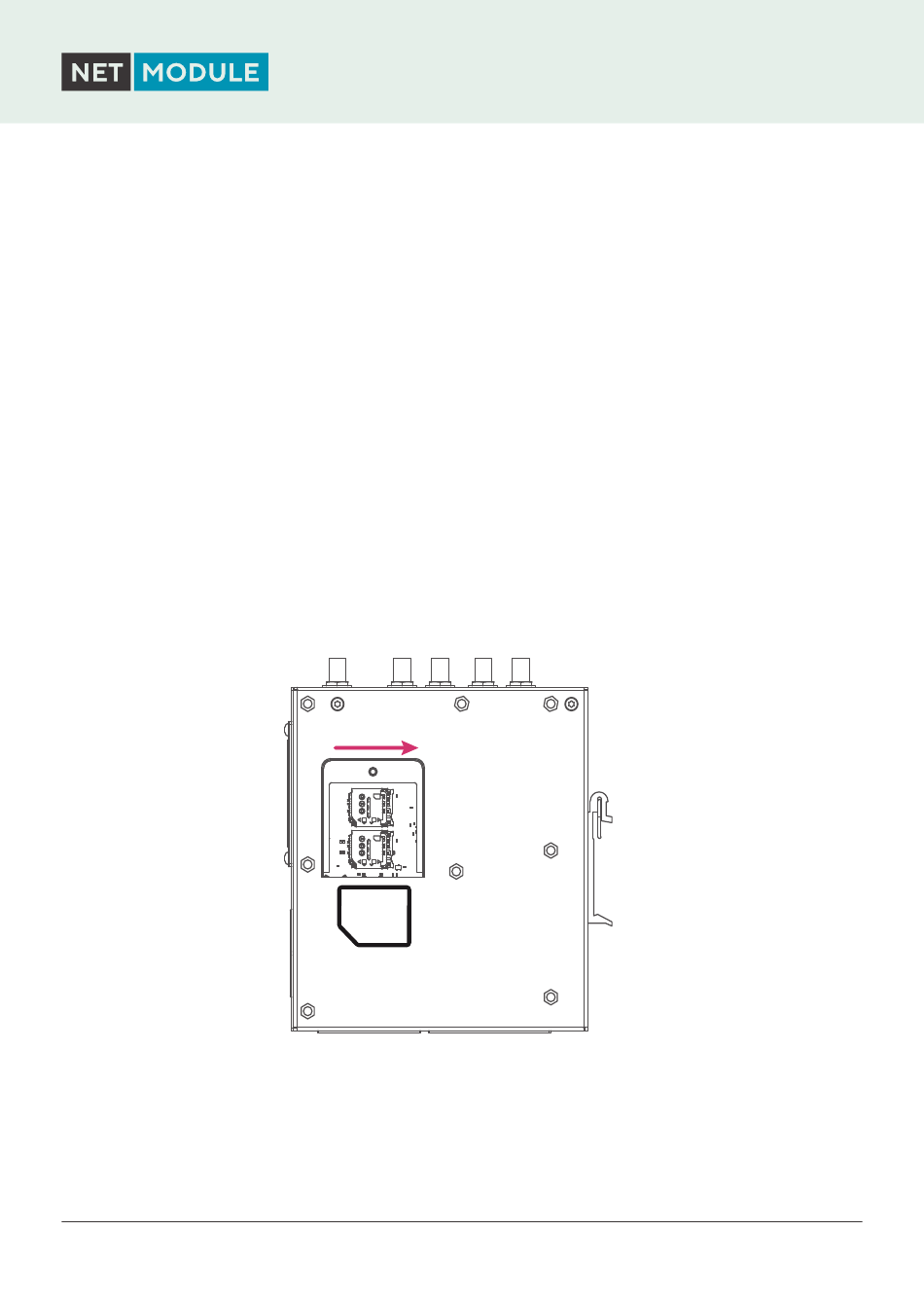

The card holders can be opened by sliding them carefully
in the direction indicated by the arrow in the drawing
below and lift it up.
Then insert the SIM cards with the chip facing to the back.
SIM 2
SIM 1
Close the holder again and shift it back until it's locked.
Please close the SIM cover after inserting the SIM card
and tighten the screw again.
03.09.2019 © NetModule AG | Errors reserved
Quick Start Guide Enclosure
NB1601
