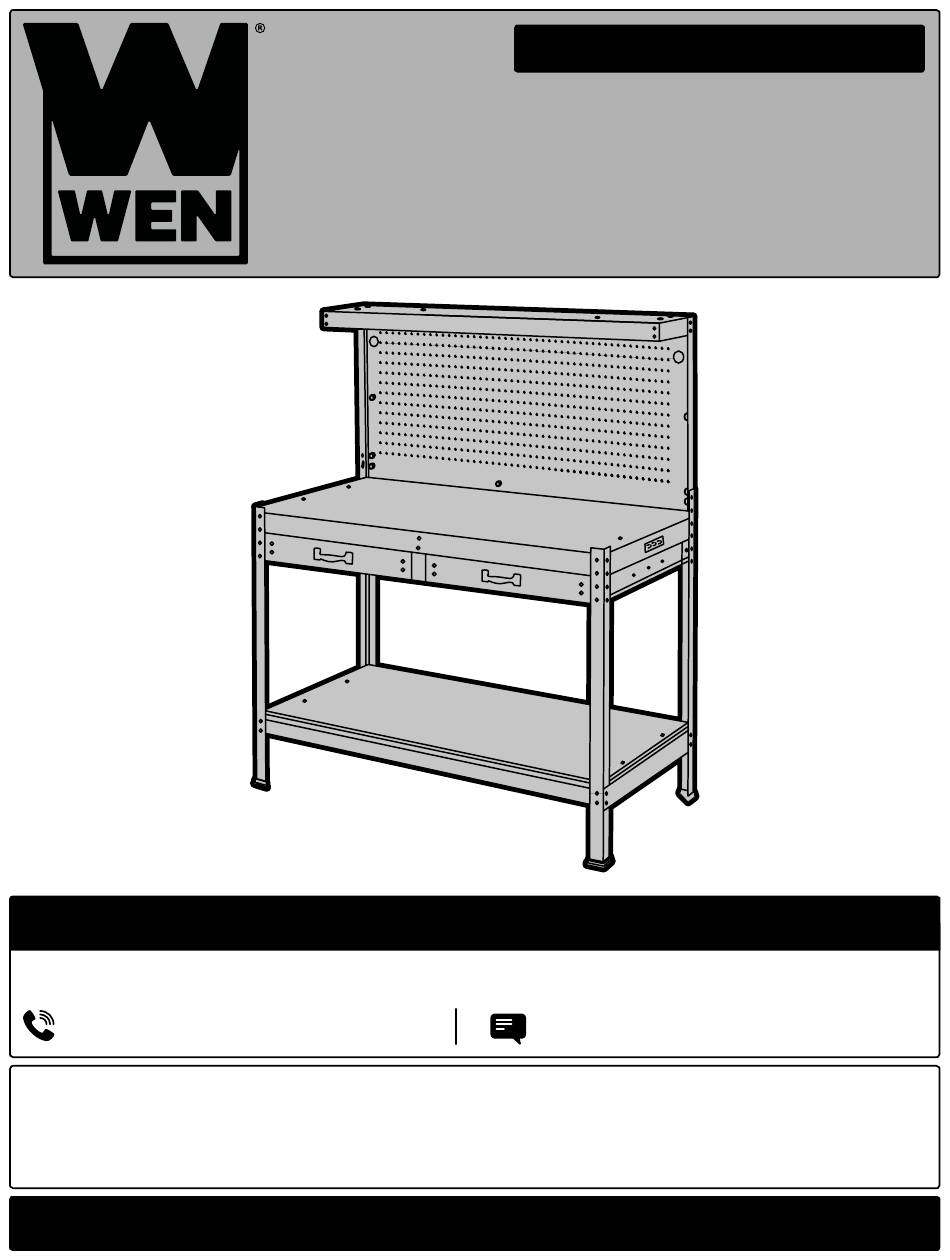

MODEL WB4723, WB4723T
WORK STATION
WITH LIGHT
Instruction Manual
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
1-800-232-1195 (M-F 8AM-5PM CST)
TECHSUPPORT@WENPRODUCTS.COM
IMPORTANT: Your new tool has been engineered and manufactured to WEN's highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged,
trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use
your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
WENPRODUCTS.COM
For replacement parts and the most up-to-date instruction manuals, visit
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Wen WB4723T
Summary of Contents for Wen WB4723T
- Page 1 1-800-232-1195 (M-F 8AM-5PM CST) TECHSUPPORT@WENPRODUCTS.COM IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
-
Page 2: Table Of Contents
CONTENTS WELCOME Introduction ..................... 3 Specifications ....................3 SAFETY General Safety Rules ..................4 Electrical Information ..................6 BEFORE OPERATING Exploded View & Parts List ................7 Assembly & Adjustments ................. 9 MAINTENANCE Maintenance ....................15 Warranty Statement ..................16... -
Page 3: Welcome

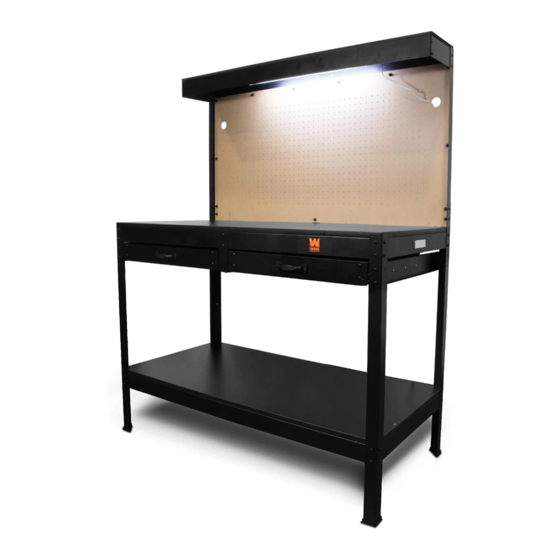

INTRODUCTION Thanks for purchasing the WEN Work Bench. We know you are excited to put your tool to work, but first, please take a moment to read through the manual. Safe operation of this tool requires that you read and understand this operator’s manual and all the labels affixed to the tool. -
Page 4: Safety
GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 5 GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
-
Page 6: Electrical Information
ELECTRICAL INFORMATION GROUNDING INSTRUCTIONS In the event of a malfunction or breakdown, grounding provides the path of least resistance for an electric current and reduces the risk of electric shock. This tool is equipped with an electric cord that has an equipment grounding conductor and a grounding plug. -
Page 7: Before Operating
EXPLODED VIEW & PARTS LIST... - Page 8 EXPLODED VIEW & PARTS LIST WARNING! Do not plug in or turn on the tool until it is fully assembled according to the instructions. Failure to follow the safety instructions may result in serious personal injury. UNPACKING With the help of a friend or trustworthy foe, carefully remove the work bench from the packaging. Make sure to take out all contents and accessories.
-
Page 9: Assembly & Adjustments
ASSEMBLY & ADJUSTMENTS NOTE: Assembly of the work station requires two people. NOTE: Extensive assembly required. Assembly time can take 2-4 hours depending on skill level. We suggest taking a break part way through to enjoy a beverage of your choice. BEFORE ASSEMBLY: Each part is labeled with its corresponding number / letter. - Page 10 (Fig. 5 - 1) and the middle two holes on the back posts (Fig. 5 - 2), using M6x10 bolt, washer, and nut. One of the beams will have a WEN label, it is recommended to assemble that beam in the front of the unit.
- Page 11 ASSEMBLY & ADJUSTMENTS MOUNTING DRAWER Fig. 6 BRACKETS (7F, 7B) 6. Attach the front drawer bracket (Fig. 6 - 7F) to the inside of the front top beam (Fig. 6 - 6), and the back drawer bracket (Fig. 6 - 7B) to the outside of the back top beam (Fig.
- Page 12 ASSEMBLY & ADJUSTMENTS ATTACHING DRAWER PANELS Fig. 9 (10L, 10R, 11, 12, 13) 10. Lay one drawer bottom (Fig. 9 - 13) down on a flat surface. Attach the right (Fig. 9 - 10R) and left (Fig. 9 - 10L) drawer panels to the inside of the front (Fig.
- Page 13 ASSEMBLY & ADJUSTMENTS ATTACHING PEGBOARD (18) Fig. 11 16. Attach the pegboard (Fig. 11 - 18) to the back upper posts, using 13 M6x16 bolts, washers, nuts (C). ATTACHING BENCH TOP & BOTTOM SHELF (19, 20) 17. Attach the bench top (Fig. 12 - 19) to the upper side beams (Fig.
- Page 14 ASSEMBLY & ADJUSTMENTS ATTACHING TOP SHELF (21) Fig. 13 18. Attach the top shelf (Fig. 13 - 21) to the shelf beams using M5x25 bolts, washers, and nuts (D). ATTACH LIGHT FIXTURE (23) 18. Attach the light fixture (Fig. 14 - 23) to the underside of the top shelf (Fig.
-
Page 15: Maintenance
MAINTENANCE WARNING! To avoid accidents, make sure the power switch is in the OFF position and unplug the tool from the electrical outlet before assembly, cleaning or performing any maintenance. 1. Before each use, inspect the general condition of the tool. Check for: •... -
Page 16: Warranty Statement
WARRANTY STATEMENT WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this commitment and our dedication to quality. LIMITED WARRANTY OF WEN PRODUCTS FOR HOME USE GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN consumer power tools will be free from defects in material or workmanship during personal use for a period of two (2) years used for professional or commercial use.
