QR1 Touring Spine Hanging Bracket
Introduction
The QR-1 Touring Spine (t-Spine) is
recommended for a precise and easy
hanging setup of the speaker when
used for flying a single speaker.
QR1 Rigging Installation Guide
Order Ref: ACHPI-QR1
Kit Contents
• t-Spine
• Quick Pin 8 x 50
• Screws (2 x M10)

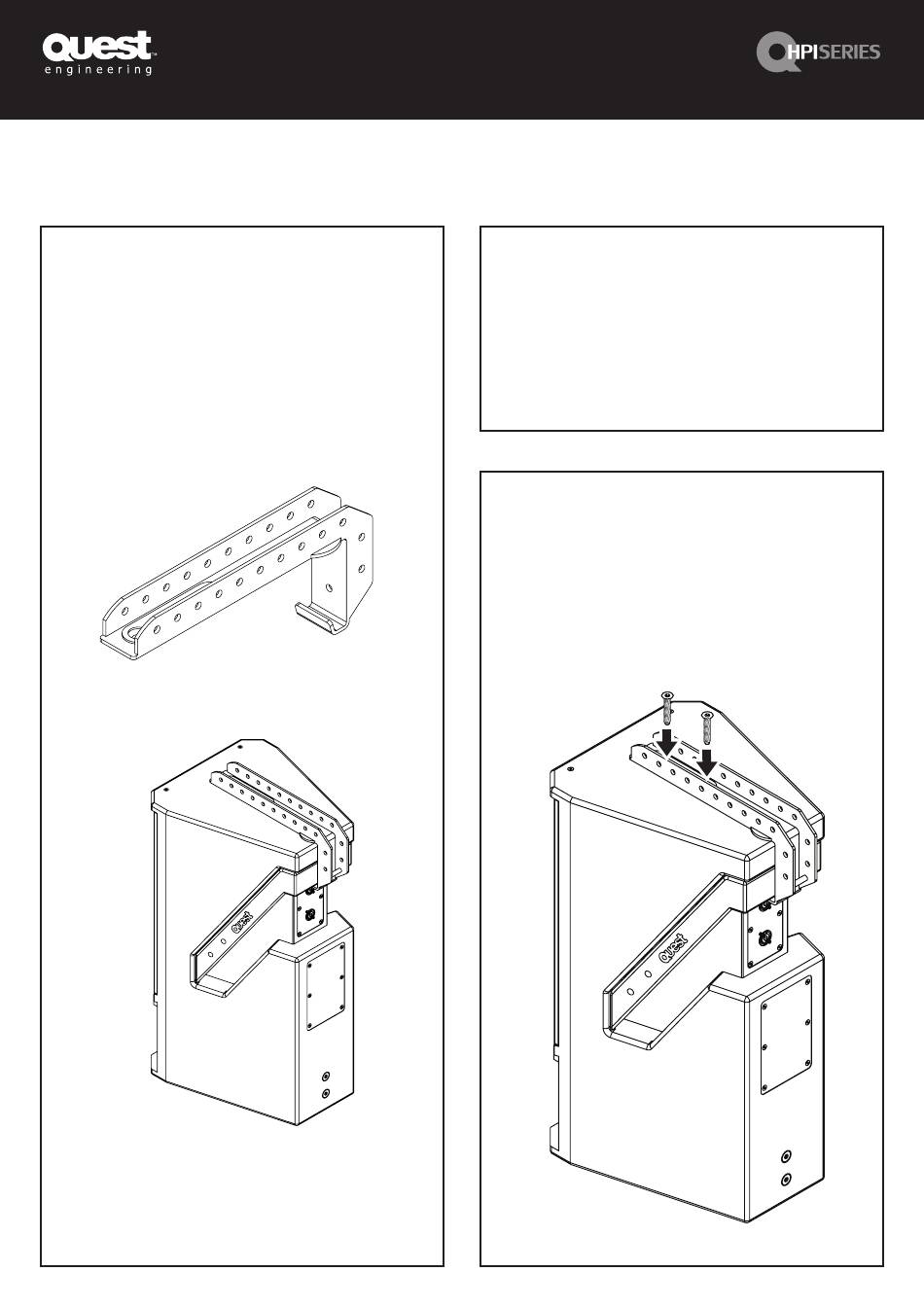

Mounting the Speaker
The T-Spine is attached to the top of
the loudspeaker with the two bolts
supplied. Coat the bolts with thread
locking paste for maximum protection
against bolts becoming loose over time.
Advertisement
Related Manuals for Quest Engineering HPI Series
Summary of Contents for Quest Engineering HPI Series
- Page 1 QR1 Rigging Installation Guide QR1 Touring Spine Hanging Bracket Order Ref: ACHPI-QR1 Kit Contents Introduction The QR-1 Touring Spine (t-Spine) is • t-Spine recommended for a precise and easy • Quick Pin 8 x 50 hanging setup of the speaker when •...
- Page 2 QR1 Rigging Installation Guide Tilt Angle The tilt angle of the vertical hang is controlled by the shackle location on the top box Touring Spine. Insert the ball lock pin into shackle for desired tilt angle. -30 ˚ -25 ˚ -20 ˚ -15 ˚ -10 ˚ -5 ˚ 0 ˚ +5 ˚ +10 ˚ +15 ˚ A suitably rated shackle is The t-Spine can also be used as part necessary to use the T-Spine in most...
- Page 3 QR1 Rigging Installation Guide Safety Precautions Avoid installing the mounting Check to confirm that suspension hardware on unstable structures, wires are strong enough, correctly such as on unreinforced walls or terminated and sufficient to carry the ceiling beams that are not designed total load with at least a 4:1 safety to carry extra weight.
- Page 4 Quest Engineering Pty. Ltd. 130 - 140 Melrose Drive, Tullamarine Vic. 3043 Australia Phone: +61 (03) 8373 6868...
