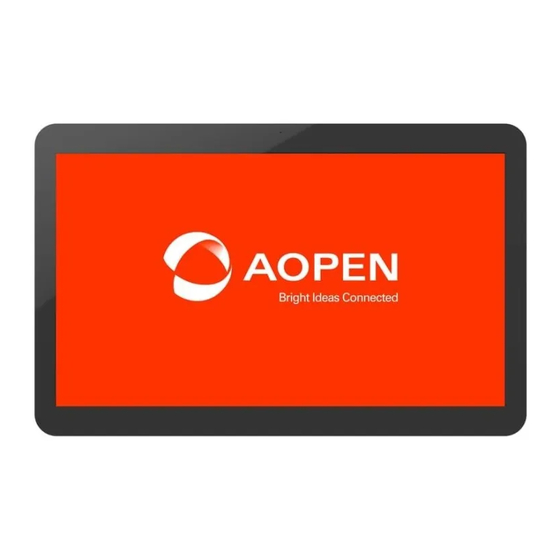

- Page 1 WT15M-FB Commercial All In One PC Technical Manual...
- Page 2 For at mindske forurening og sikre beskyttelse af miljøet bedes De genbruge produktet. For yderligere information vedrø rende indsamling og genbrug af elektronik-affald (Waste Electrical and Electronic Equipment (WEEE)) er De velkommen til at besø ge vores website www.aopen.com og læse nærmere under “Green Products”.
- Page 3 Pour plus d’informations sur la gestion des déchets d’Equipements Electriques et Electroniques (DEEE ou WEEE), vous êtes invité à visiter notre site à www.aopen.com sous “ Green Products”. Entsorgungsanleitung (German) Zum besseren Schutze unseres Planeten, schmeissen Sie elektrische Geräte bitte nicht in...
- Page 4 Para más información acerca de dónde depositar y cómo reciclar Equipos Electrónicos y Desperdicios Electrónicos (WEEE), por favor, visite la página web www.aopen.com y entre en la sección Productos Ecológicos (“Green Products”). Kassering (Swedish) För att bättre värna om vår jord bör denna elektroniska utrustning ej kasseras tillsammans med...
- Page 5 Copyright Copyright of this publication belongs to AOpen Inc. AOpen reserves the right to change the content of this publication without obligation to notify any party of such changes or revisions. No part of this publication may be reproduced, transcribed, transmitted,...
- Page 6 Safety Instructions 1. Please read these safety instructions carefully. 2. Please keep this User’s Manual for later reference. 3. Please disconnect this equipment from connecter before cleaning. Don’t use liquid or prayed detergent for cleaning. Use moisture sheet or cloth for cleanning.
- Page 7 FCC notice This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
-
Page 8: Table Of Contents
Table of Contents Packing List ..................11 1-1. Standard Accessories ..............11 1-2. Optional Accessories ..............12 System View ..................13 2-1. Front View ..................13 2-2. Rear View ..................13 2-3. I/O ports ..................14 2-4. Dimension ..................14 System Assembly ................ - Page 9 Specification..................20 RS232 Setting .................. 22 Appendix A: Drivers Installation ............. 24 Appendix B: Trouble Shotting ..............25...
- Page 10 We regret not informing about any changes in usage standards and other related information. AOpen Company reserves the right of altering or modifying the content of this manual. In case of any mistakes or incorrect descriptions, which include those on the products, AOpen makes no guarantee or commitments.
-
Page 11: Packing List
1. Packing List 1-1. Standard Accessories a. System b. Utility and Driver c. Power adapter (90W) d. Power cord e. Ultra Slim Wall Mount (Option) Notice: The pictures may look slightly different from the product you purchased, due to our constant product improvement effort. -
Page 12: Optional Accessories
1-2. Optional Accessories Desktop Stand P/N:90.WT134.0110... -
Page 13: System View
2. System View 2-1. Front View 2-2. Rear View... -
Page 14: I/O Ports
2-3. I/O ports Caution: When you install devices or cables, please removed DC jack at first to prevent inadvertently switched to cause system boot/ damage to system/electric shock. The HDMI connector is output port, not input. 2-4. Dimension... -
Page 15: System Assembly
3. System Assembly Please remove all screws of rear cover 3-1. SSD Replacement 1. Rear view after taking off rear cover Mini Card for Wi-Fi, Mini Card for SSD mSATA SSD DIMM... -
Page 16: Ram Replacement
3-2. RAM Replacement Opening the Rear Cover Please open the rear cover first then remove and replace the RAM module. You can refer to the motherboard layout to find the memory compartment. Swapping a RAM Module 2. Use both fingers to pull the ejector clips out of the sides of the module. 3. -
Page 17: Power Adapter Replacement
3-3. Power Adapter Replacement Please turn off the system Disconnect the power cable from the I/O panel (DC IN), then can swap the adapter 3-4. Wireless LAN Installation To external antenna... -
Page 18: Peripheral Installation
4. Peripheral Installation 4-1. Wall Mount Kit Assembly Drilling the wall, and put into the plastic seat as A Screw wall-mount bracket and plastic seat as C. Screw VESA bracket on system by special VESA screws as D Lift the system to align the VESA bracket into the wall-mount bracket, and make sure they are well assembled Screw bottom screw to fix system on wall-mount bracket... -
Page 19: Other Vesa-Bracket Support
4-2. Other VESA-bracket support The system support standard 100x100mm VESA mount, so other VESA mount bracket followed this standard spec can be assembled. Please use the system attached VESA screw - M4, otherwise will be broken system’s VESA screw hole. -
Page 20: Specification
5. Specification Intel N2930 (BayTrail-M CPU TDP 7.5W) MEMORY Support : SO-DIMM DDR3 x 2 (MAX 8G) Low voltage version, 1.35V GRAPHICS Integrated Intel® CPU (GMA HD Graphics series) Realtek RTL8111G Audio Realtek ALC269-VC Mini-Card slot (Option) x2 (Wi-Fi, Digital TV Tuner card for optional) Storage mSATA SSD / SATA HDD SYSTEM BIOS... - Page 21 Build-in 2W Stereo Speaker Build-in internal Mono MIC Watchdog Timer: (1sec ~255sec) System Build-in Embedded Antenna No support Monitor OSD function Optional Wireless KIT Side I/O – with cover RS232 Port x4 (Through RJ50 type, Power 12V/5V/1A, Default Disable) USB 2.0 x4 (private support 5V/2A/Port) GbE LAN RJ45 *1 Line out x1 MIC in x1...
-
Page 22: Rs232 Setting
6. RS232 Setting 7. Open back cover and find it. - Page 23 DB9 Pin RS_232 RJ45 Pin DCD# DTR# DSR# RTS# CTS# - - - - - - RS232 Pin Definition Signal Signal Data Carrier Detect Data Set Ready Received Data Request to Send Transmitted Data Clear to Send Data Terminal Ready Ring Indicator Signal Ground...
-
Page 24: Appendix A: Drivers Installation
Appendix A: Drivers Installation The shipping package includes a Driver CD in which you can find every individual driver and utility that enables you to install the drivers on the system. Please insert the Driver CD into the drive and double click on the “index.htm” to select the models. -
Page 25: Appendix B: Trouble Shotting
Appendix B: Trouble Shotting No screen 1. Check system power line is connected 2. Please press power knob again to turn on system (please check the power led at right rear side is turned on) Motherboard Can’t boot on 1. Check the power led at right rear side is turned on, but still no booting screen after 3 minutes. - Page 26 1. Connection is loose, please reinsert DRAM again 2. COMS setting is wrong, please reset as default value 3. DRAM performance is getting worse by time. Please swap a new one. HDD issue Please reboot from other booting device. If system is booting without any problem, it shows the hard drive may be crashed.
