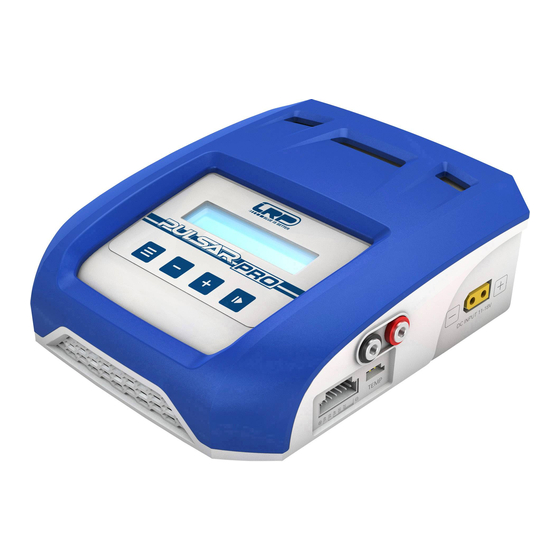

LRP PULSAR PRO 41421AU User Manual

PULSAR PRO
ORDER NO. 41421AU / 41421EU / 41421GB / 41421US
DEAR CUSTOMER,
thank you for your trust in this LRP product. By purchasing this product you have chosen
a high-performance product which has the latest technology incorporated. Please read the
following instructions carefully before you start using this product. This user guide contains
INTENDED USE
Proceed according to the user guide in order to understand your charger completely.
This charger is intended to charge NiCd/NiMH type rechargeable batteries (1 - 15 cells), LiPo/
LiFe/LiIon batteries (1 - 6 cells) and lead acid batteries (2V - 20V). The charge current can be
set between 0.1A and 10.0A depending on the connected batteries and their cell number/
capacity.
Batteries can also be discharged; the discharge current is between 0.1 to 5.0 A.
The charger can be connected directly to AC power (100 – 240 V/AC, 50/60 Hz) or to a stabi-
lized power supply with a voltage between 11 V/DC and 18 V/DC.
A two-line illuminated LC display and four keys are used to control the charger.
DELIVERY CONTENT
• Charger
• Input AC power cable
• Input connection cable with alligator clips
TECHNICAL DATA
Dimensions 143x160x60mm
Weight (excluding
620g
charge wires)
11-18V [DC]
Input voltage range
100-240V [AC]
1-6 cells
[LiPo/LiFe/LiIo]
1-15 cells
Charging capability
[NiMH/NiCd]
2 -20V [Pb]
Charge power max. 80W
Specifications subject to change without notice

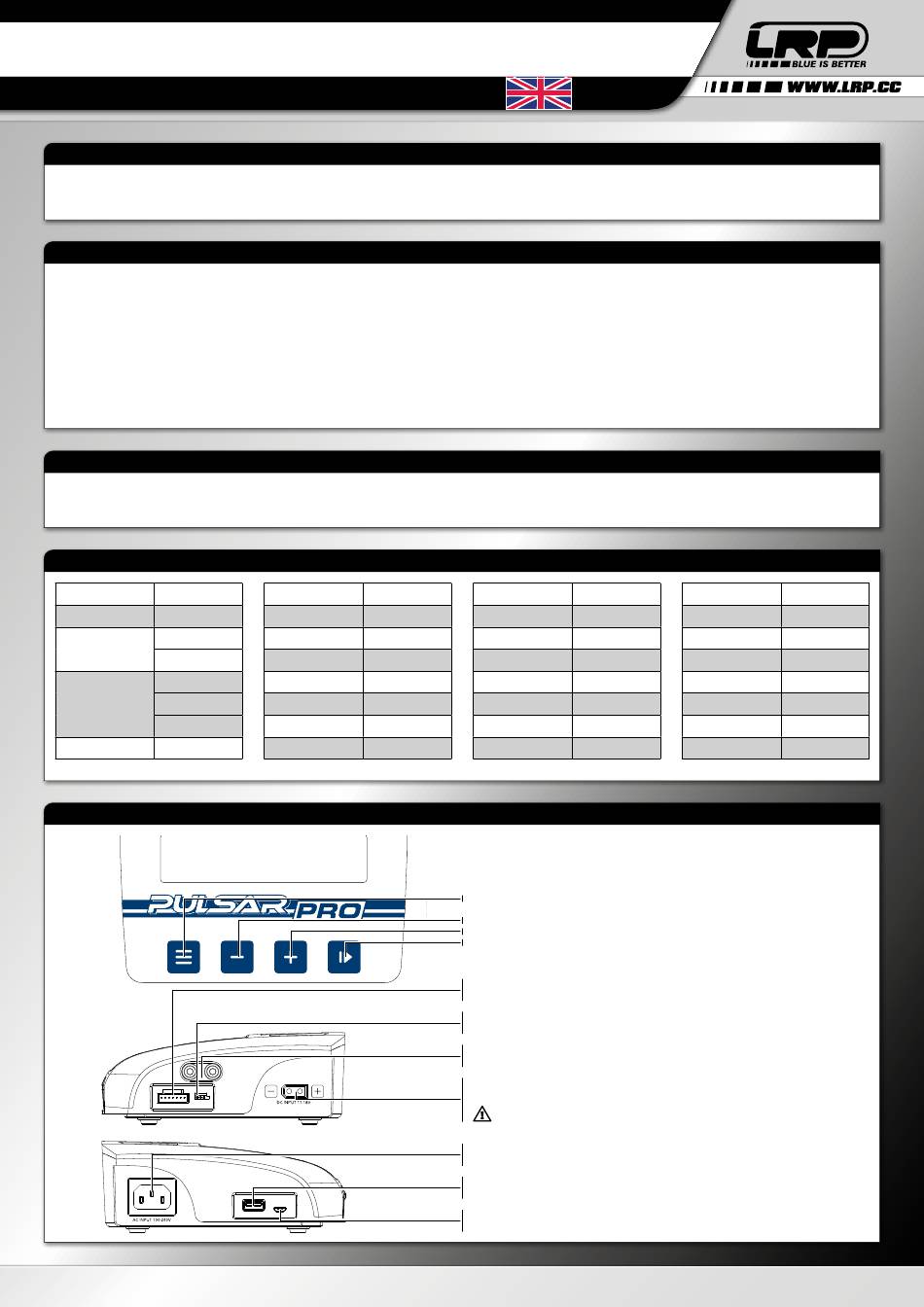

CONNECTIONS & OPERATION
Charge current 0.1-10.0A
Trickle current 0-300mA
Storage charge mode Yes
Discharge power max. 25W
Discharge current 0.1-5.0A
Discharge cut-off
0.9-19.8V
voltage
Delta peak cut-off
5-200mV/pack
sensitivity
Autostart timer 0-99[min]
USER MANUAL
important notes for the installation, the safety, the use and the maintenance of this product.
Always consult this manual when using this product to protect yourself and to avoid damag-
ing the product.
A balancer is integrated into the charger for LiPo/LiFe/LiIon batteries, with balancer connector
sockets for the battery located on the right side of the charger.
This charger is intended for indoor use only. Do not use it outdoors. Contact with moisture,
e.g. in bathrooms, must be avoided under all circumstances.
For safety and approval purposes (CE), you must not rebuild and/or modify this product. If
you use the product for purposes other than those described above, the product may be
damaged. In addition, improper use can cause hazards such as short circuiting, fire, electric
shock etc.
Read the instructions carefully and keep them. Make this product available to third parties
only together with its operating instructions.
• Output charging cable with alligator clips
• User manual
Cycle mode NiCd/NiMh
User profile memory 5
Safety timer 1-720min
Acoustic signal type Buzzer
LCD 16x2,
Display
blue backlit
Buttons 4
Multi Protection
Yes
System
pluggable DC input
DC input connection
wire
This product was developed with the main objective placed on easy operation of all features.
Intuitive navigation by means of 4 buttons makes it very easy to use and the 2-line blue backlit
LCD offers perfect, reliable control of all settings and functions.
BUTTONS (FOR DETAILED FUNCTIONS SEE FLOWCHART):
MENU -> press: Scroll/navigate through the function list.
-> hold: Jump back to initial screen.
DEC (-) -> Decrese selected (blinking) value.*
INC (+) -> Increase selected (blinking) value.*
START/STOP -> Enter or select function / Start a program / Cancel a running program.
* Button has high-speed function for rapid setting (press and hold to change value faster).
BALANCER CONNECTOR:
high-performance integrated Lixx balancer for 2S to 6S packs using XHR balancing connector.
TEMPERATURE SENSOR (OPTIONAL):
connect the optional temperature probe to measure the battery temperature.
OUTPUT JACKET:
connect battery to the 4.0mm jacket, using supplied charge wires.
DC INPUT:
connect to a suitable DC source with 11-18V, using the supplied connection wire.
Caution: Be careful with correct polarity!
Red = Plus / Black = Minus
AC INPUT:
connect to main power with 100-240V AC.
USB CHARGE OUTPUT:
5V/2.1A USB charge output
USB CONNECTION - PC LINK:
used for upcoming firmware updates.
AC input connection Internal SMPS plug
alligator clips with
Output connection
4 mm plug
Internal cooling fan Yes
USB connection Yes
USB charge output 5V/2.1A
Integrated balancer XHR-style, 2S-6S
Temperature Cut-off 20-80°C (optional)
Updateability Yes
