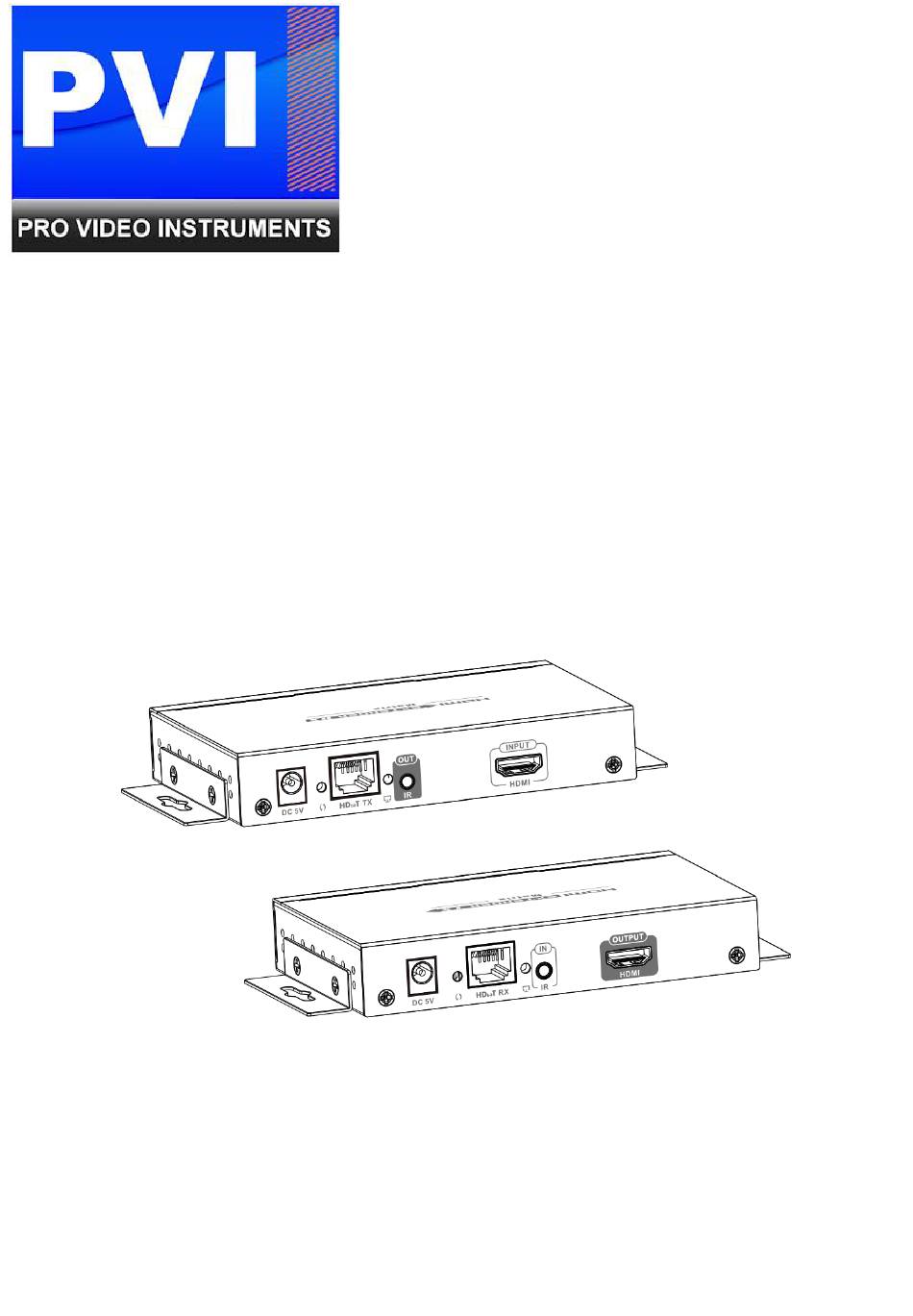

- Page 1 VuMATRIX 1080P-60 HDMI OVER IP FULL HD MATRIX MANUAL...
-
Page 2: Important Safety Instructions
Important Safety Instructions 1. Please read the user manual carefully before use this product, and keep these instructions. 2. Do not mix up transmitter and receiver before installation. 3. Channel of the transmitter(TX) must be different, otherwise, the system would be breakdown (including transmitter, receiver, IGMP switch etc.). -
Page 3: Product Introduction
Product Introduction This Kit includes a transmitter unit(TX) and a receiver unit(RX). It allows for the distribution and switching of high definition video/audio signal by this product and off-the-shelf IGMP POE switch. It applied advanced HDbitT technology, the resolution supported is up to 1080p@60Hz full HD. It can also used in a point-to-point connection, the distance is up to 120 meters. -
Page 4: Installation Requirements
Package Content Transmitter unit ×1pcs Receiver unit ×1pcs User manual ×1pcs IR blaster extension IR receiver extension DC5V/2A power cable ×1pcs adapter ×2pcs cable x1pcs Remote control ×1pcs Wall-mount kit ×4pcs Screws ×8pcs Installation Requirements 1. HDMI source devices: with HDMI OUTPUT interface, DVD, PS3, STB, PC etc. 2. - Page 5 Panel Description 1. Transmitter unit...
- Page 6 Receiver unit...
- Page 7 Installation and Connection 1. How to make a CAT5/5E/6 network cable Follow the standard of IEEE-568B: 1. white and orange; 2. orange; 3. white and green; 4. blue; 5. white and blue; 6. green; 7. white and brown; 8. brown. 2.
- Page 8 3. IR use guide 3.1 IR passback IR blaster extension cable should plug into the IR-out port of TX (Transmitter) of this extender matrix, and the IR receiver extension cable should plug into the IR-in port of the RX (Receiver) of this matrix extender.
- Page 9 4.1.3 APP function 4.1.3.1 Preview Click ”play”button to preview the content of the source device.
- Page 10 4.1.3.2 Edit Click the frame under the TX/RX button to edit device name. 4.1.4 Drag and drop Drag ”TX”button to the RX side and drop, to set up new connection.
- Page 11 Note: Please do not use more than one mobile phone/tablet to control the system simultaneously.
- Page 12 5. Button control There is a “TX ID” on TX unit, and there are both “RX ID”and “TX connected ” on the RX unit. Each of them consists of two Nixie tubes and two buttons (beside the Nixie tube), the left button controls the value of the left Nixie tube, and the right one to control the value of the right Nixie tube.
- Page 13 6. Computer software control use guide The WINDOWS APP can be downloaded from our support site www.pvisupport.com searching for VUMATRIX WINDOWS APP Access to network Connect your PC/computer with the off-the-shelf IGMP Ethernet switch via a single network cable PC/computer setting Change the PC/computer's IP to 192.168.1.xxx (xxx can be 0 to 255) , which as same as the IP segment of TX unit and RX unit.
- Page 14 multiple TX units and multiple RX units connected into the system with their default IP address. If IP setting is really needed, please follow up the operation as Figure 2 (here make an example of TX's IP setting only, RX's setting is the same as TX's ) Device scanning and setting (here make an example of TX's setting only, RX's setting is same as TX's)
- Page 15 * Device Name setting as Figure 4...
- Page 16 * Device channel (TX ID) setting as Figure 5 Click button “Update”, new configuration saved Pre-operation mode editing , show as Figure 6...
- Page 17 Operation mode selection setting Follow up Figure 7, Click button “Select Mode”, to choose the mode needed. Q: TV display “Waiting for connection” on the right corner？ 1) Please check if the power supply of transmitter and switcher is connected, and make sure all connection is correct and well. 2) Please check and make sure receiver 's channel number is within transmitter's channel list.
- Page 18 3) Please check and make sure all of the transmitter's channel are different. Q: TV display “Please check the transmitter input signal”？ 1) please check if there is a HDMI signal input of transmitter; 2) Try to connect the signal source directly to display device to see if there is signal output from source device, or change the signal source, HDMI wire and try again.
-
Page 19: Specification
Specification... -
Page 20: Tech Support
If you cannot find your specific answer, please open a ticket so our team can take care of you as soon as possible You can also call +1.407.720.6101 extension #2 Mon-Fri 9:30am – 4Pm for your free premium tech support Thank you for purchasing PVI...
