PVI VuMATRIX 4K60-POE Manual

Hdmi over ip full 4k60 matrix
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
VuMATRIX 4K60-POE
HDMI OVER IP FULL 4K60 MATRIX
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VuMATRIX 4K60-POE and is the answer not in the manual?

Questions and answers

Related Manuals for PVI VuMATRIX 4K60-POE

Summary of Contents for PVI VuMATRIX 4K60-POE

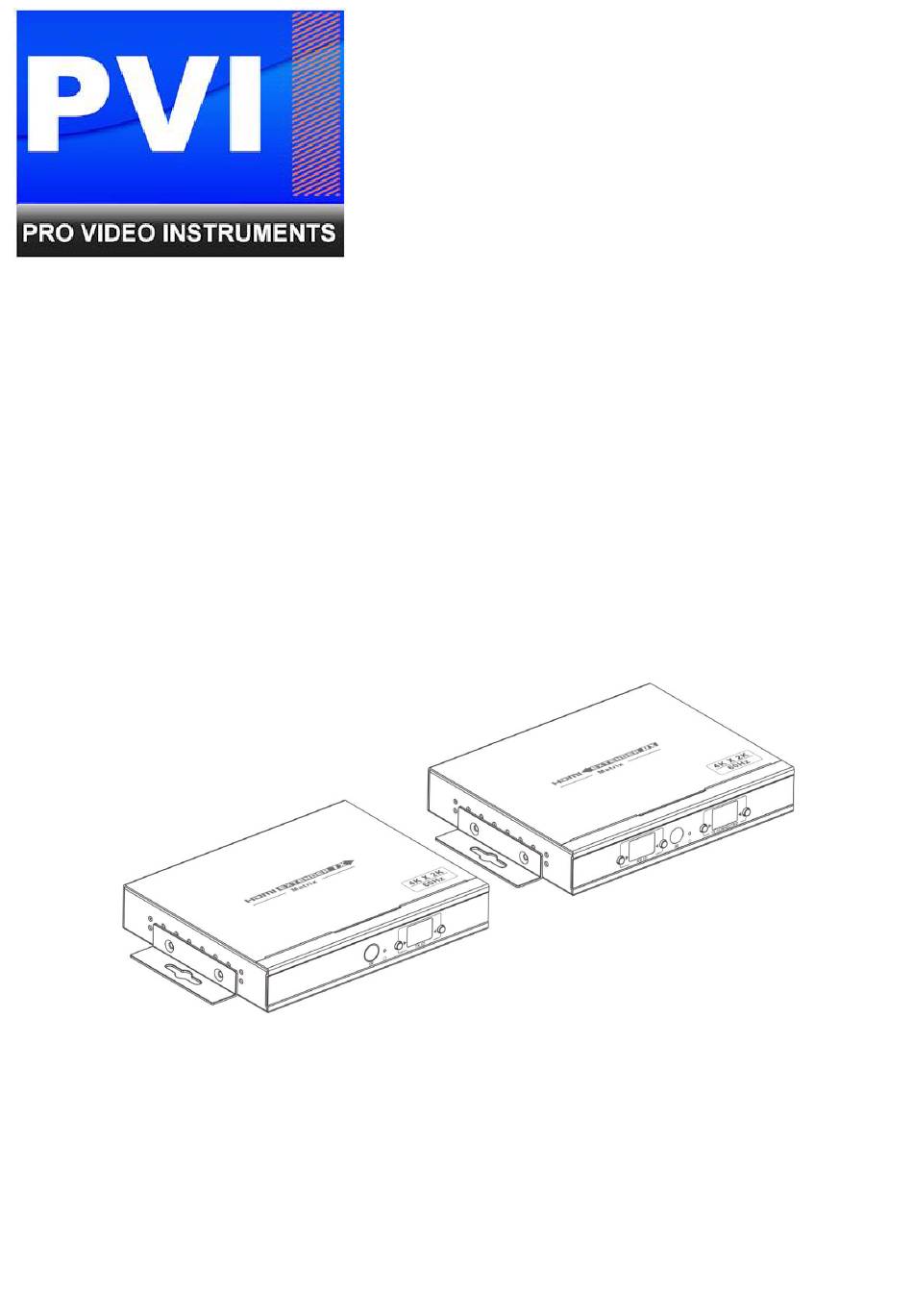

  • Page 1 VuMATRIX 4K60-POE HDMI OVER IP FULL 4K60 MATRIX MANUAL...

  • Page 2: Important Safety Instructions

    Important Safety Instructions 1. Please read the user manual carefully before use this product, and keep these instructions. 2. Do not mix up transmitter and receiver before installation. 3. Channel of the transmitter(TX) must be different, otherwise, the system would be breakdown (including transmitter, receiver, IGMP switch etc.). 4.

  • Page 3: Installation Requirements

    Package Content Transmitter unit ×1pcs Receiver unit ×1pcs User manual ×1pcs IR blaster extension IR receiver extension DC5V/3A power cable ×1pcs cable x1pcs adapter x2pcs Remote control ×1pcs Wall-mount kit ×4pcs Screws ×8pcs Installation Requirements 1. HDMI source devices: with HDMI OUTPUT interface, DVD, PS3, STB, PC etc. 2.
  • Page 4 Panel Description 1.Transmitter unit...

  • Page 5: Installation And Connection

    2.Receiver unit Installation and Connection 1. How to make a CAT5/5E/6 network cable Follow the standard of IEEE-568B: 1. white and orange; 2. orange; 3. white and green; 4. blue; 5. white and blue; 6. green; 7. white and brown; 8. brown.
  • Page 6 2. Connection Drawing 2.1 Matrix configuration IGMP POE switch 【NOTE】: The POE switch has to support IGMP function 2.2 Point-to point configuration 3. IR use guide 3.1 IR passback IR blaster extension cable should plug into the IR-out port of TX (Transmitter) of this extender matrix, and the IR receiver extension cable should plug into the IR-in port of the RX (Receiver) of this matrix extender.
  • Page 7 4. APP control use guide 4.1 Android User: Download the App from our pvisupport site by searching VUMATRIX APP ANDROID IOS User: Download the APP"Matrix Controller" from the APP Store. 4.2 Firstly, connect the video matrix controller to the IGMP switch. Then, connect mobile phone/tablet and the video matrix controller via hotspot“MATRIX”with each other (as figure 1 ).
  • Page 8 4.3.2 Edit Click the frame under the TX/RX button to edit device name. Drag and drop Drag ”TX”button to the RX side and drop, to set up new connection. Note: Please do not use more than one mobile phone/tablet to control the system simultaneously.
  • Page 9 5. Computer software control use guide The WINDOWS APP can be downloaded from our support site www.pvisupport.com searching for VUMATRIX WINDOWS APP 5.1 Access to network Connect your PC/computer with the off-the-shelf IGMP Ethernet switch via a single network cable 5.2 PC/computer setting Change the PC/computer's IP to 192.168.1.xxx (xxx can be 0 to 255) , which as same as the IP segment of TX unit and RX unit.
  • Page 10 Device scanning and setting (here make an example of TX's setting only, RX's setting is same as TX's) * Click button “Start Scan” ，the scanned result shows as Figure 3 * Device Name setting as Figure 4...
  • Page 11 * Device channel (TX ID) setting as Figure 5 Click button “Update”, new configuration saved...
  • Page 12 Pre-operation mode editing , show as Figure 6 Operation mode selection setting Follow up Figure 7, Click button “Select Mode”, to choose the mode needed.
  • Page 13 6. Button control There is a “TX ID” on TX unit, and there are both ”RX ID”and “TX connected” on the RX unit. Each of them consists of two Nixie tubes and two buttons (beside the Nixie tube), the left button controls the value of the left Nixie tube, and the right one to control the value of the right Nixie tube.
  • Page 14 Q: TV display “Waiting for connection” on the right corner？ 1) Please check if the power supply of transmitter and switcher (if used)is connected, and make sure all connection is correct and well. 2) Please check and make sure receiver 's channel number is within transmitter's channel list.

  • Page 15: Tech Support

    If you cannot find your specific answer, please open a ticket so our team can take care of you as soon as possible You can also call +1.407.720.6101 extension #2 Mon-Fri 9:30am – 4Pm for your free premium tech support Thank you for purchasing PVI...
