ElmoTech TXL-700 User Manual

Ankle tag
Hide thumbs

Advertisement

Quick Links

Download this manual

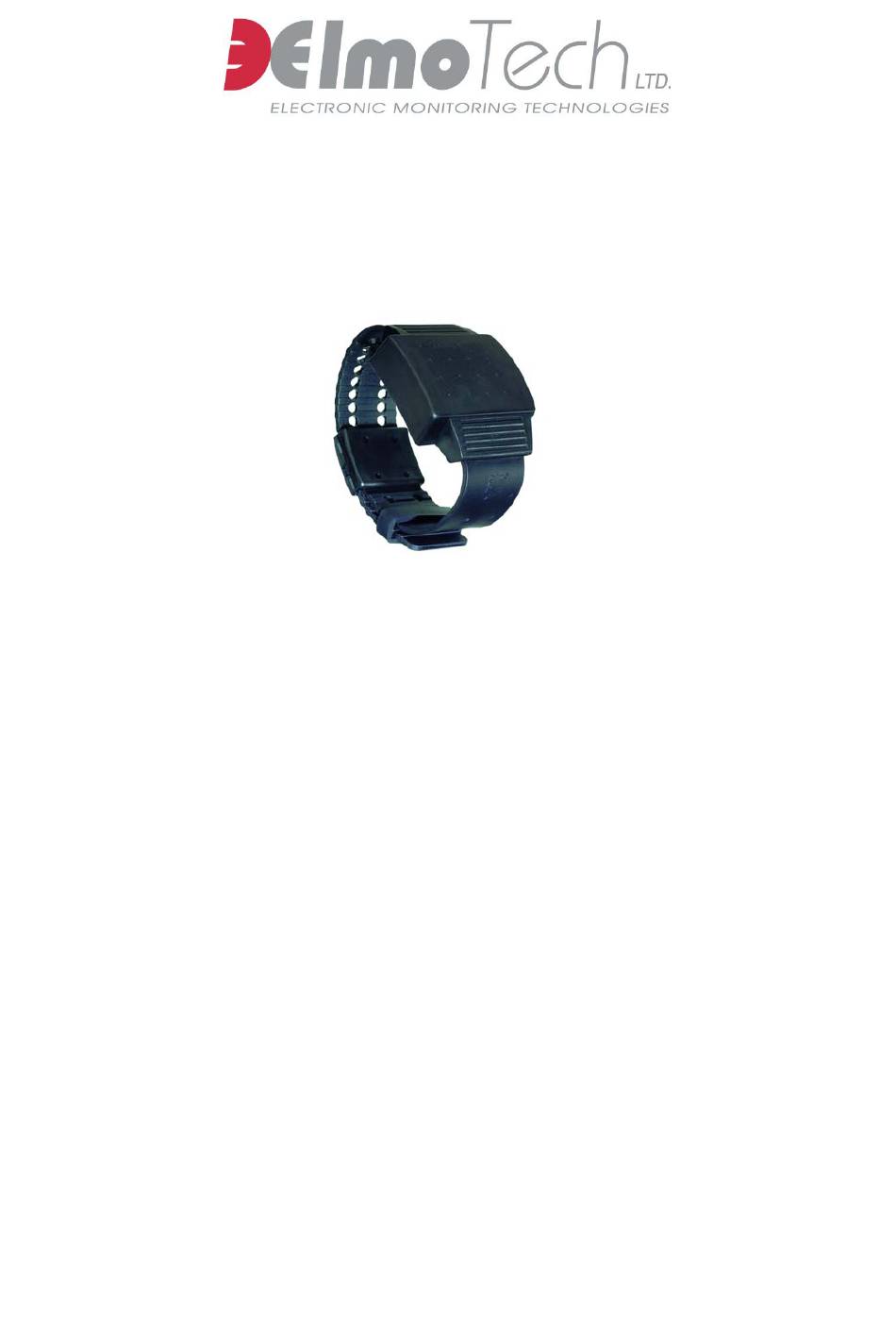

Ankle Tag
TXL-700
USER MANUAL
10 December 2002

Advertisement

loading
Need help?

Need help?

Do you have a question about the TXL-700 and is the answer not in the manual?

Questions and answers

Related Manuals for ElmoTech TXL-700

Summary of Contents for ElmoTech TXL-700

  • Page 1 Ankle Tag TXL-700 USER MANUAL 10 December 2002...

  • Page 2: Table Of Contents

    ElmoTech Ltd TXL-700 - User Manual Table of Contents Foreword ..................2 Installing the Ankle Tag............3 General Rules for the Client ............6 Maintenance Instructions............7 4.1. Cleaning the Ankle Tag .............7 4.2. Ankle Tag Straps Replacement..........8 FCC Notices................10...

  • Page 3: Foreword

    ElmoTech Ltd TXL-700 - User Manual Foreword The Ankle Tag (TXL-700) is a transmitter used in home arrest systems. The Ankle Tag (LSQ-TXL-700) is transmitting on an American FCC tested and approved frequency; whereas the European version (TXL-700-2) is transmitting on a European tested and approved frequency.

  • Page 4: Installing The Ankle Tag

    ElmoTech Ltd TXL-700 - User Manual Installing the Ankle Tag. Hold the transmitter in your hand with the 4 metal pins (2 pairs, along the strap) pointing forward. Hold the Electronic Key in your other hand, with the black button pointing toward the open or free end of the strap.
  • Page 5 ElmoTech Ltd TXL-700 - User Manual Place the Tag on its side, on a non-metal surface, for 30 seconds. Attaching the Transmitter Place a strap holder over the short strap (strap with pin side) of the Transmitter. Attach the female Clip to the underside of the Transmitter’s short strap (to lie...
  • Page 6 ElmoTech Ltd TXL-700 - User Manual Ask the Offender to stand up and move around to insure that the Tag is comfortable. Fasten the two Clips with the locking tool. Be sure to fasten all the four pins well. An audible clicking sound should be heard, indicating that the Clips are closed properly.

  • Page 7: General Rules For The Client

    ElmoTech Ltd TXL-700 - User Manual General Rules for the Client The Transmitter is a waterproof wristwatch and there is no need to remove it when taking a bath or a shower. You can even wear it when swimming and diving in a swimming pool or taking a sauna bath.

  • Page 8: Maintenance Instructions

    Cleaning the Ankle Tag A soft brush and any cleaning solution are all that is needed to clean the Ankle Tag TXL-700. Alcohol based solutions; Soapy water or Lysol can be used to clean the Tag. For additional safety and user comfort it is Recommended that after cleaning with any of the above the Tag be washed with clear water before it is reused.

  • Page 9: Ankle Tag Straps Replacement

    ElmoTech Ltd TXL-700 - User Manual 4.2. Ankle Tag Straps Replacement Possible reasons for a replacing a strap could be: • Visible damage to one or both straps. • Reception of strap tamper alarms, with no visual reason seen. •...
  • Page 10 ElmoTech Ltd TXL-700 - User Manual Activate the Tag with the electronic key, close the strap and test for “strap closed” message reception.

  • Page 11: Fcc Notices

    PCB by 1cm wire. This note is applicable to the American Ankle Tag (LSQ-TXL-700) NOTE The Ankle Tag TXL-700 complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference.
  • Page 12 For Customer Support contact ElmoTech Ltd. Corporate Headquarters P.O. Box 13236, 2 Ha-Barzel St., Ramat Ha-Chayal, 61132 Tel Aviv Israel Tel: +972 3 6478871 Fax: +972 3 6478872 Visit us at: www.elmotech.com...
