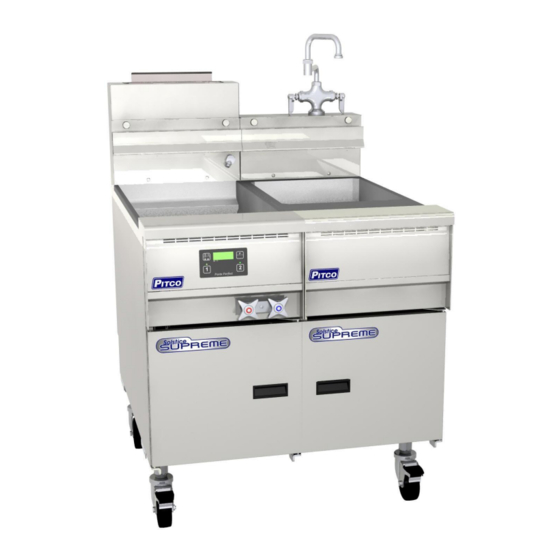

Installation & Operation Manual
SSPG14: Floor Model Gas Pasta Cooker
SSRS14: Floor Model Rinse Station
Please complete this information and retain this manual
for the life of the equipment:
Model #: ___________________________
Serial #: ___________________________
Date Purchased: ____________________
C
E
R
T
I
F
I
E D
I
L20-331, Rev 3 (06/19)
IMPORTANT FOR FUTURE REFERENCE
Advertisement
Table of Contents
Related Manuals for Pitco SSRS14
Summary of Contents for Pitco SSRS14

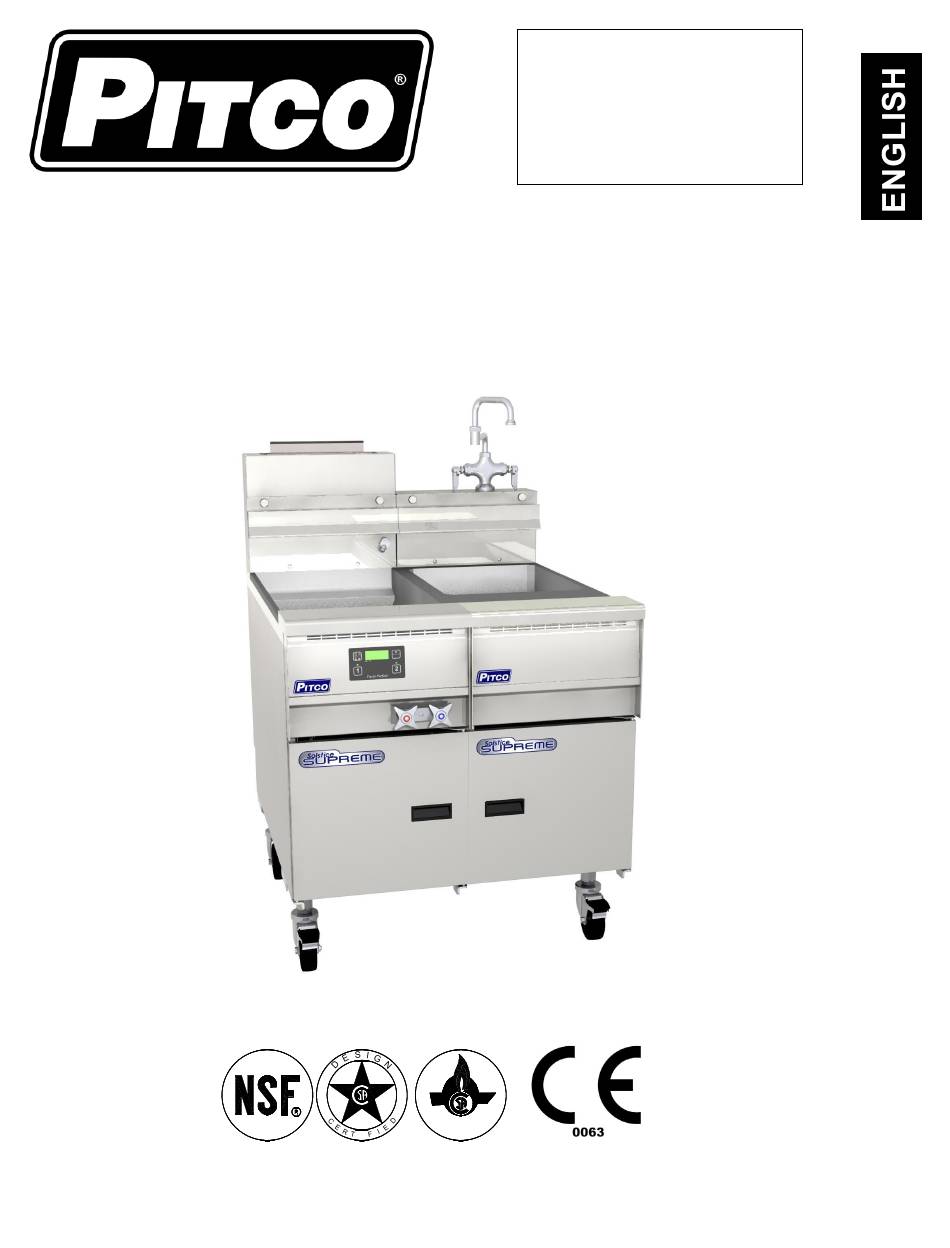

- Page 1 Please complete this information and retain this manual for the life of the equipment: Model #: ___________________________ Serial #: ___________________________ Date Purchased: ____________________ Installation & Operation Manual SSPG14: Floor Model Gas Pasta Cooker SSRS14: Floor Model Rinse Station L20-331, Rev 3 (06/19)
- Page 2 Pitco and/or its Authorized Service and Parts (ASAP) If overflow drain is not equipped or if overflow drain stop is companies, this warranty will be void. In addition, Pitco and used, do not leave appliance unattended while filling with its affiliates will not be liable for any claims, damages or water.
-
Page 3: Table Of Contents
TABLE OF CONTENTS SSPG14: Floor Model High Efficiency Gas Pasta Cooker INSTALLATION ......................1 1.1. CHECKING YOUR NEW APPLIANCE ....................... 1 1.2. INSTALLATION CLEARANCES ........................ 2 1.3. LEG/CASTER INSTALLATION AND LEVELING ..................3 ... - Page 4 TABLE OF CONTENTS 3.1. DAILY PREVENTATIVE MAINTENANCE ....................19 3.1.1. APPLIANCE INSPECTION ........................ 19 3.1.2. CLEANING THE COOK TANK (RINSE TANK IF EQUIPPED) ............19 3.1.3. CLEANING THE CABINET ........................ 19 3.2. MONTHLY PREVENTATIVE MAINTENANCE ..................
-
Page 5: Installation
1.1. CHECKING YOUR NEW APPLIANCE Your new Pitco appliance has been carefully packed into one crate. Every effort has been made to ensure that it is delivered to you in perfect condition. As you unpack your new appliance, inspect each of the pieces for damage. If something is damaged, DO NOT sign the bill of lading. -
Page 6: Installation Clearances
INSTALLATION WARNING DO NOT sit or stand on this appliance. The appliance’s front panel, tank, splash back, tank cover, workshelf, drain board is not a step. Serious injury could result from slipping, falling or contact with hot liquids. 1.2. INSTALLATION CLEARANCES The clearances shown below are for combustible and non-combustible installations and will allow for safe and proper operation of your appliance. -
Page 7: Leg/Caster Installation And Leveling
INSTALLATION SSPG14: Floor Model High Efficiency Gas Pasta Cooker 1.3. LEG/CASTER INSTALLATION AND LEVELING When you receive your appliance it is completely assembled with the possible exception of the legs (or casters). This appliance must be installed with legs or casters; it cannot be curb mounted. Curb mounting will seriously inhibit this appliance’s ability to effect proper component ventilation. -
Page 8: Plumbing Connections
INSTALLATION 1.4. PLUMBING CONNECTIONS The plumbing installation should be done by a licensed plumber and must comply with local and national codes. The instructions for appliances connected to the water mains by detachable hose sets shall state that new hose sets will be used and that the old hose sets should not be reused (if applicable). -
Page 9: Gas Connection
INSTALLATION SSPG14: Floor Model High Efficiency Gas Pasta Cooker 1.5. GAS CONNECTION Your appliance will give you peak performance when the gas supply line is of sufficient size to provide the correct gas flow. The gas line must be installed to meet the local building codes or National Fuel Gas Code ANS Z223.1 and NFPA 54 (latest editions). -
Page 10: Ce Gas Table
INSTALLATION 1.5.3. CE GAS TABLE Refer to the following table for gas specifications for the country of use. If the country of use is NOT listed, refer to the information stamped on the data plate. 17.5 15.8 2.05 mm MODEL NOT APPROVED FOR USE WITH LP GAS NAT G20/G25 I2E+ 15.8... -
Page 11: Non Ce Gas Table
INSTALLATION SSPG14: Floor Model High Efficiency Gas Pasta Cooker CE Gas table Continued 15.8 2.05 mm 17.5 16.1 50/37 25.4 1.25 mm LP16 15.8 2.05 mm 17.5 16.1 50/37 25.4 1.25 mm LP16 17.5 15.8 2.05 mm MODEL NOT APPROVED FOR USE WITH LP GAS 15.8 2.05 mm 17.5... -
Page 12: Electrical Connections
INSTALLATION 1.6. ELECTRICAL CONNECTIONS It is advised that this appliance be plugged into a wall receptacle that is controlled by the ventilation control. This will prevent the appliance from being operated without the ventilator on. If your appliance requires an electrical connection, the power requirements are listed below. -
Page 13: Inspection
INSTALLATION SSPG14: Floor Model High Efficiency Gas Pasta Cooker WARNING Ensure that your ventilation system does not cause a down draft at the appliance’s flue opening. A down draft will not allow the appliance to exhaust properly and will cause overheating, which may cause permanent damage. -
Page 14: Initial Adjustments
INSTALLATION 1.9. INITIAL ADJUSTMENTS After your appliance has been properly installed as described in the installation section of this manual, it will need to be adjusted to ensure that it will perform as designed. A qualified person must perform these adjustments. To perform these adjustments the following tools will be needed: •... -
Page 15: Self Cleaning Burner System
“ON”. The Pitco Self Cleaning Burner System is designed to help maintain proper operation and efficiency of your appliance’s combustion system by minimizing the build up of any foreign material inside the burner housings. -
Page 16: Main Burner System Adjustment
5. When the pressure is correct, replace the cap for the regulator adjustment screw (3). 6. Turn off the ALL appliances, shut the main gas valve (1) to your Pitco appliance and remove the pressure gauge. Apply pipe joint compound to the Plug for the manifold pressure tap (7), and replace it insuring that it is tight and leak free. -
Page 17: Initial Cleaning
INSTALLATION SSPG14: Floor Model High Efficiency Gas Pasta Cooker CAUTION DO NOT leave the appliance unattended during cleaning. Never let the water level go below the heat tubes. WARNING Wear protective gloves and clothing when cleaning and draining the appliance and when disposing of water. -
Page 18: Operation
OPERATION 2. OPERATION An operator’s manual for your appliance’s specific control type should be included with this manual. Refer to that manual prior to operating this appliance. 2.1. OPERATIONAL FEATURES The diagram below outlines some of the key operational components of your appliance, see Figure 3. Refer to the following sections of this manual to learn more about these features. - Page 19 OPERATION SSPG14: Floor Model High Efficiency Gas Pasta Cooker FIGURE 3 L20-331, Rev 3 (06/19)
-
Page 20: Filling The Appliance
Water Capacity Cook Station 12 Gals. (45.5 Ltr.) SSPG14 SSRS14 Rinse Station 10 Gals. (37.9 Ltr.) 1. Ensure that the drain valve is closed, See Figure 3. 2. Fill the tank with water until the water reaches the water level line(s). -
Page 21: Cooking
OPERATION SSPG14: Floor Model High Efficiency Gas Pasta Cooker 2.4. COOKING It is important to keep the cook tank full of water to minimize the chance of boiling the appliance dry and to keep the water at a level that will provide optimum cooking performance. To keep the water at its normal operating temperature, it is best to add water in small amounts. -
Page 22: Manual Water Fill
OPERATION 2.4.6. MANUAL WATER FILL If the appliance is equipped with manual water fill or mixing valve, it is recommended that the knob is set so that water enters the tank slowly during cooking. Turn the knob counterclockwise to increase the flow of water into the tank. Some appliances are equipped with a regulated mixing valve where the left knob is for regular filling and the right knob has a... -
Page 23: Preventative Maintenance
PREVENTATIVE MAINTENANCE SSPG14: Floor Model High Efficiency Gas Pasta Cooker 3. PREVENTATIVE MAINTENANCE 3.1. DAILY PREVENTATIVE MAINTENANCE Performing the preventative maintenance steps below on a daily basis will keep your equipment safe and at peak performance. During the cooking process, starch build up will form on the temperature probes, and the inner surfaces of the tank. -
Page 24: Monthly Preventative Maintenance
This section should ONLY be performed by a qualified service technician as part of a regular kitchen maintenance program. This inspection should take place a minimum of once a year by an Authorized Service Technician recommended by Pitco. It may be necessary perform this inspection more then once a year. -
Page 25: Tank
PREVENTATIVE MAINTENANCE SSPG14: Floor Model High Efficiency Gas Pasta Cooker 3.3.4. TANK Verify that the tank is in good condition. Check for scale build up and inspect for signs of corrosion. Verify that tank is leak free. Check drain overflow for scale build up and debris blockage. -
Page 26: Troubleshooting
TROUBLESHOOTING 4. TROUBLESHOOTING 4.1. POWER FAILURE If electric power is removed for any reason, the appliance will shut down. Wait five minutes after the power is restored before attempting to restart the appliance. This will allow time for any gas that may have accumulated in the burner or tubes to dissipate. -
Page 27: Troubleshooting Chart
TROUBLESHOOTING SSPG14: Floor Model High Efficiency Gas Pasta Cooker 4.4. TROUBLESHOOTING CHART Problem Probable Causes Corrective Actions Check power cord and main No power to appliance. building power supply. Circuit Breaker tripped. Reset circuit breaker. Controller does not Press I/0 button to to turn on I/0 button not pressed On. - Page 28 (603) 225-6684 World Wide representative (ASAP) covering your area, or Website Address: www.pitco.com contact Pitco at the numbers listed to the left. MAILING ADDRESS – P.O. BOX 501, CONCORD, NH 03302-0501 SHIPPING ADDRESS – 39 Sheep Davis Road, Pembroke, NH 03275...
