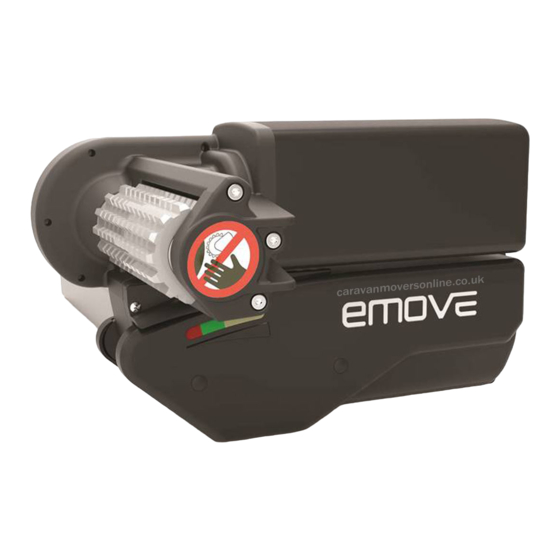

Summary of Contents for LEISUREWIZE emove EM305

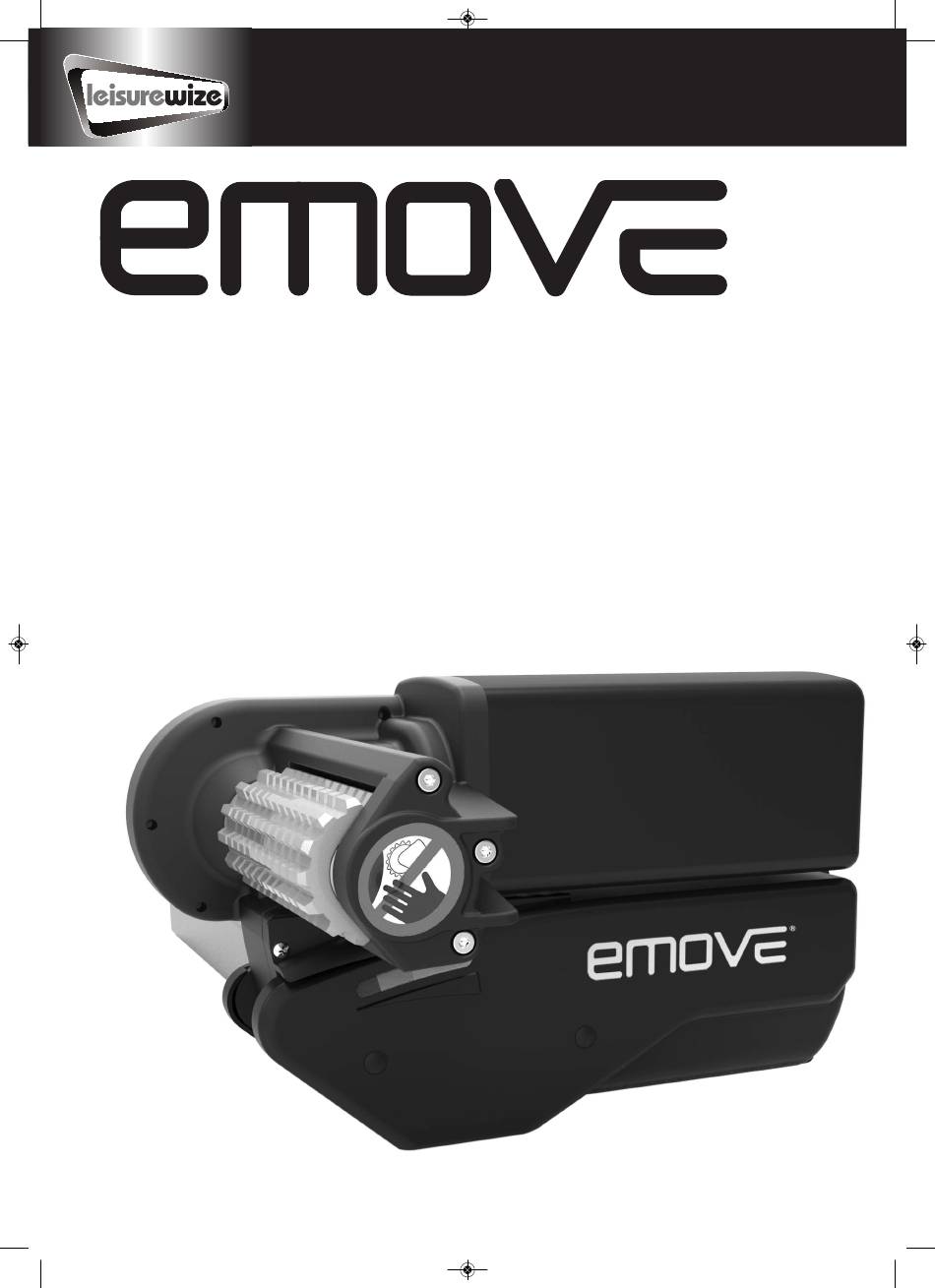

- Page 1 EM305 Manual AW 11-2020.qxp_Layout 1 30/11/2020 08:49 Page 2 ® EM305 Caravan Manoeuvring System...
-
Page 2: Table Of Contents
EM305 Manual AW 11-2020.qxp_Layout 1 16/11/2020 10:56 Page 3 TABLE OF CONTENTS Package contents (Parts list) Introduction Intended use Specifications Installation - safety guidelines Installation - mechanical components Installation - electrical/electronic components Installation - twin axle Operation - safety guidelines Operation - motor units Operation - remote control handset Operation - electronic control unit... - Page 3 EM305 Manual AW 11-2020.qxp_Layout 1 16/11/2020 10:56 Page 4 EC DECLARATION OF CONFORMITY Product: Manoeuvring Device for Caravans Model No: EM305 Manufacturer: The Ace Supply Company Ltd T/A Streetwize Accessories, Unit 1, Royce Trading Estate, Ashburton Road West, Trafford Park, Manchester M17 IRY EU Authorized Representative : Ace Supply Co (Europe) Ltd, 25 Herbert Place, Dublin 2.
-
Page 4: Introduction
To function, the motor-powered rollers must be engaged against the tyres of your caravan. The emove EM305 Caravan manoeuvring system is provided with an automatic engaging system. By pushing two buttons on the remote control, both motor-powered rollers will be simply pressed on the tyre. -
Page 5: Installation - Mechanical Components
EM305 Manual AW 11-2020.qxp_Layout 1 16/11/2020 10:56 Page 6 Check the minimal installation dimensions of the manoeuvring system based on figure 14. Only use adapters and accessories that are supplied or recommended by the manufacturer. Check that the caravan is disconnected from the battery supply and the mains electrical supply. Check that the tyres are not over worn and do have the same size and design (fitting to new or nearly new tyres is the best option). -
Page 6: Installation - Electrical/Electronic Components
EM305 Manual AW 11-2020.qxp_Layout 1 16/11/2020 10:56 Page 7 Adequate ground clearance: Please notice that the min. distance between the lowest line of motors and ground is 110mm, no matter what kinds chassis or install situation. Make sure that the main cross bar (3) is positioned in the middle of the caravan (the centre of the bar is marked). - Page 7 EM305 Manual AW 11-2020.qxp_Layout 1 16/11/2020 10:56 Page 8 Table. A Table. B FRONT OF AXLE FITTING REAR OF AXLE FITTING (4,6mm cables) (4,6mm cables) Motor unit A Positive (+) cable to terminal 4 Motor A Positive (+) cable to terminal 1 Motor unit A Negative (-) cable to terminal 3 Motor A Negative (-) cable to terminal 2 Motor unit B Positive (+) cable to terminal 2...
-
Page 8: Installation Twin Axle
EM305 Manual AW 11-2020.qxp_Layout 1 16/11/2020 10:56 Page 9 (out of reach of children or other unauthorised people). Installation of the caravan manoeuvring system is now complete. INSTALLATION TWIN AXLE This manual describes the general installation and use of the manoeuvring system for single axle caravans. When you use the manoeuvring system for a twin axle caravan, please check the following: Permissible overall weight twin axle (2 motors) 2000kg (1750kg on 18% gradient) -
Page 9: Operation - Motor Units
EM305 Manual AW 11-2020.qxp_Layout 1 16/11/2020 10:56 Page 10 When operating the system, ensure that no hairs, fingers or other body parts, clothing or any other objects carried on the body can become trapped by moving or rotating parts (e.g. drive rollers). In the event of malfunctions, pull on the handbrake immediately and turn off the main isolation power switch. -
Page 10: Operation - Remote Control Handset
EM305 Manual AW 11-2020.qxp_Layout 1 16/11/2020 10:56 Page 11 Traction indicator label: The yellow-green-red traction indicator label (Fig. 11A), on the side of each motor unit indicates if the roller is depressing the tyre sufficiently to provide adequate traction. If the pointer is in the yellow area Rollers are not touching or depressing the tyre sufficiently. -
Page 11: Operation - Electronic Control Unit
Error messages via the remote control handset: Error messages of the emove EM305 will be communicated via the remote control handset by the green LED (Fig. 5H), the error message (Fig. 5L, 5M & 5N) and a buzzer signal: Green LED (Fig. -
Page 12: Operation - Getting Started
After successful synchronisation, the green LED on the control unit (Fig. 3B) and on the remote control handset (Fig. 5H) will illuminate continuously. The single/twin axle function switch (Fig. 3S/T): The emove EM305 Caravan manoeuvring system is suitable for both single axle and twin axle caravans. You just need to pull the single/twin axle function switch (Fig 3S/T) on the control unit, so that the manoeuvring system can be used for a single axle caravan or a twin axle caravan (for 2 motor use but also for 4 motor use). -
Page 13: Operation - Hitching And Unhitching
EM305 Manual AW 11-2020.qxp_Layout 1 16/11/2020 10:56 Page 14 After the stage the caravan moves according one fixed speed. The speed can increase a little when going downhill and decrease a little when going uphill. TIP: The manoeuvring system is more efficient when reversing the caravan up an incline. - Page 14 EM305 Manual AW 11-2020.qxp_Layout 1 16/11/2020 10:56 Page 15 Unit fails to operate, does not function at all: Make sure that the battery power isolation switch (29) is turned on. Check the cable-connection between the caravan battery and the control unit. Check the fuse (100A) in the red positive battery cable (Fig.
- Page 15 EM305 Manual AW 11-2020.qxp_Layout 1 16/11/2020 10:56 Page 16...
- Page 16 EM305 Manual AW 11-2020.qxp_Layout 1 16/11/2020 10:56 Page 17...
- Page 17 EM305 Manual AW 11-2020.qxp_Layout 1 16/11/2020 10:56 Page 18...
- Page 18 EM305 Manual AW 11-2020.qxp_Layout 1 16/11/2020 10:56 Page 19...
- Page 19 EM305 Manual AW 11-2020.qxp_Layout 1 16/11/2020 10:56 Page 20...
- Page 20 EM305 Manual AW 11-2020.qxp_Layout 1 16/11/2020 10:56 Page 1 Five Year Warranty Your emove caravan mover is covered by a five years’ parts and labour warranty (when registered). You are covered against reasonable use of your caravan mover for the period of five years. It does not cover against misuse or accidental damage of the e caravan mover.
