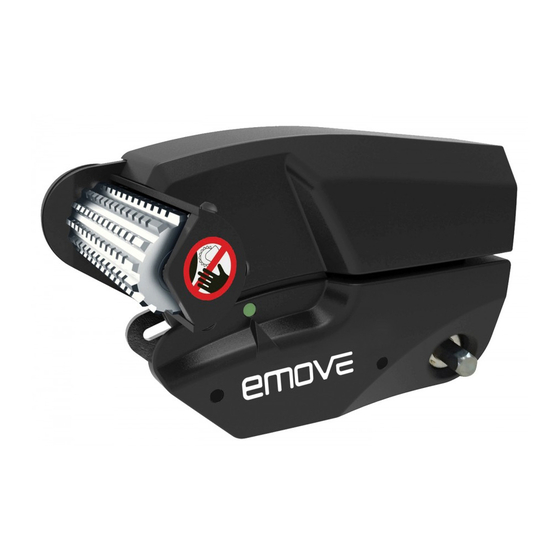

Summary of Contents for LEISUREWIZE emove EM303

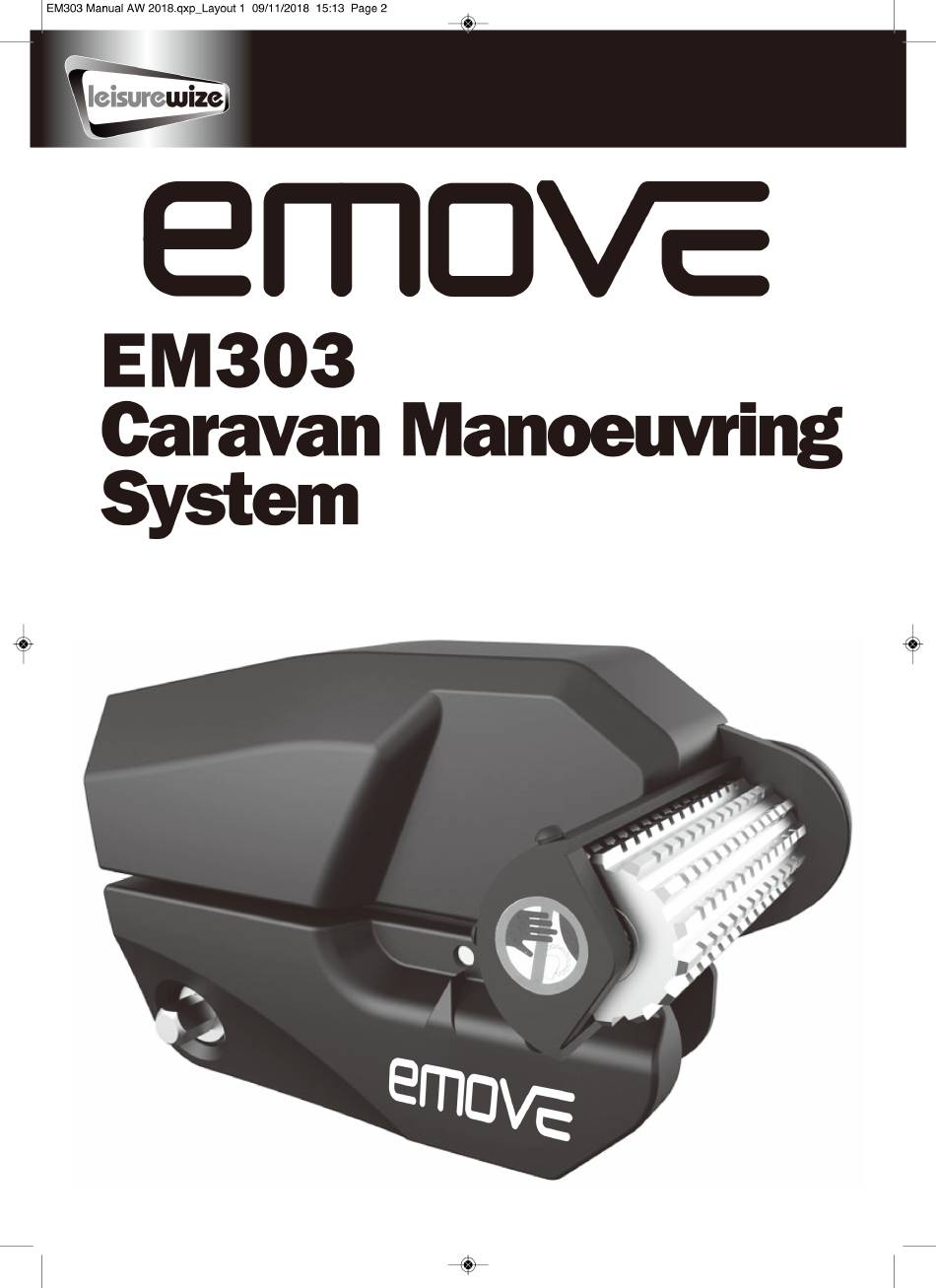

- Page 2 EM303 Manual AW 2018.qxp_Layout 1 09/11/2018 15:13 Page 3...
- Page 3 EM303 Manual AW 2018.qxp_Layout 1 09/11/2018 15:13 Page 4 TABLE OF CONTENTS Package contents (parts list) Introduction Intended use Specifications Installation - safety guidelines Installation - mechanical components Installation - electrical/electronic components Installation - twin axle Operation - safety guidelines Operation - motor units Operation - remote control handset Operation - electronic control unit...
- Page 4 Keep this manual inside your caravan for future reference. INTENDED USE The emove EM303 caravan manoeuvring system is suitable for single axle and double axle caravans. Suitable only for L-profiled and U-profiled chassis with a chassis thickness between min. 2.8mm and max. 3.5mm.
- Page 5 EM303 Manual AW 2018.qxp_Layout 1 09/11/2018 15:13 Page 6 Check that the caravan is disconnected from the battery supply and the mains electrical supply. Only use adapters and accessories that are supplied or recommended by the manufacturer. Check that the tyres are not over worn and do have the same size and design (fitting to new or nearly new tyres is the best option).
- Page 6 EM303 Manual AW 2018.qxp_Layout 1 09/11/2018 15:13 Page 7 Assemble the parts of the cross actuation bar (4 & 5) and connect them to the motor units (1 & 2) with the nylon nut and bolt (factory fitted) onto the cross actuation bar-connectors (Fig. 1 & Fig. 1A). Nuts must be no more than finger-tight at this stage.
- Page 7 EM303 Manual AW 2018.qxp_Layout 1 09/11/2018 15:13 Page 8 Connect the spade connectors to the motors. Please note that the red cable is connected to the terminal under the moulded ‘+’ symbol on the weatherproof terminal cover. Remember to leave a small amount of slack cable near the motors to allow for their movement when the drive rollers are engaged.
- Page 8 EM303 Manual AW 2018.qxp_Layout 1 09/11/2018 15:13 Page 9 : s r T T u f f f f l il f f f f i : s r i l l i l l i r t e / l r t c l il : e t...
- Page 9 EM303 Manual AW 2018.qxp_Layout 1 09/11/2018 15:13 Page 10 1800 2500 2500 . r r . l c i t f f t f f f f ’t , f f , f f f l il s ” ” y f f f f ’t , f f , f f f...
- Page 10 EM303 Manual AW 2018.qxp_Layout 1 09/11/2018 15:13 Page 11 A A T N N - li s “ ” l il illu . g i “ ( f f f ” f – “ - ” . F F . t f f t t f f t r ‘...
- Page 11 EM303 Manual AW 2018.qxp_Layout 1 09/11/2018 15:13 Page 12 A A T ’ D li s illu “ ” l il < T T r l il f f f f li s “ ” s ’ ’ s & l il l il r i f...
- Page 12 EM303 Manual AW 2018.qxp_Layout 1 09/11/2018 15:13 Page 13 Turn on the battery power isolation switch (29). Before operating the manoeuvring system, release the handbrake. Activate the manoeuvring system by move slide switch to “On”-I on the remote control (Fig. 5A). The green LED (Fig.
- Page 13 EM303 Manual AW 2018.qxp_Layout 1 09/11/2018 15:13 Page 14 MAINTENANCE To prevent the battery from becoming totally discharged during long periods of inactivity it must be disconnected, fully charged and frost-proof stored. Please check regularly that the rollers of the drive units are free of any dirt, or debris that may have been picked up from the road.
- Page 14 EM303 Manual AW 2018.qxp_Layout 1 09/11/2018 15:13 Page 15 Check the cable-connection between the caravan battery and the control unit. Badly connected or corroded battery terminals can cause intermittent problems, check battery terminals, clean and connect again. Check the distance between the remote control and the caravan is not more than 5metres. If there is no signal between the remote control handset and the control unit, the manoeuvring system will not function at all and the green LED on handset is blinking.
- Page 15 EM303 Manual AW 2018.qxp_Layout 1 09/11/2018 15:13 Page 16...
- Page 16 EM303 Manual AW 2018.qxp_Layout 1 09/11/2018 15:13 Page 17...
- Page 17 EM303 Manual AW 2018.qxp_Layout 1 09/11/2018 15:13 Page 18...
- Page 19 EM303 Manual AW 2018.qxp_Layout 1 09/11/2018 15:13 Page 20...
Need help?
Do you have a question about the emove EM303 and is the answer not in the manual?
Questions and answers
Is ok to use the emover left against the tyres acting as a break. Will affect the caravan tyre?
Yes, using the LEISUREWIZE emove EM303 rollers left pressed against the tyres as a brake can affect the caravan tyre. The manual indicates the rollers should have correct spacing (e.g., 20mm) from the tyres and be adjusted for proper contact during operation. Leaving them pressed against the tyres unnecessarily can lead to increased wear or damage.
This answer is automatically generated
is key on full power if batter fully charged
Should be "not" received pairing instruction.
I have received an EM203 handset for my EM303 handset from you, is it compatible and how do I pair it. One chap I spoke to said he would e mail instruction however I have received it. Best Regards Keith
