USER MANUAL
PA6060T
PA6120T
PA6240T
PUBLIC ADDRESS AMPLIFIER
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PA6060T and is the answer not in the manual?

Questions and answers

Related Manuals for Eagle PA6060T

Summary of Contents for Eagle PA6060T

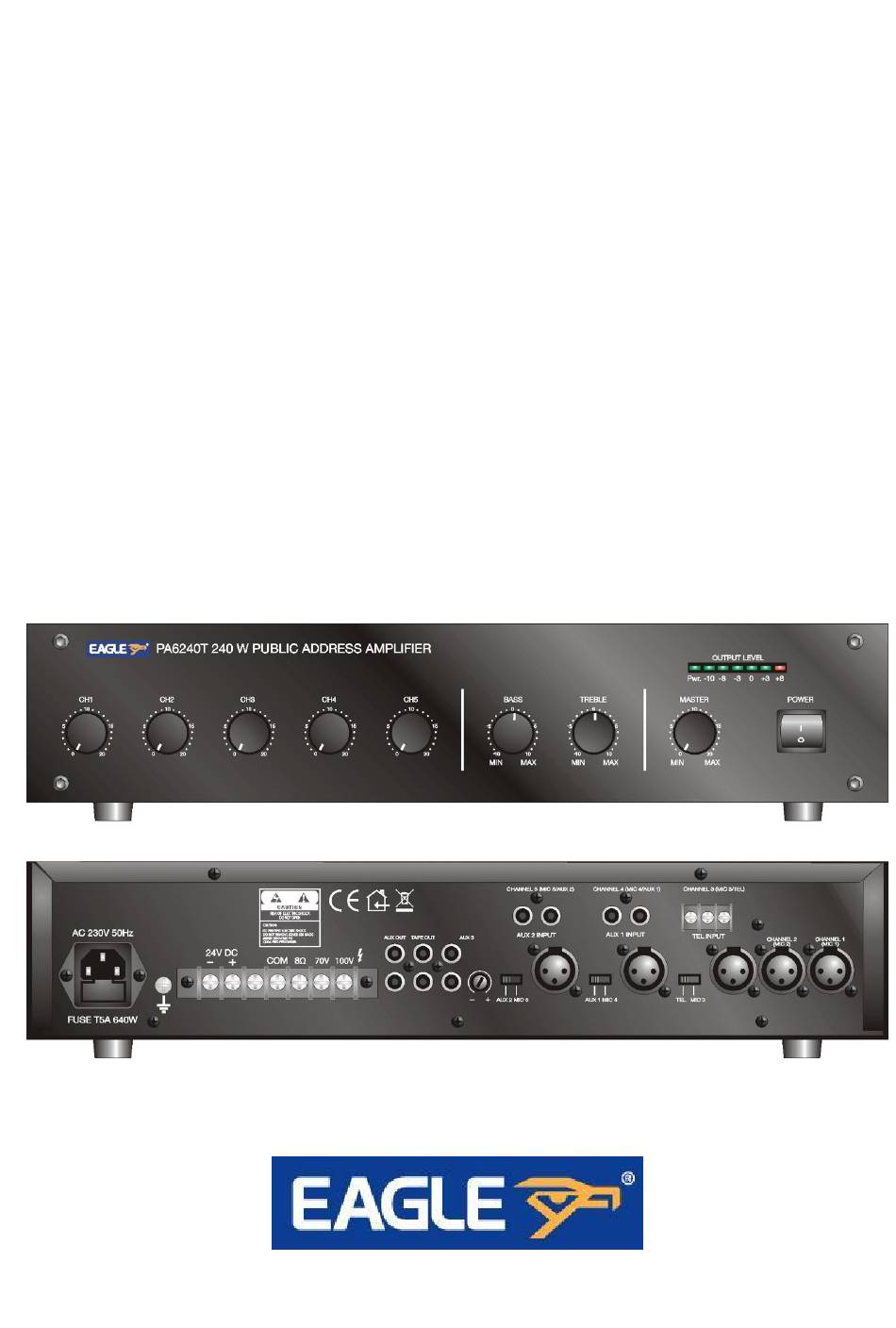

  • Page 1 USER MANUAL PA6060T PA6120T PA6240T PUBLIC ADDRESS AMPLIFIER...

  • Page 2: Security Precautions

    1.Security Precautions ◎ Carefully to READ the instruction in this manual before use. ◎ Certainly to OBSERVE the INSTRUCTION in this manual regard convention of safety symbols and messages ◎ Please KEEP this user MANUAL nearby for anytime reference. Safety symbol and Message Conventions Below-described safety symbol and messages are to prevent bodily injury and property damage.
  • Page 3 ■ When using the Amplifier  When found following irregular situation during amplifier is in use, immediately switch off the power, disconnect the power supply plug from the AC outlet. Don’t try to operate the amplifier again. Contact your local dealer to check the amplifier. ...
  • Page 4 ■ When Using the Amplifier  Make sure that the volume control is turned to minimum position before power is switched on. Loud sound produced at high volume when power is switched on may impair hearing.  DO NOT place heavy objects on the amplifier, for it may cause it fall and may result in body injury and/or property damage.

  • Page 5: Front Panel

    3.Front Panel 1. Channel 1 Volume Control 5. Channel 5 Volume Control 9. Power On / Off Switch 2. Channel 2 Volume Control 6. Master Tone Control (Bass) 10. Power On/Off Indicator LED 3. Channel 3 Volume Control 7. Master Tone Control (Treble) 11.
  • Page 6 10. MIC 5/Aux 2 Selector Switch 20. TEL Page Input (Screw Terminals)

  • Page 7: Mains Connection

    5.Mains Connection The supply transformer has been designed for use on 230Vac . 6.Battery Connection (24Vdc) When using external batteries, earth the amplifier via the screw terminal because of the high voltage present. Electrical stability of the system is increased by earthing the case. NOTE: the connection cable must be fitted with an in-line fuse.
  • Page 8 9.RCA Plug Connections Sleeve-Screen Pin- Signal 10.Tape Output Connection These standard RCA stereo Jack sockets provide a mixed output suitable for connection a tape or Cassette recorder. 11.Aux Out Connects the mixer/preamplifier stage to the power amplifier stage. The connecting link must be plugged in for normal operation as a mixer/amplifier.
  • Page 9 15.Specifications: Type Mixer Amplifier Model PA6060T PA6120T PA6240T Supply Mains Voltage AC 230V, 50Hz ± 10% Battery Voltage DC 24V (MAX 10% deviation) Output power (RMS) 120W 240W Total Harmonic Distortion <= 1% at 1KHz, rated power Input Sensitivity XLR (Balance) Channel 1~3 (MIC 1~3) 1mV@ 600Ω...

This manual is also suitable for:

Pa6120tPa6240t
