Leading Edge LE-450 Installation & Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

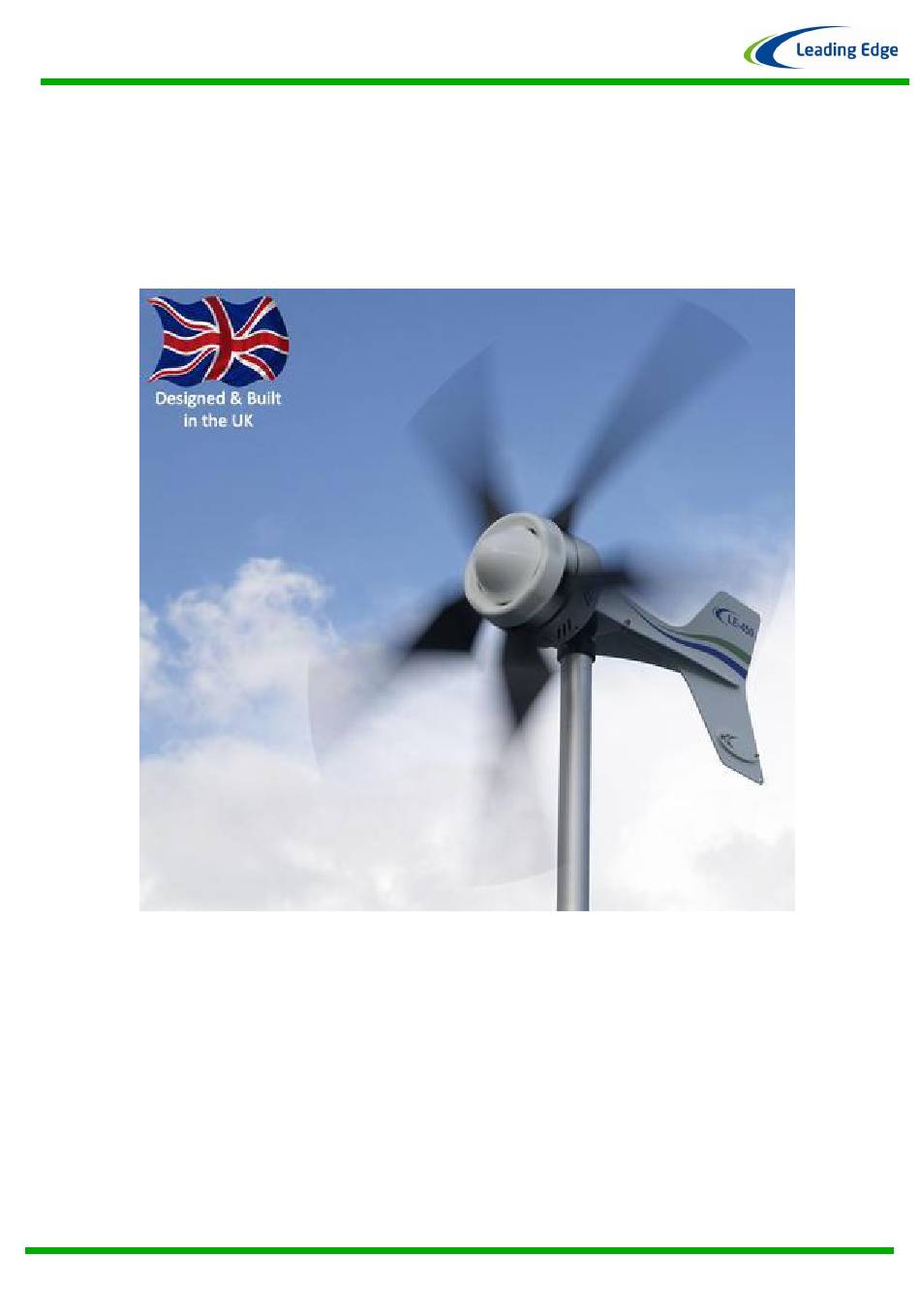

LE-450 Turbine
Installation & Operation Guide
1m Diameter Micro Wind Turbine for generating clean and renewable
electricity anywhere the wind blows...
Leading Edge Turbines Ltd
Tel: +44 (0)845 652 0396
Skyrrid Farm, Pontrilas, Hereford. HR2 0BW. UK
www.leturbines.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LE-450 and is the answer not in the manual?

Questions and answers

Related Manuals for Leading Edge LE-450

Summary of Contents for Leading Edge LE-450

  • Page 1 LE-450 Turbine Installation & Operation Guide 1m Diameter Micro Wind Turbine for generating clean and renewable electricity anywhere the wind blows… Leading Edge Turbines Ltd Tel: +44 (0)845 652 0396 Skyrrid Farm, Pontrilas, Hereford. HR2 0BW. UK www.leturbines.com...

  • Page 2: Table Of Contents

    Contents Contents ........................2 Read this first ......................3 Introduction ........................ 4 Safety Precautions ...................... 5 Mechanical Safety Hazards ..................5 Electrical Safety Hazards ..................5 Specifications ......................6 Package Contents ......................7 Tools Required For Assembly ..................7 Mechanical Assembly Procedure ................8 Electrical Installation ....................

  • Page 3: Read This First

    Read this first Don’t connect the wind turbine in the wrong polarity Make sure you connect the +ve of the turbine to the +ve of the battery (red to red) and the -ve of the turbine to the -ve of the battery (black to black). Failing to do so will damage the equipment and invalidate your warranty.

  • Page 4: Introduction

    Leading Edge Turbines has spent many years developing the ideas and technology behind your turbine. The LE-450 features an array of innovations and construction techniques as well as heavy- duty engineering to ensure optimum efficiency and a long operating life. All of these features have evolved from the long and successful history of the LE-300 turbine.

  • Page 5: Safety Precautions

     Working with tools of any kind can be dangerous. Your LE-450 turbine requires some basic mechanical assembly with rudimentary hand tools. If you are in any doubt about how to use these tools correctly, please seek advice from a suitably experienced person.

  • Page 6: Specifications

    Specifications Turbine Name: LE-450 Part Number: GA-LETU-016 Nominal Voltage: 12V / 24V / 48V DC or Grid-tie optimised Rotor Diameter: 1000 mm Rated Wind Velocity: 8 m/s Rated Output: 105 Watts Max Output: 450 Watts Start-up Wind Velocity: 2 m/s Total weight: 8.5 Kg...

  • Page 7: Package Contents

    Package Contents Your LE-450 turbine will arrive containing the components shown below. If any of the items are missing or damaged, please contact your dealer immediately. LE-450 Chassis: Qty 1 Rotor Blade: Qty 5 Hub Plate: Qty 1 17 x M6 Nylock Nuts...

  • Page 8: Mechanical Assembly Procedure

    If the magnet rotor rubs, or no voltage is detected whilst turning the magnet rotor, please contact your dealer immediately. Warning: The magnet rotor within your LE-450 turbine is constructed using neodymium iron boron rare earth magnets. These are extremely powerful magnets and can cause injury if not handled with respect.
  • Page 9 3) Rotor Blade Assembly - Take the five rotor blades and rotor hub plate. Be careful when handling the blades, they may have sharp edges. Use a 10 mm socket & hexagon key and three M6 x 16 mm Cap Heads to attach each blade to the hub plate - see Fig-5. Ensure that the cap head end of the screw is on the inside of the blades (thus allowing the washers and nuts to locate on rotor hub plate side).
  • Page 10 5) Fit the Rotor Blade Assembly - The assembled rotor blades can now be fitted to the LE-450 chassis. This is done by offering the rotor hub plate against the drive shaft protruding from the front of the chassis. M5 x 20 mm Hex Head screws should then be used to fix the rotor hub in position using the six tapped holes in the drive shaft.
  • Page 11 M5 Washers Fig-9: Attach the nose cone 8) Prepare the Turbine Mount - If you have purchased a LE-450 mount bracket or tower from a Leading Edge Turbines’ dealer, then please refer to the separate installation instructions supplied with the product. If you have sourced your own tower / mount bracket, 6.5 mm diameter holes will need to be drilled in order to secure the turbine.
  • Page 12 2.5 mm² 4 mm² 10) Mount the LE-450 Turbine onto the Support Structure - Ensure that the previously installed power transmission cables are not yet connected to any batteries and are ‘shorted’ together. This will prevent the turbine from operating during the installation process.

  • Page 13: Electrical Installation

    This type of system will often expand ‘organically’, but the following guidelines should be followed:  Follow the appropriate electrical code - The electrical wiring of your LE-450 turbine and associated electrical systems must be done in accordance with national and local electrical codes and regulations.
  • Page 14 Tristar diversion controller.  ‘Hybrid’ Systems - The LE-450 turbine can be used in parallel with PV panels. We recommend that the PV panels are wired independently with a separate charge controller specifically designed for use with them and connected in parallel with the battery bank - see Fig-13.
  • Page 15 LE-450 TURBINE (PN: GA-LETU-016) PANEL ARRAY TOWER SUPPORT STRUCTURE EARTH GROUND SEE RUN / STOP SWITCH RUN / STOP USER MANUAL FOR DETAILED INSTRUCTIONS SWITCH BOX AMMETER (REQUIRED) (OPTIONAL) PN: GA-CTRL-008A FUSE OR BREAKER (RECOMMENDED) CHASSIS GROUND CHASSIS GROUND BATTERY DISCONNECT...

  • Page 16: Fig-14: Typical 'Marine' System Wiring Diagram

    DUMP LOAD Fig-13: Typical ‘Marine’ system wiring diagram (Tristar disconnects when the stop switch is activated – useful when the LE-450 turbine & Tristar controller are to be used in conjunction with shore power and engine alternator power sources). Tel: +44 (0)845 652 0396 Skyrrid Farm, Pontrilas, Hereford.

  • Page 17: Turbine Operation

    LE-450 (see Fig 16).  Operation of the LE-450 in High Winds - Every effort has been taken to ensure that the LE- 450 will withstand the forces exerted by strong winds. However the raw power in high winds is immense and the stresses placed upon the turbine are magnified by gusty and turbulent conditions.
  • Page 18 Fig-16: Tethering the rotor blades using the hole on the tail-fin (shown on an LE-300 Turbine) Note: Never allow the turbine to run off-load with no connection to a battery bank or grid-tie inverter. Doing so will allow open circuit voltages to be generated by the turbine. These voltages may be dangerous and may damage the stator coils within the turbine.

  • Page 19: Maintenance

    Carefully remove the yaw mount bracket by unscrewing the four connection screws from the sides of the LE-450 chassis. Inspect the slip rings and wipers for obvious signs of wear. Replace the wipers if required (part numbers available in the Spares section). Reassemble the yaw pivot carefully (do not to pinch any cables).

  • Page 20: Spares

    Spares The following components may need to be replaced during the service life of your LE-450 turbine. Please contact your nearest Leading Edge Turbines’ Dealer, and quote the part numbers listed below. Rotor Blade (set of 5) DP-LETU-145 (X5) Magnet Rotor...

  • Page 21: Warranty

    Warranty Your LE-450 turbine from Leading Edge Turbines (LET) carries a two-year warranty, as supported by a retailer’s receipt. The warranty starts from the date of installation or ninety (90) days after shipment from the LET factory, whichever comes first.

  • Page 22: Disclaimer

    The user of this information and product assumes full responsibility and risk.  The LE-450 turbine is a source of electrical power. It must be installed in accordance with local building and electrical regulations. Consult your local planning (zoning) office for details.

  • Page 23: Appendix 1: Tristar 45A Diversion Charge Controller Relevant Extracts

    Appendix 1: Tristar 45 Diversion Charge Controller Tel: +44 (0)845 652 0396 Skyrrid Farm, Pontrilas, Hereford. HR2 0BW. UK www.leturbines.com Page 23 of 47...
  • Page 24 Introduction Please read this manual and the specific manual for the Tristar Charge Controller before attempting to assemble, install or operate your Tristar Charge Controller. This will assure optimum performance and safety. The Tristar Charge Controller and Dump Load is a 3 party solution designed to prevent 12, 24 or 48V batteries from overcharging.
  • Page 25 Always keep lead-acid batteries the correct way up. Do not allow the acidic electrolyte to spill or come into contact with your skin. Always follow the manufacturer’s safety instructions when handling lead-acid batteries. Please use common sense when installing and operating your turbine and Charge Controller. Electrical Installation Please refer to the overall electrical schematic in the turbine installation for appropriate generic wiring diagrams.
  • Page 26 Tel: +44 (0)845 652 0396 Skyrrid Farm, Pontrilas, Hereford. HR2 0BW. UK www.leturbines.com Page 26 of 47...
  • Page 27 Tel: +44 (0)845 652 0396 Skyrrid Farm, Pontrilas, Hereford. HR2 0BW. UK www.leturbines.com Page 27 of 47...

  • Page 28: Appendix 2: Run / Stop Switch User Manual

    Tel: +44 (0)845 652 0396 Skyrrid Farm, Pontrilas, Hereford. HR2 0BW. UK www.leturbines.com Page 28 of 47...
  • Page 29 Tel: +44 (0)845 652 0396 Skyrrid Farm, Pontrilas, Hereford. HR2 0BW. UK www.leturbines.com Page 29 of 47...
  • Page 30 Tel: +44 (0)845 652 0396 Skyrrid Farm, Pontrilas, Hereford. HR2 0BW. UK www.leturbines.com Page 30 of 47...
  • Page 31 Tel: +44 (0)845 652 0396 Skyrrid Farm, Pontrilas, Hereford. HR2 0BW. UK www.leturbines.com Page 31 of 47...
  • Page 32 Tel: +44 (0)845 652 0396 Skyrrid Farm, Pontrilas, Hereford. HR2 0BW. UK www.leturbines.com Page 32 of 47...
  • Page 33 Tel: +44 (0)845 652 0396 Skyrrid Farm, Pontrilas, Hereford. HR2 0BW. UK www.leturbines.com Page 33 of 47...
  • Page 34 Tel: +44 (0)845 652 0396 Skyrrid Farm, Pontrilas, Hereford. HR2 0BW. UK www.leturbines.com Page 34 of 47...
  • Page 35 Tel: +44 (0)845 652 0396 Skyrrid Farm, Pontrilas, Hereford. HR2 0BW. UK www.leturbines.com Page 35 of 47...
  • Page 36 Tel: +44 (0)845 652 0396 Skyrrid Farm, Pontrilas, Hereford. HR2 0BW. UK www.leturbines.com Page 36 of 47...
  • Page 37 Tel: +44 (0)845 652 0396 Skyrrid Farm, Pontrilas, Hereford. HR2 0BW. UK www.leturbines.com Page 37 of 47...
  • Page 38 Tel: +44 (0)845 652 0396 Skyrrid Farm, Pontrilas, Hereford. HR2 0BW. UK www.leturbines.com Page 38 of 47...
  • Page 39 Appendix 2: Run / Stop Switch User Manual Only operate in light winds Tel: +44 (0)845 652 0396 Skyrrid Farm, Pontrilas, Hereford. HR2 0BW. UK www.leturbines.com Page 39 of 47...
  • Page 40 Universal Run / Stop Switch. This will assure optimum performance and safety. The Universal Run / Stop Switch is designed to allow the user to dynamically brake an LE-450 turbine at will. This is achieved by disconnecting the power output of the turbine from the relevant load and diverting it to a short circuit which then applies the dynamic braking effect on the permanent magnet alternator of the turbine.
  • Page 41 If the unit is to be integrated into an existing panel, a suitable cut-out, as detailed on the wiring diagram will need to be made. Switch Wiring for LE-450 Turbine – please ensure all 12 screw terminals of the switch are screwed closed before finally placing the top cover on the switch: Tel: +44 (0)845 652 0396 Skyrrid Farm, Pontrilas, Hereford.

  • Page 42: Appendix 3: System Trouble-Shooting

    Appendix 3: System Trouble-Shooting Tel: +44 (0)845 652 0396 Skyrrid Farm, Pontrilas, Hereford. HR2 0BW. UK www.leturbines.com Page 42 of 47...
  • Page 43 In this situation, the turbine is free spinning but no voltage will be measureable at the turbine output cables. If an internal fault is present, please contact your dealer or Leading Edge Turbines for further advice. Issue: The rotor hub plate fixings do not correctly grip the rotor hub plate which means that the rotor hub plate can rattle slightly.
  • Page 44 The LE-450 is designed to be slightly tail heavy so that when it is fitted to a yacht that is healing in the wind, the turbine will favour the windward side.
  • Page 45 Common Problems pertaining to low turbine output Issue:  The turbine seems to be operating correctly, but the electrical output appears to be low. There are many reasons why the turbine may be demonstrating outputs that are lower than anticipated. These reasons can stem from turbulence, erroneous measurements through to battery type and condition.

  • Page 46: Appendix 4: Turbine Site Selection

    For areas that are generally flat, the turbine can be installed in any position. Remember that the LE-450 has a low voltage output, so it is important to keep the cable run to the batteries / inverter as short as possible.
