DAILY REFERENCE
GUIDE
Before using the appliance, carefully
read the Health and Safety guide.

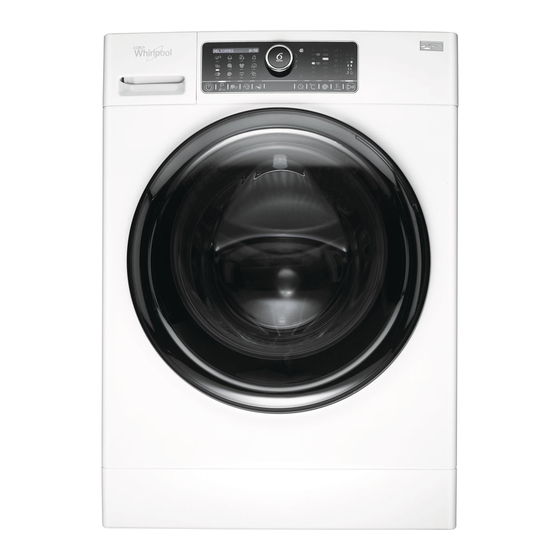

PRODUCT DESCRIPTION
APPLIANCE
2.
7.
CONTROL PANEL
13
12
1.
2.
3.
THANK YOU FOR BUYING A WHIRLPOOL PRODUCT.
In order to receive comprehensive service and support,
please register your appliance at www.whirlpool.eu/register
Before using the machine, the
transport bolts must be removed.
30'
4.
5.
6.
1.
3.
4.
5.
6.
8.
MAX
60°
40°
7.
8.
9.
10.
For more detailed instructions on how to
remove them, see the Installation Guide.
1. Worktop
2. Detergent dispenser
3. Control panel
4. Door handle
5. Door
6. Water filter/emergency drain
hose
(if available) - behind plinth -
7. Plinth (removable)
8. Adjustable feet (4)
1. On/Off button
(Reset/Drain if pressed and
held down)
2. Programme button
3. Colours 15° button
4. Fresh Care button
5. Dosing Aid button
6. Knob (Turn to select/Press to
confirm)
7. Finish in button
8. Temperature button
9. Spin Speed button
10. Options button
(Key lock if pressed and held
down)
11. Start / Pause button
12. Display
13. Programmes area
11.
EN
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FSCR12430 and is the answer not in the manual?

Questions and answers

Summary of Contents for Whirlpool FSCR12430

  • Page 1 DAILY REFERENCE GUIDE THANK YOU FOR BUYING A WHIRLPOOL PRODUCT. In order to receive comprehensive service and support, please register your appliance at www.whirlpool.eu/register Before using the appliance, carefully Before using the machine, the For more detailed instructions on how to read the Health and Safety guide.
  • Page 2: First Time Use

    DETERGENT DISPENSER 1. Main wash compartment • Detergent for the main wash • Stain remover • Water softener 2. Prewash compartment • Detergent for the prewash. 3. Softener compartment • Fabric softener • Liquid starch Pour in softener or starch solution only up to the “max” mark. 4.
  • Page 3 SWITCH ON WASHING MACHINE ADD DETERGENT • If you do not use the Dosing Aid function, pull out the • Press the On/Off button until the programme button lights up. An animation appears, and there is a sound. detergent dispenser and add detergent (and additives/ Afterwards the washing machine is ready to be operated.
  • Page 4: Hints And Tips

    SETTINGS The following settings can be changed / selected: • Turn the knob to adjust the setting; confirm by pressing the knob. Display language / key tones / cycle end alert/ display contrast / • To exit the Settings mode, either turn the knob until the display water hardness / dosing aid (adjust dosing amounts for the indicates that you can exit –...
  • Page 5: Programme Chart

    PROGRAMME CHART Selectable using the Options Selectable directly Spin Detergent button and additives — — — — — ECO COTTON Cold/60°C COTTON Cold/95°C — MIXED Cold/60°C — — SYNTHETICS — Cold/60°C DELICATES Cold/40°C — — — — 1000 — WOOL Cold/40°C —...
  • Page 6 PROGRAMMES Observe the recommendations on the care labels of your laundry. ECO COTTON SPECIAL PROGRAMMES Normally soiled cotton laundry. At 40°C and 60°C To set one of the following programmes, select and standard cotton programme and most favourable confirm the special programmes position. Then turn the programme in terms of combined water and energy knob to select one of the following eight programmes;...
  • Page 7 Find descaler appropriate for the washing or which should be spun with a low spin speed. Not suitable for silk. machine on www.whirlpool.eu. To end the “Rinse hold” function, choose between: To cancel the display reminder, press the knob.
  • Page 8 The phone number can be found in the warranty booklet. The Use and Care Guide can be obtained as follows: • After-Sales Service; using the phone number in the warranty booklet • Download from the Whirlpool Website http://docs.whirlpool.eu 400010845424 Whirlpool® is a registered trademark of Whirlpool, USA.
