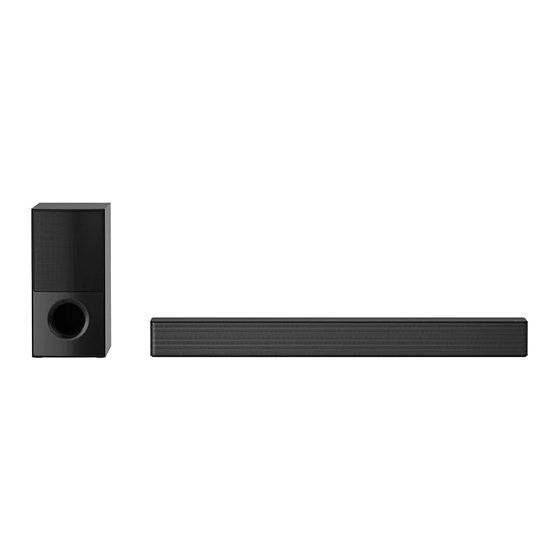

LG S67T2-W Owner's Manual

High power sound bar
Hide thumbs Also See for S67T2-W:
Table of Contents

Advertisement

Quick Links

OWNER'S MANUAL
HIGH POWER
SOUND BAR
Please read this manual carefully before operating your set and retain it for future
reference.
MODEL
SNH5 (SNH5, S67T2-W)
www.lg.com
2004_Rev01
Copyright © 2020 LG Electronics Inc. All Rights Reserved.

Advertisement

Table of Contents
loading

Related Manuals for LG S67T2-W

Summary of Contents for LG S67T2-W

  • Page 1 OWNER’S MANUAL HIGH POWER SOUND BAR Please read this manual carefully before operating your set and retain it for future reference. MODEL SNH5 (SNH5, S67T2-W) www.lg.com 2004_Rev01 Copyright © 2020 LG Electronics Inc. All Rights Reserved.
  • Page 2 Getting Started Safety Information NOTICE: For safety marking information including product identification and supply ratings, please refer to the main label on the bottom or the other surface CAUTION of the product. RISK OF ELECTRIC SHOCK CAUTION concerning the Power Cord DO NOT OPEN The Power Plug is the disconnecting device.
  • Page 3 Refers to stand-by. available for download. LG Electronics will also provide open source code to Refers to “ON” (power). you on CD-ROM for a charge covering the cost of Refers to dangerous voltage.

  • Page 4: Table Of Contents

    Front panel Connecting to your TV Rear panel – Using an OPTICAL cable Remote control – LG Sound Sync Speakers position – Using an HDMI cable Installing the sound bar – ARC (Audio Return Channel) function – What is SIMPLINK? –...
  • Page 5 Table of Contents Operating Troubleshooting Basic operations Troubleshooting – USB operation – General Other operations – NOTES to use wireless – Using your TV remote control – NOTES to release Demo mode – AUTO POWER On/Off – Auto function change Appendix –...

  • Page 6: Getting Started

    Getting Started Introduction Symbol used in this manual Note Indicates special notes and operating features. > Caution Indicates cautions for preventing possible damages from abuse.

  • Page 7: Front Panel

    - Switches the unit ON or OFF. F (Function) - Select the function and input source by pressing F repeatedly. Input source / Function Display Optical OPT/HDMI ARC LG Sound Sync (Wired) Bluetooth LG Sound Sync (Wireless) LG TV HDMI IN HDMI o/p (Volume) - Adjusts volume level.

  • Page 8: Rear Panel

    Getting Started Rear panel WOOFER 3 Ω - Connect a Subwoofer cord to the unit. HDMI OUT (TV ARC) - Connect the HDMI OUT (TV ARC) jack on the back of the unit to ARC jack on the TV. HDMI IN - Connect HDMI IN jack on the back of the unit to HDMI OUT jack on the external device.

  • Page 9: Remote Control

    BT (Bluetooth) connection Lock: It allows you to connect a Bluetooth device only on Bluetooth and LG TV functions. (Page 29) To turn on or off the Bluetooth connection lock, press and hold N for about 3 seconds and press it...
  • Page 10 Getting Started SOUND EFFECT - Selects a sound effect mode by using SOUND EFFECT. On Display Description Analyzes the property of the input sound and provides the AI SOUND PRO sound optimized for the content in real time. BASS BLAST or BASS BLAST+ Reinforces the bass and powerful sound.
  • Page 11 Auto Power ON/OFF: It allows the unit to turn on and off automatically by input signals : Optical, LG TV or Bluetooth (Page 25) To turn on or off AUTO POWER function, press and hold J for about 3 seconds and press it again.

  • Page 12: Speakers Position

    Getting Started Speakers position Front speakers Surround speakers Subwoofer...

  • Page 13: Installing The Sound Bar

    Getting Started Installing the sound bar You can hear the sound by connecting the unit to the other device : TV, Blu-ray disc player, DVD player, etc. Place the unit in front of the TV and connect it to the device you want.

  • Page 14: Connecting

    Connecting Organizing cables Connecting the (Optional) subwoofer You can organize the cable with cable ties. Attaching the subwoofer to the unit 1. Hold the cables together with cable ties as shown Connect a Subwoofer cord to the unit. below. When connecting a Subwoofer cord to the unit, 2.

  • Page 15: Connecting To Your Tv

    HDMI cable considering the state of the TV. You can control some functions of this unit by your TV’ s remote control with LG Sound Sync. It is Using an OPTICAL cable compatible with the LG TV that is supported LG Sound Sync.
  • Page 16 LG Sound Sync with wired connection LG Sound Sync with wireless connection 1. Connect your LG TV to the unit by using an optical cable. 1. Turn on the unit by pressing 1 . 2. Select the LG TV function by pressing F repeatedly.

  • Page 17: Using An Hdmi Cable

    Note Some functions of this unit are controlled by the TV’ s remote control when this unit and LG TV’ s with y You can enjoy the TV audio through the SIMPLINK are connected through HDMI connection.

  • Page 18: Additional Information For Hdmi

    You cannot change the video resolution in the controls. HDMI mode. Change the video resolution of * Trade names for CEC are SimpLink (LG), Anynet+ the connected component. (Samsung), BRAVIA Sync (Sony), EasyLink (Philips), y If the video output signal is abnormal when etc.

  • Page 19: Optional Equipment Connection

    Connecting Optional equipment For enjoying both sound and picture You can enjoy both sound and picture from the connection external device you connect. HDMI connection You can enjoy the sound and picture from HDMI connection on external device. HDMI cable For enjoying sound only You can enjoy the sound from the external device you connect.

  • Page 20: Optical In Connection

    Connecting OPTICAL IN connection USB connection Connect an optical output jack of external devices to Connect USB memory device to the USB port on the the OPTICAL IN jack. back of the unit. Optical cable To the optical output jack of external device 1.

  • Page 21: Usb Device Requirement

    Connecting USB device requirement Playable file y Devices which require additional program Sampling Frequency installation connected to a computer, are not MP3 : within 32 to 48 kHz supported. WMA : within 32 to 48 kHz y Do not extract the USB device while in operation. OGG : within 32 to 48 kHz y For a large capacity USB, it may take longer than a FLAC : 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz,...
  • Page 22 Connecting Note y Folders and files on the USB are recognized as below. : Folder *ROOT : File y If there is no file in a folder, the folder will not appear. y File will be played from file $A to file $J one by one.

  • Page 23: Operating

    Operating Note Basic operations y The resume point may be cleared when you pull out the power cord or removing the USB device from the unit. USB operation y Repeat/Random playback operates as follows. 1. Connect the USB device to the USB port. On Display Description 2.

  • Page 24: Other Operations

    Note y Make sure that the sound output of your TV is set to [External speaker]. y This function does not operate on LG TV’ s magic remote control. y This function may not work well when some TV control functions such as HDMI CEC, SIMPLINK and LG Sound Sync set to ON.

  • Page 25: Auto Power On/Off

    Optical, LG TV or Bluetooth. there is no signal for a certain period of time When you turn on your TV or an external device from the TV connected by LG Sound Sync connected to this unit, this unit recognizes the input (Optical/Wireless).

  • Page 26: Auto Function Change

    Quick Start This unit recognizes input signals such as Optical, This unit can stay in standby mode with low power HDMI ARC, Bluetooth and LG TV and then changes consumption, so that the unit can reduce boot time suitable function automatically.

  • Page 27: Using A Bluetooth Wireless Technology

    XX means the last two digits of address. For example, if your unit has a MAC address Bluetooth profiles such as 9C:02:98:4A:F7:08, you will see “LG SNH5(08)” on your Bluetooth device. In order to use Bluetooth wireless technology, y Depending on the Bluetooth device type, devices must be able to interpret certain profiles.
  • Page 28 Operating Note 4. When this unit is successfully connected with your Bluetooth device, y If Bluetooth connection does not work well, “PAIRED” [ your device’ s name [ “BT” appears try pairing it again. on the display window. y The sound may be interrupted when the Note connection has interference by the other electronic waves.

  • Page 29: Controls Connected Bluetooth Device

    “Music Flow Bluetooth” LOCK) app. You can limit Bluetooth connection to only Install “Music Flow Bluetooth” BT (Bluetooth) and LG TV function to prevent App onto Your BLUETOOTH unintended Bluetooth connection. Device To turn on this function, press and hold N on the remote control for about 3 seconds in BT There are two ways to install “Music Flow Bluetooth”...

  • Page 30: Activate Bluetooth With "Music Flow Bluetooth" App

    Operating Note Install “Music Flow Bluetooth” App through “Google Android Market y “Music Flow Bluetooth” app will be available in the software version as follow; (Google Play Store)” - Android O/S : Ver 4.0.3 (or later) 1. Tap the “Google Android Market (Google Play y If you use “Music Flow Bluetooth”...

  • Page 31: Troubleshooting

    Check connection of the external device such as TV, DVD/Blu-Ray player or Bluetooth device. The AUTO POWER function y Check the state of SIMPLINK on your LG TV and turn off SIMPLINK. does not work. y Depending on the connected device, this function may not operate.

  • Page 32: Notes To Use Wireless

    Troubleshooting Symptoms Cause & Solution Check the details below and adjust the unit according to them. y With the sound bar connected with TV, change the AUDIO DIGITAL OUT setting on TV Setup Menu from [PCM] to [AUTO] or [BITSTREAM]. y With the sound bar connected with Player, change the AUDIO DIGITAL OUT When you feel the output setting on Player Setup Menu from [PCM] to [PRIMARY PASS-THROUGH] or...

  • Page 33: Notes To Release Demo Mode

    Troubleshooting NOTES to release Demo mode Symptoms Cause & Solution Can not change input source with F such as BT Unplug the power cord and plug it in again. If that (Bluetooth), HDMI etc. and only [DEMO] indication doesn’t work, after setting the volume to 2, press and is showing in the front display.

  • Page 34: Appendix

    The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by LG Electronics is under license. Other trademarks and trade names are those of their respective owners.

  • Page 35: Specifications

    Appendix Specifications General Power requirements Refer to the main label on the unit. Power consumption Refer to the main label on the unit. Approx. 990.0 mm X 97.0 mm X 125.0 mm With foot Dimensions (W x H x D) (38.9 inch x 3.8 inch x 4.9 inch) Operating temperature 5 °C to 35 °C...
  • Page 36 Appendix Subwoofer Type 1 Way 1 Speaker 3 Ω Impedance Rated Input Power 200 W RMS Max. Input Power 400 W RMS Approx. 191.0 mm x 386.0 mm x 318.0 mm Dimensions (W x H x D) (7.5 inch x 15.2 inch x 12.5 inch) y Designs and specifications are subject to change without prior notice.

  • Page 37: Handling The Unit

    Appendix Handling the Unit When shipping the unit Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory. Keeping the exterior surfaces clean y Do not use volatile liquids such as insecticide spray near the unit.
