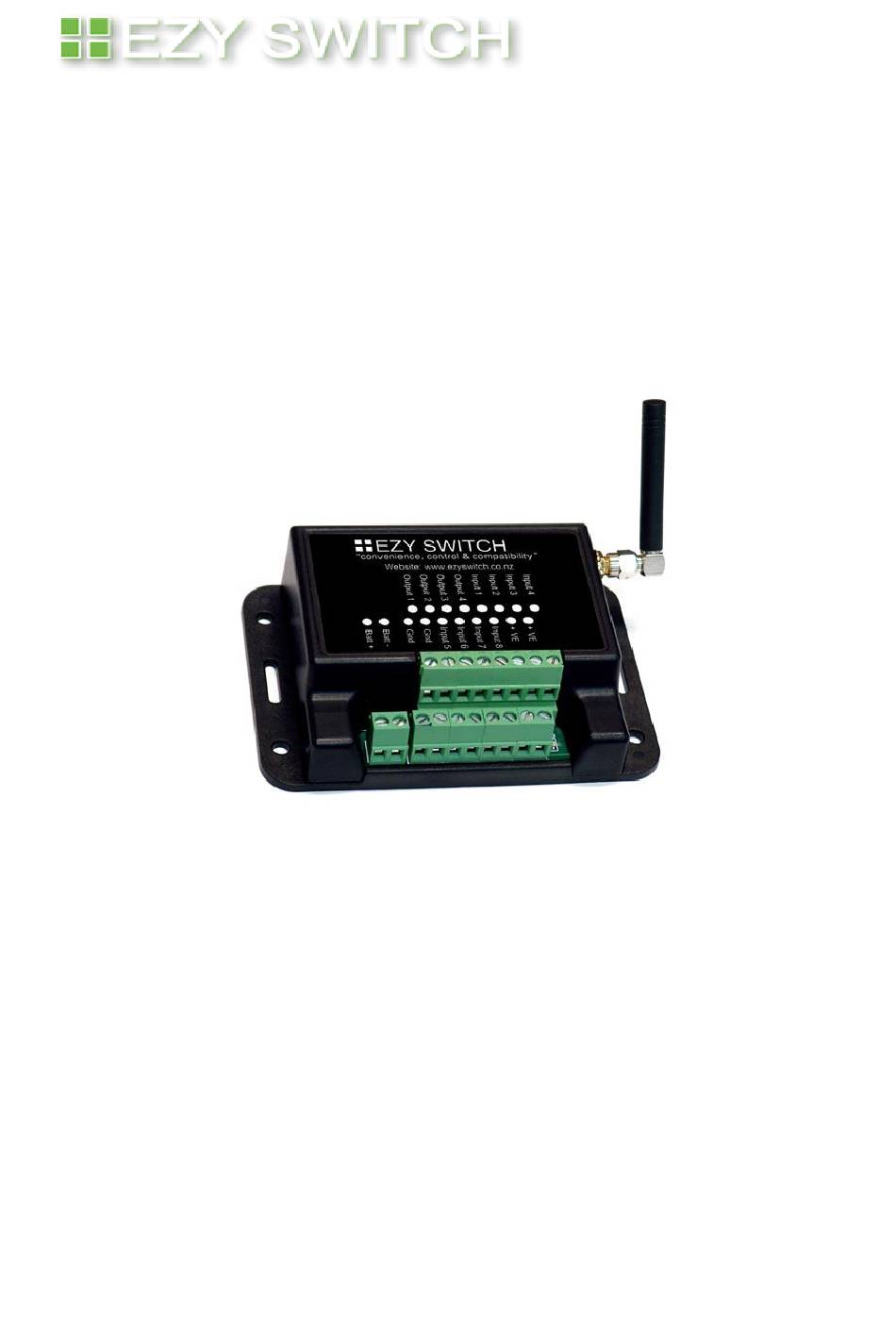

- Page 1 EZY SWITCH LIMITED SMS-T4 System Monitor Installation Manual...
-
Page 2: Table Of Contents
Get Firmware Version Resetting Unit Get Signal Strength Reset Unit to Factory Defaults Warranty Appendix One Table of User Selected Input and Output Names Detailed Explanation of Input Delays Trouble Shooting Guide Appendix Two SMS-T4 Setup tank to pump (Application Notes) - Page 3 Ezy Switch SMS-T4 Installation & Operation Manual Features - Model SMS-T4 • Receive text messages on your cell phone alerting you to potential problems anywhere in the world • Send commands to control lights, pumps, appliances, air conditioning, etc. via text message from your cell phone •...

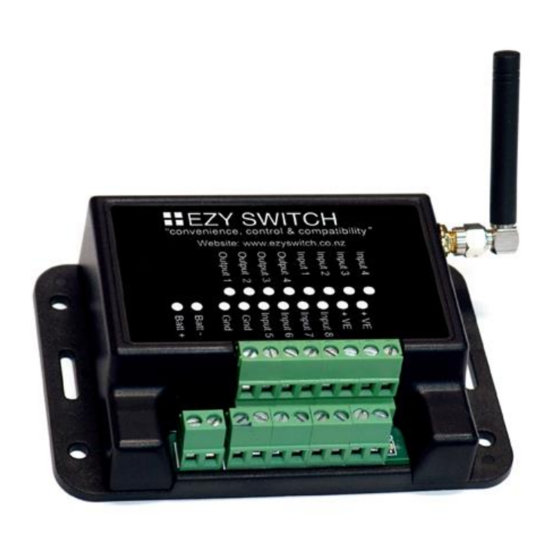

- Page 4 Ezy Switch SMS-T4 Installation & Operation Manual System SIM Card SIM Card Ezy Switch Ltd Terminal 11 Terminal 18 Terminal 3 Terminal 1 Terminal 10 Signal LED Signal LED: If the LED flashes once every 1 second, this indicates the cellular network cannot be found (out of GSM coverage range).
- Page 5 Ezy Switch SMS-T4 Installation & Operation Manual Outputs The SMS-T4 has two (4) Outputs. The Outputs are Relays rated at 3 A resistive @ 125VAC Relay 1 Connection Relay Internal Relay Terminals Relay 2 Connection Relay Internal Relay Terminals 9-10...
- Page 6 Manual Inputs The SMS-T4 has four (4) Inputs. Input 1, 2 & 3 are standard digital input and can be connected as per Fig 2a or Fig 2b The Analog input is a 0 to 5vdc input, connections shown in Fig 1...
-
Page 7: Getting Started - Setting Up Initial User
Ezy Switch SMS-T4 Installation & Operation Manual !! IMPORTANT !! Setting up system for the first time: Please ensure the SIM card does NOT have a PIN number or is locked has been ACTIVATED with the network provider, insert into SIM slot on the back (see page 4) and power the unit up. -
Page 8: Adding A User
Ezy Switch SMS-T4 Installation & Operation Manual Commands Adding a User (Note: Setting up the first user page 7 must be done first) Add user +??XXXXXXXX Country Code page 7) Command: (see If the user is already in the list, the system responds with:... -
Page 9: Removing The Administrator
Command: (System default = On) If Text all is On the SMS-T4 will text all user that have been programmed into the unit with the reply to the command. If Text all is Off the SMS-T4 will only text the number that initiated the command with the reply. -
Page 10: Turn All Texts Off And Disable Inputs
Ezy Switch SMS-T4 Installation & Operation Manual Turn all Input Text’s OFF With alerts turned off the device will NOT text every time any Input changes but the Inputs are still active so you can send a “Input status” query at any time. Linked outputs will not work. -
Page 11: Naming Inputs/Outputs And Changing Names
Once the name has been changed, the particular Input or Output is always referred to by the new name (e.g. Alarm). For commands or status interrogation and the SMS-T4 will respond using the new name. Use table on page 25 to record your new Input and Output names. -
Page 12: Change Input To Normally Open Or Normally Closed
Ezy Switch SMS-T4 Installation & Operation Manual Change Input to Normally Open or Normally Closed Make INPUT NAME active open (or) closed Command: This command is used to define if the switch wired to the Input is normally open or normally closed. -
Page 13: Link An Input To An Output
Ezy Switch SMS-T4 Installation & Operation Manual Link an Input to an Output Link INPUT NAME to OUTPUT NAME Command: (Example: Link alarm to siren) The system responds with: The INPUT NAME has been linked to OUTPUT NAME To clear a link... -
Page 14: Programming The Input Reply Message
Ezy Switch SMS-T4 Installation & Operation Manual Programming the Input reply message. All inputs can have a programmed reply message feature, if this feature is programmed then when the input is triggered (turned on) you will receive the programmed message. And when the input is turned off NO message will be sent... -
Page 15: Turn An Output On Or Off
Ezy Switch SMS-T4 Installation & Operation Manual Turn an Output ON or OFF Turn OUTPUT NAME on (or) off Command: (Example: Turn Generator on) If everything is fine, the system responds with: OUTPUT NAME has been turned off (or) on This command is used to turn on/off Outputs. -
Page 16: Make An Output Pulse On And Off
Ezy Switch SMS-T4 Installation & Operation Manual Make an Output pulse On and Off Make OUTPUT NAME pulse XX secs Command: This sets the output pulse time, XX can be between 1 and 99 seconds When the Output ON command is sent as follows:... -
Page 17: Turn Output Response On / Off
Ezy Switch SMS-T4 Installation & Operation Manual Turn Output response On / Off This command is used to turn the output response text On or Off. If the output response is turned off then a response text is not sent when outputs are turned on or off System default is ON (send response). -
Page 18: Set Battery Alarm Trigger Voltage
Ezy Switch SMS-T4 Installation & Operation Manual Set Battery Alarm Trigger Voltage Change battery alarm to XX.X Command: Where XX.X can be between 8 and 30 volts The system responds with: The low voltage alarm has been set to XX.X volts and the alarm has been reset This system monitors the battery by calculating the average value of the supplied voltage over the previous 1 minute period. -
Page 19: Latching / Non-Latching Battery Alarm
Ezy Switch SMS-T4 Installation & Operation Manual Set the battery alarm as a latched or non-latched alarm If the battery alarm is set to latching then once the battery alarm has been triggered the Reset Battery Alarm command needs to be set to reset the latched alarm. If it is set to non- latching the battery alarm will reset once the battery voltage has increased by .5 volts. -
Page 20: Alive Text
Ezy Switch SMS-T4 Installation & Operation Manual Masking Alive texts. This feature allows you to mask the Alive text so only the programmed users will receive the Alive text and not all users. The default setting is all users will receive the alive text but once this command has been sent only the programmed numbers will receive the text. -
Page 21: Setting Tank Information
Ezy Switch SMS-T4 Installation & Operation Calibrating the tank sensor The tank sensor must be calibrated so the unit knows the voltage swing from empty to full. There is two methods of calibration: Method-1 is 2 point = empty and full Method-2 is 5 point = empty, ¼, ½, ¾... - Page 22 Ezy Switch SMS-T4 Installation & Operation Manual Set the tank volume Set xxxxx YYY Command: (where xxxxx = the total litreage of the tank) (where YYY can be litres or gallons) The system responds with: The tank volume has been set to xxxxx YYY...
-
Page 23: Get Firmware Version
Tank volume is 1200 lts : 68% OR Tank volume is 1200 gals: 68% Get Firmware Version Command: The system responds with: SMS-T4 Ver X.X Get Signal Strenth Command: The system responds with: Currently the signal strength is XX %"... -
Page 24: Warranty
Ezy Switch SMS-T4 Installation & Operation Manual CONDITIONS OF WARRANTY Penguin Electronics Ltd (the manufacturer) warrants that all of its products are free of defects. Any apparent fault will be rectified free of charge by Penguin Electronics Ltd for a... -
Page 25: Appendix One
Ezy Switch SMS-T4 Installation & Operation Manual Appendix One: Record Your Names for all Inputs and Outputs Active Input Default [Name] (Up to 20 characters ) Latched Linked Open Yes No Name Closed input1 Input2 Input3 Output output1 Output2 Output3... -
Page 26: Trouble Shooting Guide
Ezy Switch SMS-T4 Installation & Operation Manual Trouble Shooting Guide PROBLEM CAUSE POSSIBLE SOLUTION LED not flashing No power Check power supply LED fast flashes Cannot find the GSM network 1. Replace aerial with high gain (every 1 second) aerial and never slow 2. -
Page 27: Sms-T4 Setup Tank To Pump (Application Notes)
Ezy Switch SMS-T4 Installation & Operation Manual SMS-T4 Connected To The Tank The SMS-T4 can be used with either a PRESSURE SENDER monitoring the complete tank or just with a low and high level FLOAT SWITCH. To set-up send the following commands (bold):... - Page 28 Ezy Switch SMS-T4 Installation & Operation Manual If using a low and high FLOAT SWITCHES: Connect low float switch to input1 and high float switch to input2 Float switch must be normally open and closing when water is present. Send: Set user...
- Page 29 SMS-2 instructing it to continue pumping. This refresh will be sent by the SMS-T4 every 10 minutes or until the high level has been reached. If the SMS-2 pump controller does not receive this refresh text after 16 minutes, it turns the pump off, the SMS-2 pump controller it will keep looking for a refresh message every 4 minutes.
- Page 30 Float Mode Pump Operation...
- Page 31 Ezy Switch SMS-T4 Installation & Operation Manual Monitors complete tank with level sensor, Tank when the low level has been reached a text is sent to the SMS-2 which turns the Pump pump On, when the tank reset level is...
- Page 32 © All technologies, design and Intellectual property is owned by Penguin Electronics Ltd New Zealand Version 2.3...
