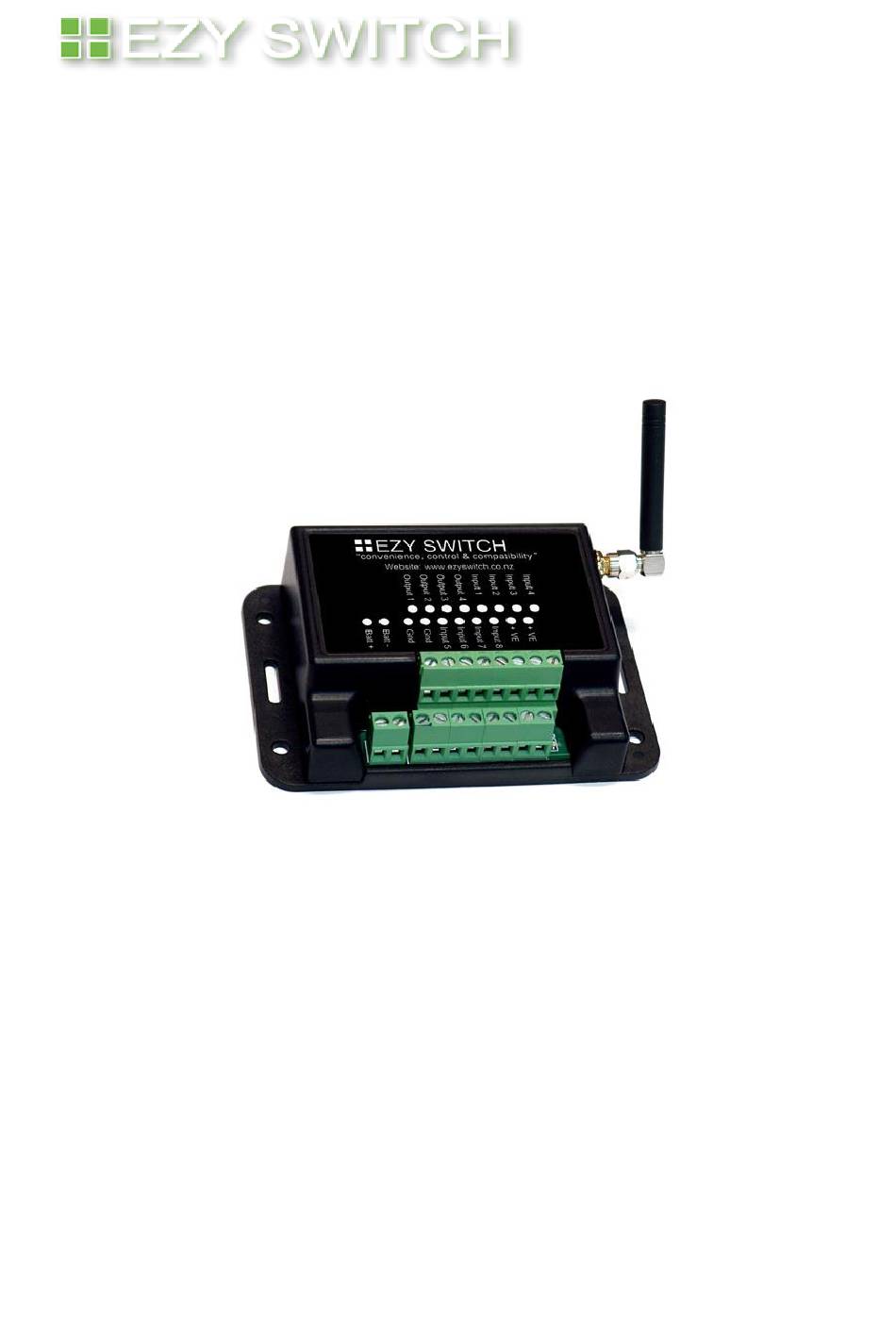

- Page 1 EZY SWITCH LIMITED SMS-IRR-4 System Monitor Installation Manual...
-
Page 2: Table Of Contents
Table of Contents COMMANDS Getting Started – Setting Up Initial User Adding a User Removing a User Adding an Administrator Removing the Administrator Get a list of all the Users Turn programmed numbers lookup on or off Text all programmed numbers on or off Turn All Texts OFF and Disable Inputs Turn All Texts ON and Enable Inputs Testing... - Page 3 Ezy Switch SMS-IRR-4 Installation & Operation Manual Features - Model SMS-IRR-4 • Receive text messages on your cell phone alerting you to potential problems anywhere in the world • Send commands to control lights, pumps, appliances, air conditioning, etc. via text message from your cell phone •...
- Page 4 Ezy Switch SMS-IRR-4 Installation & Operation System SIM Card SIM Card Ezy Switch Ltd Terminal 11 Terminal 18 Terminal 3 Terminal 1 Terminal 10 Signal LED Signal LED: If the LED flashes once every 1 second, this indicates the cellular network cannot be found (out of GSM coverage range).
- Page 5 Ezy Switch SMS-IRR-4 Installation & Operation Outputs The unit has two (4) Outputs. The Outputs are Relays rated at 3 A resistive @ 125VAC Relay 1 Connection Relay Internal Relay Terminals Relay 2 Connection Relay Internal Relay Terminals 9-10 Relay 3 Connection...
- Page 6 Ezy Switch SMS-IRR-4 Installation & Operation Inputs The SMS-IRR-4 has two (3) Inputs and can be connected as per Fig1b or Fig 4 Fig 1a Sensor Terminal 3-4 Temperature sensor Fig 1b +10 - 30vdc Input 1 Terminal 6 Switch...
-
Page 7: Getting Started - Setting Up Initial User
Ezy Switch SMS-IRR-4 Installation & Operation !! IMPORTANT !! Setting up system for the first time: Please ensure the SIM card does NOT have a PIN number or is locked has been ACTIVATED with the network provider, insert into SIM slot on the back (see page 4) and power the unit up. -
Page 8: Adding A User
Ezy Switch SMS-IRR-4 Installation & Operation Commands Adding a User (Note: Setting up the first user page 7 must be done first) Add user +??XXXXXXXX Country Code page 7) Command: (see If the user is already in the list, the system responds with:... -
Page 9: Removing The Administrator
Ezy Switch SMS-IRR-4 Installation & Operation Removing a Administrator Remove admin Command: The system responds with: The administrator number and feature has been removed Note: this completely removes the administrator from the user list, it does NOT move the user down a security level to normal “user”... -
Page 10: Turn All Texts Off And Disable Inputs
Ezy Switch SMS-IRR-4 Installation & Operation Turn all Input Text’s OFF With alerts turned off the device will NOT text every time any Input changes but the Inputs are still active so you can send a “Input status” query at any time. Linked outputs will not work. -
Page 11: Naming Inputs/Outputs And Changing Names
Ezy Switch SMS-IRR-4 Installation & Operation Naming Inputs and Outputs and Changing Names: Command for initial Naming or changing name of Input or Output: Note: The system default names are: Inputs: Input1, Input2, Input3, Input4 Outputs: Output1, Output2, Output3, Output4 The name can contain a dash ( –... -
Page 12: Change Input To Normally Open Or Normally Closed
Ezy Switch SMS-IRR-4 Installation & Operation Change Input to Normally Open or Normally Closed Make INPUT NAME active open (or) closed Command: This command is used to define if the switch wired to the Input is normally open or normally closed. -
Page 13: Link An Input To An Output
Ezy Switch SMS-IRR-4 Installation & Operation Link an Input to an Output Link INPUT NAME to OUTPUT NAME Command: (Example: Link alarm to siren) The system responds with: The INPUT NAME has been linked to OUTPUT NAME To clear a link... -
Page 14: Programming The Input Reply Message
Ezy Switch SMS-IRR-4 Installation & Operation Programming the Input reply message. (ver 2.4 and above only) All inputs can have a programmed reply message feature, if this feature is programmed then when the input is triggered (turned on) you will receive the programmed message. -
Page 15: Turn An Output On Or Off
Ezy Switch SMS-IRR-4 Installation & Operation Turn an Output ON or OFF Turn OUTPUT NAME on (or) off Command: (Example: Turn Generator on) If everything is fine, the system responds with: OUTPUT NAME has been turned off (or) on This command is used to turn on/off Outputs. If the item named is not an Output or the... -
Page 16: Make An Output Pulse On And Off
Ezy Switch SMS-IRR-4 Installation & Operation Make an Output pulse On and Off Make OUTPUT NAME pulse XX secs Command: This sets the output pulse time, XX can be between 1 and 99 seconds When the Output ON command is sent as follows:... -
Page 17: Make Output Public
Ezy Switch SMS-IRR-4 Installation & Operation Make an output public This command is used to make an output public, which means it can be controlled by anyone and not just a programmed user. This could be used for a gate for example. -
Page 18: Set Battery Alarm Trigger Voltage
Ezy Switch SMS-IRR-4 Installation & Operation Set Battery Alarm Trigger Voltage Change battery alarm to XX.X Command: Where XX.X can be between 8 and 30 volts The system responds with: The low voltage alarm has been set to XX.X volts and the alarm has been reset This system monitors the battery by calculating the average value of the supplied voltage over the previous 1 minute period. -
Page 19: Latching / Non-Latching Battery Alarm
Ezy Switch SMS-IRR-4 Installation & Operation Set the battery alarm as a latched or non-latched alarm If the battery alarm is set to latching then once the battery alarm has been triggered the Reset Battery Alarm command needs to be set to reset the latched alarm. If it is set to non- latching the battery alarm will reset once the battery voltage has increased by .5 volts. -
Page 20: Get Firmware Version
If everything is fine, the system responds with: The number has been added to the alive text list Get Firmware Version Command: The system responds with: SMS-IRR-4 Ver X.X Get Signal Strenth Command: The system responds with: Currently the signal strength is XX %"... -
Page 21: Get Temperature
Ezy Switch SMS-IRR-4 Installation & Operation Get Temperature (Temperature range -25 to 80 degrees C) You can text and get the current temperature at any time. Command: Temp The system responds with: The temperature is xx Degrees (where xx is the temperature is degrees C) -
Page 22: Link Temperature Alarms To Outputs
Ezy Switch SMS-IRR-4 Installation & Operation Set alarm temperatures On and Off delays (available in ver 3.3 or latter) Both high and low alarms can have an On and or Off delays attached. There are four delays. Eg Low On delay / Low Off delay, High On delay / High Off delay. -
Page 23: Irrigate Feature
Ezy Switch SMS-IRR-4 Installation & Operation Irrigator Feature For applications where motor or other circuits are controlled from the SMS-2 unit’s output and the connected load must be stopped by either manual stop switch or sensor (such as a pressure switch on pumping applications). Opening the output uses the SMS’s internal logic and therefore is instantaneous. -
Page 24: Gps Functions
Ezy Switch SMS-IRR-4 Installation & Operation GPS Functions The SMS2-GPS can send a text giving its current GPS location at any time. To get the current location on demand: Command: The system responds with: (example) Current location is: http://www.goggle.com/maps/places (GPS location) - Page 25 Ezy Switch SMS-IRR-4 Installation & Operation Linking GPS Alarm to an input Either input1, 2 or 3 can be linked to the GPS alarm, if this linked input is triggered the unit will send out the following text: Irrigator stopped at xxxxxx.yyyyyyyy, due to input name turning on Where xxxxxx.yyyyy is the GPS coordinates...
- Page 26 Ezy Switch SMS-IRR-4 Installation & Operation CONDITIONS OF WARRANTY Penguin Electronics Ltd (the manufacturer) warrants that all of its products are free of defects. Any apparent fault will be rectified free of charge by Penguin Electronics Ltd for a period of 12 months from purchase date, provided that: All costs of installation, cartage, freight, travelling expenses and insurance are paid by ❑...
-
Page 27: Appendix One
Ezy Switch SMS-IRR-4 Installation & Operation Appendix One: Record Your Names for all Inputs and Outputs Active [Name] (Up to 20 characters ) Latched Linked Open Input Default Yes No Name Closed input1 Input2 Input3 input4 Output output1 Output2 Output3... - Page 28 Ezy Switch SMS-IRR-4 Installation & Operation Detailed explanation of alarm points: High alarm temp in – degrees area High alarm temp in + degrees area. Alarm area Alarm area Alarm set point Alarm set point Reset alarm area Reset alarm area High Alarm: The unit will alarm if the current temperature is equal to or greater than the programmed high set point temperature.
-
Page 29: Trouble Shooting Guide
Ezy Switch SMS-IRR-4 Installation & Operation Trouble Shooting Guide PROBLEM CAUSE POSSIBLE SOLUTION LED not flashing No power Check power supply LED fast flashes Cannot find the GSM network 1. Replace aerial with high gain (every 1 second) aerial and never slow 2. - Page 30 © All technologies, design and Intellectual property is owned by Penguin Electronics Ltd New Zealand Version 1.1...
