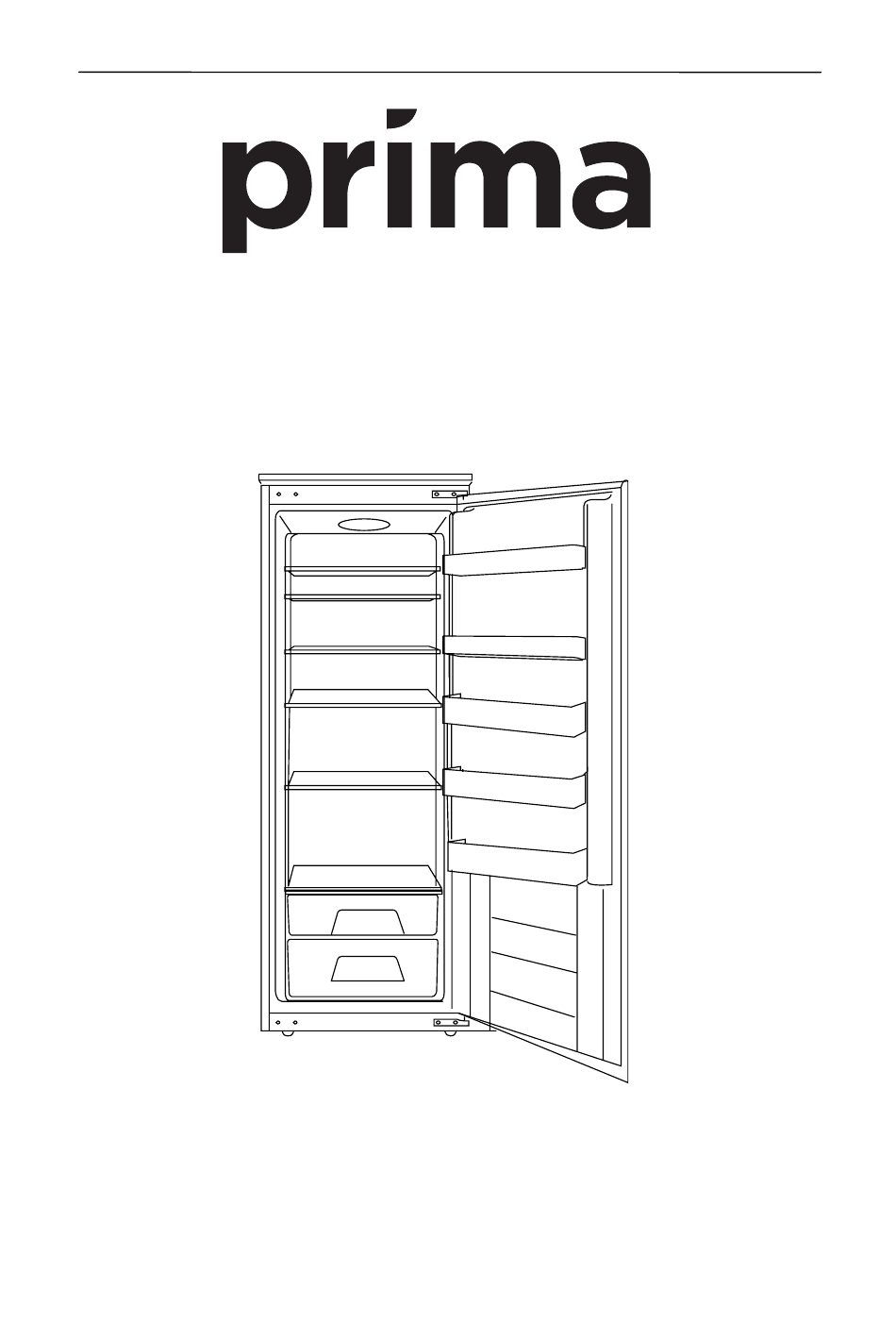

- Page 1 Instruction Manual Integrated 177cm larder fridge MODEL PRRF208 Before use, please read and follow all the safety rules and operating Instructions.
-
Page 2: Table Of Contents
Contents Cautions---------------------------------------------------------------------------------------------1~2 Diagram---------------------------------------------------------------------------------------------3 Preparation-----------------------------------------------------------------------------------------3 Operation-------------------------------------------------------------------------------------------4 Instruction------------------------------------------------------------------------------------------5~7 Defrosting, cleaning and de-commissioning----------------------------------------------8~9 Trouble shooting---------------------------------------------------------------------------------10... -
Page 3: Cautions
Cautions Disposal of the old appliance Before disposing an old appliance, please make sure it’s inoperative and safe. Unplug the appliance and remove or destroy all of the springs, latches, or bolt-locks in order to avoid the risk of child entrapment. It must be noted that the refrigeration system contains insulating gases and refrigerants, which require specialized waste disposal. - Page 4 Cautions...
-
Page 5: Diagram
Refrigerator Diagram-- Preparation 1. Shelves 2. Vegetable and fruit tray 3. Temperature Controller 4. Egg tray 5. Bottle racks This diagram may vary slightly with the layout of the refrigerator you have just purchased due to technical improvements. Preparation Unpacking Remove all packing materials. -
Page 6: Operation
Operation Starting the refrigerator After connecting to the power supply, turn the temperature controller clockwise from position 0 to any position between 1 and 7 to start the refrigerator. The refrigerator compressor will stop when the temperature controller is at position 0. Adjusting the temperature: The temperature inside the refrigerator is adjusted by turning the temperature controller. -
Page 7: Instruction
Instructions Cold storage is for short-term food storage or for daily consumption. Although the temperature in most parts of the cold storage compartment can be regulated between 0 food storage is not recommended. Cold storage and 10 degrees Centigrade, extended periods of should only be used for short-term storage. - Page 8 Instructions * Do not store excess quantities or weights of food; food should be stored with spaces in between for better storage results. Never overload shelves, as they may collapse under excessive loads. * Food to be stored should be sorted according to consumer requirements. Food consumed daily should be placed in the most convenient area, this will minimize opening periods for the door.
- Page 9 Instructions Instructions for food storage *Storage period will be extended if vegetables are placed with their roots towards the cold source. *Leaves of carrots or turnips should be removed before storage. *Put a wad of tissue on the bottle holder before placing bottles on it so that later cleaning is easier *Onions, garlic, ginger, water chestnuts and other root vegetables should not be stored in the refrigerator,as these foods are suitable for long-term storage at...
-
Page 10: Defrosting, Cleaning And De-Commissioning
Defrosting-Cleaning -De-commissioning Defrosting the cold storage compartment The cold storage compartment is designed for automatic defrosting. Frost formed on the back wall will melt and flow via the drainpipe to the evaporating container over the compressor on the back of the refrigerator, where the heat generated by the compressor will evaporate the water. - Page 11 Defrosting-Cleaning -De-commissioning Power failure Even in summer, food can be stored in the refrigerator for a few hours after a power failure. * Don’t put additional food into the refrigerator during a power failure. * Avoid opening the door during power failures *If prior notice of a power failure is given, make some ice and put it in a container in the top of the cold storage compartment.
-
Page 12: Trouble Shooting
Questions and Answers Events below are not problems: * The temperature of the refrigerator and the compressor will rise and the compressor will run for comparatively longer periods when the refrigerator is first started. * Wipe water drops on the external surface of the refrigerator with a soft cloth. * When the refrigerator is opened frequently or stay open too long in humid seasons, the cavity will be dampened. - Page 13 (mm) (mm) (mm) (mm) (mm) (mm) 1776 550-560 1778-1785...
