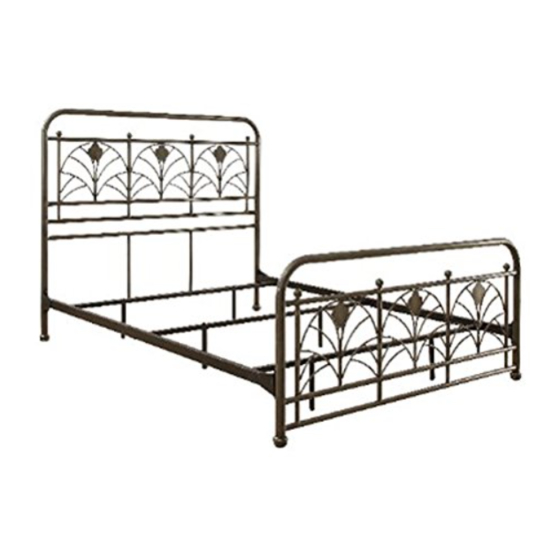

PRODUCT DESCRIPTION: Averyl Queen Size bed
Item # QDQ-3161Q
Customer Service Department.
8:30 a.m.– 5:00 p.m. EST, M-F
E-Mail: customerservice@foremostgroups.com
Toll Free: (800) 443-1410
Fax: (973) 428-8026
www.craftandmain.com
Assembly Instructions >>>
IMPORTANT
RETAIN FOR FUTURE REFERENCE
READ CAREFULLY
assembly instructions I
•1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Craft+Main Averyl QDQ-3161Q
Summary of Contents for Craft+Main Averyl QDQ-3161Q
- Page 1 Assembly Instructions >>> PRODUCT DESCRIPTION: Averyl Queen Size bed Item # QDQ-3161Q Customer Service Department. 8:30 a.m.– 5:00 p.m. EST, M-F IMPORTANT E-Mail: customerservice@foremostgroups.com RETAIN FOR FUTURE REFERENCE Toll Free: (800) 443-1410 Fax: (973) 428-8026 READ CAREFULLY assembly instructions I •1 www.craftandmain.com...
- Page 2 Congratulations on your purchase from Craft + Main ™ FOR YOUR SAFETY Please read instructions carefully and thoroughly before assembling. DO NOT use this product if it is damaged or broken. Adult assembly is required. Keep plastic bags and small parts away from children. Safely discard all packing materials.
- Page 3 PARTS LIST (C) FOOTBOARD (D1) SIDE RAIL(WITH 1 BRACKET) (A) HEADBOARD TOP (B) HEADBOARD BOTTOM QTY: 1PC QTY: 2PCS QTY: 1 PC QTY: 1 PC (D2) SIDE RAIL(WITH 2 BRACKETS) (E) SLAT (F) SUPPORT LEG QTY: 2PCS QTY: 3PCS QTY: 6PCS assembly instructions I •3 www.craftandmain.com...
- Page 4 HARDWARE LIST (1) HEX SOCKET HEAD BOLT (2) HEX SOCKET HEAD BOLT (3) HEX SOCKET HEAD BOLT (4) SPRING WASHER M8 x 19mm M8 x 25mm M8 x 51mm Ø8.5mm QTY: 10PCS QTY: 8PCS QTY: 12PCS QTY: 24PCS (5) METAL FLAT WASHER (6) RUBBER FLAT WASHER (7) NUT (8) ALLEN WRENCH...
- Page 5 ASSEMBLY Step 1: Attach the headboard top (A) to headboard bottom (B) with hex socket head bolts (1),spring washers (4) and metal flat washers (5).Use Allen wrench (8) to tighten bolts. Step 2: Attach the side rail (D1) to side rail (D2) with hex socket head bolts (1),spring washers (4) and metal flat washers (5).Use Allen wrench (8) to tighten bolts.
- Page 6 ASSEMBLY Step 3: Step 4: Attach the assembled side rails to the headboard bottom (B) Attach the support legs (F) to the slats (E) with hex socket and footboard (C) with hex socket head bolts (2),spring washers head bolts (3).Use Allen wrench (8) to tighten bolts. (4),metal flat washers (5) and rubber flat washers (6).Use Allen wrench (8) to tighten bolts.
- Page 7 ASSEMBLY Step 5: Place the slats (E) on the metal brackets of the side rails (D1&D2).Secure using hex socket head bolts (3),spring washers (4),metal flat washers (5) and nuts (7).Use Allen wrench (8) & Open-end Wrench (9) to tighten bolts and nuts. Ensure that the bed sets up evenly on the floor by turning the adjustable levelers underneath support legs (F) clockwise as the...
- Page 8 WARRANTY 1 YEAR LIMITED WARRANTY FOR RESIDENTIAL USE ONLY All Craft + Main product carries a limited one year warranty. The warranty covers manufacturer defects and does not cover normal wear or neglectful use. Craft + Main products are covered by this warranty when used in non-commercial, non-institutional residential use only. The warranty is in effect for the consumer for 1 year from the date of the purchase. Foremost Groups Inc.
