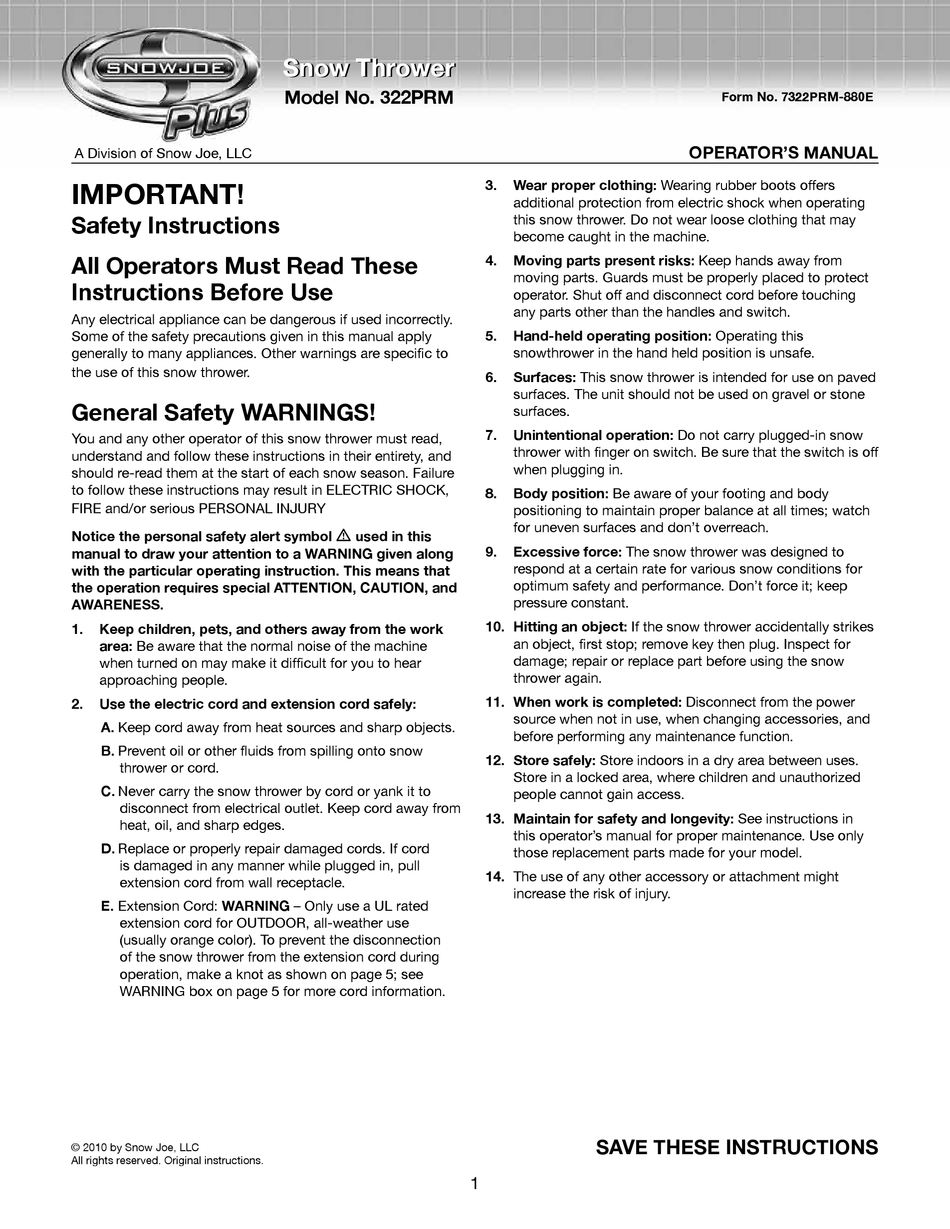

A Division of Snow Joe, LLC
IMPORTANT!
Safety Instructions
All Operators Must Read These
Instructions Before Use
Any electrical appliance can be dangerous if used incorrectly.
Some of the safety precautions given in this manual apply
generally to many appliances. Other warnings are specific to
the use of this snow thrower.
General Safety WARNINGS!
You and any other operator of this snow thrower must read,
understand and follow these instructions in their entirety, and
should re-read them at the start of each snow season. Failure
to follow these instructions may result in ELECTRIC SHOCK,
FIRE and/or serious PERSONAL INJURY
Notice the personal safety alert symbol
manual to draw your attention to a WARNING given along
with the particular operating instruction. This means that
the operation requires special ATTENTION, CAUTION, and
AWARENESS.
1.
Keep children, pets, and others away from the work
area: Be aware that the normal noise of the machine
when turned on may make it difficult for you to hear
approaching people.
2.
Use the electric cord and extension cord safely:
A. Keep cord away from heat sources and sharp objects.
B. Prevent oil or other fluids from spilling onto snow
thrower or cord.
C. Never carry the snow thrower by cord or yank it to
disconnect from electrical outlet. Keep cord away from
heat, oil, and sharp edges.
D. Replace or properly repair damaged cords. If cord
is damaged in any manner while plugged in, pull
extension cord from wall receptacle.
E. Extension Cord: WARNING – Only use a UL rated
extension cord for OUTDOOR, all-weather use
(usually orange color). To prevent the disconnection
of the snow thrower from the extension cord during
operation, make a knot as shown on page 5; see
WARNING box on page 5 for more cord information.
© 2010 by Snow Joe, LLC
All rights reserved. Original instructions.
Snow Thrower
Snow Thrower
Model No. 322PRM
m
used in this
3.
Wear proper clothing: Wearing rubber boots offers
additional protection from electric shock when operating
this snow thrower. Do not wear loose clothing that may
become caught in the machine.
4.
Moving parts present risks: Keep hands away from
moving parts. Guards must be properly placed to protect
operator. Shut off and disconnect cord before touching
any parts other than the handles and switch.
5.
Hand-held operating position: Operating this
snowthrower in the hand held position is unsafe.
6.
Surfaces: This snow thrower is intended for use on paved
surfaces. The unit should not be used on gravel or stone
surfaces.
7.
Unintentional operation: Do not carry plugged-in snow
thrower with finger on switch. Be sure that the switch is off
when plugging in.
8.
Body position: Be aware of your footing and body
positioning to maintain proper balance at all times; watch
for uneven surfaces and don't overreach.
9.
Excessive force: The snow thrower was designed to
respond at a certain rate for various snow conditions for
optimum safety and performance. Don't force it; keep
pressure constant.
10. Hitting an object: If the snow thrower accidentally strikes
an object, first stop; remove key then plug. Inspect for
damage; repair or replace part before using the snow
thrower again.
11. When work is completed: Disconnect from the power
source when not in use, when changing accessories, and
before performing any maintenance function.
12. Store safely: Store indoors in a dry area between uses.
Store in a locked area, where children and unauthorized
people cannot gain access.
13. Maintain for safety and longevity: See instructions in
this operator's manual for proper maintenance. Use only
those replacement parts made for your model.
14. The use of any other accessory or attachment might
increase the risk of injury.
SAVE THESE INSTRUCTIONS
1
Form No. 7322PRM-880E
OPERATOR'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 322PRM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SNOWJOE 322PRM

  • Page 1 Snow Thrower Snow Thrower Model No. 322PRM Form No. 7322PRM-880E OPERATOR’S MANUAL A Division of Snow Joe, LLC IMPORTANT! Wear proper clothing: Wearing rubber boots offers additional protection from electric shock when operating Safety Instructions this snow thrower. Do not wear loose clothing that may become caught in the machine.
  • Page 2: Safety And Instruction Decals

    Manuel de rechange disponible sur envoi du numéro de modèle et du numéro de série à : CERTIFIÉ POUR CAN/CSA 120 VCA 60 HZ 7,5 AMP Snow Joe, LLC, 86 Executive Avenue, Edison, NJ 08817, ou visiter le site www.snowjoe.com STANDARD C22.2 NO. 147-M90 Fabriqué en Chine...
  • Page 3 Assembly 2. Slide the lower tube (B) into the upper tube (A) (Figure 2). Note: Before you connect the tubes, you may find it easier to remove the slack in the wire. Slightly pull the wire from the bottom of the lower tube (B) before you join the tubes CAUTION together.
  • Page 4 3. After sliding lower tube (B) inside the upper tube (A), line Power Base Assembly up he screw holes on each tube (Figure 3). 1. Position the power base (G) beneath the handle support (H) as shown in Figure 5-2. Figure 5-1 Figure 3 A.
  • Page 5: Operation

    Operation To prevent the snow thrower cord and extension cord from disconnecting during use, tie the extension cord into a loose knot around the lower bar (K) of the handle as shown in next NOTE: It is best to remove snow before it becomes packed step (Figure 7, Item O).
  • Page 6: Maintenance

    Operating Procedures Maintenance 1. Turn on the snow thrower switch: With key inserted, squeeze on/off switch to power on. Position the appliance so that the blade makes level contact with the ground, by WARNING titling it slightly forward (away from you). When starting in deep snow, see suggestion below.
  • Page 7: Service And Support

    E. Flat washer If your Snow Joe 322P electric snow thrower requires service F. Nut or maintenance, please call 1-866-SNOWJOE for assistance. Model and Serial Numbers 3. Pull out the rotor starting at the left side (Figure 10). When contacting the company, reordering parts, or arranging model and serial numbers, which are found on the decal on the lower tube.
  • Page 8 Snow Joe seller. If in the event your efforts are unsatisfactory, please write to the Snow Joe Center at the above address. If you have any questions about your product warranty, please call 1-866-SNOW-JOE or visit us online at www.snowjoe.com.
