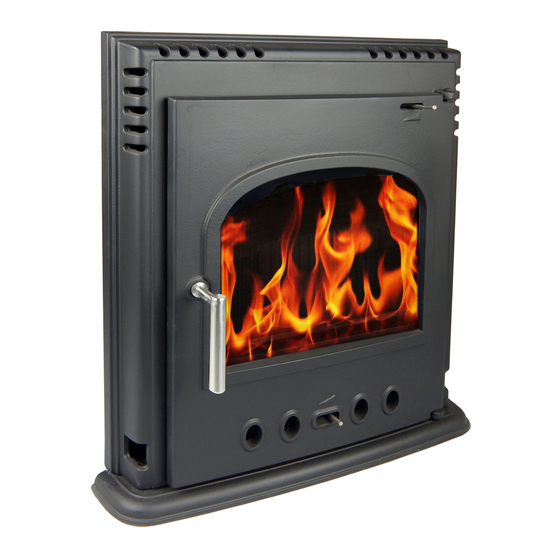

The HHB5i stove has been exempted under the clean air act of 1993 as suitable for use in smoke control areas when
burning seasoned wood logs. The stove contains a factory fitted secondary air stop which ensures that the
secondary air is permanently open 3.5mm minimum. Please carefully read the instructions on wood burning
contained in this manual, these MUST be adhered to at all times. Please see page 15 of the manual for further
reference to the clean air act of 1993
Please hand these instructions to the stove user when the installation is complete. Leave the stove ready for
operation and instruct the user in the correct use of the appliance and operation of controls.
Important: – This product must be installed by a suitably qualified installer.
For safety reasons it is essential that your stove is correctly installed and operated. Hothouse cannot
accept responsibility for any fault or consequential problems arising through incorrect installation or
operation.
INSERT STOVE
Please fix label with serial number and stove
type here before putting manual into stove
Installation and Operating
Instructions
Hothouse Inspired Products Ltd
Express Trading Estate
technical@hothouseproducts.co.uk
PLEASE READ ALL THESE INSTRUCTIONS CAREFULLY!
HHB5i
Imperial Point
Stonehill road
Farnworth
Bolton BL4 9TN
Advertisement
Table of Contents
Related Manuals for HotHouse HHB5i
Summary of Contents for HotHouse HHB5i
- Page 1 The HHB5i stove has been exempted under the clean air act of 1993 as suitable for use in smoke control areas when burning seasoned wood logs. The stove contains a factory fitted secondary air stop which ensures that the secondary air is permanently open 3.5mm minimum.
-
Page 2: Table Of Contents
Notes on Burning Solid Fuel Re-fuelling Refuelling onto a Low Firebed Fuel Overloading Shutting down Maintenance Seasonal Use 7. Safety Notes for your Guidance 8. Stove Dimensions 9. Frequently Asked Questions 10. HHB5i Spare Parts List & Codes HHB5i 11/12/13... -
Page 3: List Of Components
Fig 2 – HHB5i Stove Assembly and controls 2. Component Identification and Installation Your Hothouse Stove comes packed in a cardboard box. Carefully remove any straps and remove all cardboard and any plastic packaging, open the door and remove all the contents. See List of Components section and check contents carefully. -
Page 4: Installation Instructions
/h.m a permanent ventilator will need to be fitted. Approved document J of the building Regulations gives more detailed information. For each KW above 5KW, 550 sq mm of fixed ventilation is required – i.e. HHB5i 11/12/13... -
Page 5: Installation Information
Safety at Work Act 1974) and comply with the Health and Safety rules contained therein, and any new regulations introduced during the lifetime of these instructions. Handling Adequate facilities must be available for unloading and site handling. Hothouse Stoves are very heavily built so always ask for assistance when lifting and siting the stoves. Fire Cement Some types of fire cement are caustic and should not be allowed to come into contact with the skin. -
Page 6: Connection To Chimney
Hearths: Hothouse stoves require a 125mm thick non-combustible constructional hearth beneath them to protect the building, this can include any solid non-combustible floor. A non-combustible superimposed hearth forming an apron of at least 225mm at the front of the stove and 150mm on either side must also be provided. The superimposed hearth must not be less than 12mm thick and must have a clearly defined edge (change of level) to discourage placing of any combustible materials on or partially over it. -
Page 7: Technical Data
The primary air is used when lighting the stoves or when the fuel bed goes very low. The primary air inlet will usually be closed when burning wood and open when burning coal type fuel. HHB5i 11/12/13... -
Page 8: Cleaning
Secondary Air (Air Wash) The HHB5i stove has a powerful “air wash” system. This secondary air supply to the stove is controlled via a sliding air control located on the top right of the stove. If you want clean glass, always leave this control open some way whilst burning unless the stove is being shut right down for a long period. -
Page 9: Fuels
(0.75 to 1.5 hour burn cycles) although much longer burn times can be achieved by fully loading the firebox, getting the fuel burning well and then shutting the air controls down. The fire will then often need reviving HHB5i 11/12/13... -
Page 10: Refuelling Onto A Low Firebed
Also set the air controls to 50% to keep the appliance ventilated and stop the build-up of any moisture inside. HHB5i 11/12/13... -
Page 11: Safety Notes For Your Guidance
Feel the chimneybreast for sign of excessive heat. If the wall is becoming hot, move the furniture away. Ensure that the Fire Brigade can gain access to your roof space in order to check this area for signs of fire spread HHB5i 11/12/13... -
Page 12: Stove Dimensions
8.0 Stove Dimensions Fig. 3 – HHB5i Insert Stove All dimensions in mm unless otherwise stated. Dimensions are approximate and are subject to change without prior notice. HHB5i 11/12/13... -
Page 13: Frequently Asked Questions
A call out charge will apply if our engineer attends any stove problem that is not related to product failure. 6 Where can I get spare parts? Your local Hothouse Stove retailer will be pleased to supply spare parts and to provide any other information you require. -
Page 14: Hhb5I Spare Parts List & Codes
10.0 HHB5i Spare Parts List & Codes Component HHB5i Component HHB5i Door Glass Y1HHI04D01E Ashpan Y1HDID28E Glass Brackets and Screws Y1HDID02E Glove Y1HD29E Door Handle assembly Y1HHI04D03E Ashpan Tool Y1HD31E Coalcatcher Y1HDF04D04E Door Y1HBI04D32A Back Plate/fireboard Y1HDI04D05E Primary Air Control including handle... - Page 15 HHB5i 11/12/13...
- Page 16 Ltd Approval does not cover the use of other fuels either alone or mixed with the recommended fuels listed above, nor does it cover instructions for the use of other fuels. Hothouse Inspired Products Ltd, Imperial Point, Express Trading Estate,...
