KIT/001
Standard tools used for Acra KAM-500 system assembly

Key Features

Tool kits for Acra KAM-500 chassis, modules
and cable connectors

Applications

Assembling Acra KAM-500 system
INFO: CURTISSWRIGHTDS.COM
EMAIL: DS@CURTISSWRIGHT.COM
22 Jun. 2021 | DST/J/063

Overview

ACD/KIT/001 consists of:
ACD/TOL/002 – 24 AWG special thin body insertion tool
ACD/TOL/005 – Handle for use with ACD/TOL/002 and ACD/TOL/006
ACD/TOL/006 – Extraction tool for use with ACD/TOL/005
ACD/TOL/004 – K154 positioner
ACM/KIT/001 consists of:
ACC/TOL/002 – 3 x 0.5mm slotted screwdriver
ACC/TOL/004 – 2 mm Allen key
ACC/TOL/005 – 2.5 mm T-bar Allen key
ACC/TOL/038 – 4 x 0.8 mm slotted screwdriver

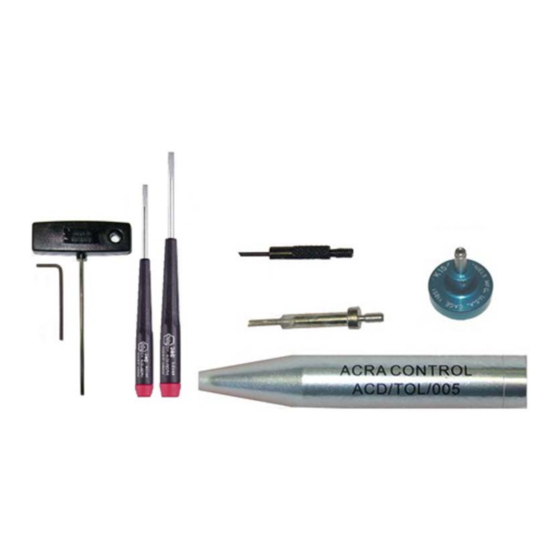

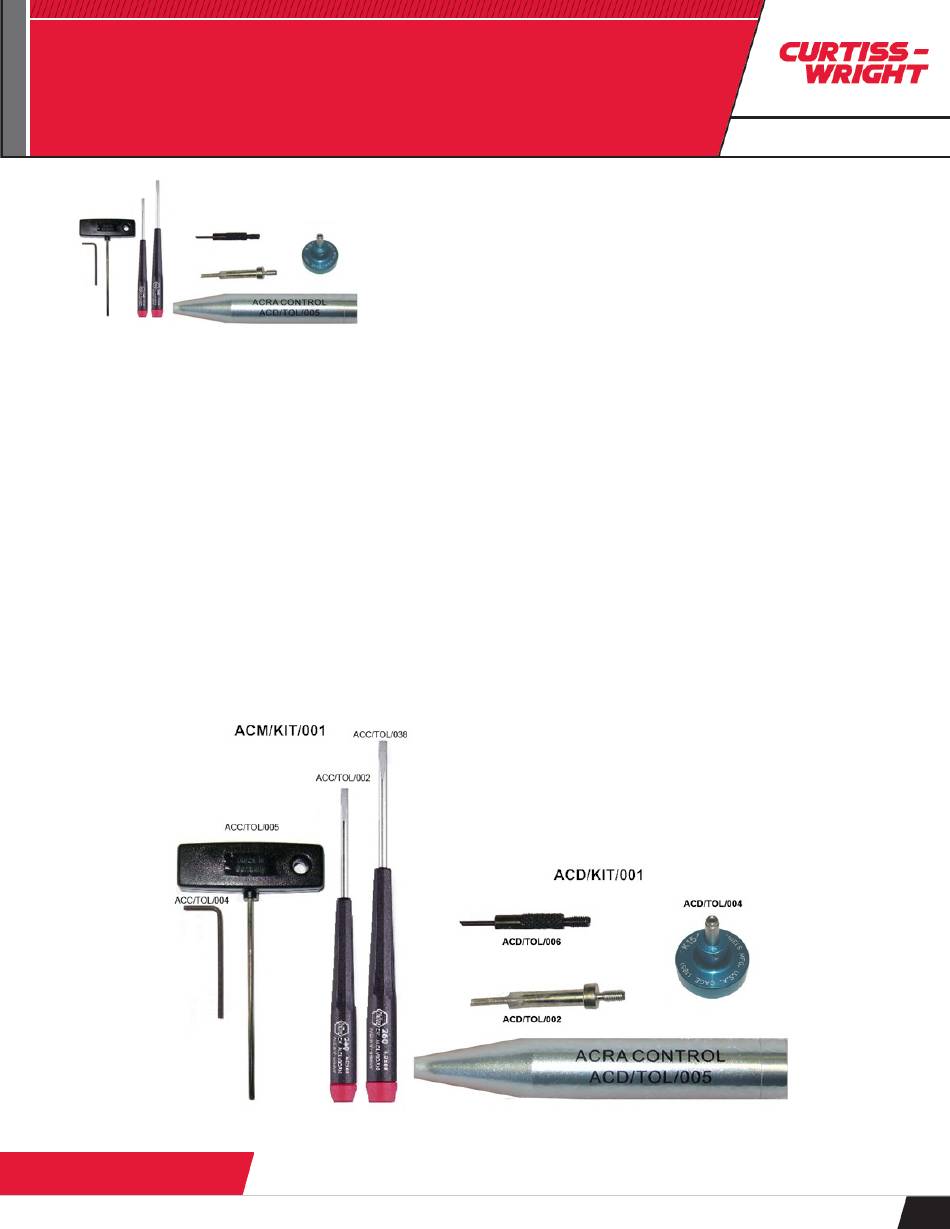

Figure 1: Standard tools used for Acra KAM-500 system assembly
CURTISSWRIGHTDS.COM
KIT/001
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACD/KIT/001 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Curtiss-Wright ACD/KIT/001

  • Page 1 KIT/001 Standard tools used for Acra KAM-500 system assembly CURTISSWRIGHTDS.COM Overview ACD/KIT/001 consists of: • ACD/TOL/002 – 24 AWG special thin body insertion tool • ACD/TOL/005 – Handle for use with ACD/TOL/002 and ACD/TOL/006 • ACD/TOL/006 – Extraction tool for use with ACD/TOL/005 •...
  • Page 2 KIT/001 Getting the most from Insert the stripped end of the wire into the contact. KIT/001 tools Follow these instructions to assemble the CON/KAD connector variations. • The proper crimp tool (Daniels AFM8) and positioner must be used. The KIT/001 tools have been designed for use with this product.
  • Page 3 KIT/001 Contact extraction When removing contacts, place the connector in the vice so that you are pushing the contacts from the opposite side they were inserted. Place the extraction tip (ACD/TOL/006) in the inser- tion/extraction handle (ACD/TOL/005). Insert the extraction tip into the socket until you feel the contact butt up against the shoulder of the pin contact.
  • Page 4 KIT/001 Ordering information PART NUMBER DESCRIPTION ACD/KIT/001 Tool kit for double-density connectors ACM/KIT/001 Tool kit for Acra KAM-500 chassis heatsinks, module retention, cable connectors and backshells By default an ACC/TOL/030 tool, which aids insertion/removal of modules, is included with each shipment. Additional items must be ordered separately;...
