- Page 1 AutoFon Alfa-Mayak Autonomous search device • determination of GLONASS/GPS coordinates • information transfer via GSM network • long-term autonomous operation Moscow AutoFon LLC 02_10_2020...
-
Page 2: Appeal To The Customer
Dear Customer! Thank you for choosing and purchasing our device AutoFon Alfa-Mayak! We hope it meets your expectations and will serve you for a long time. It is important for us to know your opinion about the operation of the device. You can fi nd out our contacts for feedback on the website autofon.ru... -
Page 3: Table Of Contents
TABLE OF APPEAL TO THE CUSTOMER ........2 PURPOSE . -
Page 4: Switching On And Installation
Creation of a wearable (mobile) panic button: for calling security or police. SWITCHING ON AND INSTALLATION To turn on the «AutoFon Alfa-Mayak» for the fi rst time, press the “SOS” button 5 times quickly, the LED will blink 5 green fl ashes. The beacon will automatically set the time via the GSM network or navigation data from satellites. -
Page 5: Principle Of Device Operation
«AutoFon Alfa-Mayak» will allow waiting for the suppression means to be disabled and contact the owner. The operating mode «AutoFon Alfa-Mayak» is set by the owner from your personal account on the server: control.autofon.ru, or via the Autofon KSA mobile application for Android and iOS. - Page 6 “sleep” state and accepts commands only at the moment of activity, which comes at the time programmed in the alarms. AutoFon Alfa-Mayak has two alarms T1 and T2 wakes up at a specifi ed time interval to perform the following actions: «SE»...
- Page 7 AutoFon LLC. Renewal is not possible! Can be operated in international roaming. The tariff plan is presented on the autofon.ru website. The amount of consumed battery energy is displayed on the AutoFon KSA server, tab - “Last state”.

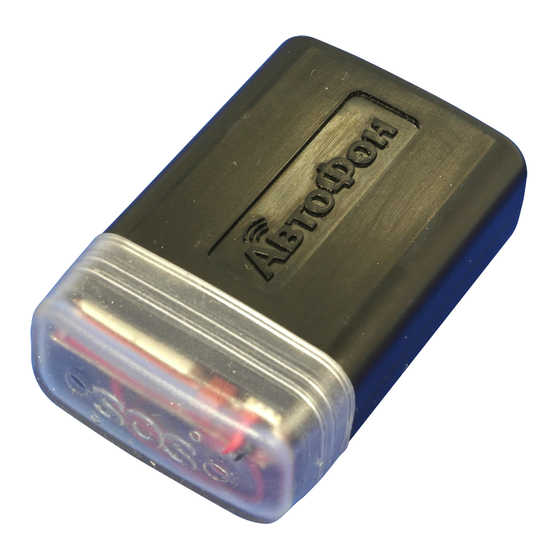

- Page 8 Hinge to remove the battery pack Rubber cap SCOPE OF DELIVERY • AutoFon Alfa-Mayak device 1 pc. • Lithium battery pack (Li/FeS2) installed, connected 1 pc. • Quick Start Guide 1 pc. • Card with registration data of the device 1 pc.
-
Page 9: Button Control
BUTTON CONTROL кнопка SOS светодиод 5 sos Turn on - turn off the Beacon (quick) pressing of the SOS button - activation of the Beacon after connecting the batteries. Switching on - the LED will blink for 3 seconds with a series of fl ashes of green color. -
Page 10: Basic Operating Modes
BASIC OPERATING MODES The device can operate both in one mode and in their combination, up to 4 modes in each «alarm clock». G - mode for determining GLONASS/GPS coordinates After waking up according to the T1/T2 alarm clock, the device determines its position using navigation satellites and sends them to the owner via SMS in the form of numerical data, or in the format of a ready-made hyperlink. -
Page 11: Device Control Commands
SMS messages to the device’s mobile number, or via a server via GPRS, as well as the AutoFon KSA mobile application on iOS and Android platforms. You can control the device from any abundant phone. At the beginning of each SMS command there must be a password - 4 digits (indicated in P.A.) and a separator - “comma”. - Page 12 “SLEEP”. By this SMS command, the device switches to the interval op- eration mode, in which it is activated by preset alarms or by pressing the SOS button, the rest of the time AutoFon Alfa-Mayakis in “sleep” mode. «АвтоФон Альфа-Маяк»...
- Page 13 SETTING OPERATING MODES VIA ALARM CLOCK. Example: XXXX,ALARM1=311400,01D,G2 Where: XXXX - password specifi ed in P.A.; ALARM1 - alarm number (two alarms in total). Acceptable command spell- ing “БУДИЛЬНИК”, “БУД”, “ALARM CLOCK”; - day of the month when the alarm clock is activated; 1400 - alarm ac- tivation time;...
- Page 14 SMS message with the identifi ers of the current and three nearest GSM base stations to the phone from which the request was made. The received data can be converted on the website www.autofon. ru or in the mobile application “AutoFon Commander”.
- Page 15 You can also use the audio control mode by calling the device from the owner’s phone when AutoFon Alfa-Mayak is in active mode. * Warning! With some SIM cards, outgoing voice communication may not be available. PASSWORD CHANGE. Example: XXXX,PASSWORD=5678...
- Page 16 Example: XXXX,IP2 = 0.0.0.0.0 AutoFon Alfa-Mayak can work with two monitoring servers (not simul- taneously). If it is impossible to communicate with the fi rst server, the beacon switches to work with the second. The return to work with the fi rst server will occur when the connection is broken, or at the next con- nection to the server.
-
Page 17: Block Commands
BLOCK COMMANDS To reduce the programming time when confi guring the device, it is pos- sible to control it using block SMS commands, in which several operation parameters can be set in one SMS message. The length of a block SMS in Cyrillic should not exceed 70 characters, in Latin - 160. - Page 18 Upon successful connection to the AutoFon Alpha- Mayak server, it ac- cepts new software, breaks the connection and performs self-programming, after which the device starts up as if it was powered. The readings of the real time clock remain correct.
- Page 19 АвтоФон Альфа-Маяк...
-
Page 20: Change Of General Parameters
CHANGE OF GENERAL PARAMETERS AND FINE Example: XXXX,SETUP19=4 Where: XXXX - password specifi ed in P.A.; SETUP is a command for setting up the work of the beacon. Acceptable spellings are «СЕТАП», «SETUP»; - number of the parameter being changed; - parameter value;... - Page 21 Factory Parameter Description Value setting 0 - disabled 1 - by cellular network data 2 - by GNSS (GPS or Glonass) SETUP 7 Time setting at power on data 3 - by any available data (GNSS or cellular network) 0 - no forwarding Forwarding unrecognized 1 - (to the 1st number) SETUP 8...
- Page 22 Factory Parameter Description Value setting 0 - 9 Type of SMS message with SETUP 19 Explanation at the end of the navigation data. table (p. 23) Power supply of the navigation 0 - disabled SETUP 20 receiver memory in the «SLEEP» 1 - enabled mode to save energy.
- Page 23 Factory Parameter Description Value setting sending SMS messages S1/S2 0 - disabled SETUP 28 and G1/G2 in case of failure of SE 1 - enabled and GE gprs-tasks Notification for the amount Automatic balance enquiry every SETUP 29 below (RUB) 7 days.
- Page 24 - seconds» without hyperlinks; 3 - basic information + coordinates in the form of hyperlink to Yandex.Maps + hyperlink to map.autofon.ru with extended information about the state of the device and the ability to automatically determine the location by GSM base stations, in the case when the satellite coordinates could not be established;...
- Page 25 8 - link to Yandex.Maps and link to Google.Maps, without any additional information. If the GPS coordinates are not determined, a link to map.autofon.ru will be sent; 9 - a short link to map.autofon.ru with full information about the state of the device and current coordinates (always fi ts into 1 SMS).
-
Page 26: Basic Command Table
BASIC COMMAND TABLE Control SMS Command action Description (p.) ХХХХ,ТЕЛЕФОН1=+79037676045 Recording owner's number. ХХХХ,ТЕЛЕФОН Checking the recorded numbers ХХХХ,ТЕЛЕФОН1=0 Deleting the number. ХХХХ,время=21052015,153423 Setting of date and time. ХХХХ,РУС Setting the Russian language. ХХХХ,АКТИВ Continuous operation. ХХХХ,СОН Intermittent operation. Setting the alarm clock mode. ХХХХ,БУДИЛЬНИК1=081400,30M,G2 ХХХХ,PASSWORD=5678 Password change. -
Page 27: Led Indication
LED INDICATIONS LED Indications Description of the Mayak operating mode 1. Getting started after power on Fast blinking of red and green 2. Incoming SMS Turning on the Mayak 5 green flashes (5 quick presses of the SOS button). Turning off the Mayak 5 long red flashes (5 quick presses of the SOS button). -
Page 28: And Ways Of Their Elimination
POSSIBLE FAULTS AND WAYS OF THEIR ELIMINATION Description of Possible cause Potential solutions the problem Mayak does not have time to go Do not send commands to the Mayak does not go to sleep mode, because com- Mayak for a while. Check the set- to sleep mode, mands are being sent to it or the tings of the parameters of the... - Page 29 Description of Possible cause Potential solutions the problem 1. Set the device 1. The mode is set to constant in the economy mode online activities. “SLEEP”. Batteries 2. There is turned on the 2. Turn off the are discharged monitoring mode. monitoring mode.
- Page 30 Decoding of informational SMS parameters CHECKING THE SETTINGS. Example SMS: 1234,INFO Device name, hardware and software version Alfa-Mayak v7.1B Device control password Password:1234 GSM communication quality level: up to 85 dB - good; GSM:-81dB(норм) 85 -100 dB - normal; 100 -109 dB - bad...
- Page 31 Decoding of informational SMS parameters CHECKING TASK SETTINGS. Example SMS: 1234,TASKSMS Device name, hardware and software version Alfa-Mayak v7.1B Time>19-05-15 Date and time of the internal clock of the device at the time of the 19:05:15 formation of the SMS message Check the tasks: Waiting=1,120.0...
- Page 32 CURRENT SETTINGS SETUP Example SMS: 1234,УСТАНОВКИ Parameter Value Mode of operation 1 - continuous Response SMS language 0 - Russian Monitoring 2 - NAVI + LBS monitoring GPRS packet sending interval 240 seconds Built-in clock time zone +3 hours Time adjustment relative to the time zone of the location 1 - no adjustment of the beacon Setting the power-on time...
- Page 33 Maximum satellite search time for SMS messages 6 minutes Maximum satellite search time for a single GPRS packet 6 minutes Power supply of the navigation receiver memory in the 0 - disabled "SLEEP" mode Force sending of additional location points when moving 1 - enabled along a radius Delay in response to repeated pressing of the SOS...
-
Page 34: Warranty Obligations
Warranty obligations The manufacturer establishes a warranty period for the device, which is 12 months from the date of its sale to the end consumer, but does not exceed 18 months from the date of manufacture of the device. If the moment of sale of the device cannot be determined, the warranty period starts from the date of manufacture of the device. - Page 35 1. General provisions on warranty service. 1.1. AutoFon LLC - (hereinafter referred to as the Manufacturer) guarantees to the Consumer within the specifi ed period free elimination of defects in...
- Page 36 Manufacturer: www.autofon.ru or fi nd out by phone: +7 (495) 544-57-97. 1.3. When transferring a faulty device for warranty repair, the Consumer must present: the device itself and a document confi rming the purchase of this device (invoice, receipt, warranty card, etc.), which clearly indicates the...
- Page 37 1.6. The Manufacturer reserves the right to refuse free warranty repair if, after diagnosing the device, damage is found caused by the following fac- tors: - The operating rules described in the operating instructions have been violated. - The service took place outside the manufacturer’s service center, the device was repaired by unauthorized persons in violation of the manufac- turer’s requirements and safety standards;...
- Page 38 turer’s service center. 2.2. When transferring the device for diagnostics and repair, the Consumer attaches a document to the device (invoice receipt, warranty card, etc.), confi rming the purchase of the device and the relevance of the device’s warranty period. Also, the Consumer fi lls out an Application for warranty re- pair (Application for diagnostics and repair of the device, fi lled in 2 copies, (the Application form for diagnostics and repair of the device is provided on the offi cial website of the Manufacturer), in which he briefl y indicates...
- Page 39 center. 3.2. If it is impossible to carry out repairs on time, the device must be re- placed with another, not used, with the same technical characteristics or, in agreement with the Consumer, for a similar one. (Upon presentation of the demand for the replacement of the device, the term for satisfying the consumer’s demand is from 7 days to one month).
- Page 40 WARRANTY CERTIFICATE Model: AutoFon Alfa-Mayak Software Version: ……………………… Date of sale/installation: …………………………………… Name of the trade enterprise (installation center) and its seal: ………………………………………………… Vendor Signature: …………………………………………… www.autofon.ru...
