AutoFon D-Mayak User Manual

Autonomous security & searching device with the rfid tag
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

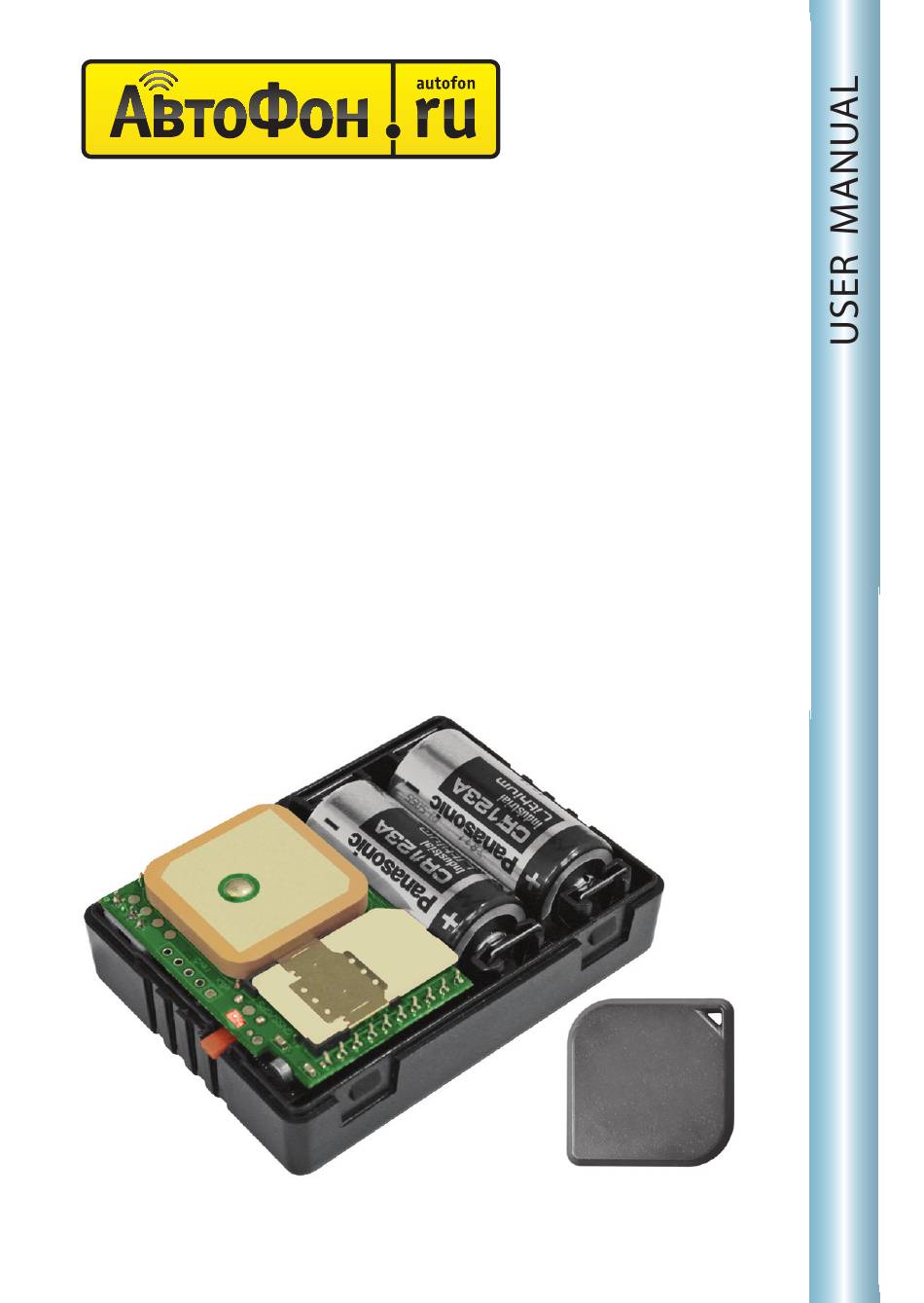

AutoFon D-Mayak
Autonomous
security & searching
device with the RFID tag
determines location via GPS,
sends the information via GSM network as text
message or GPRS package,
operates a long time autonomously.
Moscow
Ltd. «AutoFon»
18_05_2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D-Mayak and is the answer not in the manual?

Questions and answers

Related Manuals for AutoFon D-Mayak

Summary of Contents for AutoFon D-Mayak

  • Page 1 AutoFon D-Mayak Autonomous security & searching device with the RFID tag determines location via GPS, sends the information via GSM network as text message or GPRS package, operates a long time autonomously. Moscow Ltd. «AutoFon» 18_05_2016...
  • Page 2 PREFACE Thank you for purchasing AutoFon D-Mayak. This manual shows how to operate the device smoothly and correctly. Make sure to read this manual carefully before using this product. Please note that specification and information are subject to change without prior notice in this manual.

  • Page 3: Table Of Contents

    USING THE RFID tag (replacing battery) ......28 FIRMWARE UPDATE FOR AUTOFON D-MAYAK VIA GPRS ..30 WORKING WITH EXTERNAL DEVICES .

  • Page 4: Functions

    FUNCTIONS «AutoFon D-Mayak» is a new product based on GSM/GPRS network and GLONASS/GPS satellite positioning system, which set multiple functions as security, positioning, monitoring surveillance, emergency alarms and track- ing device. It can track and monitor the remote target by SMS or internet.

  • Page 5: Operation Principle

    AutoFon D-Mayak to operate in interval mode by activating it for a few minutes. In this mode the device consumes little battery power. Interval mode does not allow instantaneous communication with the device – it will execute commands during the next online session.
  • Page 6 GSM scanners. AutoFon D-Mayak determines its position by GPS and sends it to the owner via SMS or to the monitoring server in GPRS packets. Apart from coordinates the device also sends LBS information. This infor- mation can help to determine the location without satellites’...

  • Page 7: Specifications

    GSM base station (MCC, MNC, LAC, CID parameters). • Up to 2 years battery life in interval mode • Up to 10 days battery life in online mode • RFID tag batterie type CR2025 • Operation Temperature -35 ... +70 ° C. AutoFon D-Mayak...

  • Page 8: Device Scheme

    сap SOS-Button Indicator Build-in SIM-card microphone WHAT’S INCLUDED • «AutoFon D-Mayak» – 1 pc. • Lithium Battery CR123A – 2 pcs. • RFID tag – 1 pc. • Battery for RFID tag CR2025 – 1 pc. • User’s guide –...

  • Page 9: Getting Started

    Date and time will be set by satellites. Therefore, the device has requires to be located in order to find them. If it is not possible to set date and time this way, send an SMS command 1234,time=year+month+year,hours+mi nutes AutoFon D-Mayak...

  • Page 10: Main Operating Modes

    SETUP= (parameter 5 p. 21). There will be three attempts (with an interval of 1 minute between each of them). After finishing, the device will stay online for 5 more minutes to wait for an SMS-command or a call. AutoFon D-Mayak...

  • Page 11: Commands To Control The Device

    If it was not possible for AutoFon D-Mayak to sent an SMS (probable causes being no GSM network, no money on the SIM card), it will make additional attempts and then it will return to set mode and send these SMS-messages when possible.
  • Page 12 Setting active mode 1234,online (password,online) AutoFon D-Mayak v6.1a With this SMS the device is set to active Bat.: 6.16 V (82%) Т: +34 °С Mode: online mode, the device is always online. sms#1 Commands are also executed in real time.
  • Page 13 Setting the Current Date and Time from 1234,gmt=03 satelites (password,GMT=xx) (GMT=xx) where: AutoFon D-Mayak v6.1a is your timezone from 00 till 14. 04-03-2012 13:45:04 1234,GMT=04 for Moscow, Russia. Bat.: 6.16 V (82%) Т: +34 °С Date and time will be set from satellites sig- nals.
  • Page 14 Setting the date, time, and mode 1234,t1=05032012,1300,15m,f «Alarm T1/T2» (password,Тn=ddmmyy,hhxx,interval AutoFon D-Mayak v6.1a ,mode) Т1: 05-03-2012 12:00,15M,F T2: 12-03-2012 15:30,07D,G dd (day) 1 or 2 - number of the alarm, Bat.: 6.16 V (82%) Т: +34 °С mm  (month) in the range of 01…31;...
  • Page 15 Single GPS-coordinates definition 1234,G request (password,G) Autofon D-Mayak v6.1d 04-03-2012 13:45:04 Command ok. Wait The device sends a message with GPS Bat.: 6.16 V (82%) T: +34 °С coordinates in the format specified by Mode: sleep parameter № 8 in SETUP=xxx...xxx.
  • Page 16 Changing the name of the device 1234,name=OpelAstra (password,name=####) OpelAstra SE-6.1a This name will be written as a first line PASS: 5678 instead of default «AutoFon Mayak». Bat.: 6.16 V (82%) Т: +34 °С Maximum number of symbols is - 23. AutoFon D-Mayak...
  • Page 17 The new number must be entered in international format, starting with a «+» and consisting of 10-13 digits. AutoFon D-Mayak will also send SMS-message to old admin’ s number to inform about rewriting the number. Recording, editing and deleting...

  • Page 18: Password,K=120

    Balance and other USSD-requests 1234,M=*100# (password,M=xxxхххх) AutoFon D-Mayak v.6.1a Requesting account balance information. Баланс 281.09 р. Check with SIM card service provider by sms#39 using a balance command format. It is a request like or  *100# *102# 1234, М=*100# Example: During the next communication session the device will send request to the operator, receive an answer and send it to admin.

  • Page 19: Changing General Settings And Customisation

    (password,SETUP=parameter 1… parameter 25) To change the device settings with one 1234,setup=1005511132122 123212342231 command send the text message like: 1234,setup=01255**********4****2**** AutoFon D-Mayak v6.1a where 1234 - device password. SETUP=1005511132122 Number - parameter to be changed. 123212342231 * (asterisk) – parameter not to be changed Bat.: 6.16 V (82%) Т: +34 °С...
  • Page 20 2 – GPS data in digital form in degrees without hyperlinks.; 3 – Yandex-link coordinates + link to map.autofon.ru with expanded information and location on GSM base stations information in case satellites are not found;...
  • Page 21 1–9 – number of consecutive SMS with the wrong password and the correct content. Parameter 10 - low battery: 0 to 2 (1 – default). Low battery SMS-notification, 0 – no notification 1 – SMS-message to the admin’s number, only if t° > 0°C.. 2 – SMS-message to the admin’s number. AutoFon D-Mayak...
  • Page 22 2 – Active mode by activaton, 3 – – Active mode by activation + inform message Parameter 13 - SOS-button mode: (1 – default). 0 – no reaction, 1 – Alarm by pressing, 2 – Active mode by pressing, 3 – Active mode by pressing + alarm message. AutoFon D-Mayak...
  • Page 23 Parameter 16 - accelerometer sensitivity: 1 to 9 (5 – default). 1 (lowest sensitivity) 9 (highest sensitivity) Parameter 17 - movement control reactivation time: 0 to 9 (6 – default (60 minutes). 0 – 5 minutes 1 – 10 minutes 2 – 20 minutes AutoFon D-Mayak...
  • Page 24 (0 – default). 0 - GPS module on, 1 - GPS module off Parameter используется для экономии энергии при отсутствии необходимости точного определения местоположения охраняемого объекта. При отключении ГЛОНАСС/GPS модуля координаты передаются по данным LBS. Parameters 21–25 – reserved. AutoFon D-Mayak...

  • Page 25: Using The Built-In Accelerometer

    Built-in three-axis accelerometer allows monitoring the protected object, whether it is in motion, identify turning , shocking, crashing and dropping. AutoFon S-Mayak is not only used for locating stolen cars, the device makes it possible to respond immediately. Detection is performed in all modes, including hibernation. In addition, it is...

  • Page 26: Gprs-Monitoring

    The device can continuously track the object movement and send information to monitoring server via GPRS technology to monitoring server. Admin can monitor all movements of the object from any computer connected to the Internet. 1234,i1=internet.mts.ru Setting APN: AutoFon D-Mayak v.6.1a Password,i1=internet.mts.ru (МТС) i1=internet.mts.ru Password,i1=internet.beeline.ru (Beeline) i2=176.9.114.139.20102...
  • Page 27 6. Even if GPRS-monitoring is on it is possible to control the device via SMS and receive a response. 7.  All GPRS settings are saved in nonvolatile memory and don’t change when power is off. AutoFon D-Mayak...

  • Page 28: Using The Rfid Tag (Replacing Battery)

    During RFID tag search the LED on top board of AutoFon D-Mayak dimly lights. If founded one of the saved RFID tags, the LED shortly flashed three times. The RFID tag search is turned on by default settins. The device searches the RFID tags after movement detection only when the device was not moving within previous 5 minutes.

  • Page 29: Saving Rfid Tags

    To save the RFID tag into the device memo- 1234,metka «password,metka». When the red ry send LED on the top board of AutoFon D-Mayak AutoFon D-Mayak v6.1a 04-03-2012 13:45:04 starts to light dimly (up to 5 minutes), insert 1: +79037676045 the battery into the first RFID tag.

  • Page 30: Firmware Update For Autofon D-Mayak Via Gprs

    Receiving this command AutoFon D-Mayak sends confirm SMS and connects to the server. After successful connection AutoFon D-Mayak downloads and installs new firmware, during this time the device doesn’t receive any commands. After successful update the device restarts and sends an informing text message, otherwise it sends the message with an error and goes back to the current operation mode.

  • Page 31: Working With External Devices

    SMS-message to admin. To connect AutoFon D-Mayak to output channel check to see if the current can go through this circuit! The maximum load output capacity is - 200 mA, otherwise the device will fry.

  • Page 32: Information Sms

    Information SMS Russian The device name, hardware and software version v6.1a AutoFon D-Mayak v6.1a 04-03-2012 13:45:04 Internal clock’s date and time at the moment of composing new SMS Команда принята. Ждите. Спутн.: 4 за 47с. Number of GPS-satellites were found and time needed to find them.

  • Page 33: Parameters Description

    Parameters Description English AutoFon D-Mayak v6.1a 04-03-2012 13:45:04 Receiving command notification. Command OK. Wait. Sat: 4 at 47s. N55 52.7213 GPS-coordinates. E037 36.1908 http://m.maps.yandex.ru/ Can be displayed in three formats: ?l=maps&ll=037. • Degrees 143318,55.778838&pt= • Degrees minutes seconds 037.143318,55.778838&z=13 • Degrees minutes.

  • Page 34: List Of Sms-Commands

    Checking all settings and modes password,name=Mersedes p. 16 Change the name of the device password,p=5678 p. 17 Changing the device password Set number for alarm messages (crash, password,++79037676045 p. 17 turn…). password,m=#100# p. 18 Balance and other USSD-requests. AutoFon D-Mayak...
  • Page 35 If you have any problems or questions during setup or operation read «Faults & Solutions» and forum on website www.autofon.ru before contacting the service center. AutoFon support: 8-800-555-79-77(free calls from Russia) +7-495-504-12-33 Moscow, from 9 to 18 hours. AutoFon D-Mayak...

  • Page 36: Led Indication

    Indicates after incerting a battery into 7 flashes device’s memory the RFID tag LED indication on the PCB Description transceiver board Frequent flashes Searching RFID tags to save into the memory Long flash RFID tag saved into the memory AutoFon D-Mayak...

  • Page 37: Faults & Solutions

    3. The device sends incor- 3. Battery power indication de- discharge quickly rect information about battery pends on temperature. charge. Battery loss is nonlinear. 4. Audio control is often used. 4. Do not use audio control when it’s not necessary. AutoFon D-Mayak...
  • Page 38 The device did not found the Place the RFID tag closer to in RFID tag sta- RFID tag when sending the text the device and request the sta- tus: МЕТКА message tus again. 1,0(0) AutoFon D-Mayak...

  • Page 39: Warranties

    Гарантия не распространяется на элементы питания, аксессуары и принадлежности, части и детали, которые подвержены естественному износу в процессе эксплуатации и подлежат периодической замене, а также на другие комплектующие, подверженные сильным механическим воздействиям в процессе эксплуатации устройства. Гарантия не распространяется на программное AutoFon D-Mayak...
  • Page 40 В первую очередь, следите, чтобы Ваше устройство (внутренние части устройства) не подвергалось воздействию влаги, которая вызывает коррозию электронных схем. Немаловажным является беречь устройство от ударов, падений и тряски, в результате которых может повредиться корпус устройства или же встроенные печатные платы и электронные компоненты. AutoFon D-Mayak...
  • Page 41 1.1. ООО «АвтоФон» – (далее Производитель) гарантирует Потребителю в течение указанного срока бесплатное устранение недостатков устройства, обнаруженных дефектов при использовании устройства, допущенных в процессе производства, при условии соблюдения Потребителем всех рекомендованных Производителем условий транспортировки, разгрузки, хранения, эксплуатации устройства. AutoFon D-Mayak...
  • Page 42 обслуживания устройства, Производитель рекомендует обратиться в сервисный центр Производителя, адреса и телефоны, которых указаны в инструкции по эксплуатации, гарантийном талоне, а также на официальном сайте Производителя: www.autofon.ru или узнать по телефону: +7 (495) 544-57-97. 1.3. При передаче неисправного устройства на гарантийный ремонт, Потребителю...
  • Page 43 сервисном центре Производителя, специалисты центра проводят диагностику устройства, определяя характер неисправности устройства - заводской брак или результат неправильной эксплуатации Потребителем. Устройство проверяется на наличие только тех неисправностей, которые описаны в Акте рекламации и Заявлении на проведение диагностики и ремонта устройства . После проведения...
  • Page 44 2. Порядок сдачи и приема устройства на гарантийный ремонт. 2.1. Для устранения дефектов в работе устройства, Потребитель передает, отправляет или доставляет самостоятельно неисправное устройство в сервисный центр Производителя. 2.2. При передаче устройства на диагностику и ремонт, Потребитель прикладывает к устройству документ AutoFon D-Mayak...
  • Page 45 устройства и иные требования Потребителя, (кроме проведения диагностики, гарантийного ремонта и замены устройства), сервисным центром не осуществляется. По вопросам возврата неисправного устройства, Потребителю необходимо обратиться к Продавцу в отдел продаж, в котором было приобретено данное устройство. 2.7. Отремонтированное устройство сопровождается AutoFon D-Mayak...
  • Page 46 3.4. Потребителю необходимо сохранять все документы о ремонте, для подтверждения нахождения устройства в ремонте. 3.5. Гарантия на комплектующие, использованные при ремонте устройства, заканчиваются вместе с гарантией на устройство. 3.6. С момента покупки устройства всю ответственность за надлежащую, законную и безопасную эксплуатацию AutoFon D-Mayak...
  • Page 47 или иных неосторожных действий Потребителя. 3.7. В случаях негарантийного сервисного обслуживания, сервисный центр оставляет за собой право осуществить платный ремонт. Потребитель имеет право отказаться от платного ремонта. В случае отказа от платного ремонта Потребителем – устройство возвращается Потребителю в текущем виде. AutoFon D-Mayak...
  • Page 48 WARRANTY CARD Type: AutoFon D-Mayak Firmware version: ……………………………………………. Date of sale / installation: ……………………………………… Name and stamp of seller (installation center): …………………………………………. Seller’s signature: ………………………………………………. www.autofon.ru...
