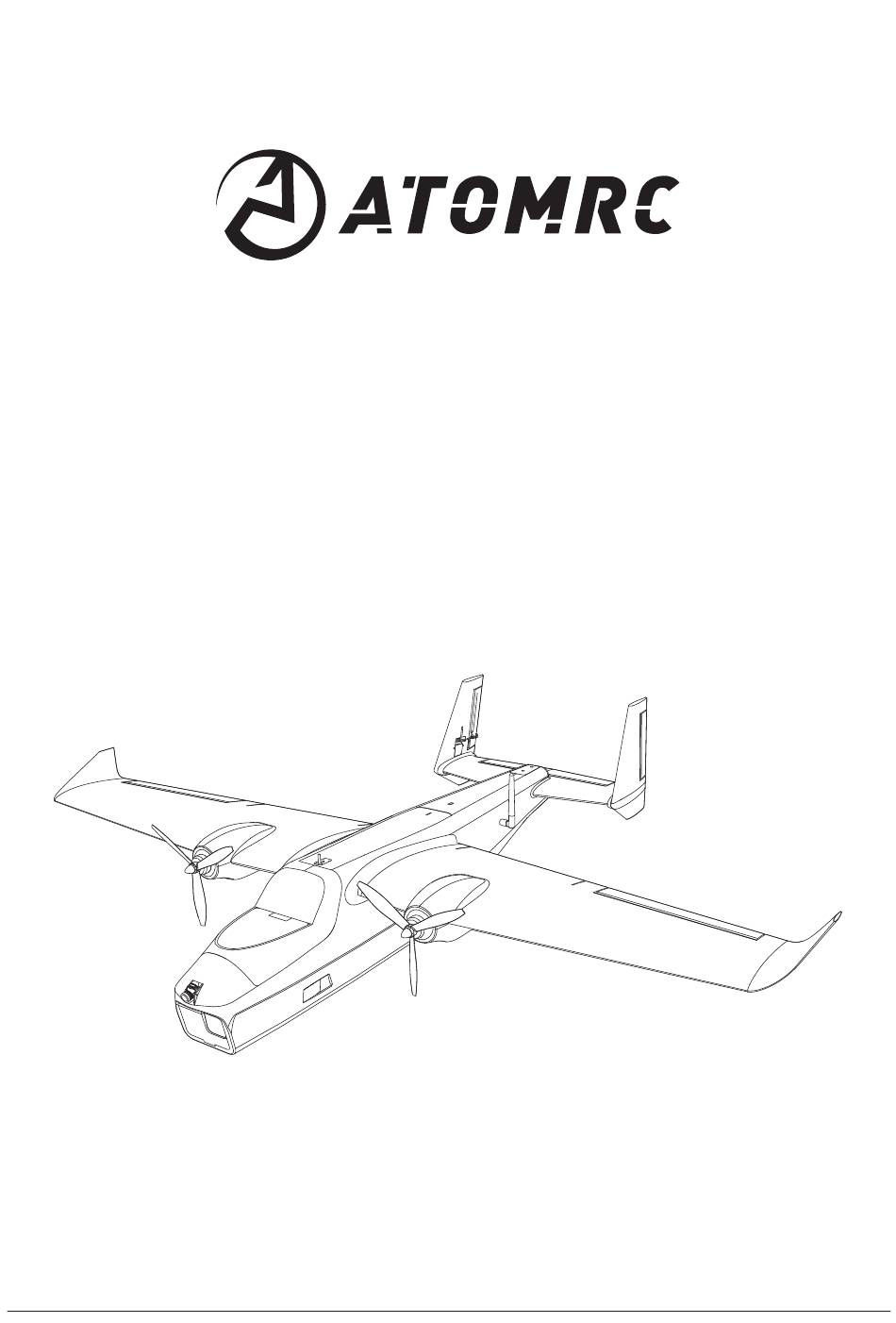

- Page 1 User Manual Killer Whale ⻁鲸 www.atomrc.com/pages/download...
- Page 2 同时也增加⻜⾏时候的⽅向控制性能，同时更易于降落。 ⑤⽀持内置安装Gopro hero 9的固定翼，同时兼容Gopro hero 5/6/7安装。 ①the killer whale is 1200mm wingspan twin motor fixed wing. ②The main wing can be quickly disassembled and assembled for easy carrying. ③Exclusive installation positions for the flight controller , VTX, antenna, and battery compartment, which are easy to install and organize.
- Page 3 Version Description/版本说明...
-
Page 4: Kit Contents
KIT Contents A：Fuselage B：WING C：Front hatch cover 左右机身 左右机翼 电池舱盖*2 D：Motor hatch cover E：Wing wiring cover F：Landing gear cover 发动机舱盖 机翼线槽盖 起落架盖 G： Top hatch cover I：Rudder Bottom hatch cover 机身底盖 机身顶盖 左右垂尾 J：Tail K：Gopro hatch cover L：Nose ⽔平尾翼 机头盖*4 低⻛阻头盖... - Page 5 KIT Lite Installation/KIT Lite安装指南 VTX/图传 将机身⽊⽚和图传固定⽊⽚、安装到机身上。 Install the Nuts on the tail, VTX mount on the fuselage. 将固定摄像头的碳⽚安装到机头。将相机固定⽊⽚安装到机头。 Install the carbon plate mount for camera. 将圆形磁铁、舱盖扣、⽊⽚、⽅形磁铁安装到机身上。 将⽅形磁铁安装到机身前⾯。 Install the magnet, hatch lock, wood plate on the fuselage. 将磁铁、舱盖⽊⽚安装到盖⼦上。 Install the magnet on each hatch cover.
- Page 6 将机翼的⽊⽚和电机固定的⽊⽚、安装到左右机翼上。 Install the Nuts and motor mount on the wing. 将舵⻆和舵⻆碳杆，安装⾄各个舵⾯。 Install the control horn on each control surface. KIT/PNP/FPV Installation/安装指南 500mm 将舵机安装到垂尾、平尾，居中调试后，安装拉杆。粘合左右垂尾。 Install the servo and push rods, then install the rudder. 15mm 起落架孔位尺⼨ Landing gear mounting hole position...
- Page 7 将舵机安装到左右机翼上，居中调试后，安装拉杆。粘合翼尖。 Install the Motor, ESC, servo and push rods, and install the wing tip. 将快拆 并联 穿过橡胶圈。 线 将机翼舵机插到快拆线上。油⻔信号、电调电源线焊接到电调上。 Install the quick detatch wire with rubber ring, plug the servo, ESC to the wire. then wire the Power distribution board. 安装发动机舱盖、安装快拆尾翼。...
- Page 8 ATOMRC KWPDBV2 /集线板安装说明 AUX2 KWPDB V2 AUX1 AUX1 此处连接⻜控或者接收机，左右机翼的信号已并联，排针和焊线⼆选⼀使⽤。 任意⼀个5V In输⼊，副翼和襟翼舵机都会同时供电, 建议仅使⽤1路5V BEC对所有舵机进⾏供电。 The signal on the wing is parallel on the PDB, the PDB need external 5V BEC to power the servo. LED or Other/LED或其他 AUX2 KWPDB V2 AUX1 AUX1 LED or Other/LED或其他...
- Page 9 ESC Information/电调说明 Throttle calibration /电调油⻔校准 1.The ESC included with the model has a safe start.If the motor battery is connected to the ESC and the throttle stick is not in the low throttle or off position,the motor will not start untill the throttle stick is moved to the low throttle or off...
- Page 10 4.Hold button 3 second to get into Power setting mode, there is short bar on LED, short press to switch power, 1 bar means 200mW, 2 bar means 800mW, 3 bar means 1500mW. 1.⻓按设置按键三秒，进⼊波段设置模式。 2.在设置模式下，短按按键切换波段。 3.再次⻓按按键三秒钟，进⼊频道切换模式，短按按键切换频道。 4.再次⻓按按键三秒钟，进⼊切换功率模式，短按按键切换功率，数码管⼀条为200mw，两条 为800mw, 三条为1500mw。 Please download the latest user manual at www.atomrc.com/pages/download...
